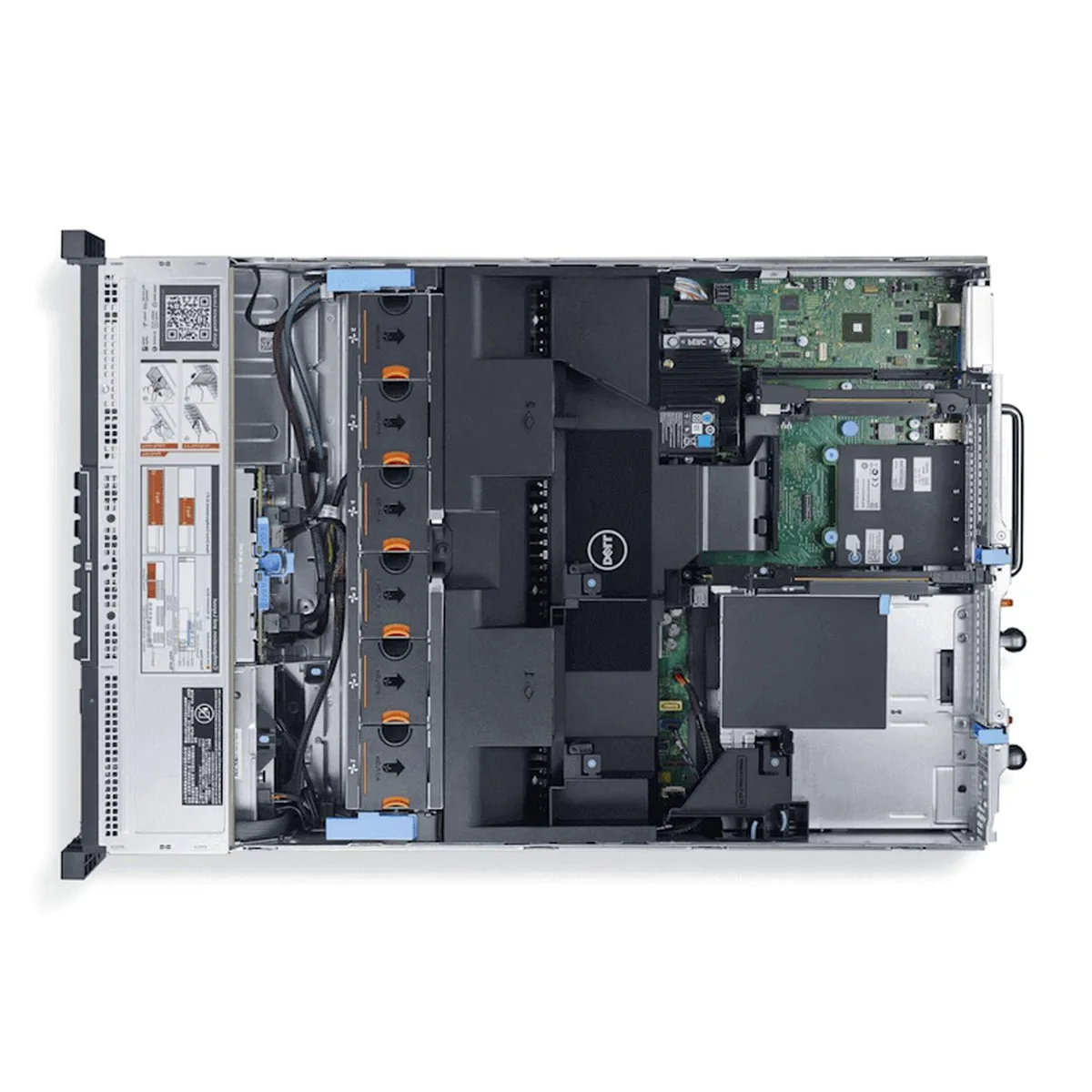

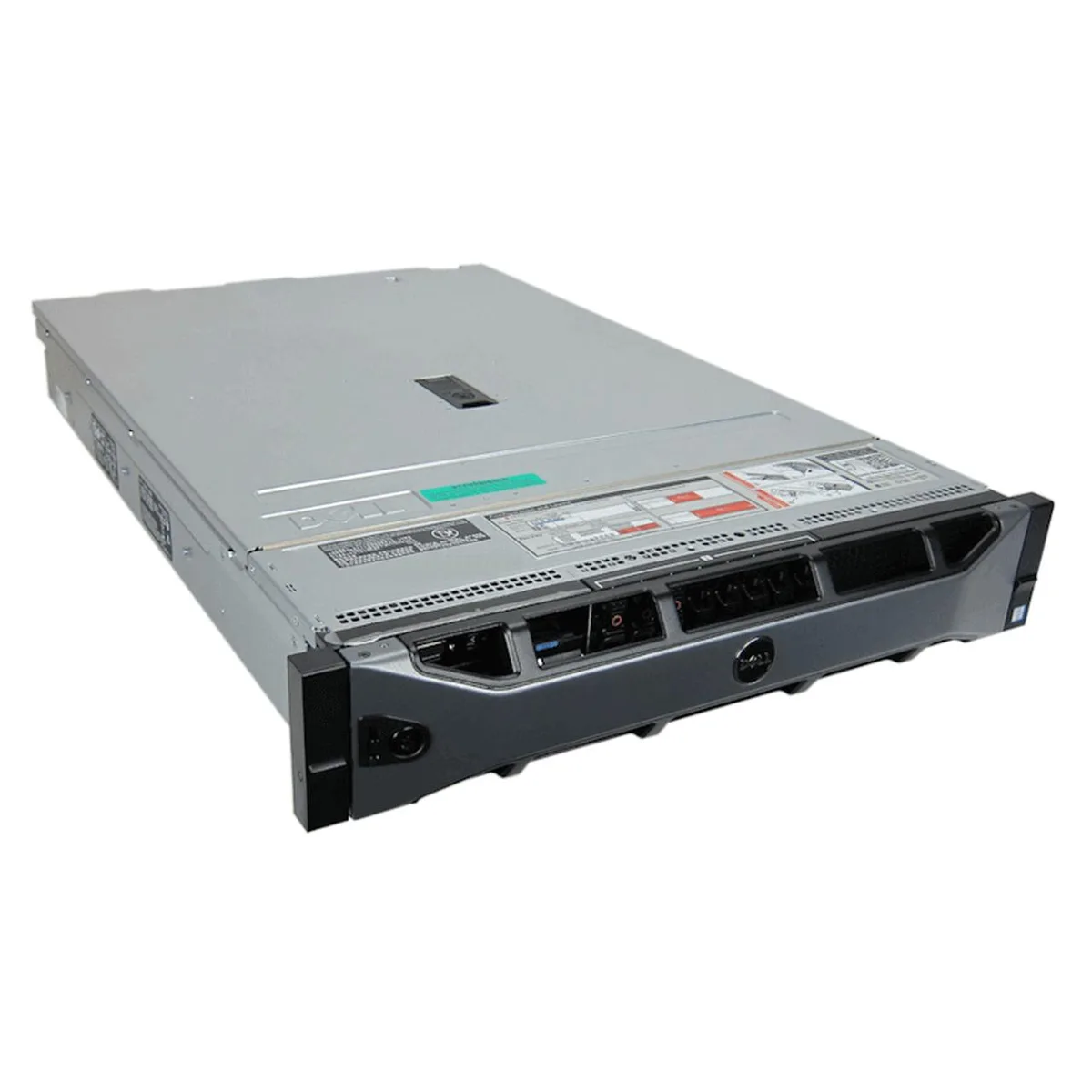

Silver 2U rack server with front bezel, eight drive bays and dual power supplies

DELL

DELL PowerEdge R730 2U rack server 2× Xeon E5-2680 v3 2.5 GHz 12-core 768 GB DDR4 8× 2.4 TB SAS H730

SKU CH-6F3Y-49E0B

2U rack server with dual 12-core Xeon CPUs, 768 GB DDR4 ECC memory and eight 2.4 TB SAS drives on a PERC H730 controller

  • TypeRack
  • Rack Height2U
  • Redundant Hot-swap PowerYes
  • CPU TypeIntel Xeon
  • CPU Speed2.5 GHz
  • CPU SocketLGA 2011-3

Installed Memory Size 768GB

HDD 8 x 2.4TB 10K SAS

  • Dual 12-core Xeon 2.5 GHz CPUs deliver 24 threads for heavy compute workloads
  • 768 GB DDR4 2133 MHz ECC memory supports large virtualisation environments
  • PERC H730 1 GB controller enables RAID 0 1 5 6 10 50 60 with battery backup
  • Eight 2.4 TB 10K SAS drives supply high-speed storage for databases
  • Quad-port X520 I350 card adds 2× 1 GbE and 2× 10 Gb SFP+ connectivity

Dual Xeon E5-2680 v3 2U server

This Dell PowerEdge R730 is a 2U rack server fitted with two Intel Xeon E5-2680 v3 processors, each running at 2.5 GHz with 12 cores and a 3.3 GHz turbo frequency. It ships with 768 GB of DDR4 registered ECC memory installed across 24 slots and a maximum capacity of 1.5 TB. The chassis holds eight 2.4 TB SAS hard drives driven by a PERC H730 controller supporting RAID 0, 1, 5, 6, 10, 50 and 60.

Virtualisation and database workloads

The dual 12-core CPUs and large memory pool suit virtualised environments, database instances and high-performance computing nodes that benefit from many threads and fast SAS storage. The quad-port network daughter card provides two 1 GbE and two 10 Gb SFP+ links for flexible connectivity. Buyers needing more than two processor sockets or more than eight 2.5-inch drive bays should consider other platforms, as this model is limited to two CPUs and eight bays.

PERC H730 RAID controller with battery

The storage subsystem centres on the Dell PERC H730 1 GB controller with battery-backed cache, enabling RAID 0, 1, 5, 6, 10, 50 and 60 plus pass-through mode. It manages the eight installed 2.4 TB 10K SAS drives at 12 Gb/s and can also handle SATA devices. This controller choice determines which RAID levels are available and whether the write cache survives a power loss.

Points forts

  • Dual 12-core Xeon 2.5 GHz CPUs deliver 24 threads for heavy compute workloads
  • 768 GB DDR4 2133 MHz ECC memory supports large virtualisation environments
  • PERC H730 1 GB controller enables RAID 0 1 5 6 10 50 60 with battery backup
  • Eight 2.4 TB 10K SAS drives supply high-speed storage for databases
  • Quad-port X520 I350 card adds 2× 1 GbE and 2× 10 Gb SFP+ connectivity

Caractéristiques

BrandDELL
SeriesPowerEdge R730
ModelR730
TypeRack
Rack Height2U
Redundant Hot-swap PowerYes
CPU TypeIntel Xeon
CPU Speed2.5 GHz
CPU SocketLGA 2011-3
Number of CPU Cores12-Core Processor
# of Processors Installed2
MAX Processors2
ChipsetIntel C610
Installed Memory Size768GB
Memory TypeDDR4
Max Memory Capacity1.5TB
Number of Memory Slots24
Storage ControllerDell Perc H730 1GB Controller
HDD InterfaceSAS
SSD (Installed)No
Raid LevelRAID 0/1/5/6/10/50/60
GPU TypeMatrox G200
Video Memory8MB
Ethernet ControllerDell Intel X520/I350 Quad Port 2x 1GbE 2x 10Gb SFP+ Network Daughter Card
LAN Ports4 x Ports
Expansion Slots1 x PCIe 3.0 x16 Slot, Single Riser Included (Riser 3)
Management PortRJ 45
Operating SystemNo
Features8 x 2.5" SATA/SAS Hot-Plug Drive Bays

Autres versions de ce modèle

5 de plus dans cette gamme

Même famille, mémoire, ventirad ou fréquence différents — comparez avant de vous décider.

Questions sur cet article

What rack height and rail kit does the 2U PowerEdge R730 require for mounting?

The server occupies 2U of rack space and ships with Ready Rails for standard square-hole or threaded-hole racks.

How are the two Xeon E5-2680 v3 processors and 24 DDR4 DIMMs installed, and what step is often missed?

Both LGA 2011-3 sockets are already populated; the 24 slots are filled with 32 GB registered ECC modules, so the common oversight is skipping the memory-channel population order when adding more later.

Which components in this R730 will need replacement first under continuous operation?

The eight 2.4 TB 10K SAS drives and the two 750 W platinum power supplies are the primary field-replaceable units with the shortest service life.
