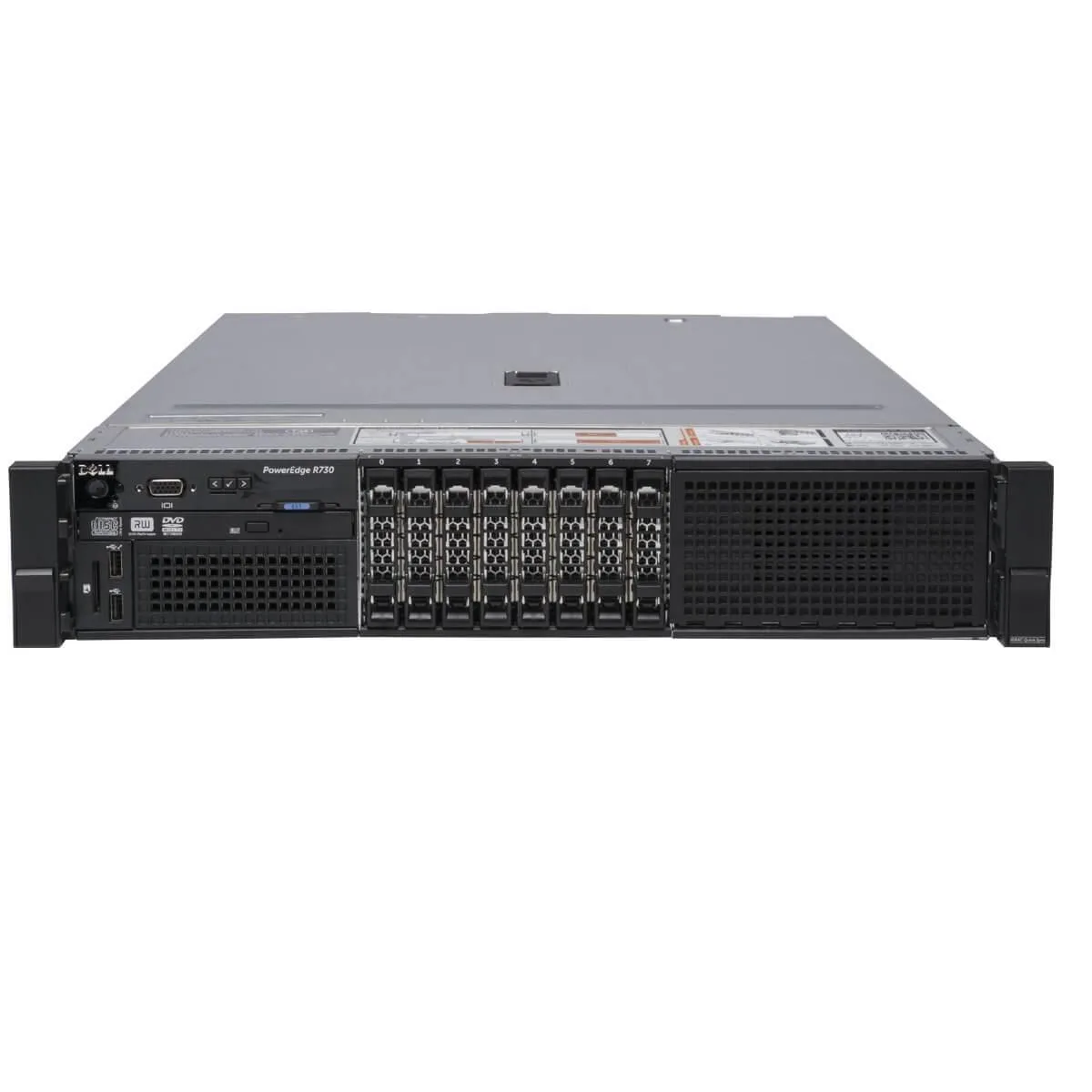

Silver 2U rack server with eight 2.5-inch drive bays and DVD drive

DELL

DELL PowerEdge R730 2U rack server E5-2609 v3 1.9GHz 96GB DDR4 2x 1TB SATA H730

SKU CH-3WDM-FE8CP

2U rack server with single Xeon E5-2609 v3 six-core 1.9GHz CPU, 96GB DDR4, two 1TB 7.2K SATA drives and H730 RAID controller

  • TypeRack
  • Rack Height2U
  • Redundant Hot-swap PowerYes
  • CPU TypeIntel Xeon
  • MAX Processors2
  • ChipsetIntel C610

Installed Memory Size 96GB

HDD 2 x 1TB

  • 96GB DDR4 memory supports demanding virtualisation workloads
  • Single Xeon E5-2609 v3 six-core 1.9GHz processor delivers reliable compute
  • H730 RAID controller with 1GB cache enables RAID 0/1/5/6/10/50/60
  • Dual 750W redundant hot-swap power supplies maintain uptime
  • Eight 2.5-inch hot-plug drive bays provide flexible storage expansion

2U rack server for virtualised workloads

The Dell PowerEdge R730 is a 2U rack server built around a single Intel Xeon E5-2609 v3 six-core processor running at 1.9GHz. It ships with 96GB of DDR4 memory installed across its 24 DIMM slots and includes two 1TB 7.2K SATA drives managed by a PERC H730 RAID controller. Dual 750W redundant power supplies and a four-port 1GbE daughter card complete the baseline configuration.

Hot-plug drive bays and tool-less memory access

Eight 2.5-inch hot-plug bays accept SAS or SATA drives and trays are supplied with any additional drives ordered. Memory modules insert into clearly labelled slots without tools, and the PERC H730 controller occupies a dedicated slot so PCIe 3.0 expansion slots remain free. The only common issue is forgetting to populate the second processor before adding memory beyond the first 12 slots, which leaves half the DIMM positions unusable.

PCIe 3.0 bandwidth and 12Gbps SAS ceiling

The seven PCIe 3.0 slots and dedicated PERC slot share third-generation lane bandwidth, so multiple high-throughput cards will contend for throughput. The H730 controller tops out at 12Gbps SAS/SATA speeds, limiting drive-array performance even if faster SSDs are installed later. The 1GbE daughter card cannot be upgraded to 10GbE without swapping the NDC module, and the maximum supported memory of 1536GB requires both processor sockets populated.

Points forts

  • 96GB DDR4 memory supports demanding virtualisation workloads
  • Single Xeon E5-2609 v3 six-core 1.9GHz processor delivers reliable compute
  • H730 RAID controller with 1GB cache enables RAID 0/1/5/6/10/50/60
  • Dual 750W redundant hot-swap power supplies maintain uptime
  • Eight 2.5-inch hot-plug drive bays provide flexible storage expansion

Caractéristiques

BrandDELL
SeriesPowerEdge
ModelPowerEdge R730
TypeRack
Rack Height2U
Redundant Hot-swap PowerYes
CPU TypeIntel Xeon
MAX Processors2
ChipsetIntel C610
Installed Memory Size96GB
Memory TypeDDR4
Max Memory Capacity96GB
Memory Features24 DIMM slots, 12 per processor. (4GB/8GB/16GB/32GB/64GB/128GB DDR4 up to 2400MT/s, actual memory speed dependent on the processor capability)
Number of Memory Slots24
Storage ControllerDell Perc H730 Controller
HDD InterfaceSATA
SSD (Installed)No
Raid LevelRAID 0/1/5/6/10/50/60
Max HDD Capacity64TB
Media DrivesDVD ROM
GPU TypeMatrox G200
Video Memory8MB
Remote ManagementiDRAC8 with Lifecycle Controller, iDRAC8 Express (default), iDRAC8 Enterprise (upgrade) 8GB vFlash media (upgrade), 16GB vFlash media (upgrade)
LAN Ports4 x Ports
Expansion SlotsUp to 7 x PCIe 3.0 plus dedicated PERC slot
Operating SystemNo
Compatible/Certified OSMicrosoft Windows Small Business Server 2011/2008, Microsoft Windows Server 2008 R2 SP1/SP2, Microsoft Windows HPC Server 2008 R2, Novell SUSE Linux Enterprise Server, Red Hat Enterprise Linux, Oracle Solaris
Weight70.0000LBS

Autres versions de ce modèle

5 de plus dans cette gamme

Même famille, mémoire, ventirad ou fréquence différents — comparez avant de vous décider.

Questions sur cet article

How can I verify the Dell PowerEdge R730 is operating correctly after installation?

Check that the iDRAC8 remote management interface responds, confirm both 750W redundant power supplies show green status, and verify the PERC H730 controller reports the two 1TB SATA drives in a healthy RAID array during POST.

What components are included with the server and what must be purchased separately?

The unit ships with one E5-2609 v3 processor, 96GB DDR4 across 24 DIMM slots, two 1TB 7.2K SATA drives in hot-plug trays, DVD-ROM, H730 RAID controller with 1GB cache, dual 750W power supplies, and a 4-port 1GbE daughter card; an operating system, additional CPUs, memory modules, drives, or 10GbE networking cards are not included.

Which memory configuration should I choose for this R730 given the installed 96GB DDR4?

The system arrives with 96GB DDR4 already installed across its 24 slots (12 per processor); supported upgrade modules are 4GB, 8GB, 16GB, 32GB, 64GB, or 128GB DDR4 up to 2400MT/s, with total capacity reaching 1536GB when both CPU sockets are populated.
