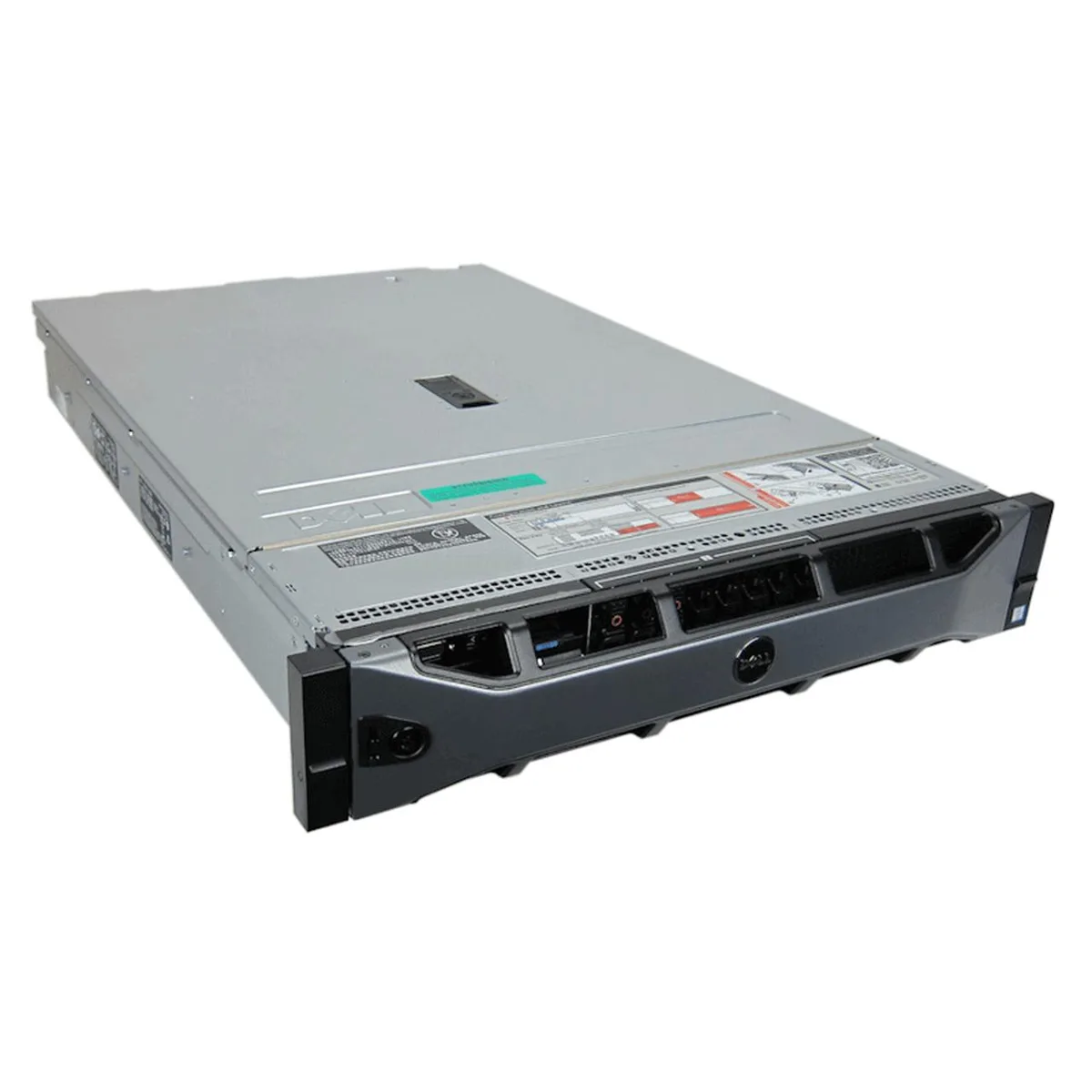

Silver 2U rack server with front bezel, eight 2.5-inch drive bays and dual hot-swap power supplies

DELL

DELL PowerEdge R730 rack server 2U 2x Xeon E5-2640 v3 2.6GHz 128GB DDR4 10x 600GB SAS H730

SKU CH-46DQ-G49D7

2U rack server with dual 8-core Xeon processors at 2.6 GHz, 128 GB DDR4 ECC memory, ten 600 GB 10K SAS drives on an H730 RAID controller, quad-port 1/10 GbE networking, iDRAC8 Enterprise management.

  • TypeRack
  • Rack Height2U
  • Redundant Hot-swap PowerYes
  • CPU TypeIntel Xeon
  • CPU Speed2.60 GHz
  • CPU SocketLGA 2011-3

Installed Memory Size 128GB

HDD 8 x 600GB 10K SAS

  • Dual 8-core Xeon processors at 2.6 GHz handle heavy workloads
  • 128 GB DDR4 ECC memory supports large virtualisation environments
  • PERC H730 controller with 1 GB cache enables RAID 0/1/5/6/10/50/60
  • Ten 600 GB 10K SAS drives deliver fast storage capacity
  • Quad-port network card provides 2× 1 GbE and 2× 10 Gb SFP+ connectivity

Dual Xeon E5-2640 v3 2U server

The Dell PowerEdge R730 is a 2U rack server fitted with two Intel Xeon E5-2640 v3 processors running at 2.6 GHz with a 3.4 GHz turbo frequency. Each CPU provides eight cores, giving sixteen cores total for multi-threaded workloads. The system includes 128 GB of DDR4-2133 registered ECC memory across eight 16 GB modules. It is aimed at midsize and large enterprises running virtualisation, databases, VDI or high-performance computing nodes.

Upgrades from single-socket

Moving from a single-socket platform doubles the core count and the memory bandwidth available to the CPU pair. The PERC H730 controller with 1 GB cache supports RAID 0, 1, 5, 6, 10, 50 and 60, allowing larger or more resilient arrays than entry-level controllers. Ten 600 GB 10K SAS drives provide high IOPS capacity for transactional databases or virtual desktop images. The quad-port network daughter card adds two 10 Gb SFP+ and two 1 GbE links for faster east-west traffic.

Verify rack depth, power and drive bay count

Confirm the rack can accommodate a 2U chassis with the included ready rails and that the facility supplies redundant power for the two 750 W platinum power supplies. The front bay population uses ten 2.5-inch SAS drives; ensure any additional drives match the SAS interface and 12 Gb/s controller capability. Memory expansion uses DDR4 registered ECC modules up to the 1.5 TB maximum across twenty-four slots. iDRAC 8 Enterprise requires a dedicated management network connection for remote console access.

Points forts

  • Dual 8-core Xeon processors at 2.6 GHz handle heavy workloads
  • 128 GB DDR4 ECC memory supports large virtualisation environments
  • PERC H730 controller with 1 GB cache enables RAID 0/1/5/6/10/50/60
  • Ten 600 GB 10K SAS drives deliver fast storage capacity
  • Quad-port network card provides 2× 1 GbE and 2× 10 Gb SFP+ connectivity

Caractéristiques

BrandDELL
SeriesPowerEdge R730
ModelR730
TypeRack
Rack Height2U
Redundant Hot-swap PowerYes
CPU TypeIntel Xeon
CPU Speed2.60 GHz
CPU SocketLGA 2011-3
Number of CPU Cores8-Core Processor
# of Processors Installed2
MAX Processors2
ChipsetIntel C610
Installed Memory Size128GB
Memory TypeDDR4
Max Memory Capacity1.5TB
Number of Memory Slots24
Storage ControllerDell Perc H730 1GB Controller
HDD InterfaceSAS
SSD (Installed)No
Raid LevelRAID 0/1/5/6/10/50/60
GPU TypeMatrox G200
Video Memory8MB
Ethernet ControllerDell Intel X520/I350 Quad Port 2x 1GbE 2x 10Gb SFP+ Network Daughter Card
LAN Ports4 x Ports
Expansion Slots1 x PCIe 3.0 x16 Slot, Single Riser Included (Riser 3)
Management PortRJ 45
Operating SystemNo
Features8 x 2.5" SATA/SAS Hot-Plug Drive Bays

Autres versions de ce modèle

5 de plus dans cette gamme

Même famille, mémoire, ventirad ou fréquence différents — comparez avant de vous décider.

Questions sur cet article

What rail kit is included for mounting the 2U chassis?

The server ships with Dell Ready Rails for tool-less mounting in square-hole or round-hole cabinets.

What is the first step when installing the PERC H730 controller?

Insert the PERC H730 1GB mini controller into the dedicated internal storage slot before cabling the 2.5-inch drive backplane.

Which component on the PERC H730 will need replacement over time?

The controller includes a battery-backed cache; the battery will require replacement when it reaches end of life.
