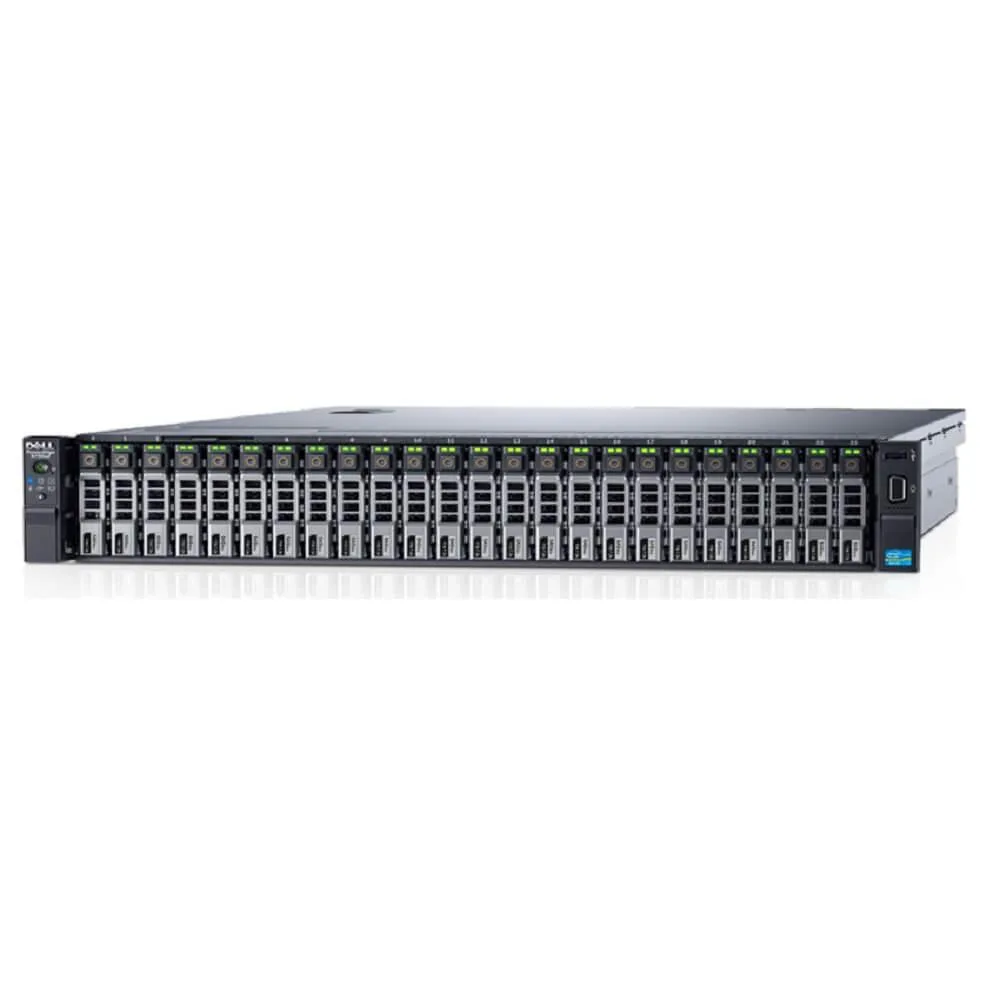

Silver 2U rack server front with 24 hot-plug 2.5 inch drive bays

DELL

DELL PowerEdge R730XD 2U rack server 2× E5-2609 v3 1.9 GHz 128 GB DDR4 H330 24× 2.5" bays

SKU CH-74JN-A8902

2U rack server with dual Xeon E5-2609 v3 CPUs, 128 GB DDR4, H330 RAID controller and 24 hot-plug 2.5" drive bays

  • TypeRack
  • Rack Height2U
  • Redundant Hot-swap PowerYes
  • CPU TypeDual Intel Xeon
  • MAX Processors2
  • ChipsetIntel C610

Installed Memory Size 128GB

HDD None

  • Dual Xeon E5-2609 v3 CPUs deliver 12 cores for parallel workloads
  • 128 GB DDR4 memory fills all 24 DIMM slots at 2400 MT/s
  • H330 12 Gbps RAID controller supports RAID 0/1/5/10/50/60 across 24 hot-plug 2.5" bays
  • Dual 750 W redundant power supplies keep the 2U chassis running if one unit fails
  • iDRAC8 with Lifecycle Controller enables remote firmware updates and hardware monitoring

2U Rack Server with 24 Hot-Plug Bays

The Dell PowerEdge R730XD is a 2U rack server equipped with dual Intel Xeon E5-2609 v3 six-core processors running at 1.9 GHz and 128 GB of DDR4 memory across 24 DIMM slots. It includes a PERC H330 RAID controller supporting RAID 0, 1, 5, 10, 50 and 60, plus two 750 W redundant hot-swap power supplies and a DVD-ROM drive.

Suited for Dense Local Storage.

This server suits organisations that need up to 24 x 2.5" SAS or SATA drives in a compact 2U chassis with hardware RAID and redundant power. It is less appropriate for workloads that require more than 12 cores per socket, memory beyond 128 GB without a processor upgrade, or integrated 10 GbE networking without an optional daughter card.

Memory Ceiling Set at 128 GB by the Installed CPUs

The installed E5-2609 v3 processors limit the maximum memory capacity to 128 GB despite the platform supporting up to 1536 GB with higher-specification CPUs. Buyers planning to expand RAM must first verify processor compatibility.

Points forts

  • Dual Xeon E5-2609 v3 CPUs deliver 12 cores for parallel workloads
  • 128 GB DDR4 memory fills all 24 DIMM slots at 2400 MT/s
  • H330 12 Gbps RAID controller supports RAID 0/1/5/10/50/60 across 24 hot-plug 2.5" bays
  • Dual 750 W redundant power supplies keep the 2U chassis running if one unit fails
  • iDRAC8 with Lifecycle Controller enables remote firmware updates and hardware monitoring

Caractéristiques

BrandDELL
SeriesPowerEdge
ModelPowerEdge R730XD
TypeRack
Rack Height2U
Redundant Hot-swap PowerYes
CPU TypeDual Intel Xeon
MAX Processors2
ChipsetIntel C610
Installed Memory Size128GB
Memory TypeDDR4
Max Memory Capacity128GB
Memory Features24 DIMM slots, 12 per processor. (4GB/8GB/16GB/32GB/64GB/128GB DDR4 up to 2400MT/s, actual memory speed dependent on the processor capability)
Number of Memory Slots24
Storage ControllerDell Perc H330 Controller
SSD (Installed)No
Raid LevelRAID 0/1/5/10/50/60
Max HDD Capacity52TB
Media DrivesDVD ROM
GPU TypeMatrox G200
Video Memory8MB
Remote ManagementiDRAC8 with Lifecycle Controller, iDRAC8 Express (default), iDRAC8 Enterprise (upgrade) 8GB vFlash media (upgrade), 16GB vFlash media (upgrade)
LAN Ports4 x Ports
Expansion SlotsUp to 7 x PCIe 3.0 plus dedicated PERC slot
Operating SystemNo
Compatible/Certified OSMicrosoft Windows Small Business Server 2011/2008, Microsoft Windows Server 2008 R2 SP1/SP2, Microsoft Windows HPC Server 2008 R2, Novell SUSE Linux Enterprise Server, Red Hat Enterprise Linux, Oracle Solaris
Weight70.0000LBS

Autres versions de ce modèle

5 de plus dans cette gamme

Même famille, mémoire, ventirad ou fréquence différents — comparez avant de vous décider.

Questions sur cet article

How do I verify the iDRAC8 remote management is responding after first power-on?

Connect the iDRAC8 dedicated network port, browse to its IP address, and log in with the default credentials; the Lifecycle Controller dashboard will show both CPUs, 128 GB DDR4, and the H330 controller.

Which items ship with the server and which must be sourced separately?

The unit includes two E5-2609 v3 CPUs, 128 GB DDR4, H330 RAID controller, two 750 W redundant power supplies, DVD drive, power cable, and 24 empty 2.5" hot-plug bays; rails, bezel, drives, trays, OS, keyboard, mouse, and video cable are not included.

Should I choose the default iDRAC8 Express or upgrade to Enterprise for full remote console and virtual media?

iDRAC8 Express provides basic monitoring and power control; upgrading to Enterprise adds full graphical remote console, virtual media, and 8 GB or 16 GB vFlash media options for OS deployment.
