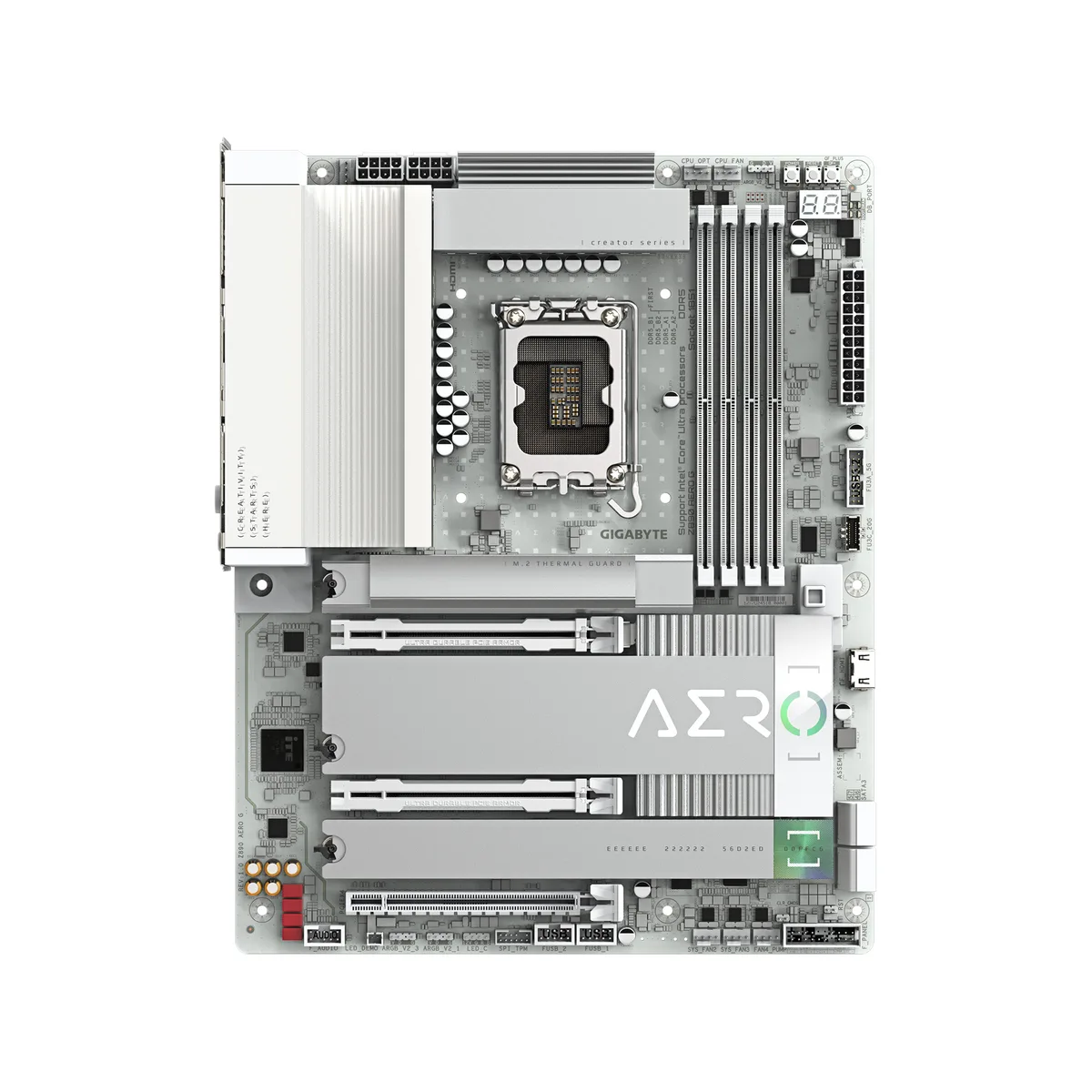

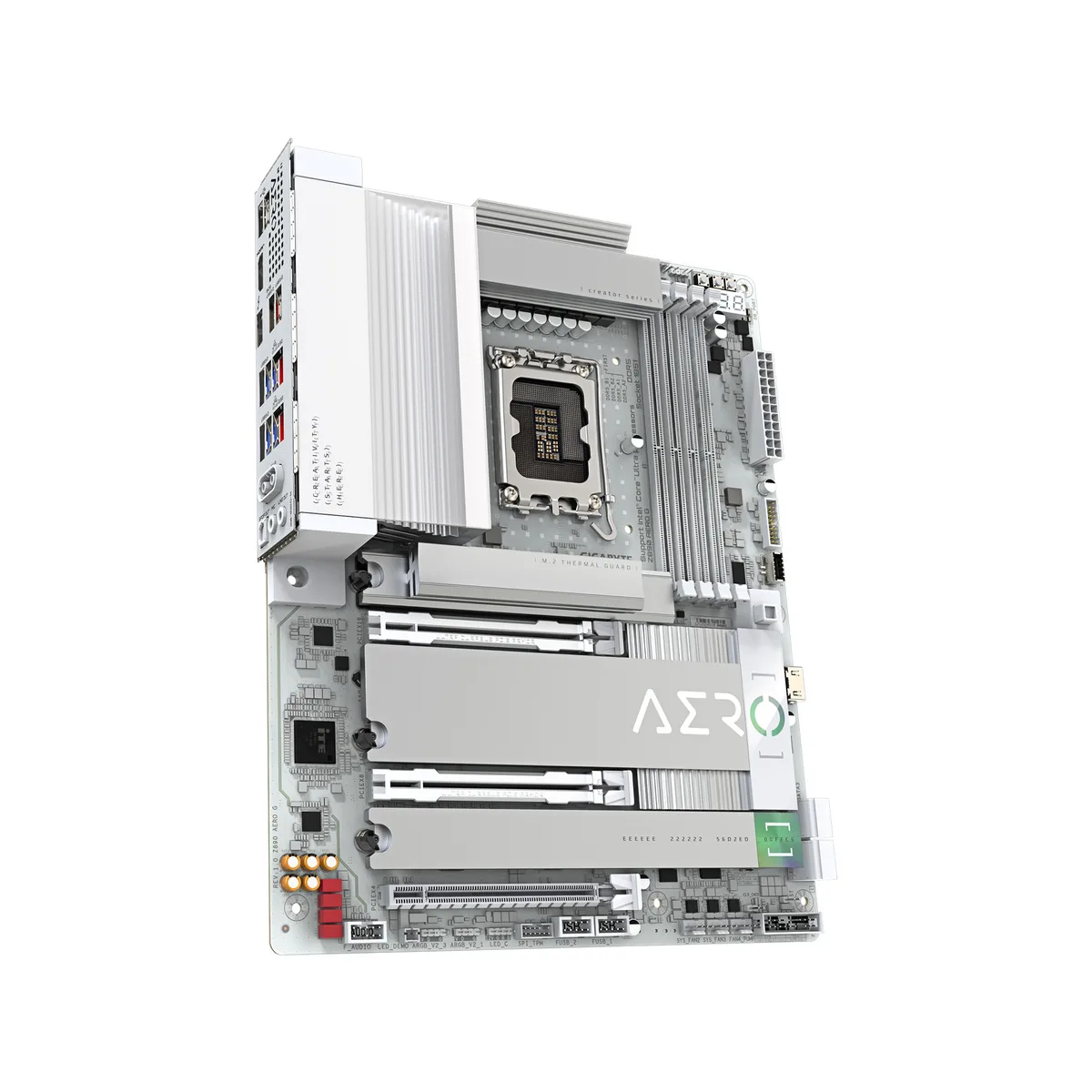

ATX motherboard in silver and white with large VRM heatsinks, five M.2 shields, and rear I/O cover

GIGABYTE

GIGABYTE Z890 AERO G Intel motherboard

SKU CH-DEV1-0HEQX MPN Z890 AERO G

ATX board for Intel Core Ultra Series 2 with DDR5 up to 9200 MT/s, five M.2 slots, PCIe 5.0, Thunderbolt 4, WIFI 7 and dual 2.5GbE LAN

  • CPU Socket TypeLGA 1851
  • CPU TypeIntel Core Ultra Processors (Series 2)
  • ChipsetIntel Z890
  • Number of Memory Slots4x288pin (DDR5)
  • Memory StandardDDR5 5600 / DDR5 5800 / DDR5 6000 / DDR5 6200 / DDR5 6400 /
  • Maximum Memory Supported256GB

Option Z890 AERO G

Les versions barrées existent, mais ne sont pas disponibles ici.

  • Supports Intel Core Ultra Series 2 processors via LGA 1851 socket
  • Four DDR5 slots reach 9200 MT/s overclocked with XMP 3.0 profiles
  • 16+1+2 phase 80A power stages deliver stable voltage for heavy workloads
  • Five M.2 slots with thermal guards keep storage cool during sustained transfers
  • Thunderbolt 4 and WIFI 7 plus dual 2.5GbE LAN for high-speed connectivity

Intel Core Ultra Series 2 platform

This ATX motherboard uses the Intel Z890 chipset and an LGA 1851 socket to support Intel Core Ultra Series 2 processors. Four DDR5 slots accept up to 256 GB of memory running at speeds from 5600 MT/s to 9200 MT/s with Intel XMP 3.0 profiles. It is built for creators and power users who need high core counts and fast memory bandwidth.

Sustained load thermal design

A 16+1+2 phase power delivery with 80 A smart power stages feeds the CPU under continuous heavy workloads. VRM Thermal Armour and M.2 Thermal Guards dissipate heat across the power circuitry and all five M.2 slots, keeping frequencies stable during long rendering or compile sessions.

PCIe 5.0 and Thunderbolt 4 limits

Two PCI Express 5.0 x16 slots and one PCI Express 4.0 x16 slot provide high-bandwidth lanes for graphics and add-in cards. Thunderbolt 4 on the rear I/O caps external throughput at 40 Gbps, while five M.2 sockets and four SATA 6 Gb/s ports share the chipset uplink, so simultaneous peak transfers on every drive are not possible.

Points forts

  • Supports Intel Core Ultra Series 2 processors via LGA 1851 socket
  • Four DDR5 slots reach 9200 MT/s overclocked with XMP 3.0 profiles
  • 16+1+2 phase 80A power stages deliver stable voltage for heavy workloads
  • Five M.2 slots with thermal guards keep storage cool during sustained transfers
  • Thunderbolt 4 and WIFI 7 plus dual 2.5GbE LAN for high-speed connectivity

Caractéristiques

BrandGIGABYTE
ModelZ890 AERO G
CPU Socket TypeLGA 1851
CPU TypeIntel Core Ultra Processors (Series 2)
ChipsetIntel Z890
Number of Memory Slots4x288pin (DDR5)
Memory StandardDDR5 5600 / DDR5 5800 / DDR5 6000 / DDR5 6200 / DDR5 6400 / DDR5 6600 / DDR5 6800 / DDR5 7000 / DDR5 7200 / DDR5 7400 / DDR5 7600 / DDR5 7800 / DDR5 7900 / DDR5 7950 / DDR5 8000 / DDR5 8200 / DDR5 8266 / DDR5 8400 / DDR5 8600 / DDR5 8800 / DDR5 8933 / DDR5 9066 / DDR5 9200
Maximum Memory Supported256GB
Channel SupportedDual Channel
Memory Performance ProfileIntel XMP 3.0
Memory FeatureSupport for DDR5 9200(O.C) / 9066(O.C) / 8933(O.C) / 8800(O.C) / 8600(O.C) / 8400(O.C) /8266(O.C) / 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400 / 6200 / 6000 / 5800 / 5600MT/s memory modules.
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules
Support CUDIMM memory module
PCI Express 5.0 x162 x PCI Express 5.0 x16
PCI Express 4.0 x161 x PCI Express 4.0 x16
Serial ATA (SATA)4 x SATA 6Gb/s
M.25 x M.2
SATA RAID0/1/0+1/5/10
Audio Channels7.1 Channels
Max LAN Speed2 x 2.5Gbps
Wireless LANWIFI 7

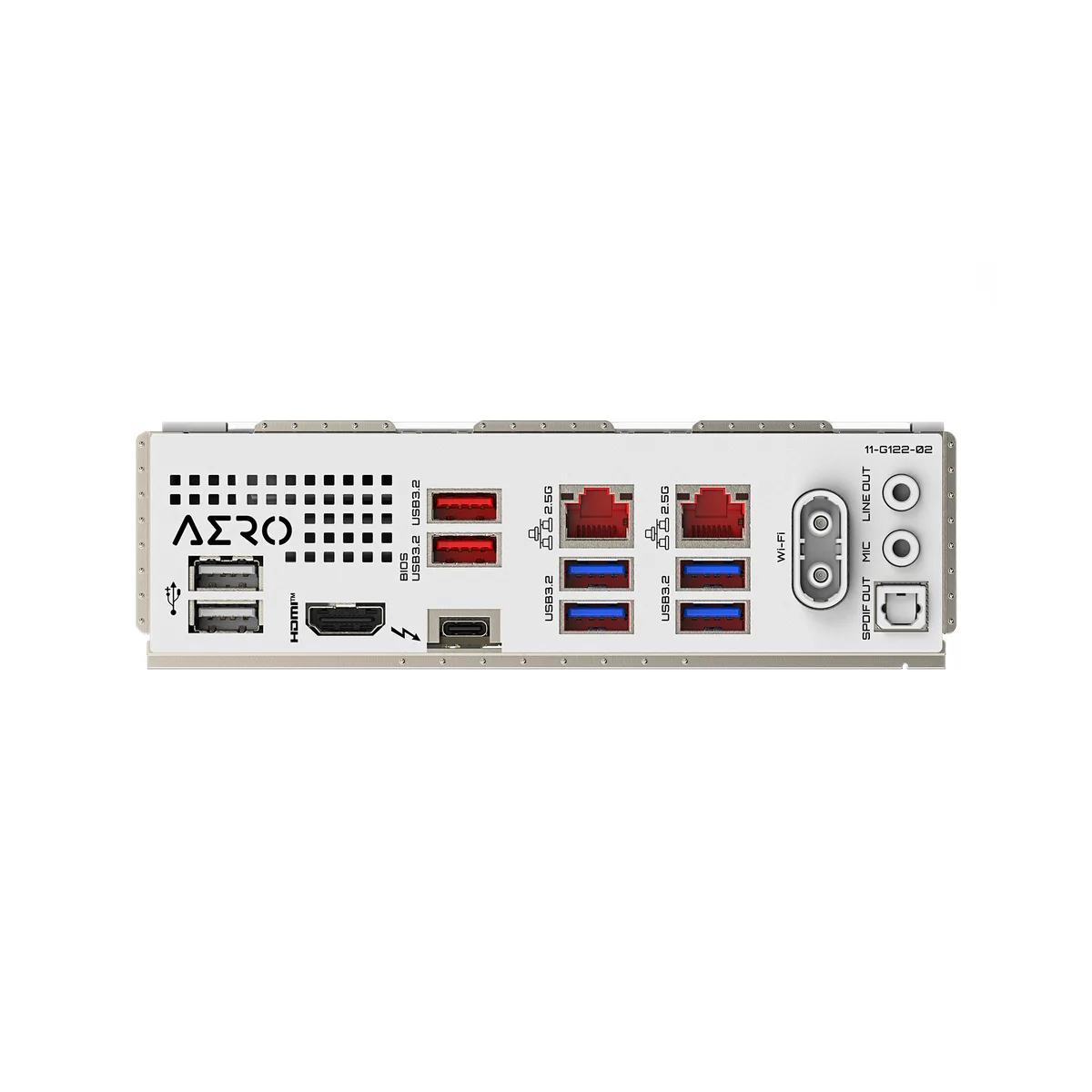

Back I/O Ports1 x HDMI / 1 x Optical S/PDIF Out / 1 x Thunderbolt 4 / 2 x Audio Jacks / 2 x LAN (RJ45) / 2 x USB 2.0/1.1 / 2 x USB 3.2 Gen 2 Type-A / 4 x USB 3.2 Gen 1
Windows 11Supported
Form FactorATX
Poids d’expédition2.72 kg
Dimensions du colis330 × 279 × 76 mm

Autres versions de ce modèle

5 de plus dans cette gamme

Même famille, mémoire, ventirad ou fréquence différents — comparez avant de vous décider.

Questions sur cet article

How loud or hot does the VRM get when the 16+1+2 80A power stages run all day?

The board uses a 16+1+2 phase design with 80A smart power stages covered by VRM Thermal Armor, so heat is spread across a large heatsink area and fan noise stays low under sustained loads.

Which DDR5 memory kit must I already own to populate the four 288-pin slots and reach 256GB?

You need four DDR5 DIMMs; the board supports speeds from 5600 up to 9200 MT/s with Intel XMP 3.0 profiles and a maximum capacity of 256GB in dual-channel mode.

Will my existing PCIe 4.0 graphics card and SATA SSDs work with the two PCIe 5.0 x16 slots and four SATA 6Gb/s ports?

Yes, the two PCIe 5.0 x16 slots are backward compatible with PCIe 4.0 cards, and the four SATA 6Gb/s ports accept standard SATA SSDs or hard drives without any adapter.
