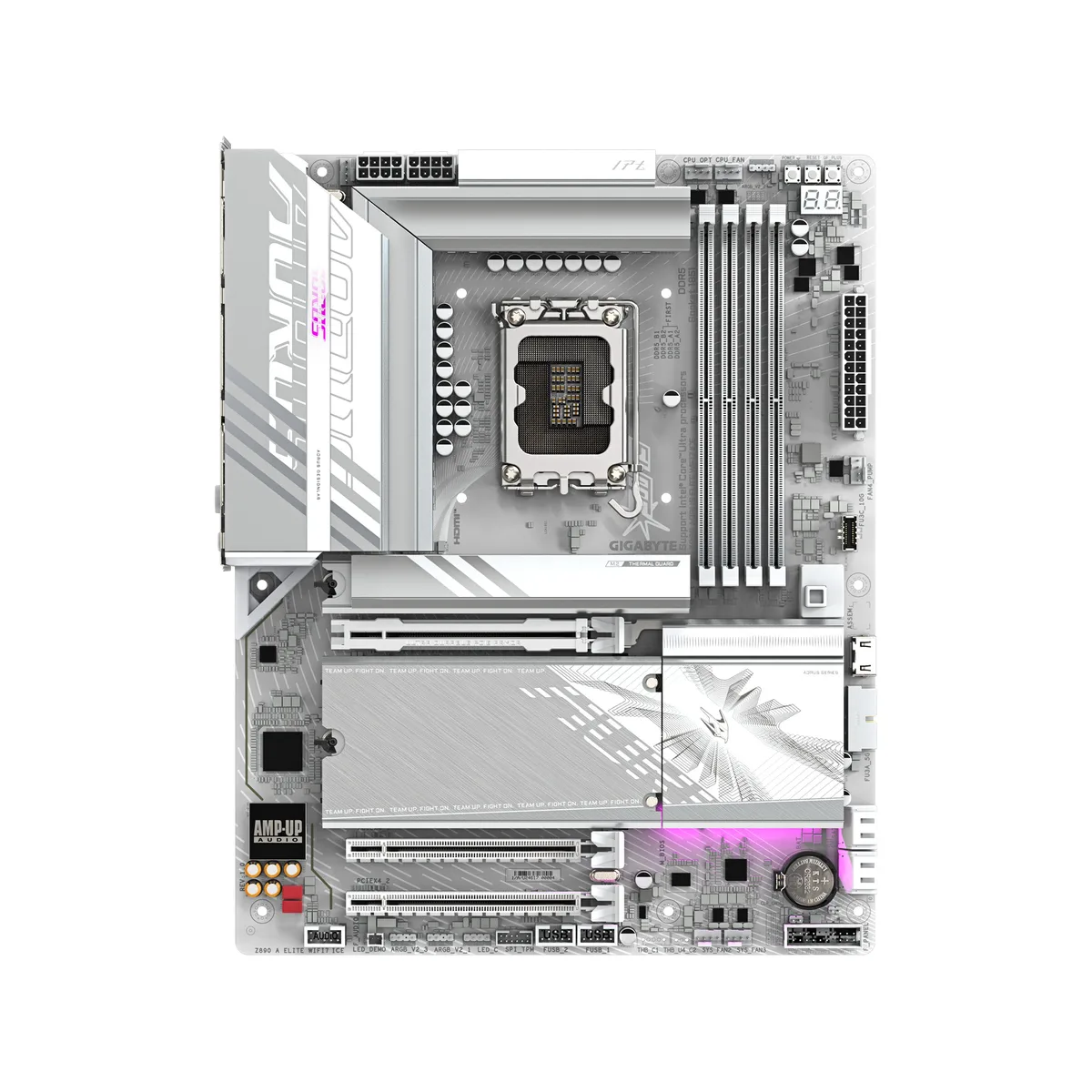

White ATX motherboard with silver heatsinks and white PCB

GIGABYTE

GIGABYTE Z890 AORUS ELITE WIFI7 ICE Intel motherboard

SKU CH-MRZV-NM3SR MPN Z890 AORUS ELITE WIFI7 ICE

Supports Intel Core Ultra Series 2 CPUs with DDR5 up to 9200 MT/s, four M.2 slots, PCIe 5.0 graphics, Thunderbolt 4, WIFI7 and 2.5 GbE LAN

  • CPU Socket TypeLGA 1851
  • CPU TypeIntel Core Ultra Processors (Series 2)
  • ChipsetIntel Z890
  • Number of Memory Slots4x288pin (DDR5)
  • Memory StandardDDR5 5600 / DDR5 5800 / DDR5 6000 / DDR5 6200 / DDR5 6400 /
  • Maximum Memory Supported256GB

Option Z890 AORUS ELITE WF7 ICE

Les versions barrées existent, mais ne sont pas disponibles ici.

  • Supports Intel Core Ultra Series 2 processors on LGA 1851 socket
  • 16+1+2 phase VRM with 80A smart power stages for stable delivery
  • Four M.2 slots including one PCIe 5.0 and three PCIe 4.0
  • WIFI 7 plus 2.5GbE LAN for high-speed wired and wireless networking
  • Thunderbolt 4 and USB 3.2 Gen 2 Type-A ports on rear I/O

LGA 1851 motherboard for Intel Core Ultra Series 2

The GIGABYTE Z890 AORUS ELITE WIFI7 ICE is an ATX motherboard built around the Intel Z890 chipset and the LGA 1851 socket. It targets enthusiasts assembling systems with Intel Core Ultra Series 2 processors. Four DDR5 slots and a 16+1+2 phase power design with 80A smart power stages provide a stable platform for high-performance computing.

DDR5 capacity up to 256 GB with XMP 3.0 headroom

Four 288-pin slots accept up to 256 GB of DDR5 memory running in dual-channel mode. Supported JEDEC speeds range from 5600 to 8400 MT/s while Intel XMP 3.0 profiles extend overclocked operation up to 9200 MT/s. The board comfortably handles mainstream and high-frequency kits; headroom diminishes as speeds approach the upper overclocked limits.

PCIe 5.0 and Thunderbolt 4 interface limits

The primary PCIe 5.0 x16 slot and one CPU-attached M.2 connector operate at PCIe 5.0 x4 speeds. Two additional PCIe 4.0 x16 slots and three chipset M.2 connectors run at PCIe 4.0. Thunderbolt 4 and USB 3.2 Gen 2 ports share upstream bandwidth, so simultaneous high-throughput devices can saturate the available lanes.

Points forts

  • Supports Intel Core Ultra Series 2 processors on LGA 1851 socket
  • 16+1+2 phase VRM with 80A smart power stages for stable delivery
  • Four M.2 slots including one PCIe 5.0 and three PCIe 4.0
  • WIFI 7 plus 2.5GbE LAN for high-speed wired and wireless networking
  • Thunderbolt 4 and USB 3.2 Gen 2 Type-A ports on rear I/O

Caractéristiques

BrandGIGABYTE
SeriesAORUS
ModelZ890 AORUS ELITE WF7 ICE
CPU Socket TypeLGA 1851
CPU TypeIntel Core Ultra Processors (Series 2)
ChipsetIntel Z890
Number of Memory Slots4x288pin (DDR5)
Memory StandardDDR5 5600 / DDR5 5800 / DDR5 6000 / DDR5 6200 / DDR5 6400 / DDR5 6600 / DDR5 6800 / DDR5 7000 / DDR5 7200 / DDR5 7400 / DDR5 7600 / DDR5 7800 / DDR5 7900 / DDR5 7950 / DDR5 8000 / DDR5 8200 / DDR5 8266 / DDR5 8400 / DDR5 8600 / DDR5 8800 / DDR5 8933 / DDR5 9066 / DDR5 9200
Maximum Memory Supported256GB
Channel SupportedDual Channel
Memory Performance ProfileIntel XMP 3.0
Memory FeatureSupport for DDR5 9200(O.C) / 9066(O.C) / 8933(O.C) / 8800(O.C) / 8600(O.C) / 8400(O.C) / 8266(O.C) / 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400 / 6200 / 6000 / 5800 / 5600MT/s memory modules.
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules
Support CUDIMM memory module
PCI Express 5.0 x161 x PCI Express 5.0 x16
PCI Express 4.0 x162 x PCI Express 4.0 x16
Serial ATA (SATA)4 x SATA 6Gb/s
M.2CPU:
- 1 x M.2 connector (Socket 3, M key, type 25110/22110/2580/2280 PCIe 5.0 x4/x2 SSD support) (M2A_CPU)
- 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2B_CPU)
Chipset:
- 1 x M.2 connector (Socket 3, M key, type 25110/22110/2580/2280 PCIe 4.0 x4/x2 SSD support) (M2Q_SB)
- 1 x M.2 connector (Socket 3, M key, type 22110/2280 SATA and PCIe 4.0 x4 SSD support) (M2M_SB)
Audio Channels7.1 Channels
Max LAN Speed2.5Gbps
Wireless LANWIFI 7

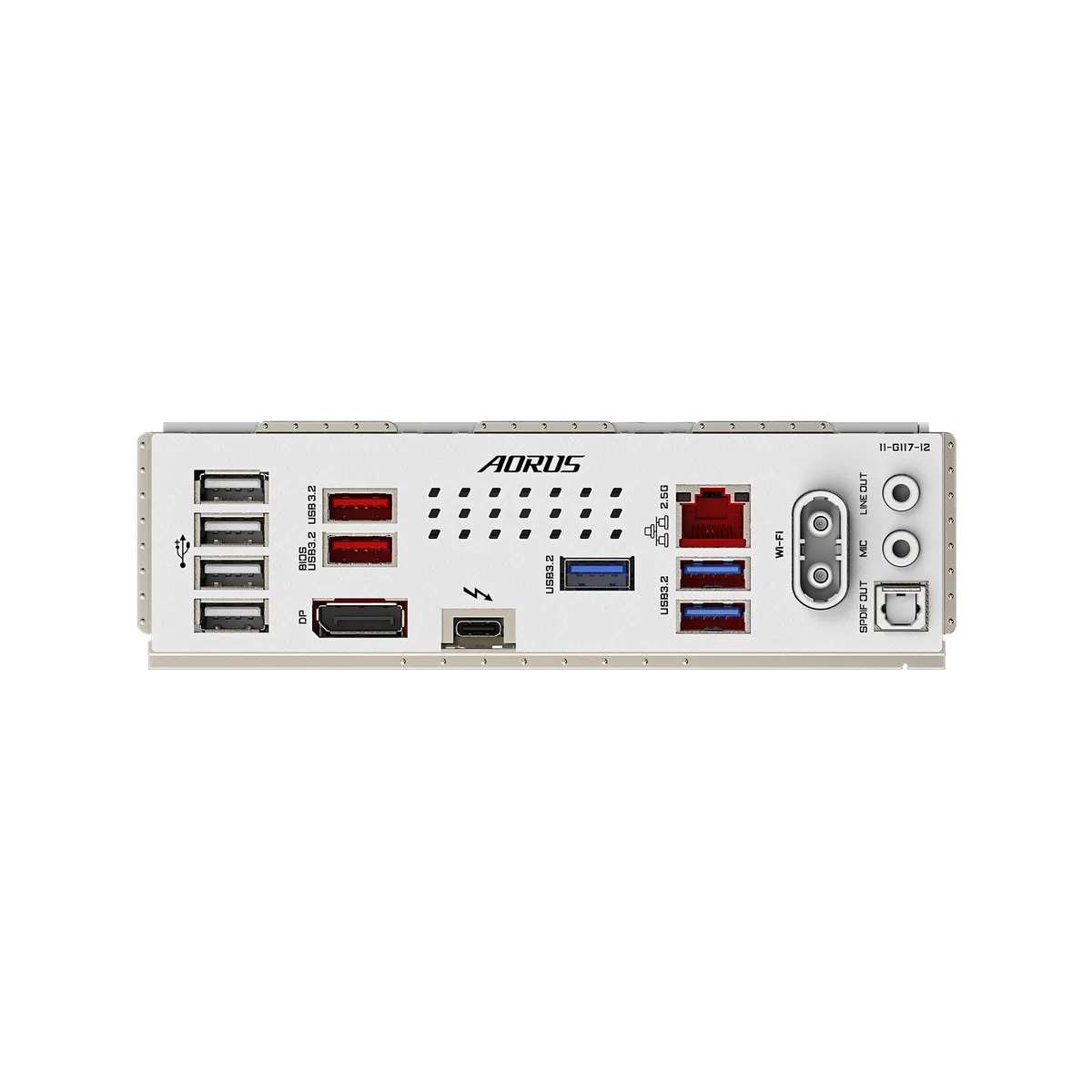

Back I/O Ports1 x DisplayPort / 1 x LAN (RJ45) / 1 x Optical S/PDIF Out / 1 x Thunderbolt 4 / 2 x Audio Jacks / 2 x USB 3.2 Gen 2 Type-A / 3 x USB 3.2 Gen 1
Windows 11Supported
Form FactorATX
Poids d’expédition2.72 kg
Dimensions du colis330 × 279 × 76 mm

Autres versions de ce modèle

5 de plus dans cette gamme

Même famille, mémoire, ventirad ou fréquence différents — comparez avant de vous décider.

Questions sur cet article

Will my existing DDR5 memory kits run on the Z890 AORUS ELITE WIFI7 ICE at their rated speeds?

The board supports DDR5 modules from 5600 up to 9200 MT/s with Intel XMP 3.0 profiles, so kits within that range will run at their rated speeds when the profile is enabled in BIOS.

How can I confirm the PCIe 5.0 x16 slot and the CPU-attached M.2 slots are operating at full speed after assembly?

Check the BIOS PCIe configuration screen — it should show the primary x16 slot at Gen 5.0 and the M2A_CPU slot at Gen 5.0 x4; GPU-Z and the SSD vendor tool will also report the active link widths.

Does the box include the Wi-Fi 7 antenna and the M.2 mounting screws, or must I buy them separately?

The package ships with the Wi-Fi 7 antenna, M.2 screws and standoffs, SATA cables, and the I/O shield; no extra mounting hardware is required for installation.
