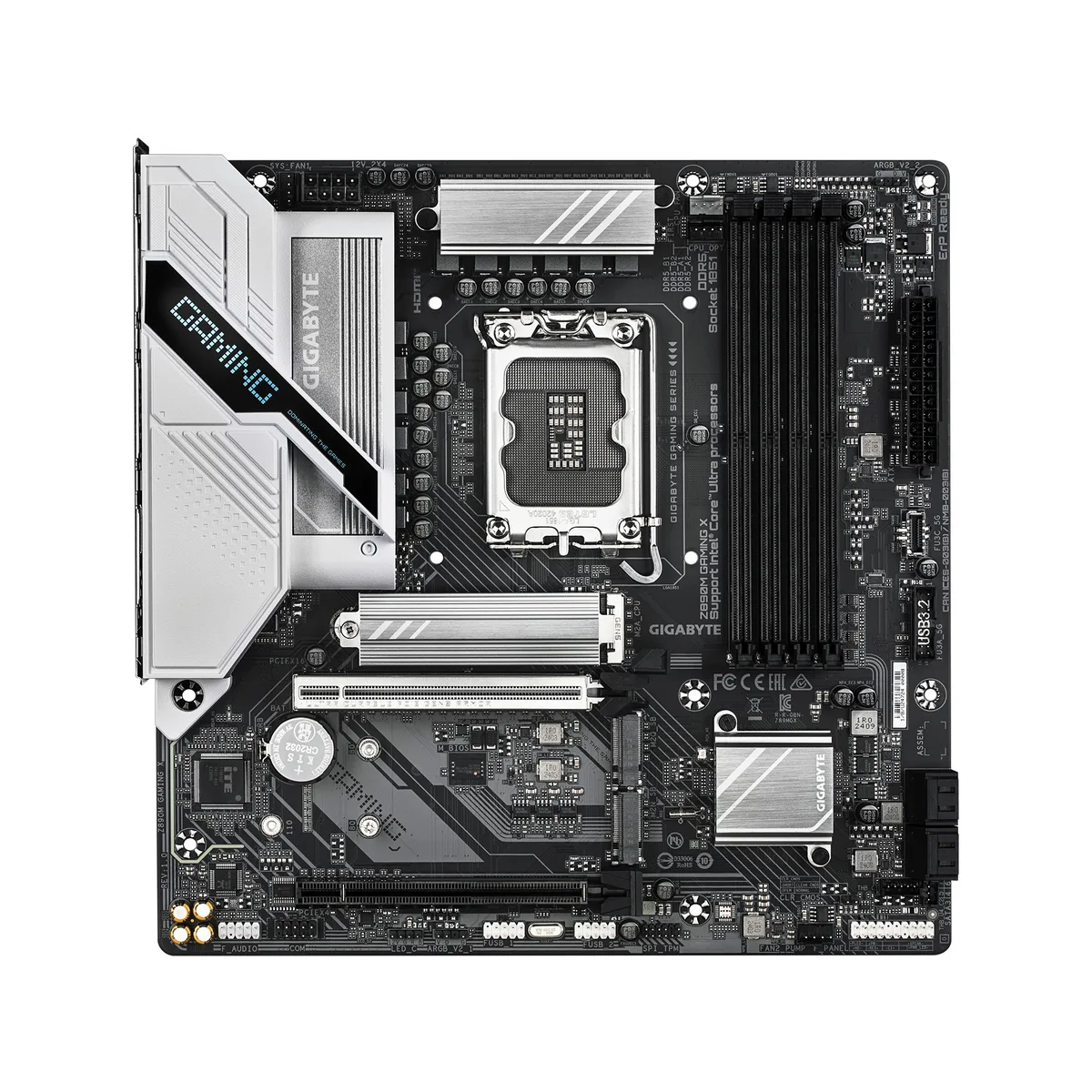

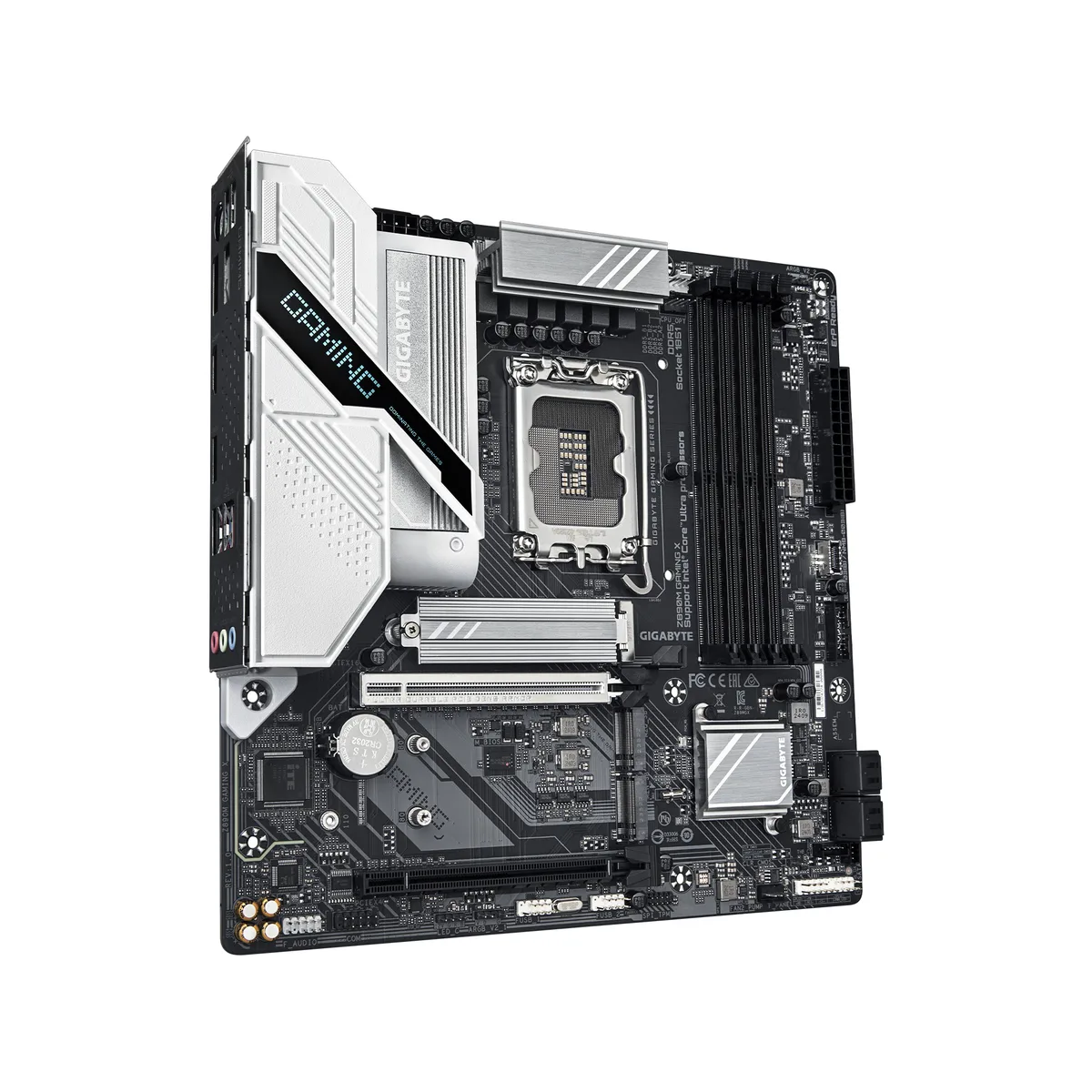

Micro ATX motherboard, dark PCB with silver heatsinks, LGA 1851 socket, four DDR5 slots

GIGABYTE

GIGABYTE Z890M GAMING X Intel motherboard

SKU CH-8HG7-22QPT MPN Z890M GAMING X

Micro ATX board for Intel Core Ultra Series 2 on LGA 1851 with four DDR5 slots up to 256 GB, PCIe 5.0 x16, three M.2, four SATA, 2.5 Gbps LAN and Wi‑Fi 802.11 be

  • CPU Socket TypeLGA 1851
  • CPU TypeIntel Core Ultra Processors (Series 2)
  • ChipsetIntel Z890
  • Number of Memory Slots4x288pin (DDR5)
  • Memory StandardDDR5 5600 / DDR5 5800 / DDR5 6000 / DDR5 6200 / DDR5 6400 /
  • Maximum Memory Supported256GB

Option Z890M GAMING X

Les versions barrées existent, mais ne sont pas disponibles ici.

  • Supports Intel Core Ultra Series 2 processors on LGA 1851 socket
  • Four DDR5 slots reach 256 GB capacity with XMP 3.0 profiles
  • PCI Express 5.0 x16 slot provides high bandwidth for modern graphics cards
  • Three M.2 connectors plus four SATA 6 Gb/s ports for flexible storage
  • 5 Gbps LAN and Wi‑Fi 802.11 be deliver fast wired and wireless networking

Socket and processor support

This Micro ATX motherboard uses the LGA 1851 socket for Intel Core Ultra Series 2 processors and the Intel Z890 chipset. It suits builders who want a compact board with a full enthusiast feature set. The platform targets gaming and workstation workloads that benefit from high memory speeds and modern connectivity.

Memory capacity and layout

Four 288‑pin DDR5 slots support up to 256 GB in dual channel mode with XMP 3.0 profiles. Speeds range from 5600 MT/s to 9200 MT/s overclocked, covering mainstream and high‑end kits. The board also accepts ECC un‑buffered DIMMs that operate in non‑ECC mode for added flexibility.

Storage and rear I/O limits

Three M.2 sockets and four SATA 6Gb/s ports provide multiple drive options with RAID 0, 1, 5 and 10 support. The rear panel includes one HDMI, one DisplayPort, 2.5 GbE LAN, Wi‑Fi 802.11 be, a PS/2 combo port, two USB 2.0, three USB 3.2 Gen 1 and three audio jacks for 7.1 channel sound. One PCIe 5.0 x16 and one PCIe 4.0 x16 slot handle graphics and add‑in cards.

Points forts

  • Supports Intel Core Ultra Series 2 processors on LGA 1851 socket
  • Four DDR5 slots reach 256 GB capacity with XMP 3.0 profiles
  • PCI Express 5.0 x16 slot provides high bandwidth for modern graphics cards
  • Three M.2 connectors plus four SATA 6 Gb/s ports for flexible storage
  • 5 Gbps LAN and Wi‑Fi 802.11 be deliver fast wired and wireless networking

Caractéristiques

ModelZ890M GAMING X
CPU Socket TypeLGA 1851
CPU TypeIntel Core Ultra Processors (Series 2)
ChipsetIntel Z890
Number of Memory Slots4x288pin (DDR5)
Memory StandardDDR5 5600 / DDR5 5800 / DDR5 6000 / DDR5 6200 / DDR5 6400 / DDR5 6600 / DDR5 6800 / DDR5 7000 / DDR5 7200 / DDR5 7400 / DDR5 7600 / DDR5 7900 / DDR5 7950 / DDR5 8000 / DDR5 8200 / DDR5 8266 / DDR5 8400 / DDR5 8600 / DDR5 8800 / DDR5 9066 / DDR5 9200
Maximum Memory Supported256GB
Channel SupportedDual Channel
Memory Performance ProfileIntel XMP 3.0
Memory FeatureSupport for DDR5 9200(O.C) / 9066(O.C) / 8933(O.C) / 8800(O.C) / 8600(O.C) / 8400(O.C) /8266(O.C) / 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400 / 6200 / 6000 / 5800 / 5600MT/s memory modules.
Dual channel memory architecture
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules
Support CUDIMM memory module
PCI Express 5.0 x161 x PCI Express 5.0 x16
PCI Express 4.0 x161 x PCI Express 4.0 x16
Serial ATA (SATA)4 x SATA 6Gb/s
M.23 x M.2
SATA RAID0/1/0+1/5/10
Audio Channels7.1 Channels
Max LAN Speed2.5Gbps
Wireless LANWi-Fi 802.11 be
Back I/O Ports1 x DisplayPort / 1 x HDMI / 1 x LAN (RJ45) / 1 x PS/2 Keyboard/Mouse Combo / 2 x USB 2.0/1.1 / 3 x Audio Jacks / 3 x USB 3.2 Gen 1
Windows 11Supported
Form FactorMicro ATX
Poids d’expédition1.18 kg
Dimensions du colis267 × 254 × 76 mm

Autres versions de ce modèle

5 de plus dans cette gamme

Même famille, mémoire, ventirad ou fréquence différents — comparez avant de vous décider.

Questions sur cet article

What does the single PCIe 5.0 x16 slot cap at in practice?

The PCIe 5.0 x16 slot runs at PCIe 5.0 speeds with a compatible Intel Core Ultra Series 2 processor and a PCIe 5.0 graphics card or add-in card.

What physical space and mounting points does the Micro ATX board need inside the case?

The board uses the standard Micro ATX layout with four mounting holes that align with Micro ATX standoffs in compatible cases.

How is the DDR5 memory installed and which step is often missed?

Insert DDR5 DIMMs into the four 288-pin slots until the retention clips click, then enable the XMP 3.0 profile in BIOS to reach the rated overclock speeds.
