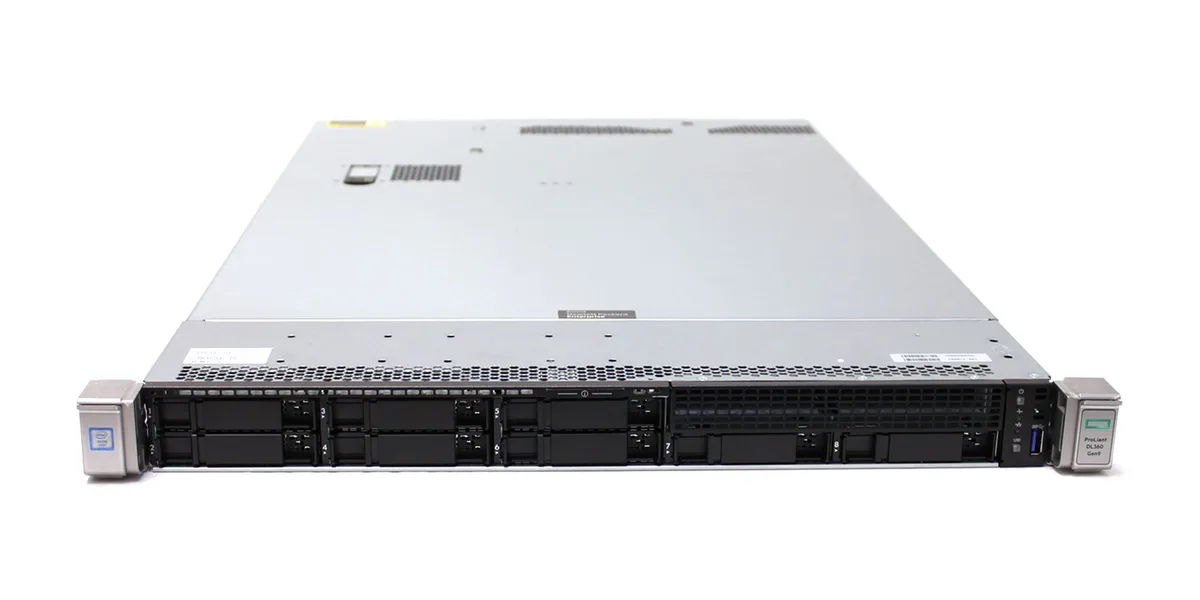

Silver 1U rack server front with eight drive bays and HP badge

HP

HP ProLiant DL360 Gen9 1U rack server 2× E5-2640 v3 2.6 GHz 8-core 32 GB DDR4 2× 1 TB SAS H240ar

SKU CH-DNS5-3JV8Q

Dual 8-core Xeon 2.6 GHz server with 32 GB DDR4, two 1 TB SAS drives and H240ar RAID in a 1U rack chassis

  • TypeRack
  • Rack Height1U
  • Server Scalability2-Way
  • Hot-swap Fans7
  • Redundant Hot-swap PowerYes
  • CPU TypeIntel Xeon E5 v3
  • Dual 8-core Xeons at 2.6 GHz power parallel workloads
  • 32 GB DDR4 ECC memory supports virtualisation density
  • Two 1 TB 7.2K SAS drives give redundant local storage
  • H240ar 12 Gb SAS controller enables RAID 0/1/5/6/10/50/60
  • Dual 500 W hot-swap supplies keep the 1U rack running

Dense 1U compute platform

The HP ProLiant DL360 Gen9 fits two Intel Xeon E5-2640 v3 processors and 32 GB of DDR4 memory into a single rack unit. It is built for environments that need high core density without sacrificing expansion headroom. Virtualisation hosts and database nodes benefit from the 16 physical cores and 32 threads available out of the box.

Redundant cooling and power

Seven hot-swap fans and dual 500 W redundant power supplies keep the chassis running during a single component failure. The 1U form factor concentrates airflow across the CPU and memory zones while the power supplies share load evenly. Acoustic output scales with thermal demand but remains within typical rack-room expectations for this class.

H240ar controller and drive trays

The Smart HBA H240ar presents 12 Gb SAS and 6 Gb SATA paths with RAID 0, 1, 5, 6, 10, 50 and 60 support. Two 1 TB 7.2K SAS drives ship installed in the 2.5 inch bays with trays included. The remaining six bays accept additional SFF drives or a universal media bay when more capacity is required.

Points forts

  • Dual 8-core Xeons at 2.6 GHz power parallel workloads
  • 32 GB DDR4 ECC memory supports virtualisation density
  • Two 1 TB 7.2K SAS drives give redundant local storage
  • H240ar 12 Gb SAS controller enables RAID 0/1/5/6/10/50/60
  • Dual 500 W hot-swap supplies keep the 1U rack running

Caractéristiques

BrandHP
SeriesProLiant
ModelProliant DL360 G9
TypeRack
Rack Height1U
Server Scalability2-Way
Hot-swap Fans7
Redundant Hot-swap PowerYes
CPU TypeIntel Xeon E5 v3
CPU Speed2.60 GHz
CPU SocketFCLGA2011-3
Number of CPU Cores8-Core Processor
CPU FeaturesVT-x, VT-D, EPT
MAX Processors2
ChipsetIntel C610
Installed Memory Size32GB
Memory TypeDDR4
Max Memory Capacity32GB
Memory Features24 DIMM slots, 12 per processor. (4GB/8GB/16GB/32GB/64GB DDR4 up to 2400MT/s ECC Registered, actual memory speed dependent on the processor capability).
Number of Memory Slots24
Hard Drive (Installed)1TB
Storage ControllerHP Smart HBA H240ar Controller
HDD InterfaceSAS
SSD (Installed)No
Raid LevelRAID 0/1/5/6/10/50/60
Max HDD Capacity2.4TB
Media DrivesNone
GPU TypeMatrox G200
Video Memory16MB
Ethernet ControllerHPE Embedded 1Gb Ethernet 4-port 331i Adapter
Remote ManagementiLO Management (standard).
LAN Ports4 x Ports
Expansion SlotsPrimary Riser: 2 PCIe 3.0 Slots (1 & 2) available: 1x Full-Height Half Length, 1x Half-Lenth Half Height. Optional PCIe 3.0 slot 3 - Full-Height Half Height (Secondary PCIe Riser and dual CPU required).
Management PortiLO4
Operating SystemNo
Compatible/Certified OSMicrosoft Windows Small Business Server 2011/2008, Microsoft Windows Server 2008 R2 SP1/SP2, Microsoft Windows HPC Server 2008 R2, Novell SUSE Linux Enterprise Server, Red Hat Enterprise Linux, Oracle Solaris
Weight63.0000LBS

Autres versions de ce modèle

5 de plus dans cette gamme

Même famille, mémoire, ventirad ou fréquence différents — comparez avant de vous décider.

Questions sur cet article

How do I install the E5-2640 v3 CPUs into the FCLGA2011-3 sockets, and what step do people often miss?

Align the CPU triangle with the socket key, lower the load plate gently, then secure the lever; the step most often missed is applying thermal paste before seating the heatsink.

What maintenance will the 7.2K 6Gbps 2.5'' SAS drives and the seven hot-swap fans need later?

Monitor SMART data on the 1 TB SAS drives for reallocated sectors and replace any drive that exceeds threshold; clean fan filters quarterly and swap a fan if its speed drops below spec.

Which limit appears first when the dual E5-2640 v3 2.6 GHz 8-core CPUs run sustained workloads?

The 500 W redundant power supplies cap total draw, so sustained all-core turbo on both 2.6 GHz 8-core Xeons will hit the power budget before thermal throttling engages.
