Intel

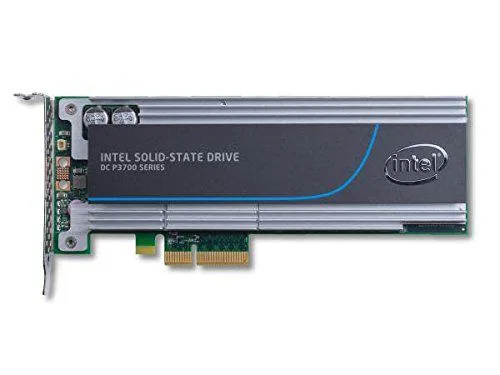

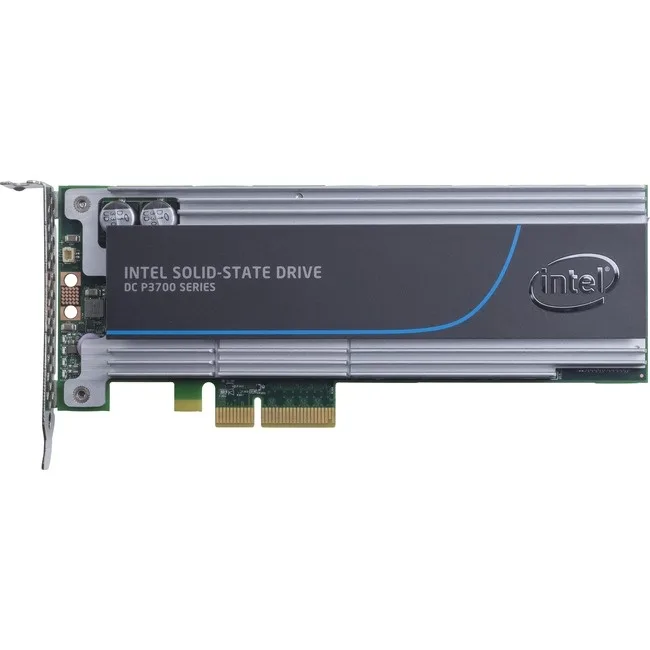

Intel DC P3700 SSDPEDMD800G401 800GB AIC enterprise SSD
800 GB add-in-card enterprise SSD delivering up to 2,800 MB/s sequential reads and 460,000 random read IOPS over PCIe 3.0 x4
- Form FactorAIC
- Capacity800GB
- Memory ComponentsMLC
- InterfacePCI-Express 3.0 x4
- ControllerIntel
- Max Sequential ReadUp to 2800 MBps
- Fast sequential reads up to 2800 MBps speed data access
- High random read IOPS up to 460000 boost transaction throughput
- Low latency 20µs reads and writes cut response time
- Enterprise MLC endurance with 2000000 hours MTBF ensures reliability
- PCI-Express 3.0 x4 AIC form factor fits standard server slots
Enterprise AIC SSD for high-IOPS workloads
This Intel DC P3700 add-in card delivers 800GB of MLC storage over a PCI-Express 3.0 x4 interface. It targets servers and workstations that need consistent low-latency random performance. The half-height half-length form factor fits standard expansion slots. It is not suited for builds that require a 2.5-inch or M.2 drive bay.
Fits a free x4 slot and draws under 25W active
The card installs directly into an available PCI-Express 3.0 x4 slot without cables or drive cages. Idle power sits at 4W while active write consumption stays below 25W and read below 11W. Operating temperatures range from 0°C to 55°C. Systems without a spare x4 slot or adequate airflow cannot use this drive.
800GB with 460,000 random read IOPS headroom
Sequential speeds reach 2800 MBps read and 2000 MBps write while 4KB random writes sustain 17,500 IOPS. Read and write latency is rated at 20µs. The 2,000,000-hour MTBF supports heavy-duty cycles. Workloads needing more than 800GB capacity or higher random write throughput will outgrow this device.
Points forts
- Fast sequential reads up to 2800 MBps speed data access
- High random read IOPS up to 460000 boost transaction throughput
- Low latency 20µs reads and writes cut response time
- Enterprise MLC endurance with 2000000 hours MTBF ensures reliability
- PCI-Express 3.0 x4 AIC form factor fits standard server slots
Caractéristiques
| Brand | Intel |
|---|---|
| Series | DC P3700 |
| Model | SSDPEDMD800G401 |
| Form Factor | AIC |
| Capacity | 800GB |
| Memory Components | MLC |
| Interface | PCI-Express 3.0 x4 |
| Controller | Intel |
| Max Sequential Read | Up to 2800 MBps |
| Max Sequential Write | Up to 2000 MBps |
| 4KB Random Read | Up to 460,000 IOPS |
| 4KB Random Write | Up to 17,500 IOPS |
| Read Latency | 20µs |
| Write Latency | 20µs |
| MTBF | 2,000,000 hours |
| Power Consumption (Idle) | 4W |
| Power Consumption (Active) | <25W (Write) / <11W (Read) |
| Operating Temperature | 0°C ~ +55°C |
| Storage Temperature | -55°C ~ +95°C |
| Max Shock Resistance | 50G Trapezoidal, 170 in/s |
| Max Vibration Resistance | Operating: 2.17 GRMS (5-700Hz) Non-Operating: 3.13 GRMS (5-800Hz) |
| Height | Half Height Half Length (HHHL) |
| Weight | 185.00g |
| Poids d’expédition | 0.91 kg |
| Dimensions du colis | 178 × 76 × 25 mm |
Questions sur cet article
Does the PCI-Express 3.0 x4 interface saturate before the controller hits its 460,000 IOPS random read ceiling?
The interface provides roughly 4 GB/s of bandwidth while the drive delivers up to 460,000 IOPS at 4 KB, so the link can become the first bottleneck under heavy random read queues.
What are the steady-state power draw and temperature limits when the drive runs continuously?
Active power stays below 25 W during writes and 11 W during reads; the drive is rated to operate continuously between 0 °C and 55 °C.
Does my server need a half-height half-length PCIe 3.0 x4 slot and active airflow for this add-in card?
Yes, the HHHL form factor requires a compatible half-height slot, and the 25 W write power envelope assumes adequate chassis airflow to keep the drive within its 0–55 °C operating range.
