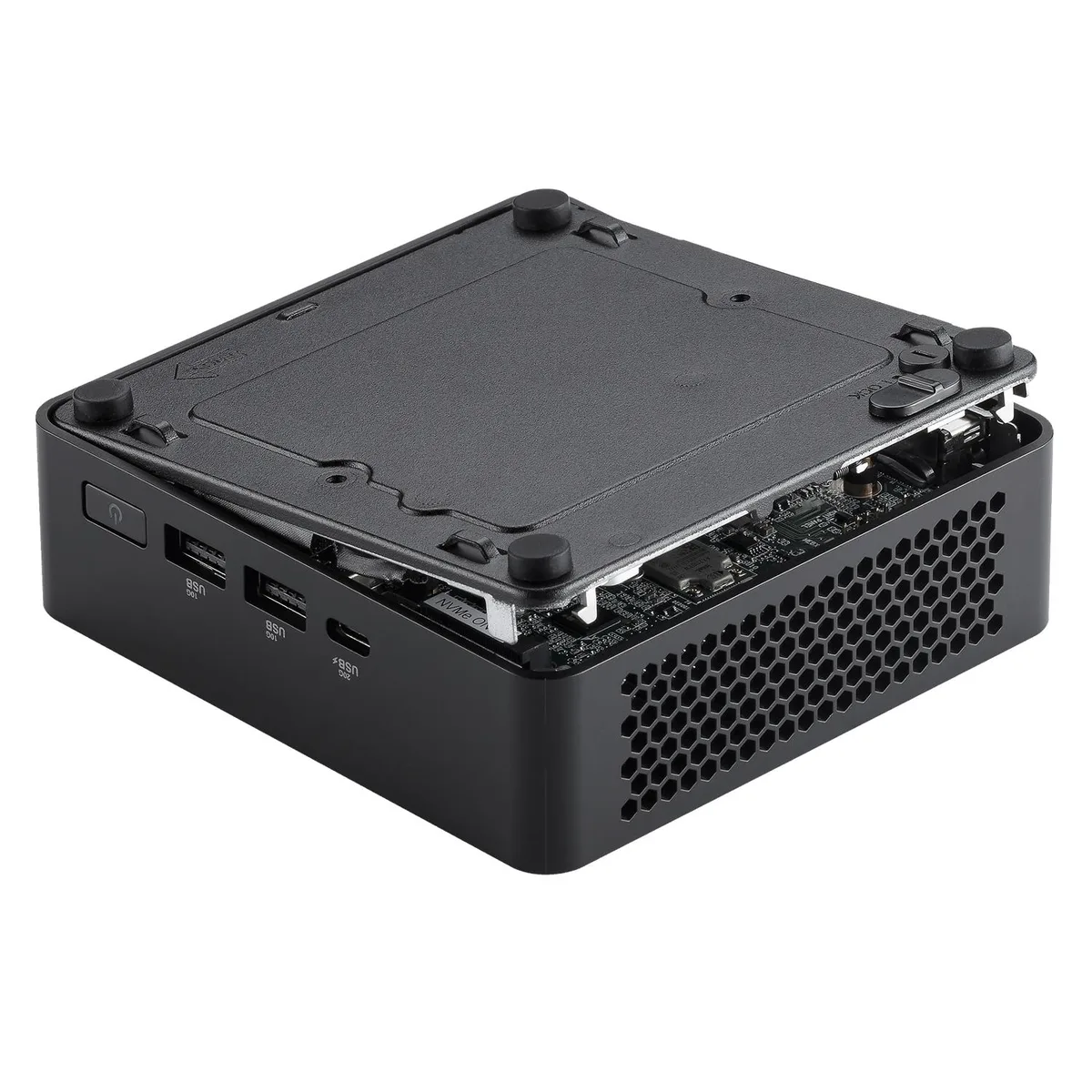

Small black square mini PC with slim profile

Intel

Intel NUC14RVKi3 barebone mini PC Core 3 100U 16GB 512GB

SKU CH-1K83-Y7YCN MPN NUC14RVKi3

A compact barebone mini PC with an Intel Core 3 100U processor, DDR5 memory support up to 96 GB, dual M.2 NVMe slots, 2.5 Gb Ethernet, Wi-Fi 6E, Bluetooth 5.3, Thunderbolt 4 and quad-display output

  • ColorBlack
  • Form FactorSlim
  • CPU TypeIntel Core 3
  • Memory installedNo Memory
  • Memory Type SupportedDDR5 5600
  • Max Memory Supported96GB

Group 16GB RAM / 512GB SSD

  • Compact 117 × 112 × 37 mm chassis fits behind a display with VESA mount
  • Intel Core 3 100U six-core processor reaches 4.70 GHz with 10 MB cache
  • Dual-channel DDR5-5600 SO-DIMM slots support up to 96 GB memory

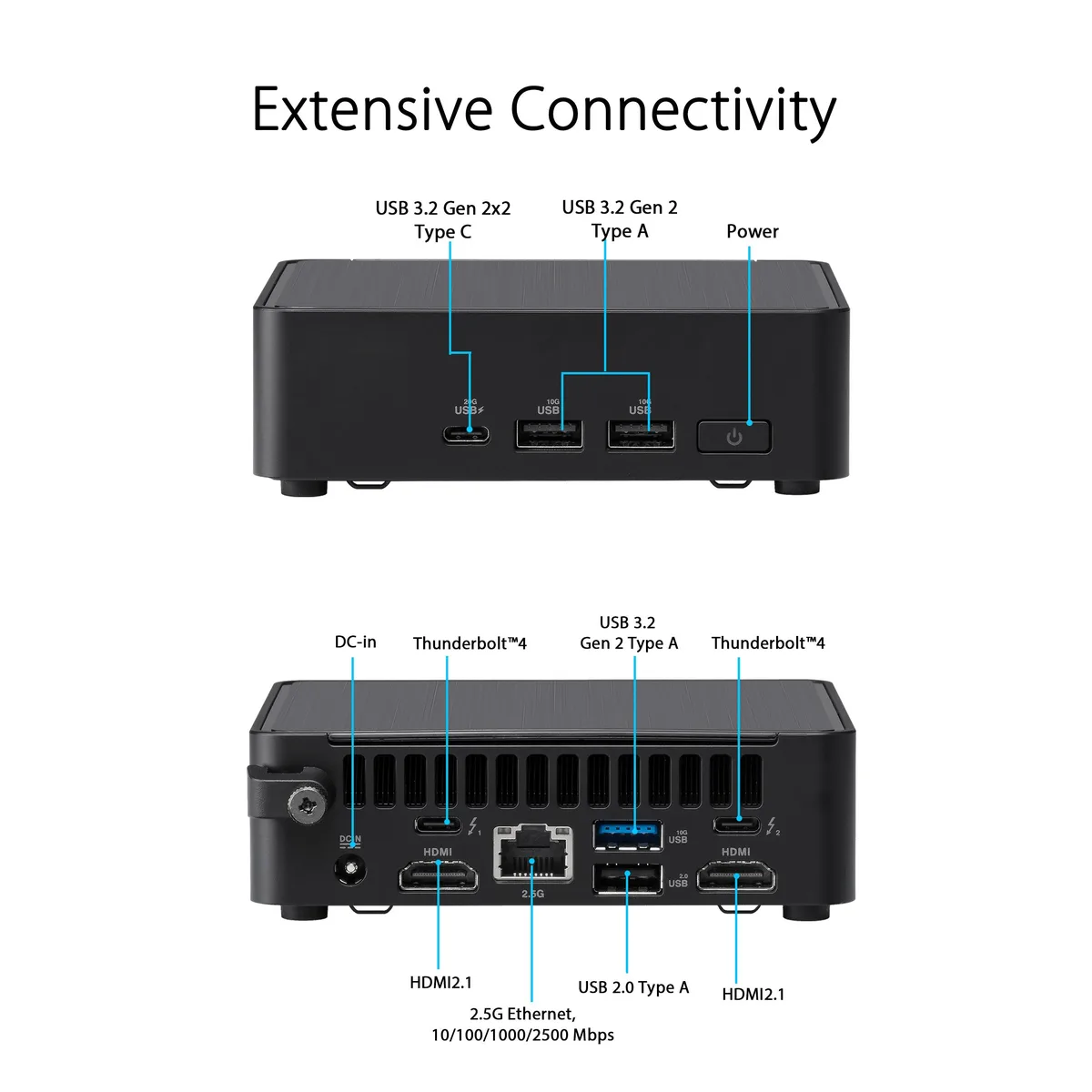

  • Two Thunderbolt 4 Type-C plus two HDMI 2.1 ports drive four 8K 60 Hz displays
  • Intel Wi-Fi 6E AX211 and 2.5 GbE LAN with Bluetooth 5.3 wireless connectivity

What this barebone delivers

The Intel NUC14RVKi3 is a slim mini PC barebone built around the Intel Core 3 100U processor with six cores and eight threads running up to 4.70 GHz. Integrated Intel Graphics with 64 execution units at 1.25 GHz drive up to four displays at 8K 60 Hz via two HDMI 2.1 ports and two Thunderbolt 4 Type-C ports. A 90 W 19 V power adapter is included.

Who this suits and who should look elsewhere

This unit suits builders who want a compact VESA-mountable desktop with 2.5 GbE, Wi-Fi 6E and Bluetooth 5.3, plus dual-channel DDR5-5600 SO-DIMM support up to 96 GB. It does not suit buyers who need memory or storage pre-installed, discrete graphics, legacy video outputs, internal 2.5-inch drive bays, or a larger power envelope for sustained heavy loads.

What to verify before ordering

Confirm you have DDR5-5600 SO-DIMM modules and M.2 2280 or 2242 PCIe Gen4 NVMe SSDs ready to install, as none are included. Check that your displays use HDMI or USB-C with DisplayPort Alt Mode, since no DisplayPort or VGA connectors are present. Ensure the 19 V DC input range matches your power environment and that the 117 x 112 x 37 mm chassis fits your mounting location.

Points forts

  • Compact 117 × 112 × 37 mm chassis fits behind a display with VESA mount
  • Intel Core 3 100U six-core processor reaches 4.70 GHz with 10 MB cache
  • Dual-channel DDR5-5600 SO-DIMM slots support up to 96 GB memory
  • Two Thunderbolt 4 Type-C plus two HDMI 2.1 ports drive four 8K 60 Hz displays
  • Intel Wi-Fi 6E AX211 and 2.5 GbE LAN with Bluetooth 5.3 wireless connectivity

Caractéristiques

BrandIntel
SeriesNUC (Next Unit of Computing)
ModelNUC14RVKi3
ColorBlack
Form FactorSlim
CPU TypeIntel Core 3
Memory installedNo Memory
Memory Type SupportedDDR5 5600
Max Memory Supported96GB
Dual Channel Memory SupportedYes
Storage InstalledNo Hard Drive
LANIntel i226-LM
Max LAN Speed2.5Gbps
BluetoothBluetooth 5.3
HDMI2
Rear USB4
RJ451

Autres versions de ce modèle

5 de plus dans cette gamme

Même famille, mémoire, ventirad ou fréquence différents — comparez avant de vous décider.

Questions sur cet article

Which DDR5 SO-DIMM modules do I need to buy to reach the 96 GB maximum on the NUC14RVKi3?

Install two DDR5-5600 SO-DIMMs of up to 48 GB each in the two slots; the board runs them in dual-channel mode.

Will my existing 2.5 Gbps network switch work with the Intel i226-LM controller on this unit?

Yes, the single RJ45 port negotiates 10, 100, 1000 or 2500 Mbps, so a 2.5 Gbps switch connects at full speed.

How can I verify both HDMI 2.1 ports and the two Thunderbolt 4 ports are driving displays after setup?

Open Windows Display Settings or the Intel Graphics Command Center; all four connected panels should appear as active monitors.
