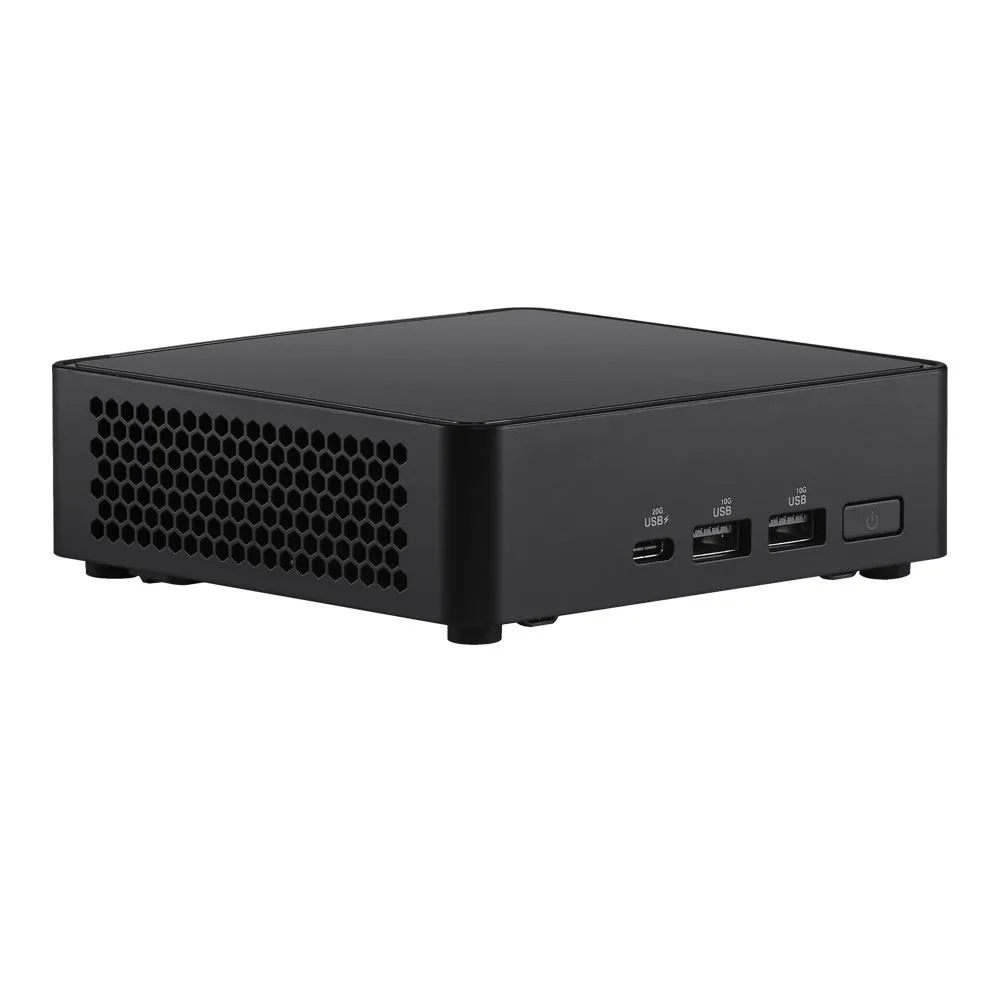

Black slim mini PC chassis 117 by 112 by 37 mm

Intel

Intel NUC14RVKi3 barebone mini PC Core 3 100U 32GB 1TB

SKU CH-7BW7-CE5S2 MPN NUC14RVKi3

Barebone mini PC supporting DDR5-5600 memory up to 96 GB, dual M.2 NVMe slots, Intel Core 3 100U processor, 2.5 Gb Ethernet, Wi-Fi 6E and Thunderbolt 4

  • ColorBlack
  • Form FactorSlim
  • CPU TypeIntel Core 3
  • Memory installedNo Memory
  • Memory Type SupportedDDR5 5600
  • Max Memory Supported96GB

Group 32G RAM / 1T SSD

  • 6 cores and 8 threads up to 4.70 GHz for responsive multitasking
  • Intel Graphics with 64 EUs drives up to four 8K 60 Hz displays
  • Two SO-DIMM slots accept DDR5 5600 up to 96 GB total
  • Wi-Fi 6E AX211 and Bluetooth 5.3 give fast wireless connectivity
  • Two Thunderbolt 4 ports plus HDMI 2.1 and 2.5 GbE cover modern I/O needs

Compact Intel NUC for multi-display workstations

The NUC14RVKi3 barebone delivers a 14th-generation Intel Core 3 100U processor with six cores and eight threads in a 117 mm by 112 mm by 37 mm chassis. It targets office users, digital-signage deployments and home-theatre builds that need quiet operation and VESA mounting flexibility. The system ships without memory or storage so integrators can choose capacity.

DDR5-5600 dual-channel ceiling at 96 GB

Two SO-DIMM slots accept DDR5-5600 modules up to 48 GB each for a 96 GB maximum. Storage uses one M.2 2280 PCIe Gen4 x4 slot and one M.2 2242 PCIe x4 slot, both limited to NVMe protocol. Graphics top out at 8K 60 Hz across four outputs via two HDMI 2.1 TMDS ports and two Thunderbolt 4 Type-C ports.

Verify 19 V DC input and OS plan before ordering

The included 90 W adapter provides 19 V DC, yet the board also accepts 12 V to 20 V wide-range input for alternative power schemes. Windows 11 is supported and Linux distributions are compatible, but no licence is bundled. Confirm that your chosen DDR5 SO-DIMMs and NVMe drives match the slot keying and length limits.

Points forts

  • 6 cores and 8 threads up to 4.70 GHz for responsive multitasking
  • Intel Graphics with 64 EUs drives up to four 8K 60 Hz displays
  • Two SO-DIMM slots accept DDR5 5600 up to 96 GB total
  • Wi-Fi 6E AX211 and Bluetooth 5.3 give fast wireless connectivity
  • Two Thunderbolt 4 ports plus HDMI 2.1 and 2.5 GbE cover modern I/O needs

Caractéristiques

BrandIntel
SeriesNUC (Next Unit of Computing)
ModelNUC14RVKi3
ColorBlack
Form FactorSlim
CPU TypeIntel Core 3
Memory installedNo Memory
Memory Type SupportedDDR5 5600
Max Memory Supported96GB
Dual Channel Memory SupportedYes
Storage InstalledNo Hard Drive
LANIntel i226-LM
Max LAN Speed2.5Gbps
BluetoothBluetooth 5.3
HDMI2
Rear USB4
RJ451

Autres versions de ce modèle

5 de plus dans cette gamme

Même famille, mémoire, ventirad ou fréquence différents — comparez avant de vous décider.

Questions sur cet article

Should I choose the single 2280 slot or add a 2242 drive for the NUC14RVKi3?

The board provides one M.2 2280 PCIe Gen4x4 slot and one M.2 2242 PCIe x4 slot; both accept NVMe SSDs so you can install one or two drives up to the 96 GB memory ceiling.

What does the Core 3 100U 4.70 GHz boost mean for daily workloads?

Six cores and eight threads with 10 MB cache hit 4.70 GHz on burst tasks, giving snappy responsiveness for office apps, web browsing and light content creation in the slim 117 x 112 x 37 mm chassis.

How do the two Thunderbolt 4 ports and HDMI 2.1 outputs limit display options?

Two Thunderbolt 4 Type-C ports and two HDMI 2.1 TMDS ports drive up to four 8K 60 Hz displays simultaneously through the integrated Intel Graphics 64 EUs at 1.25 GHz.
