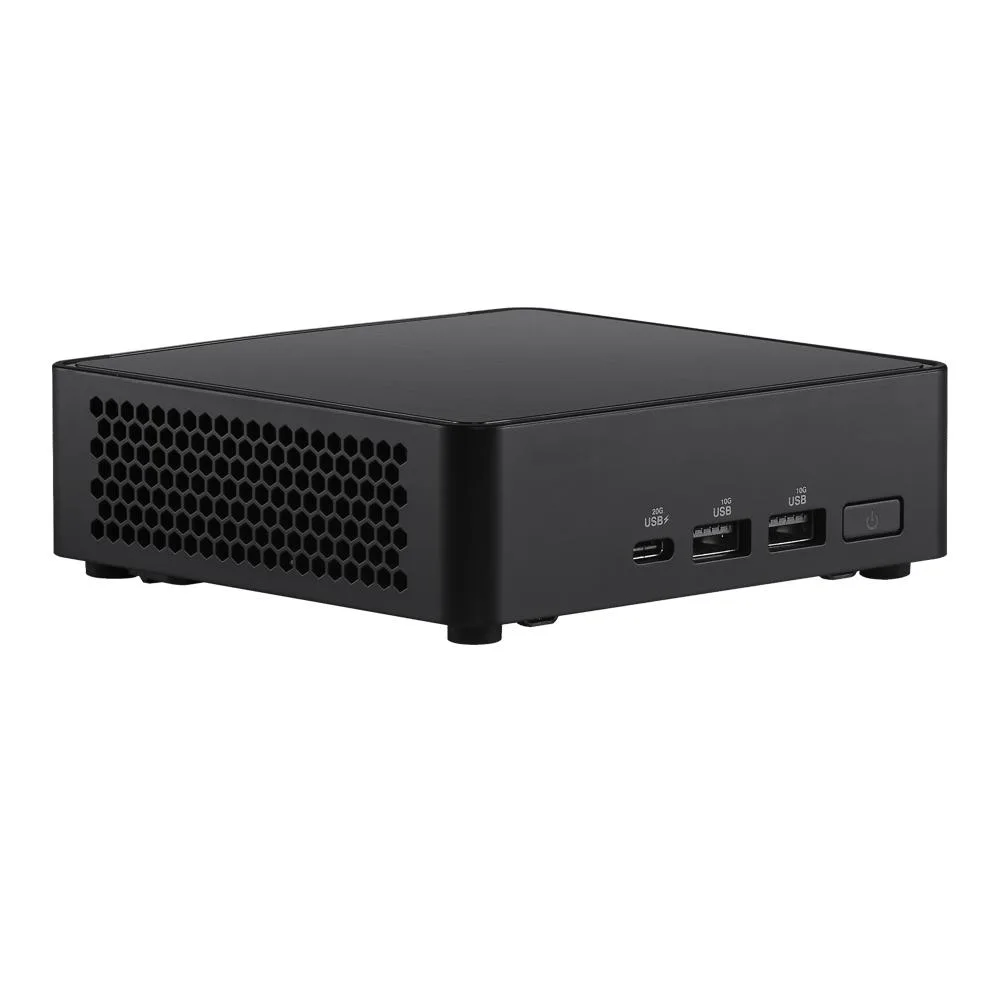

Small black slim mini PC, 117 by 112 by 37 mm

Intel

Intel NUC14RVKi3 barebone mini PC Core 3 100U 32GB 2TB

SKU CH-8HVQ-PDBHR MPN NUC14RVKi3

Barebone mini PC supporting up to 96 GB DDR5, dual M.2 NVMe slots, Wi-Fi 6E, Bluetooth 5.3, 2.5 Gbps LAN and quad 8K displays

  • ColorBlack
  • Form FactorSlim
  • CPU TypeIntel Core 3
  • Memory installedNo Memory
  • Memory Type SupportedDDR5 5600
  • Max Memory Supported96GB

Group 32gb / 2tb ssd

  • 6-core Intel Core 3 100U up to 4.70GHz for responsive everyday computing
  • Intel Graphics with 64 EUs drives up to four displays at 8K 60Hz
  • Two DDR5-5600 SO-DIMM slots expand to 96GB for heavy multitasking
  • Dual M.2 NVMe slots (2280 Gen4x4 and 2242 x4) give fast, flexible storage
  • Wi-Fi 6E AX211 plus 2.5GbE LAN and Bluetooth 5.3 keep connections fast and stable

Intel NUC 14 Pro barebone for compact workstations

This Intel NUC14RVKi3 barebone mini PC uses a 14th Gen Intel Core 3 100U processor with six cores and eight threads reaching 4.70 GHz. Integrated Intel Graphics with 64 execution units drives up to four displays at 8K 60 Hz. The chassis measures 117 x 112 x 37 mm and includes a VESA mount for behind-screen installation. A 90 W 19 V adapter powers the unit.

Upgrade from older NUCs

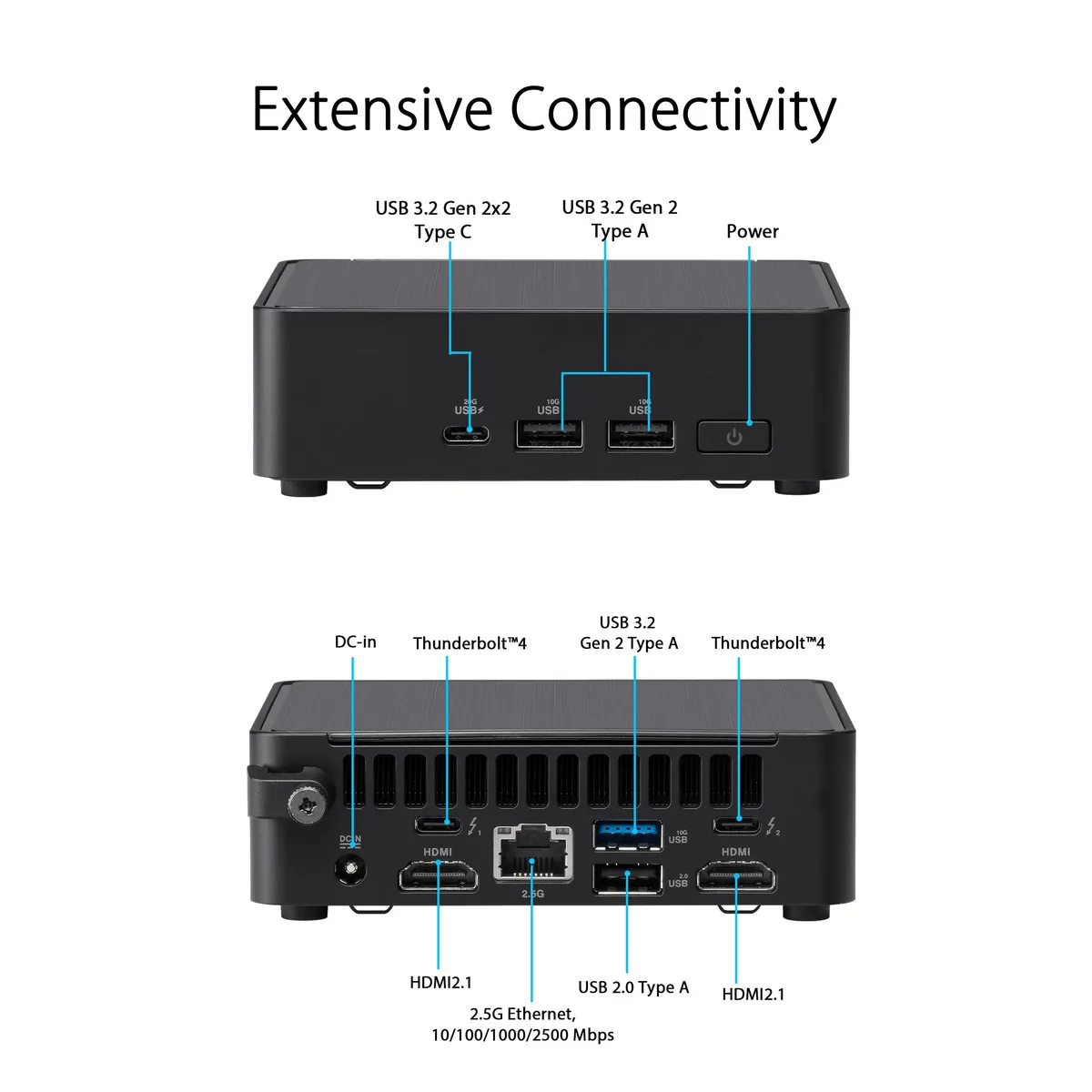

The platform adds two Thunderbolt 4 Type-C ports, one USB 3.2 Gen 2x2 Type-C at 20 Gbps, three USB 3.2 Gen 2 Type-A ports and a single USB 2.0 Type-A port. Networking moves to 2.5 GbE via an Intel i226-LM controller alongside Wi-Fi 6E AX211 and Bluetooth 5.3. Two HDMI 2.1 TMDS outputs join the Type-C display paths. DDR5 5600 SO-DIMM slots replace older memory standards.

Verify your memory and storage plans before ordering

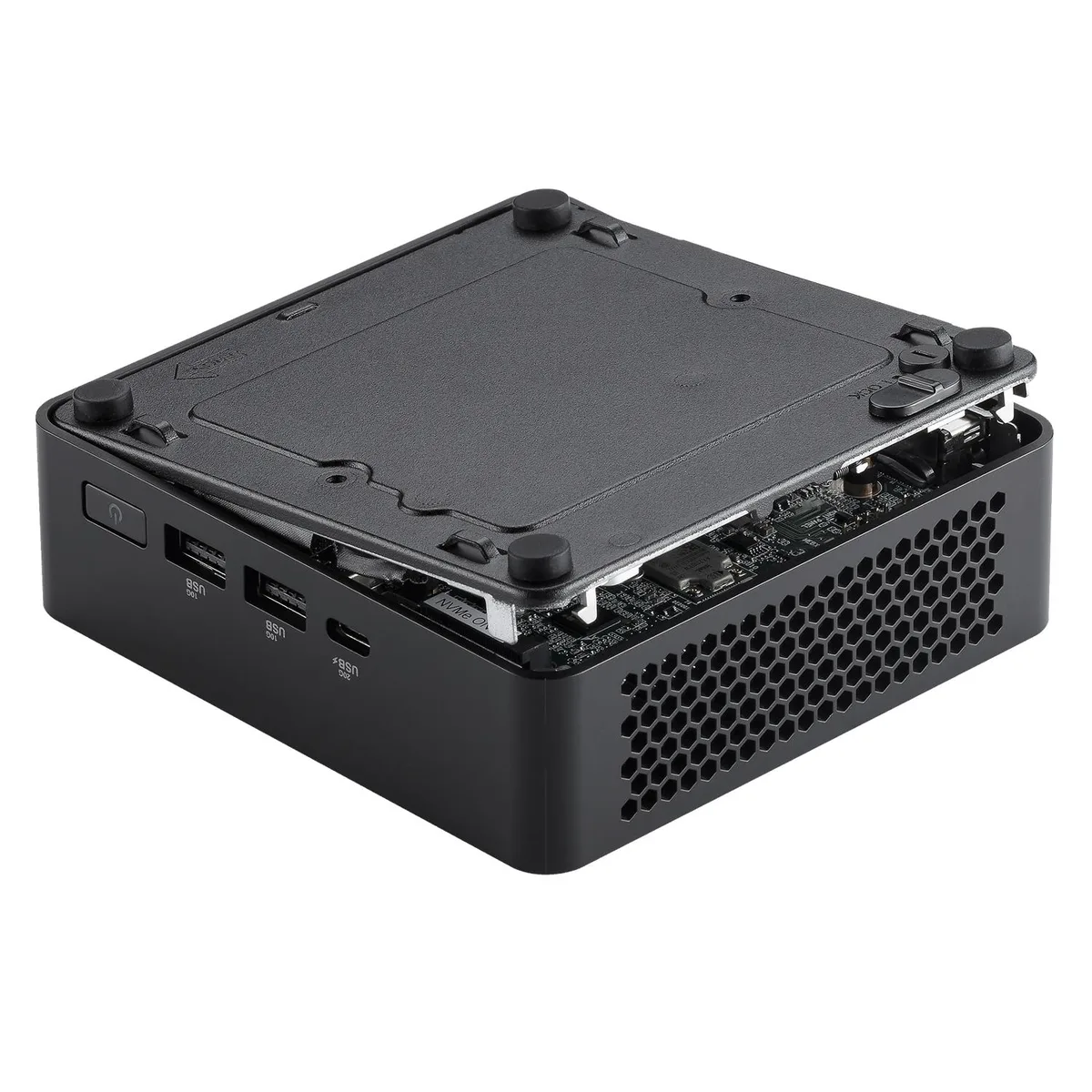

The barebone ships with no memory and no storage installed. Two SO-DIMM slots accept DDR5 5600 modules up to 96 GB total in dual-channel configuration. Storage uses one M.2 2280 PCIe Gen 4 x4 NVMe slot and one M.2 2242 PCIe x4 NVMe slot. The 12 V to 20 V DC input range allows flexible power sourcing. Windows 11 and major Linux distributions are supported.

Points forts

  • 6-core Intel Core 3 100U up to 4.70GHz for responsive everyday computing
  • Intel Graphics with 64 EUs drives up to four displays at 8K 60Hz
  • Two DDR5-5600 SO-DIMM slots expand to 96GB for heavy multitasking
  • Dual M.2 NVMe slots (2280 Gen4x4 and 2242 x4) give fast, flexible storage
  • Wi-Fi 6E AX211 plus 2.5GbE LAN and Bluetooth 5.3 keep connections fast and stable

Caractéristiques

BrandIntel
SeriesNUC (Next Unit of Computing)
ModelNUC14RVKi3
ColorBlack
Form FactorSlim
CPU TypeIntel Core 3
Memory installedNo Memory
Memory Type SupportedDDR5 5600
Max Memory Supported96GB
Dual Channel Memory SupportedYes
Storage InstalledNo Hard Drive
LANIntel i226-LM
Max LAN Speed2.5Gbps
BluetoothBluetooth 5.3
HDMI2
Rear USB4
RJ451

Autres versions de ce modèle

5 de plus dans cette gamme

Même famille, mémoire, ventirad ou fréquence différents — comparez avant de vous décider.

Questions sur cet article

What are the chassis dimensions for the VESA mount?

The chassis measures 117 by 112 by 37 millimetres and includes VESA mounting hardware in the box.

Which screw size secures the M.2 2280 NVMe SSD?

The M.2 2280 slot uses a standard M2 screw; install the drive at an angle then press down and tighten that single screw.

Can the DDR5 SO-DIMM slots be upgraded after purchase?

Yes, two SO-DIMM slots support up to 96GB total of DDR5-5600 memory for future expansion.
