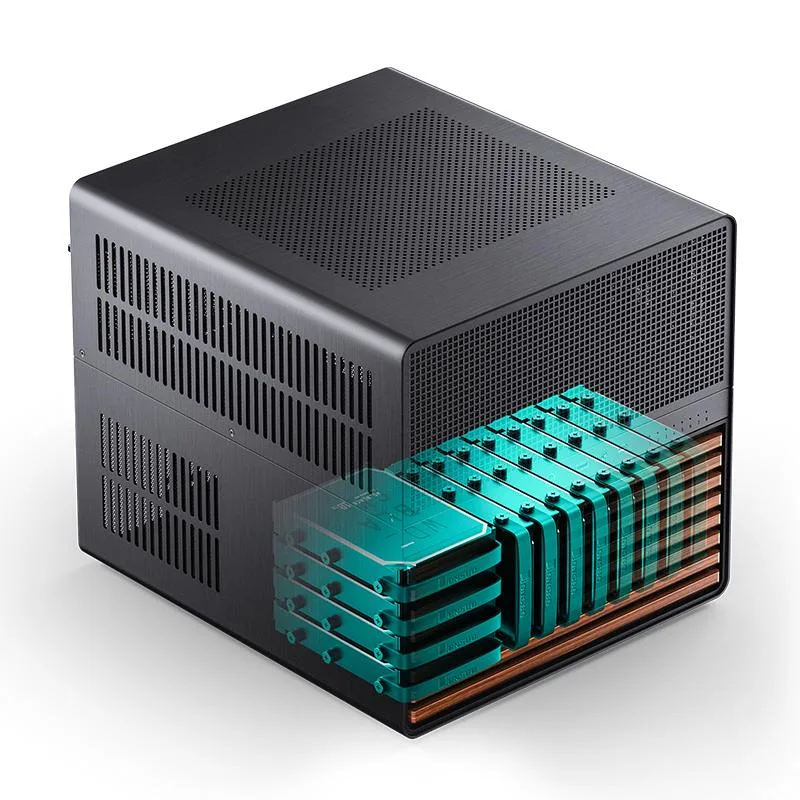

Black full-tower case with walnut front panel, three built-in rear fans, twelve front hot-swap bays

JONSBO

JONSBO N5 NAS PC Case 12+4 Drive Bays Black

SKU CH-AEVZ-JPKWA

Holds twelve 3.5" hot-swap drives plus four 2.5" SSDs, fits E-ATX boards up to 330 mm, takes GPUs to 350 mm and includes three rear 120 mm fans

  • TypeE-ATX Full Tower Case
  • ColorBlack
  • Case Material1mm steel plate, 2mm aluminium plate, 8mm North American wal
  • Motherboard CompatibilityMicro ATX / ATX / E-ATX
  • Dust FiltersYes
  • Internal 3.5" Drive Bays12

Options N5 (Black)

  • 12 hot-swap 3.5″ bays plus four 2.5″ SSD slots for massive storage
  • Three 120 mm rear fans installed for immediate airflow
  • Supports E-ATX boards up to 330 mm and GPUs up to 350 mm
  • 8 mm North American walnut veneer accents on a steel and aluminium frame
  • Front USB 3.2 Gen2 Type-C and USB 3.0 with combined audio jack

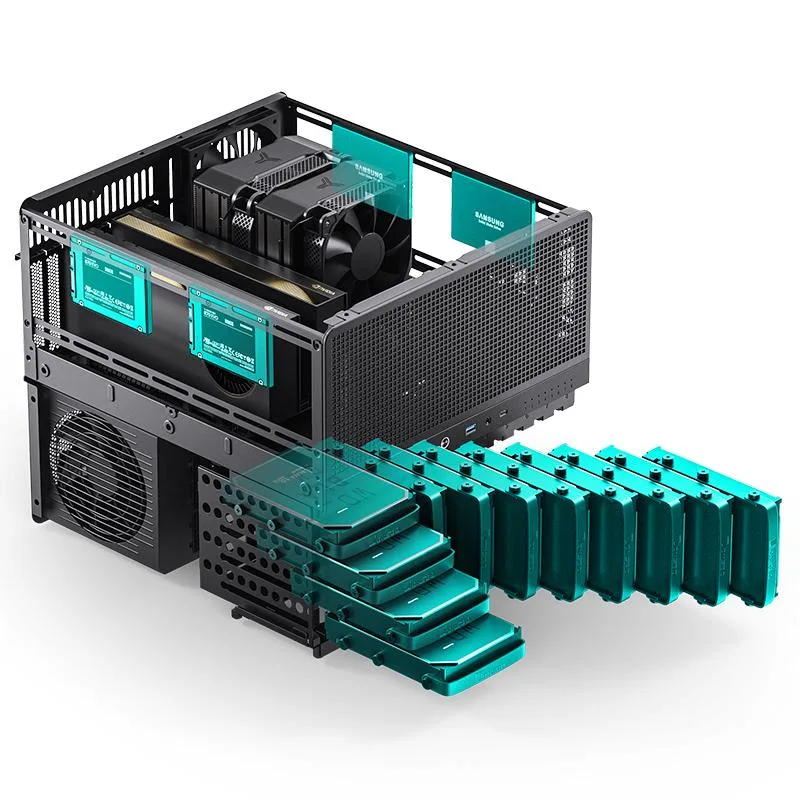

Drive capacity and layout

The Jonsbo N5 is a full-tower chassis built around twelve front-mounted 3.5-inch hot-swap bays and four side-mounted 2.5-inch bays. It targets home-server builders and small-office NAS deployments that need dense, accessible storage in a single enclosure.

Motherboard and GPU headroom

The case accepts micro-ATX, ATX and E-ATX boards up to 330 millimetres wide. Graphics cards up to 350 millimetres long fit with room for four GPUs, although populating all twelve drive bays restricts power-supply choices and a full GPU complement limits liquid-cooling options.

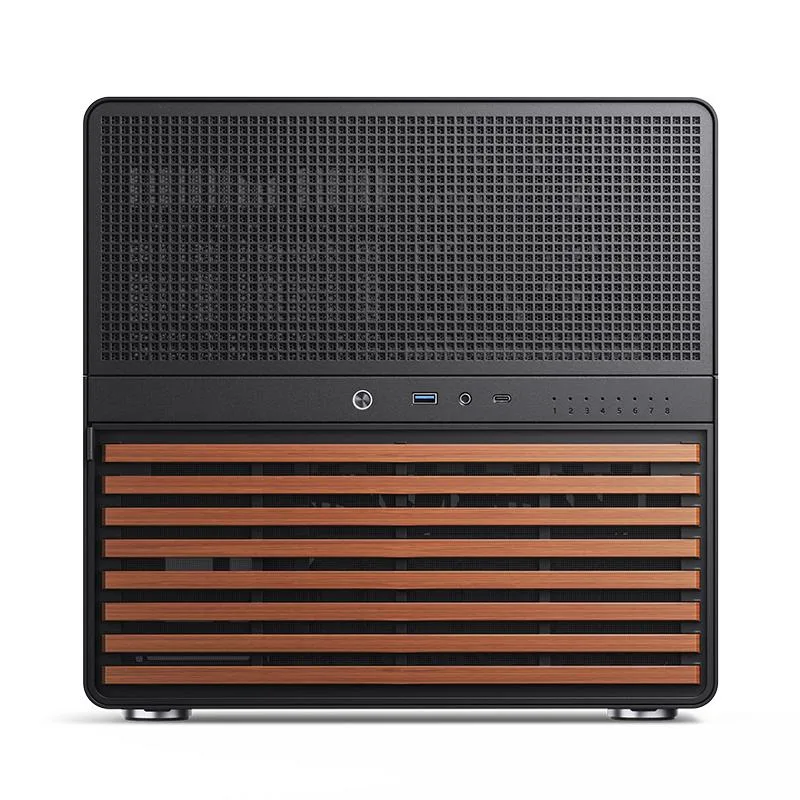

Front I/O and included cooling

A USB 3.2 Gen 2 Type-C port, a USB 3.0 Type-A port and a combined audio jack sit on the front panel. Three 120-millimetre fans are pre-installed at the rear, and the top cover lifts off in one piece to simplify drive-cage installation.

Points forts

  • 12 hot-swap 3.5″ bays plus four 2.5″ SSD slots for massive storage
  • Three 120 mm rear fans installed for immediate airflow
  • Supports E-ATX boards up to 330 mm and GPUs up to 350 mm
  • 8 mm North American walnut veneer accents on a steel and aluminium frame
  • Front USB 3.2 Gen2 Type-C and USB 3.0 with combined audio jack

Caractéristiques

BrandJonsbo
SeriesN Series
ModelN5
Part NumberN5
TypeE-ATX Full Tower Case
ColorBlack
Case Material1mm steel plate, 2mm aluminium plate, 8mm North American walnut wood
Motherboard CompatibilityMicro ATX / ATX / E-ATX
Dust FiltersYes
Internal 3.5" Drive Bays12
Internal 2.5" Drive Bays4
Hot-Swap Drive Bays12
Expansion Slots8
Front PortsUSB3.2 Gen2 Type-C*1/USB3.0*1(AUDIOx1+MICx1 2-in-1)
Fan OptionsFront panel 120mm*2 or 140mm*2
Right side 120mm*3 (fan will occupy the 8th graphics slot)
Rear panel 120mm*3 (Built-in)
Left side 120mm*3
120mm Fans3
Max GPU Length325mm-350mm
Max CPU Cooler Height160 mm
Max PSU Length240 mm
Dimensions350X355X403mm 13.78x13.89x15.87 inch
Weight7.5KG
FeaturesJONSBO N5 12+4 Drive bay NAS EATX Pc case, home server-
NAS Network Storage/High Performance Computing Home/Office/Enterprise
Solid wood decoration: North American black walnut veneer
12+4 Drive Bay: Supports 12x3.5’ hotswap HDD disk front installation and 4x2.5’ SSD which is Side installation. If full 12pcs HDD disk used,Pls have a note on the PSU condition
GPU HP Host: Supports 4 GPU in the case.Pls have a note on the AIO condition
Convenient installation structure :With One-piece top cover removable/easy to install the removable 4-bay HDD cage

Autres versions de ce modèle

5 de plus dans cette gamme

Même famille, mémoire, ventirad ou fréquence différents — comparez avant de vous décider.

Questions sur cet article

Will a 350 mm graphics card fit with the rear fans installed?

The case accepts cards up to 350 mm; the three rear 120 mm fans are already fitted and do not reduce that length.

Can I use an ATX power supply longer than 240 mm?

No, the maximum power-supply length is 240 mm, so longer ATX units will not fit.

How many 3.5-inch drives can I install if I also want four 2.5-inch SSDs?

You can install all twelve 3.5-inch hot-swap drives plus the four 2.5-inch SSDs simultaneously.
