Black aluminium Mini-ITX case with walnut trim and carry handle

JONSBO

JONSBO NV10 Black Mini ITX PC Case

SKU CH-6FW2-4B6ZS

Aluminium mini-ITX chassis with walnut trim, 4.5 L volume, two 40 mm 5000 rpm fans, four 2.5″ drive bays, 190 mm GPU and 38 mm cooler clearance, 150 mm flex-PSU limit, PCIe 4.0 riser included

  • ColorBlack
  • Case MaterialAluminum
  • Motherboard CompatibilityITX
  • Internal 2.5" Drive Bays4
  • Fan Options2x5000 rpm 40mm Fans
  • Max GPU Length190 mm

Options NV10 (Silver)

  • Compact 4.5 L aluminium chassis fits tight spaces
  • North American walnut trim adds premium desktop style
  • Two 40 mm 5000 rpm fans drive active airflow
  • Supports GPU up to 190 mm and CPU cooler up to 38 mm
  • Tool-free top handle enables quick standing or lying access

Compact aluminium chassis for Mini-ITX builds

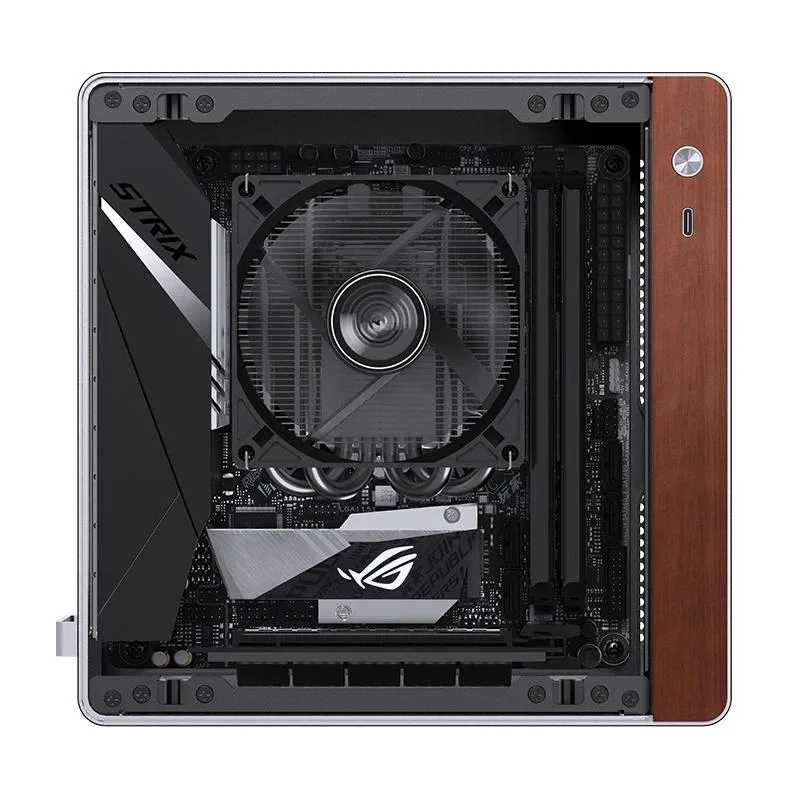

The JONSBO NV10 Black is a 4.5 L desktop case made from aluminium alloy with walnut trim. It accepts Mini-ITX motherboards and a 1U Flex PSU up to 150 mm long. Two 40 mm fans spinning at 5000 rpm come pre-installed for active airflow. The case can sit upright or flat on a desk.

Upgrade from larger towers when desk space is tight

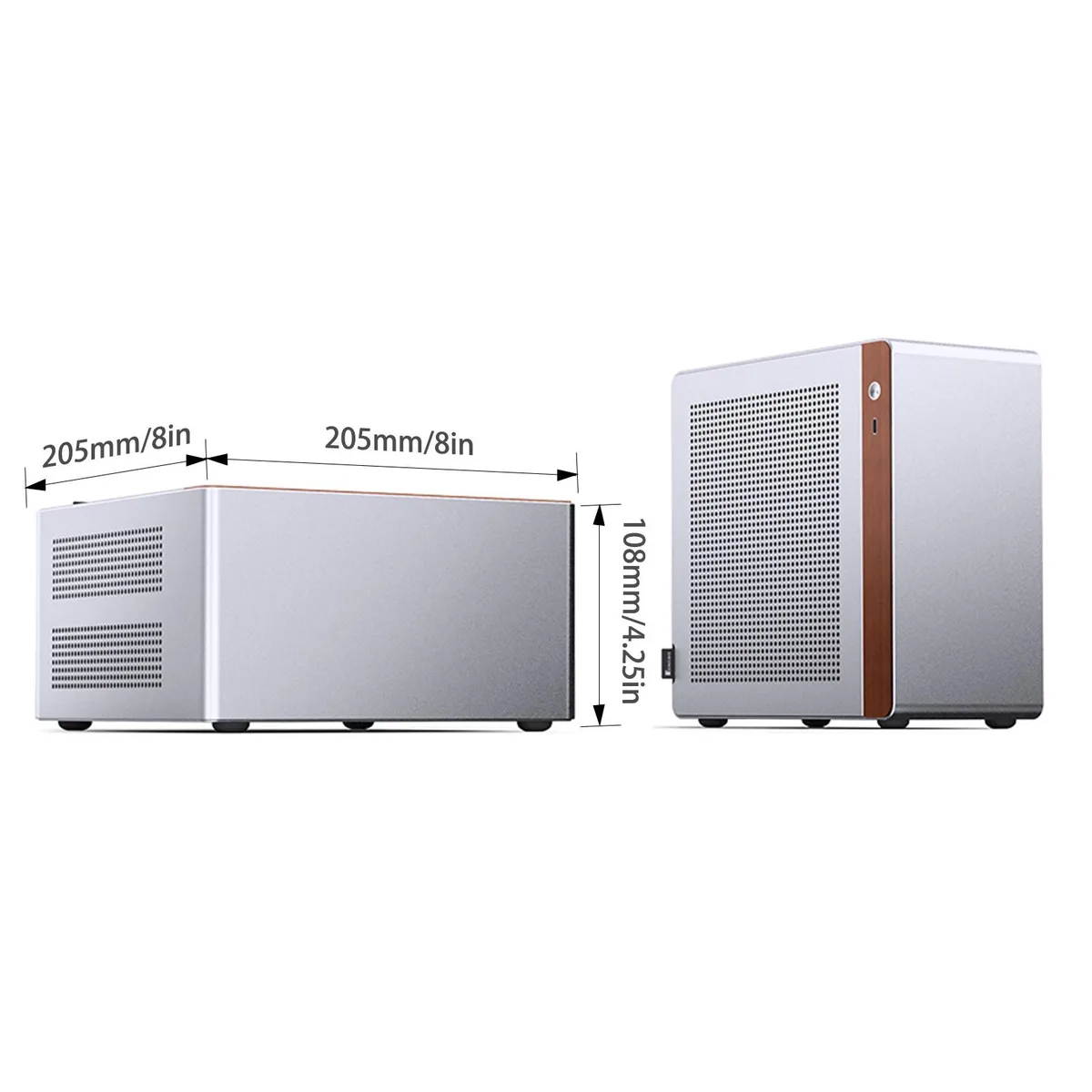

Builders moving from mid-tower or full-tower enclosures gain a footprint of only 108 x 205 x 205 mm. The jump is worth it when a portable system with four 2.5-inch drive bays and a low-profile GPU up to 190 mm fits the workload. Tower coolers over 38 mm and standard ATX power supplies will not fit.

Tool-free panels and a lift handle simplify assembly

Removing the top cover requires no screws, giving quick access to the motherboard tray and drive cages. The included PCIe 4.0 riser cable routes to the rear slot for the graphics card. The narrow 38 mm cooler limit means tall air coolers and most liquid blocks cannot be used; plan for low-profile cooling only.

Points forts

  • Compact 4.5 L aluminium chassis fits tight spaces
  • North American walnut trim adds premium desktop style
  • Two 40 mm 5000 rpm fans drive active airflow
  • Supports GPU up to 190 mm and CPU cooler up to 38 mm
  • Tool-free top handle enables quick standing or lying access

Caractéristiques

BrandJonsbo
ModelNV10 BLACK
Part NumberNV10 BLACK
ColorBlack
Case MaterialAluminum
Motherboard CompatibilityITX
Internal 2.5" Drive Bays4
Fan Options2x5000 rpm 40mm Fans
Max GPU Length190 mm
Max CPU Cooler Height38mm
Max PSU Length150 mm
Dimensions108x205x205mm

Autres versions de ce modèle

5 de plus dans cette gamme

Même famille, mémoire, ventirad ou fréquence différents — comparez avant de vous décider.

Questions sur cet article

What are the case dimensions and will it fit my 190 mm graphics card?

The case measures 108x205x205 mm and supports graphics cards up to 190 mm in length.

How do I install the 1U flex PSU and what is the common mistake?

Slide the 1U flex PSU into the dedicated bracket; the step often missed is securing the retaining screw before closing the top cover.

When will the included 40 mm fans need replacement and what spec should I match?

Replace the two 5000 rpm 40 mm fans when noise or airflow drops; match the same 40 mm size and 5000 rpm rating.
