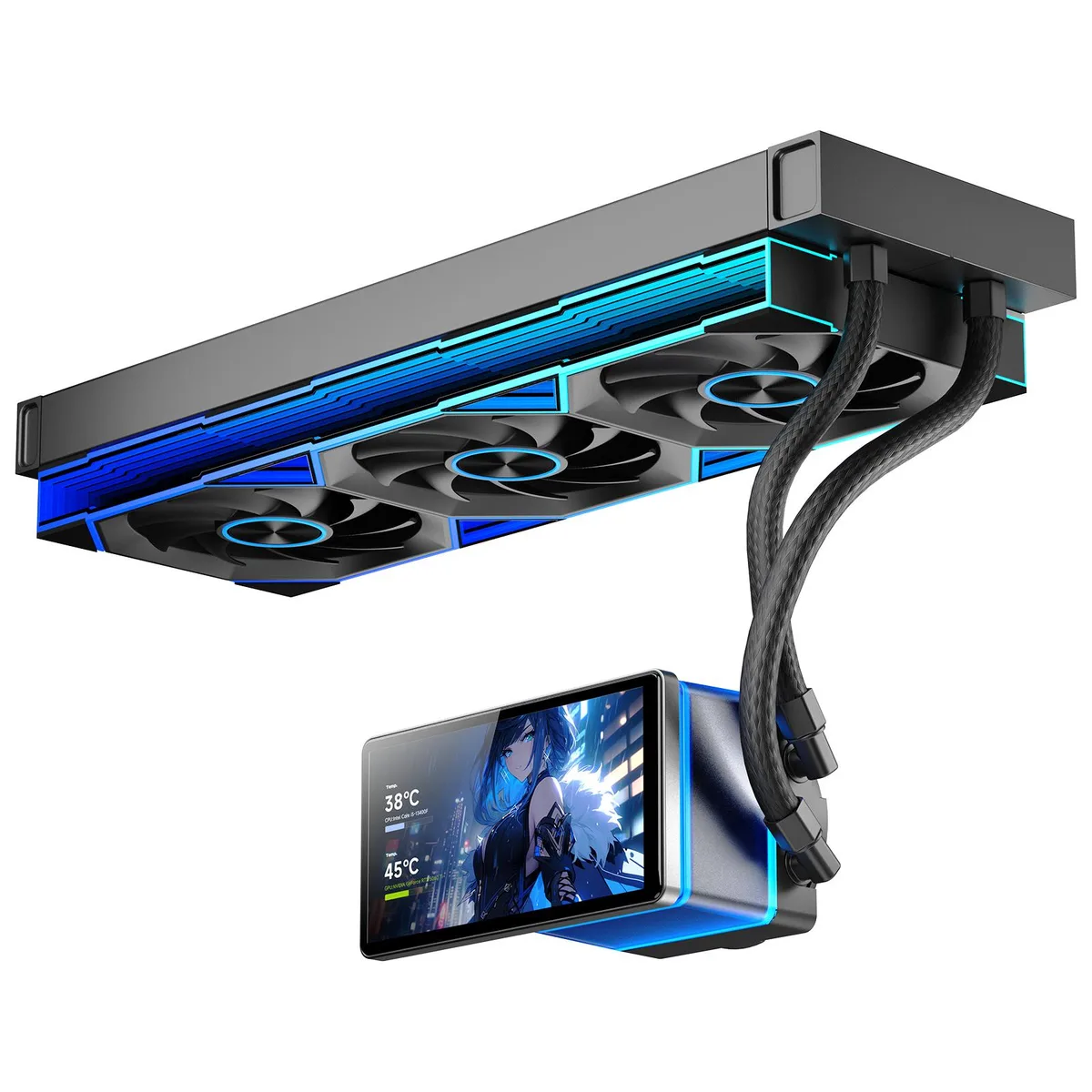

Black 360 mm AIO with 5.5 inch LCD screen and three ARGB fans

Jungle Leopard

Jungle Leopard PF 360 liquid cooler 5.5-inch LCD ARGB Black

SKU CH-A1MH-6QV35

A 360 mm liquid cooler with a 5.5-inch magnetic LCD screen, three 120 mm ARGB fans, and a copper cold plate rated for 320 W TDP

  • Block CompatibilityAMD Socket AM5
  • Block Dim.15.6 L x 1 W x 4.7 H inches
  • Block MaterialCopper
  • DisplayJungle Leopard
  • Pump Speed2000 rpm
  • Pump BearingCeramic

Color Black

  • Black
  • White

Les versions barrées existent, mais ne sont pas disponibles ici.

  • 5-inch 480x960 LCD rotates 270° for custom system monitoring
  • Magnetic screen mount allows 90/180/270-degree viewing without dead angles
  • 360mm radiator with 165CFM airflow and 2.05mmH₂O pressure handles 320W TDP
  • Pump runs at 2700RPM with ceramic bearing at 30dB noise
  • ARGB infinity mirror fans sync via 5V 3-pin for unified lighting

360 mm AIO with 5.5-inch LCD

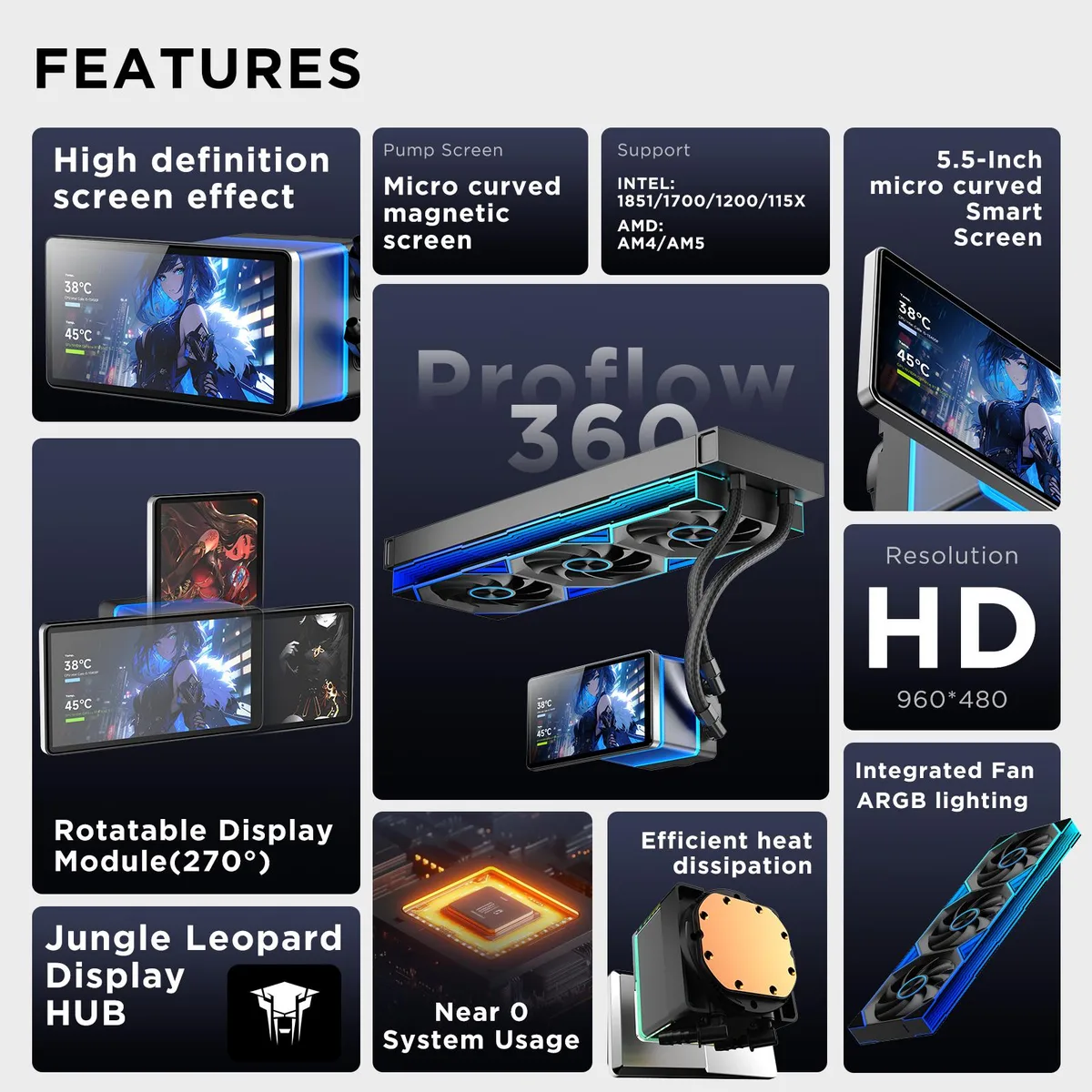

The Jungle Leopard PF 360 is a 360 mm all-in-one liquid cooler built around a 5.5-inch LCD screen that rotates through 90°, 180° or 270° angles. Three 120 mm ARGB infinity-mirror fans and a dual-ring pump header sync via 5 V 3-pin motherboard headers. A copper cold plate and aluminium integrated radiator target up to 320 W TDP for Intel LGA 1851, 1700, 1200, 115X and AMD AM4, AM5 sockets.

Interface and software limits

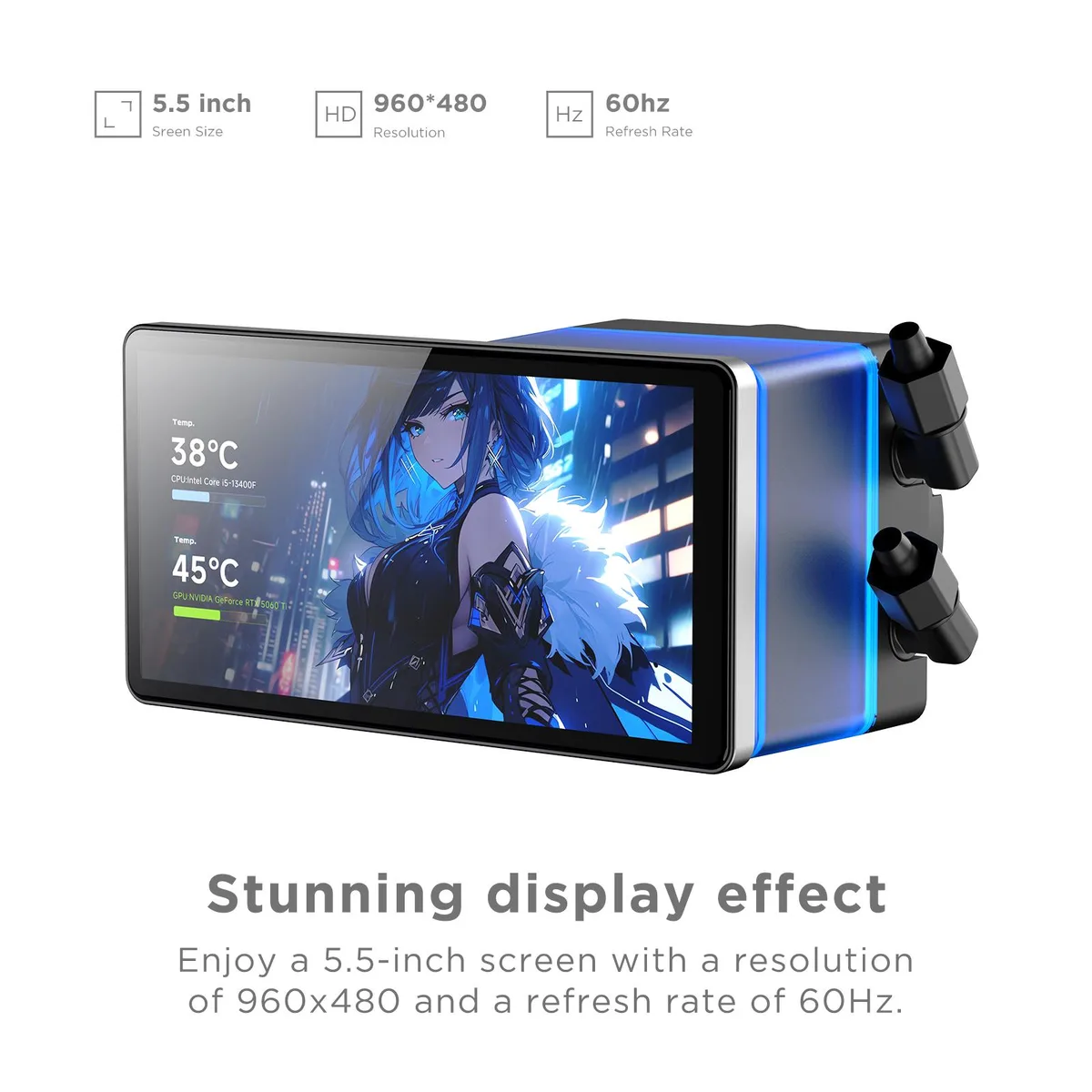

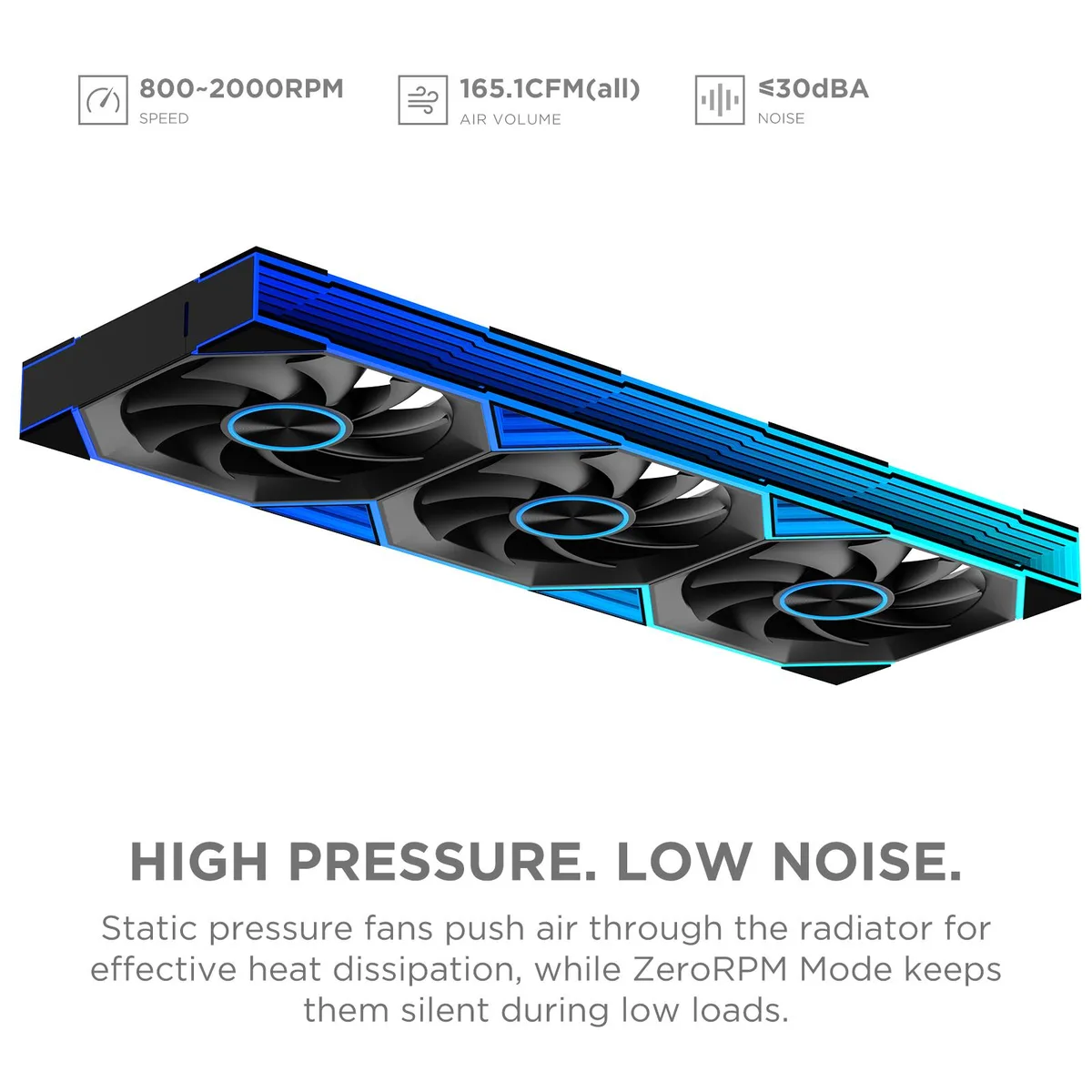

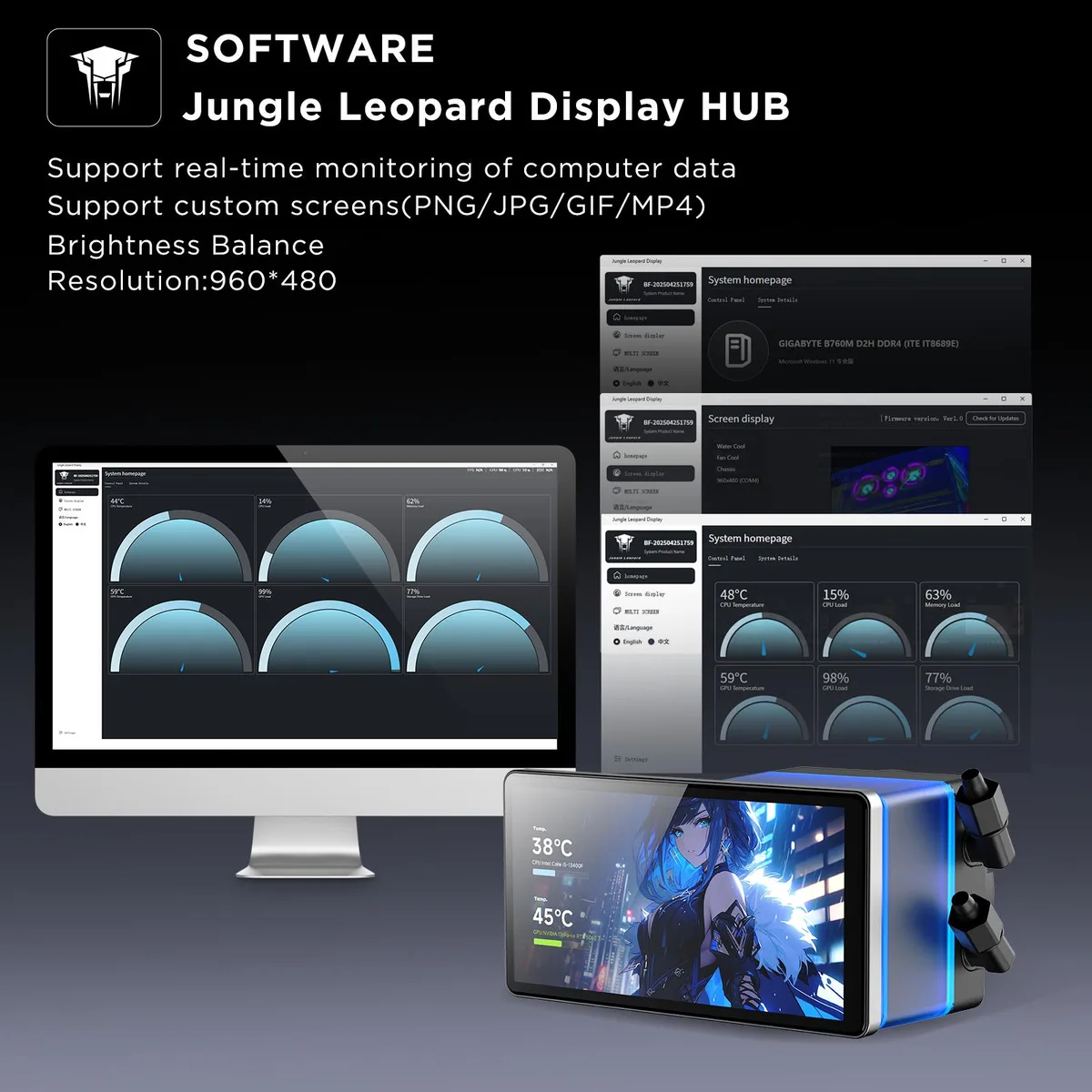

The LCD panel runs at 480 x 960 resolution and accepts imported video or image backgrounds through the manufacturer’s custom R&D software. Fan speed ranges from 800 to 2000 RPM with 165 CFM airflow and 2.05 mmH₂O static pressure, while pump speed sits at 2700 RPM. Noise is rated at 30 dBA for both pump and fans. No other display protocols or third-party monitoring integrations are specified.

Clearance and mounting checklist

Verify that your case supports a 360 mm radiator measuring 379 x 120 x 27 mm with a 400 mm waterway length and three 120 mm fan slots. Ensure the motherboard offers a 5 V 3-pin ARGB header for lighting synchronisation and a standard 4-pin PWM header for pump and fan control. Confirm socket bracket compatibility with the listed Intel and AMD platforms before ordering.

Points forts

  • 5-inch 480x960 LCD rotates 270° for custom system monitoring
  • Magnetic screen mount allows 90/180/270-degree viewing without dead angles
  • 360mm radiator with 165CFM airflow and 2.05mmH₂O pressure handles 320W TDP
  • Pump runs at 2700RPM with ceramic bearing at 30dB noise
  • ARGB infinity mirror fans sync via 5V 3-pin for unified lighting

Caractéristiques

BrandJungle Leopard
Part NumberJL PF 360 BK
Block CompatibilityAMD Socket AM5
Block Dim.15.6 L x 1 W x 4.7 H inches
Block MaterialCopper
DisplayJungle Leopard
Pump Speed2000 rpm
Pump BearingCeramic
Pump Capacity165.1 cubic_feet_per_minute
Pump Noise30 decibels
Radiator Size360 mm
Radiator MaterialCopper
Fan Size3 Fan Slots (120 mm)
Fan Dim.15.6 L x 1 W x 4.7 H inches
Bearing TypeHydraulic Bearing
Fan RPM2000RPM
Fan Air Flow165CFM
Fan Noise30 decibels
Fan Connector4 Pin
LED ColorARGB
Tube Dim.PF 360
Tube MaterialAluminum
Reservoir Dim.15.6 L x 1 W x 4.7 H inches
Reservoir Capacity1 Count
Coolant Capacity1 Count
Features30 decibels

Autres versions de ce modèle

1 de plus dans cette gamme

Même famille, mémoire, ventirad ou fréquence différents — comparez avant de vous décider.

Questions sur cet article

Should I pick the 360 mm radiator version or a smaller size?

The 360 mm radiator with three 120 mm fans delivers 165.1 CFM airflow and handles up to 320 W TDP, while smaller sizes would reduce cooling capacity.

What does the 320 W TDP rating mean when the cooler is installed?

It indicates the cooler can dissipate up to 320 watts of CPU heat under load, supported by a 2700 RPM pump and fans adjustable from 800 to 2000 RPM.

How does the 5 V 3-pin ARGB header limit lighting control?

The 5 V 3-pin connector synchronises the infinity-mirror fans and dual-ring block lighting with motherboard software, capping control to standard 5 V addressable RGB protocols.
