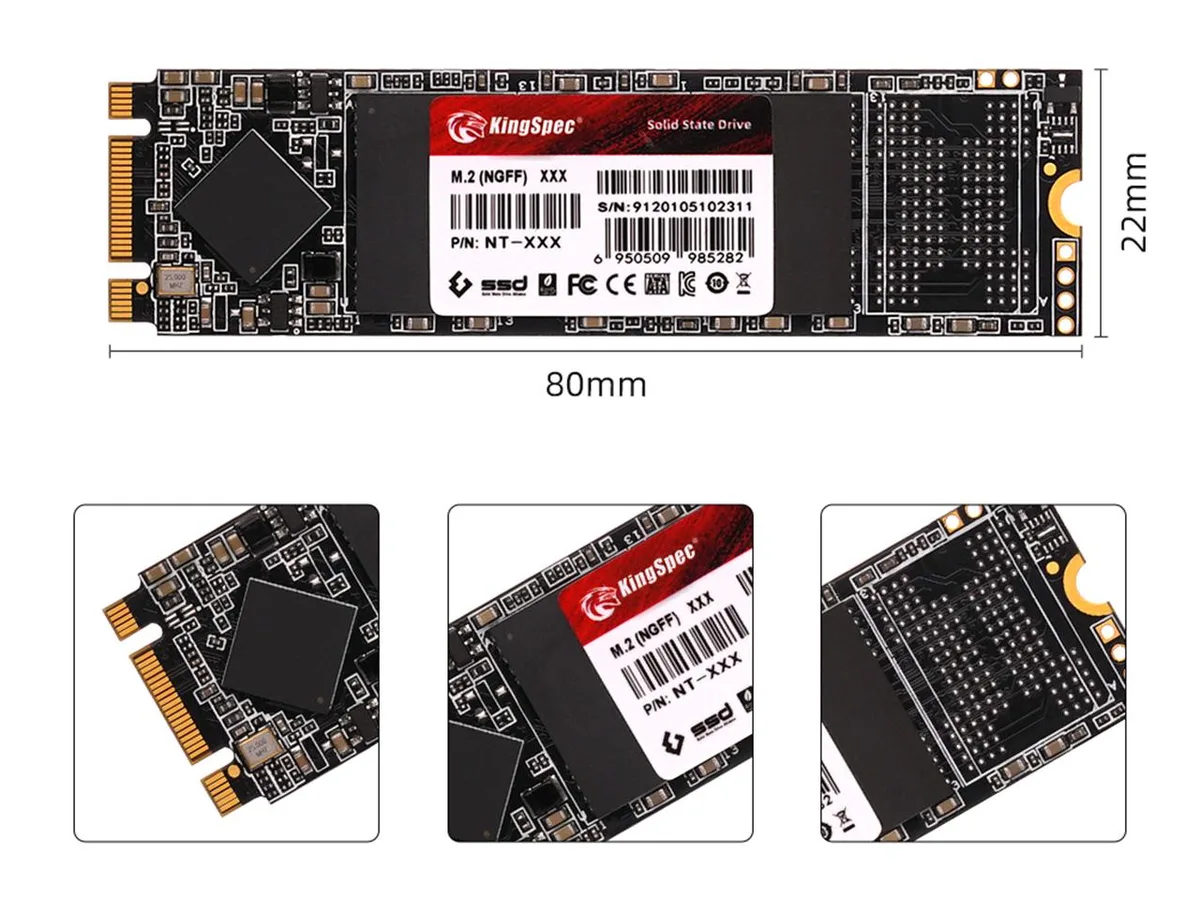

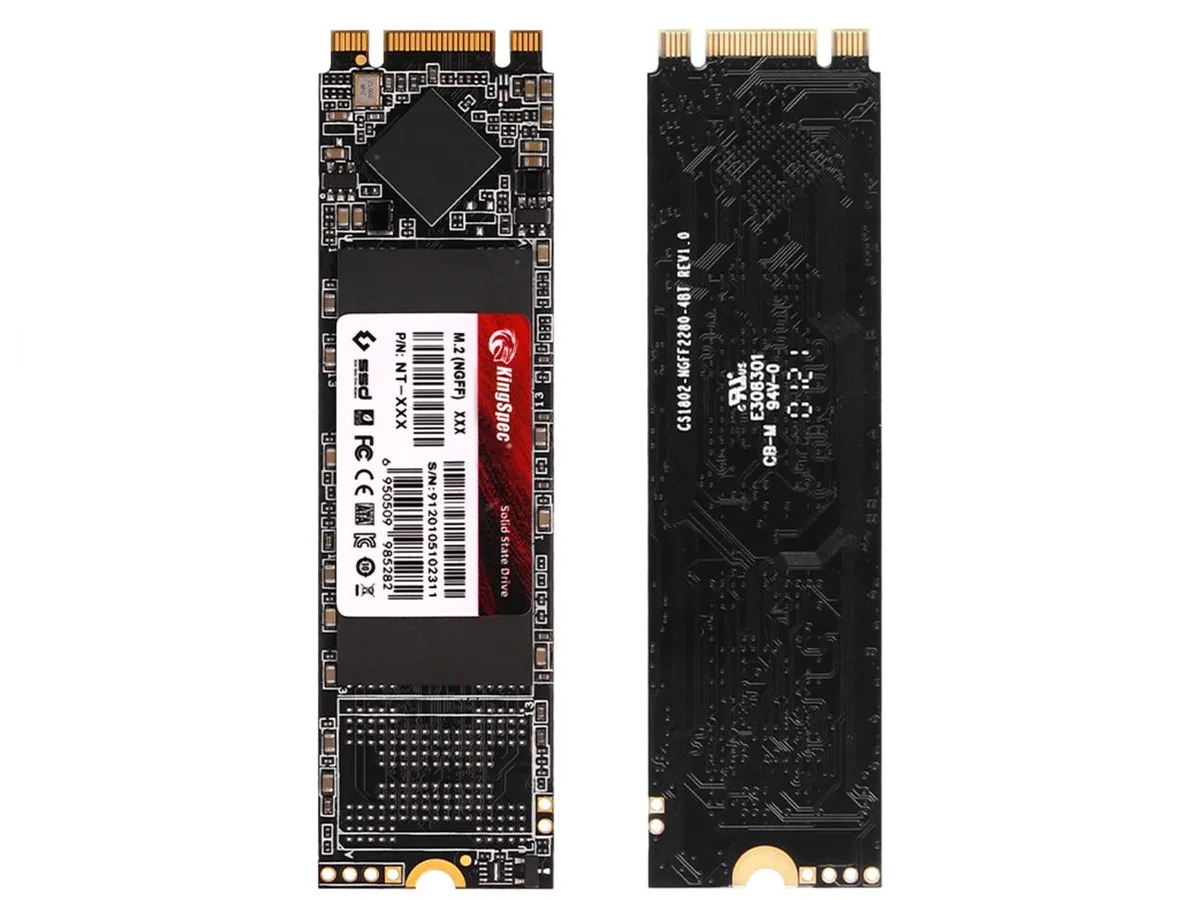

Green circuit board M.2 2280 SATA SSD with black label and gold edge connector

KingSpec

KingSpec NT-1TB-2280 1TB internal SSD M.2 2280 SATA

SKU CH-DWDY-M10NP MPN NT-1TB-2280

A 1 TB SATA M.2 2280 internal SSD delivering up to 570 MB/s read and 540 MB/s write speeds with 3D NAND and a 1,000,000-hour MTBF

  • Device TypeInternal Solid State Drive (SSD)
  • Used ForConsumer
  • Form FactorM.2 2280
  • Capacity1TB
  • Memory Components3D NAND
  • InterfaceSATA III

Model NT-1TB-2280

  • Up to 570 MB/s sequential read speeds accelerate boot and file access
  • Up to 540 MB/s sequential write speeds keep large transfers moving
  • 58,800 random read IOPS and 62,500 write IOPS sharpen everyday responsiveness
  • 1,000,000 hours MTBF and no moving parts protect data through heavy use
  • 5 W idle draw and 0–70 °C operating range suit thin laptops and desktops

M.2 2280 SATA 1TB drive

The KingSpec NT-1TB-2280 is an internal solid-state drive in the M.2 2280 form factor with a 1TB capacity. It connects through the SATA III interface and uses 3D NAND memory components. The drive is designed for consumer desktops, laptops and ultrabooks that have an M.2 SATA slot.

Suits SATA M.2 slots, not PCIe

This SSD suits systems with an M.2 slot wired for SATA signalling and a 2280-length bay. It delivers up to 570 MBps sequential read and 540 MBps sequential write with 58,800 IOPS random read and 62,500 IOPS random write. Builders whose platform only supports PCIe signalling cannot use this drive.

SATA III interface decides compatibility

The single specification that decides fit is the SATA III interface on an M.2 2280 connector. The motherboard or laptop must provide a SATA-wired M.2 slot; a PCIe-only slot will not work. No other interface is supported by this model.

Points forts

  • Up to 570 MB/s sequential read speeds accelerate boot and file access
  • Up to 540 MB/s sequential write speeds keep large transfers moving
  • 58,800 random read IOPS and 62,500 write IOPS sharpen everyday responsiveness
  • 1,000,000 hours MTBF and no moving parts protect data through heavy use
  • 5 W idle draw and 0–70 °C operating range suit thin laptops and desktops

Caractéristiques

BrandKingSpec
SeriesNT 2280 Series
ModelNT-1TB-2280
Part NumberNT-1TB-2280
Device TypeInternal Solid State Drive (SSD)
Used ForConsumer
Form FactorM.2 2280
Capacity1TB
Memory Components3D NAND
InterfaceSATA III
Max Sequential ReadUp to 570 MBps
Max Sequential WriteUp to 540 MBps
4KB Random ReadUp to 58,800 IOPS
4KB Random WriteUp to 62,500 IOPS
MTBF1,000,000 hours
HeatSinkwithout HeatSink
Power Consumption (Idle)1.5W
Operating Temperature0°C ~ +70°C
Storage Temperature-20°C ~ +75°C
Operating Humidity10% to 95% RH non-condensing
Height3.50mm
Width22.00mm
Depth80.00mm
Weight50g

Autres versions de ce modèle

5 de plus dans cette gamme

Même famille, mémoire, ventirad ou fréquence différents — comparez avant de vous décider.

Questions sur cet article

Will the M.2 2280 SATA drive work in a laptop that only has an older SATA 3 Gbps port?

Yes, the SATA III interface is backward compatible with SATA 3 Gbps ports, though sequential speeds will be limited to the older port's maximum throughput.

How can I verify the drive is delivering the rated 570 MBps read and 540 MBps write speeds after installation?

Run a benchmark tool such as CrystalDiskMark using a 1 GiB test file on an empty partition; results should approach the rated sequential figures.

Does the NT-1TB-2280 include a cooling sticker or mounting screw, or must I buy them separately?

A cooling sticker is included; a mounting screw is not supplied and must be sourced from the system manufacturer or a hardware kit.
