ATX motherboard in dark finish with metal heatsinks and reinforced PCIe slot

MSI

MSI MAG X870E GAMING PLUS MAX WIFI AMD motherboard

SKU CH-KVF5-JE9S8 MPN MAG X870E GAMING PLUS MAX WIFI

ATX motherboard with AMD X870E chipset for Ryzen 9000, 8000 and 7000 CPUs, DDR5 up to 8200 MT/s, PCIe 5.0 x16 and M.2, Wi-Fi 7 and 5G LAN

  • CPU Socket TypeAM5
  • CPU TypeSupports AMD Ryzen 9000/ 8000/ 7000 Series Desktop Processor
  • ChipsetAMD X870E
  • Number of Memory Slots4x DDR5 UDIMM
  • Memory StandardMemory Support DDR5 8200 - 5600 (OC) MT/s / 5600 - 4800 (JED
  • Maximum Memory Supported256GB

Option MAG X870E GAMING PLUS MAX WIFI

Les versions barrées existent, mais ne sont pas disponibles ici.

  • Supports AMD Ryzen 9000 8000 7000 series processors on AM5 socket
  • DDR5 memory boost up to 8200 MT/s overclocked with AMD EXPO support
  • PCIe 5.0 x16 graphics slot and M.2 Gen5 storage for maximum bandwidth
  • Wi-Fi 7 and 5G LAN deliver high-speed wired and wireless connectivity
  • 14 phase duet rail power system with 60A SPS ensures stable CPU power delivery

AM5 Platform for Ryzen 9000, 8000, 7000

The MAG X870E GAMING PLUS MAX WIFI is an ATX motherboard built on the AMD X870E chipset with an AM5 socket. It supports Ryzen 9000, 8000 and 7000 series desktop processors. A 14 phase Duet Rail power system rated at 60A SPS plus a 64MB BIOS ROM provides a stable foundation for high-core-count CPUs and future upgrades.

DDR5 EXPO Up to 8200 MT/s and PCIe 5.0

Four DDR5 slots accept up to 256GB running at 8200+ MT/s with 1DPC 1R EXPO profiles, or 5600 MT/s JEDEC baseline. The primary PCIe 5.0 x16 slot and the top M.2_1 slot both run at Gen 5 speeds from the CPU, delivering 128GB/s bandwidth for the latest graphics cards and SSDs. A second x16 slot and two additional M.2 slots operate at PCIe 4.0.

Check CPU Generation for Lane Configuration

Ryzen 9000 and 7000 series enable full PCIe 5.0 x16 on the primary slot, while 8700, 8600 and 8400 series drop to 4.0 x8. Verify your cooler clears the extended heatsinks and that the power supply provides dual 8-pin EPS connectors for the 14 phase VRM. The rear I/O includes Wi-Fi 7, 5G LAN, 7.1 audio via ALC897 and four SATA 6G ports.

Points forts

  • Supports AMD Ryzen 9000 8000 7000 series processors on AM5 socket
  • DDR5 memory boost up to 8200 MT/s overclocked with AMD EXPO support
  • PCIe 5.0 x16 graphics slot and M.2 Gen5 storage for maximum bandwidth
  • Wi-Fi 7 and 5G LAN deliver high-speed wired and wireless connectivity
  • 14 phase duet rail power system with 60A SPS ensures stable CPU power delivery

Caractéristiques

BrandMSI
ModelMAG X870E GAMING PLUS MAX WIFI
Part NumberMAG X870E GAMING PLUS MAX WIFI
CPU Socket TypeAM5
CPU TypeSupports AMD Ryzen 9000/ 8000/ 7000 Series Desktop Processors
ChipsetAMD X870E
Number of Memory Slots4x DDR5 UDIMM
Memory StandardMemory Support DDR5 8200 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s
Ryzen 9000 Series Processors max. overclocking frequency:
1DPC 1R Max speed up to 8200+ MT/s
1DPC 2R Max speed up to 6400+ MT/s
2DPC 1R Max speed up to 6400+ MT/s
2DPC 2R Max speed up to 6000+ MT/s
Supports AMD POR Speed and JEDEC Speed
Supports Memory Overclocking and AMD EXPO
Supports Dual-Channel mode
Supports Non-ECC, Un-buffered memory
Supports CUDIMM, Clock Driver bypass mode only*
CUDIMM support and POR boot frequency may vary by CPU series, with manual overclocking available after boot. Certain CPUs may fail
Maximum Memory Supported256GB
Channel SupportedDual Channel
Memory Performance ProfileAMD EXPO
ECC SupportedNon-ECC
Buffer SupportedUn-buffered
PCI Express 5.0 x16PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)
PCI_E1 slot
Supports PCIe 5.0 x16 (For Ryzen 9000/ 7000 Series processors)
Supports PCIe 4.0 x8 (For Ryzen 8700/ 8600/ 8400 Series processors)
Supports PCIe 4.0 x4 (For Ryzen 8500/ 8300 Series processor)
PCI Express x162 x PCI Express x16
PCI Express x11 x PCI Express x1
Serial ATA (SATA)4x SATA 6G
M.23 x M.2 (Support PCIe 5.0 x4 & PCIe 4.0 x4)
M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices
M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 22110/2280 devices
M.2_1 slot (From CPU)
Supports up to PCIe 5.0 x4 (For Ryzen 9000/ 7000 Series processors)
Supports up to PCIe 4.0 x4 (For Ryzen 8000 Series processors)
M.2_2 slot (From CPU)
Supports up to PCIe 4.0 x4 (For Ryzen 9000/ 8700/ 8600/ 8400/ 7000 Series processors)
M.2_3 slot (From CPU)
Supports up to
Audio ChipsetRealtek ALC897
Audio Channels7.1 Channels
LAN ChipsetRealtek 8126VB
Max LAN Speed5Gbps
BluetoothYes

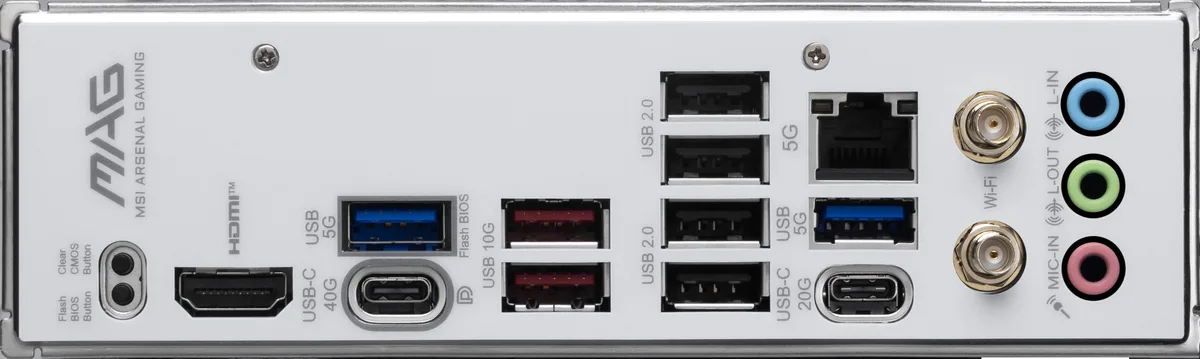

Back I/O Ports4 x USB 2.0
2 x USB 5Gbps Type A
2 x USB 10Gbps Type A
1 x USB 20Gbps Type C
1 x USB 40Gbps Type C
1 x HDMI
HDMI1 x HDMI
DisplayPort1 x DisplayPort
Onboard USB1 x USB Type-C header, with USB 3.2 Gen 2x2 + 4 x USB 3.2 + 6 x USB 2.0
Other Connectors1x Power Connector(ATX_PWR)
2x Power Connector(CPU_PWR)
1x Power Connector(PCIE_PWR 8pin)
1x CPU Fan
1x Combo Fan (Pump_Sys Fan)
6x System Fan
1x EZ Conn-header (JAF_1)
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
1x Tuning Controller connector(JDASH)
3x Addressable V2 RGB LED connector (JARGB_V2)
1x RGB LED connector(JRGB)
1x TPM pin header(Support TPM 2.0)
2x Direct OC Jumper (JBCLK)
Form FactorATX
LED LightingNone RGB
Dimensions (W x L)243.84mm x 304.8mm
Windows 11Supported
Features4x EZ Debug LED
1x EZ Memory Detection LED
Poids d’expédition2.00 kg
Dimensions du colis343 × 267 × 70 mm

Autres versions de ce modèle

5 de plus dans cette gamme

Même famille, mémoire, ventirad ou fréquence différents — comparez avant de vous décider.

Questions sur cet article

What case and power connectors does the ATX board need?

The board uses standard ATX mounting holes and requires a 24-pin ATX power connector plus an 8-pin CPU power connector for the 14-phase duet rail power system.

How do I install a graphics card in the PCIe 5.0 x16 slot and what step is often missed?

Press the EZ PCIe Release button to unlock the retention latch, insert the card until it clicks, then press the button again to lock it; the common miss is forgetting to re-lock the latch.

When should I replace the 64 MB BIOS chip or the CMOS battery?

The CMOS battery typically lasts several years; replace it when the system loses date and time settings. The BIOS chip itself is not user-replaceable and only updated via firmware.
