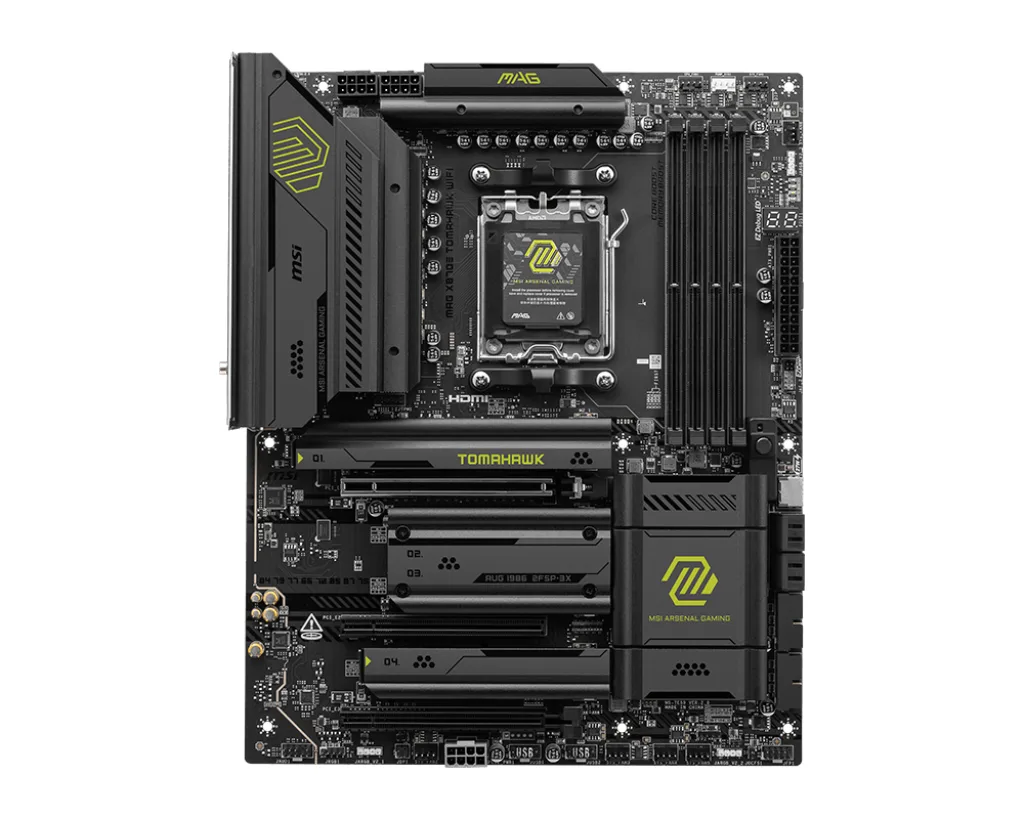

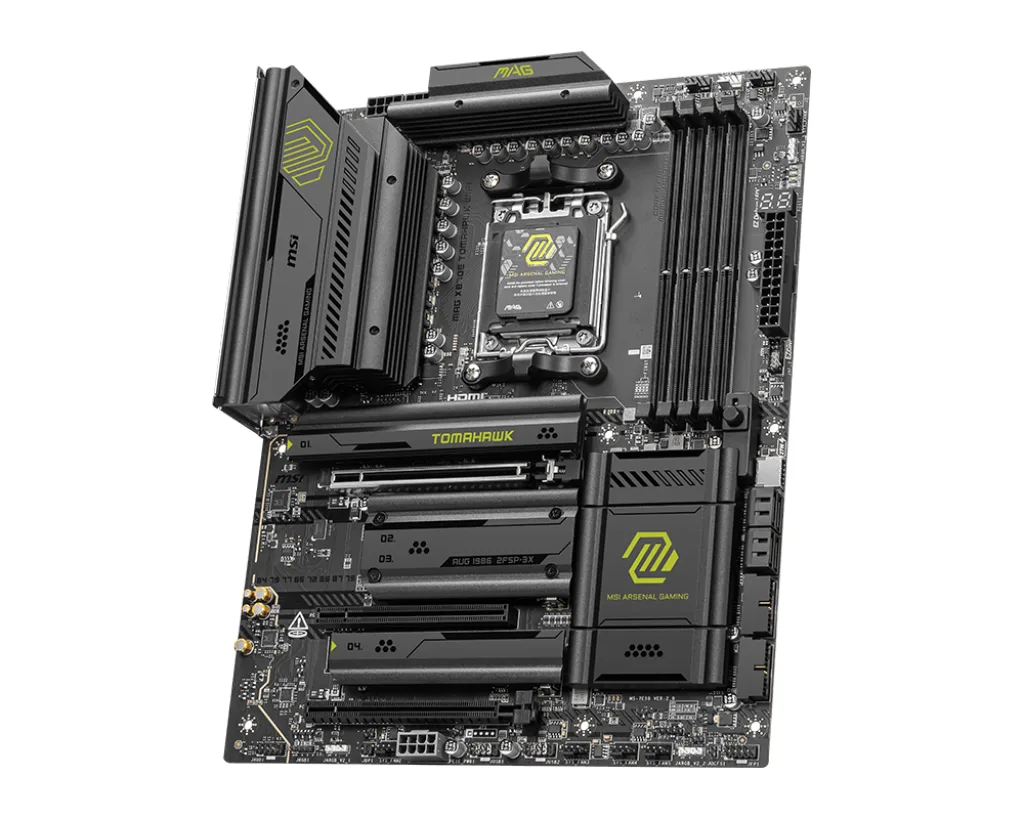

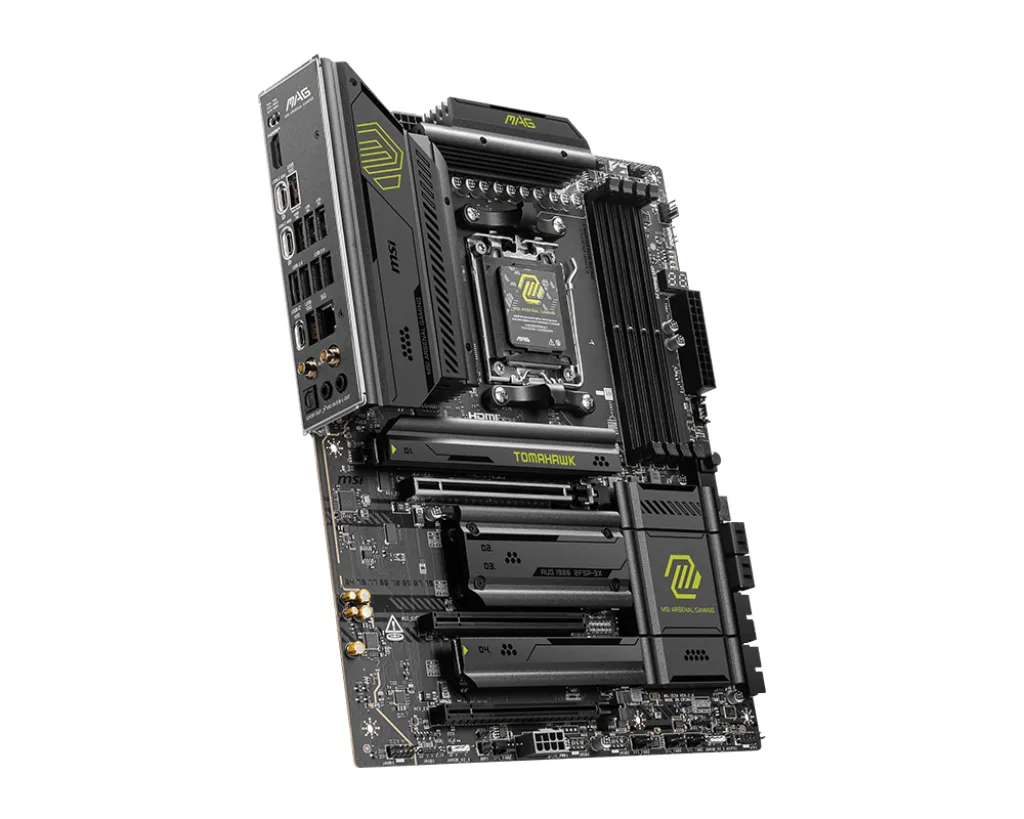

ATX motherboard with black and silver heatsinks, four DDR5 slots, multiple M.2 shields and rear I/O panel

MSI

MSI MAG X870E TOMAHAWK WIFI AMD motherboard

SKU CH-SQS6-EPK3F MPN MAG X870E TOMAHAWK WIFI

ATX AM5 board with X870E chipset, 80 A VRM, DDR5 to 8400 MT/s, PCIe 5.0 graphics and M.2, Wi‑Fi 7, 5 GbE LAN and USB 40 Gbps

  • CPU Socket TypeAM5
  • CPU TypeSupports AMD Ryzen™ 9000/ 8000/ 7000 Series Desktop Processo
  • ChipsetAMD X870E
  • Number of Memory Slots4x288pin (DDR5)
  • Memory Standard4x DDR5 UDIMM, Maximum Memory Capacity 256GB Memory Support
  • Maximum Memory Supported256GB

Option MAG X870E TOMAHAWK WIFI

Les versions barrées existent, mais ne sont pas disponibles ici.

  • Supports Ryzen 9000, 8000 and 7000 CPUs on AM5 socket
  • 14 duet rail power stages rated at 80A each for stable delivery
  • DDR5 memory overclocked to 8400 MT/s across four slots
  • PCIe 5.0 x16 graphics slot plus four M.2 sockets with Gen5 support
  • Wi-Fi 7 and 5G LAN with Realtek 8126 controller

Platform foundation

The MAG X870E TOMAHAWK WIFI is an ATX motherboard built around the AMD X870E chipset and AM5 socket. It supports AMD Ryzen 9000, 8000 and 7000 series desktop processors with a 14 Duet Rail power system rated at 80A per smart power stage. Dual 8-pin CPU power connectors feed the digital PWM for sustained heavy loads.

Fit and alternatives

This board suits builders who want PCIe 5.0 graphics and storage, 5G LAN, Wi-Fi 7 and a USB 40G port in a single ATX package. Four DDR5 slots and four M.2 sockets give expansion headroom. Users needing ECC memory, workstation chipsets or smaller form factors should look elsewhere.

Capacity and headroom

DDR5 runs up to 8400 MT/s overclocked with a 256 GB ceiling across four slots in dual-channel mode. The primary M.2 slot from the CPU delivers PCIe 5.0 x4 bandwidth for 22110 and 2280 drives, while two additional CPU-linked slots and one chipset slot add further Gen5 and Gen4 capacity. Realtek ALC4080 handles 7.1-channel audio at 32-bit/384 kHz.

Points forts

  • Supports Ryzen 9000, 8000 and 7000 CPUs on AM5 socket
  • 14 duet rail power stages rated at 80A each for stable delivery
  • DDR5 memory overclocked to 8400 MT/s across four slots
  • PCIe 5.0 x16 graphics slot plus four M.2 sockets with Gen5 support
  • Wi-Fi 7 and 5G LAN with Realtek 8126 controller

Caractéristiques

BrandMSI
SeriesMAG
ModelMAG X870E TOMAHAWK WIFI
Part NumberMAG X870E TOMAHAWK WIFI
CPU Socket TypeAM5
CPU TypeSupports AMD Ryzen™ 9000/ 8000/ 7000 Series Desktop Processors
Socket AM5
ChipsetAMD X870E
Number of Memory Slots4x288pin (DDR5)
Memory Standard4x DDR5 UDIMM, Maximum Memory Capacity 256GB
Memory Support DDR5 8400 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s
Ryzen™ 9000 Series Processors max. overclocking frequency:
• 1DPC 1R Max speed up to 8400+ MT/s
• 1DPC 2R Max speed up to 6400+ MT/s
• 2DPC 1R Max speed up to 6400+ MT/s
• 2DPC 2R Max speed up to 4800+ MT/s
Supports AMD POR Speed and JEDEC Speed
Supports Memory Overclocking and AMD EXPO™
Supports Dual-Channel mode
Supports Non-ECC, Un-buffered memory
Supports CUDIMM, Clock Driver bypass mode only*
* CUDIMM support and POR boot frequency may vary by CPU series, with manual
Maximum Memory Supported256GB
Channel SupportedDual Channel
ECC SupportedNon-ECC
PCI Express 5.0 x161 x PCI Express 5.0 x16
PCI Express 4.0 x161 x PCI Express 4.0 x16
PCI Express 3.0 x161 x PCI Express 3.0 x16
Serial ATA (SATA)4 x SATA 6Gb/s
M.24x M.2
M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 22110/2280 devices
M.2_2 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices
M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
4x SATA 6G
M.2_1 slot (From CPU)
• Supports up to PCIe 5.0 x4 (For Ryzen™ 9000/ 7000 Series processors)
• Supports up to PCIe 4.0 x4 (For Ryzen™ 8000 Series processors)
M.2_2 slot (From CPU)
• Supports up to PCIe 5.0 x4 (For Ryzen™ 9000/ 7000 Series proc
Audio ChannelsRealtek® ALC4080 Codec
7.1-Channel USB High Performance Audio
Supports up to 32-bit/384kHz playback on front panel
Supports S/PDIF output
Max LAN Speed1x Realtek® 8126 5G LAN
Wireless LANWi-Fi 7
The Wireless module is pre-installed in the M.2 (Key-E) slot
Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz* (320MHz) up to 5.8Gbps
Supports 802.11 a/ b/ g/ n/ ac/ ax/ be
Supports Bluetooth® 5.4**, MLO, 4KQAM
* 6GHz band support may depend on every country’s regulations and Wi-Fi 7 will be ready in Windows 11 version 24H2.
** The Bluetooth version may be updated, please refer to the Wi-Fi chipset vendor’s website for details. Bluetooth 5.4 will be ready in Windows 11 version 24H2.

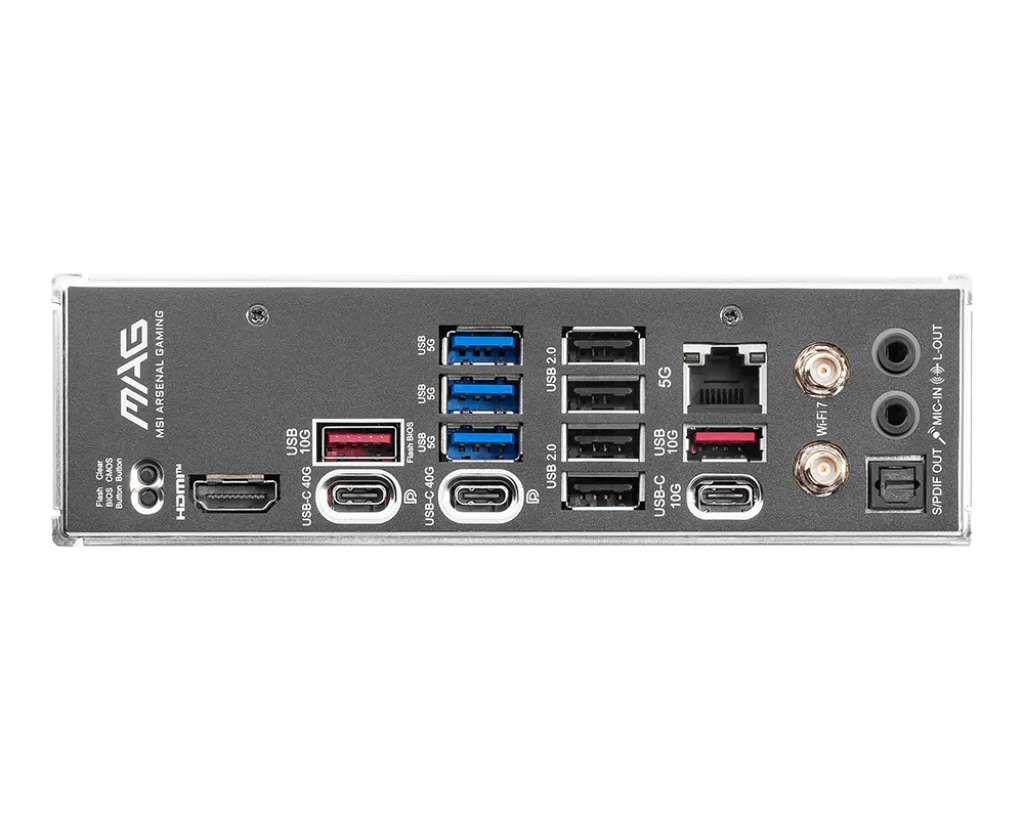

Back I/O PortsClear CMOS Button
USB 10Gbps Type-A
USB 5Gbps Type-A
USB 2.0
5G LAN
Wi-Fi / Bluetooth
Audio connectors
Flash BIOS Button
HDMI™
USB 40Gbps Type-C
USB 10Gbps Type-C
USB 10Gbps Type-A
Other Connectors1x Power Connector(ATX_PWR)
2x Power Connector(CPU_PWR)
1x Power Connector(PCIE_PWR 8pin)
1x Front Type-C Quick Charge Connector(PD_PWR1)
1x CPU Fan
1x Combo Fan (Pump_Sys Fan)
6x System Fan
1x EZ Conn-header (JAF_2)
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
3x Addressable V2 RGB LED connector (JARGB_V2)
1x RGB LED connector(JRGB)
1x TPM pin header(Support TPM 2.0)
4x USB 2.0 ports
4x USB 5Gbps Type A ports
1x USB 20Gbps Type C ports
Form FactorATX
Dimensions (W x L)243.84mmx304.8mm
Windows 11Support for Windows® 11 64-bit
FeaturesSupports AMD Ryzen™ 9000 / 8000 / 7000 Series Desktop Processors
Supports DDR5 Memory, Dual Channel DDR5 8400+ MT/s (OC)
Ultra Performance: 14+2+1 Duet Rail Power System, dual 8-pin CPU power connectors, Core Boost, Memory Boost, 8-layer PCB made by 2oz thickened copper and server-grade level material
Frozr Guard: Extended Heatsink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads and EZ M.2 Shield Frozr II are built for high performance system and non-stop experience
EZ DIY: EZ M.2 Shield Frozr II, EZ M.2 Clip II, EZ PCIe Release and EZ Antenna
Lightning Fast Game
Poids d’expédition2.27 kg
Dimensions du colis340 × 269 × 76 mm

Autres versions de ce modèle

5 de plus dans cette gamme

Même famille, mémoire, ventirad ou fréquence différents — comparez avant de vous décider.

Questions sur cet article

Will this board fit in a standard ATX case and does it need any special mounting?

The board uses the ATX form factor, so any case that accepts ATX motherboards will fit it with the usual nine standoffs and I/O shield.

Which Ryzen processors are supported and is a BIOS update ever required?

It supports Ryzen 9000, 8000 and 7000 series CPUs on socket AM5; 9000 series chips may need a newer BIOS version than the one shipped from the factory.

How many M.2 drives can I install and which slots run at Gen 5 speed?

Four M.2 slots are provided; the top two are wired to the CPU and run at PCIe 5.0 x4, while the lower two run at PCIe 4.0 x4 from the chipset.
