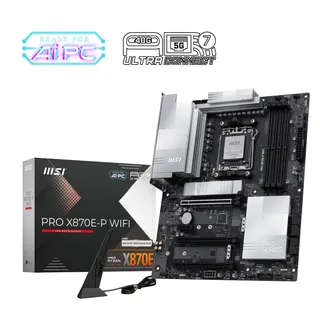

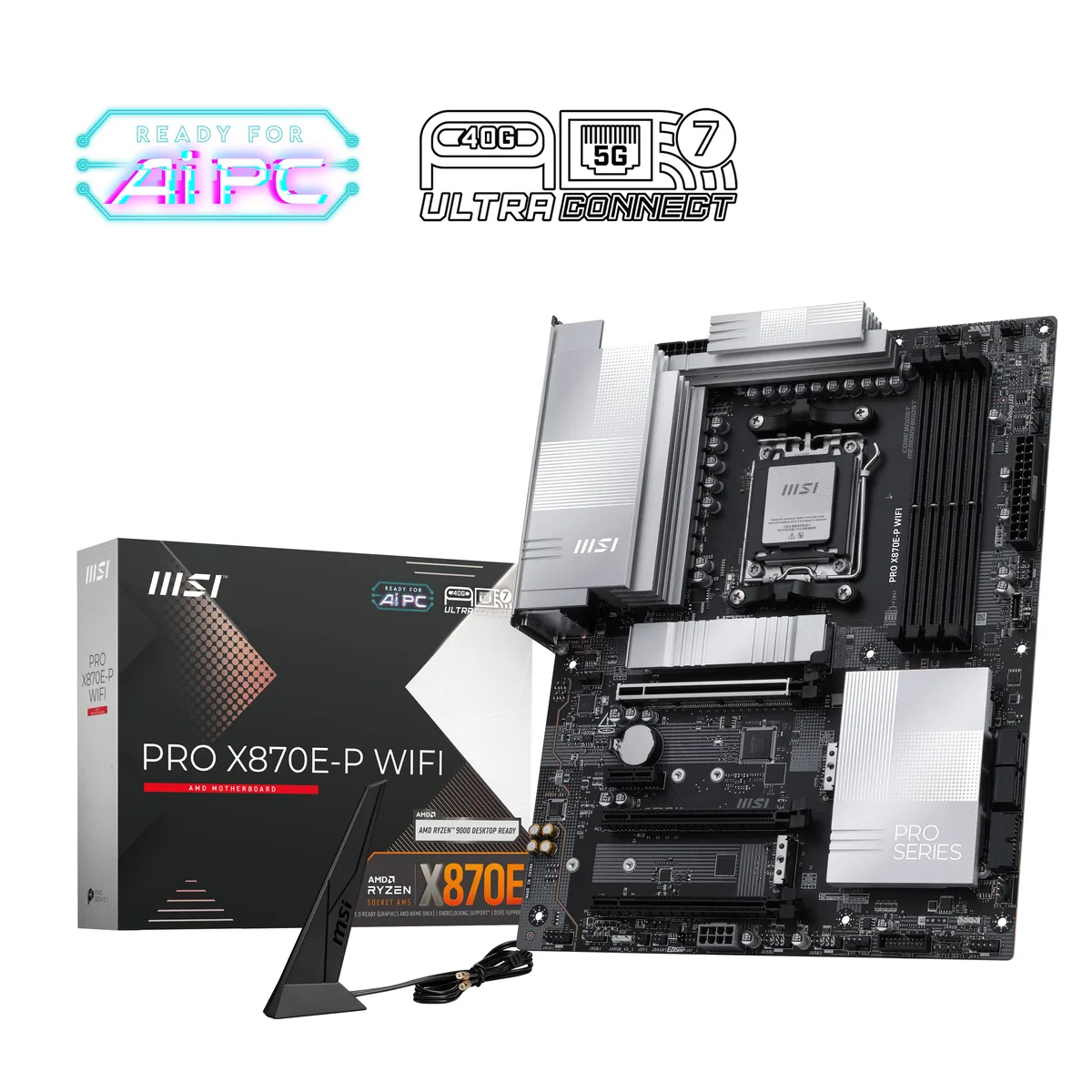

ATX motherboard in dark finish with silver heatsinks and rear I/O shield

MSI

MSI PRO X870E-P WIFI AMD motherboard

SKU CH-18JF-F9HTN MPN PRO X870E-P WIFI

ATX AM5 board with 14-phase 60A VRM, DDR5 to 8200 MT/s, PCIe 5.0 x16, triple M.2 including Gen5, 5G LAN, Wi-Fi 7 and Bluetooth 5.4

  • CPU Socket TypeAM5
  • CPU TypeRyzen 7000 Series / Ryzen 8000 Series / Ryzen 9000 Series
  • ChipsetAMD X870E
  • Number of Memory Slots4x288pin (DDR5)
  • Memory StandardMemory Support DDR5 8200 - 5600 (OC) MT/s / 5600 - 4800 (JED
  • Maximum Memory Supported256GB

Option PRO X870E-P WIFI

Les versions barrées existent, mais ne sont pas disponibles ici.

  • Supports Ryzen 9000, 8000 and 7000 series processors on AM5 socket
  • 14 Duet Rail Power System with 60A Smart Power Stages for stable CPU delivery
  • DDR5 memory overclocking up to 8200+ MT/s across four 288-pin slots
  • Wi-Fi 7 with 320MHz channel and Bluetooth 5.4 for 5.8Gbps wireless speed
  • PCIe 5.0 x16 slot plus one Gen5 M.2 at 128Gbps and two Gen4 M.2 at 64Gbps

AMD X870E chipset platform

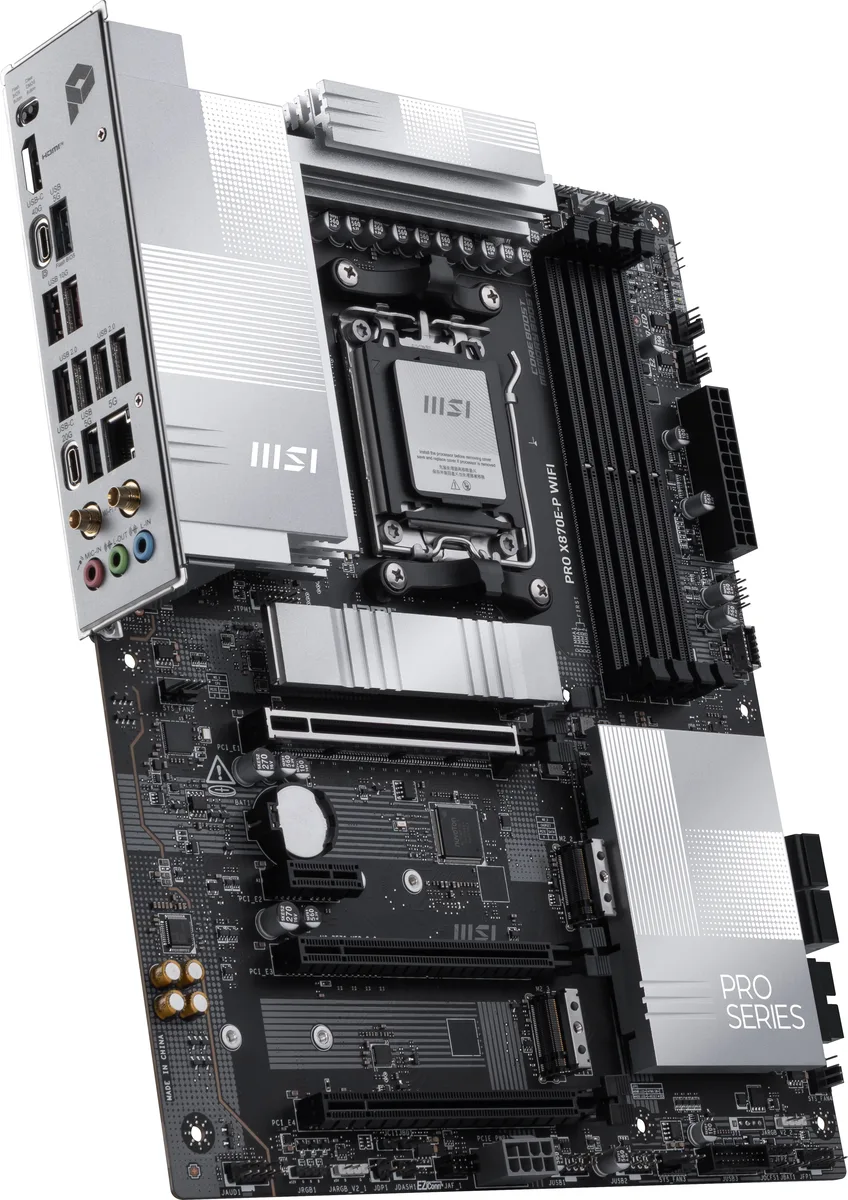

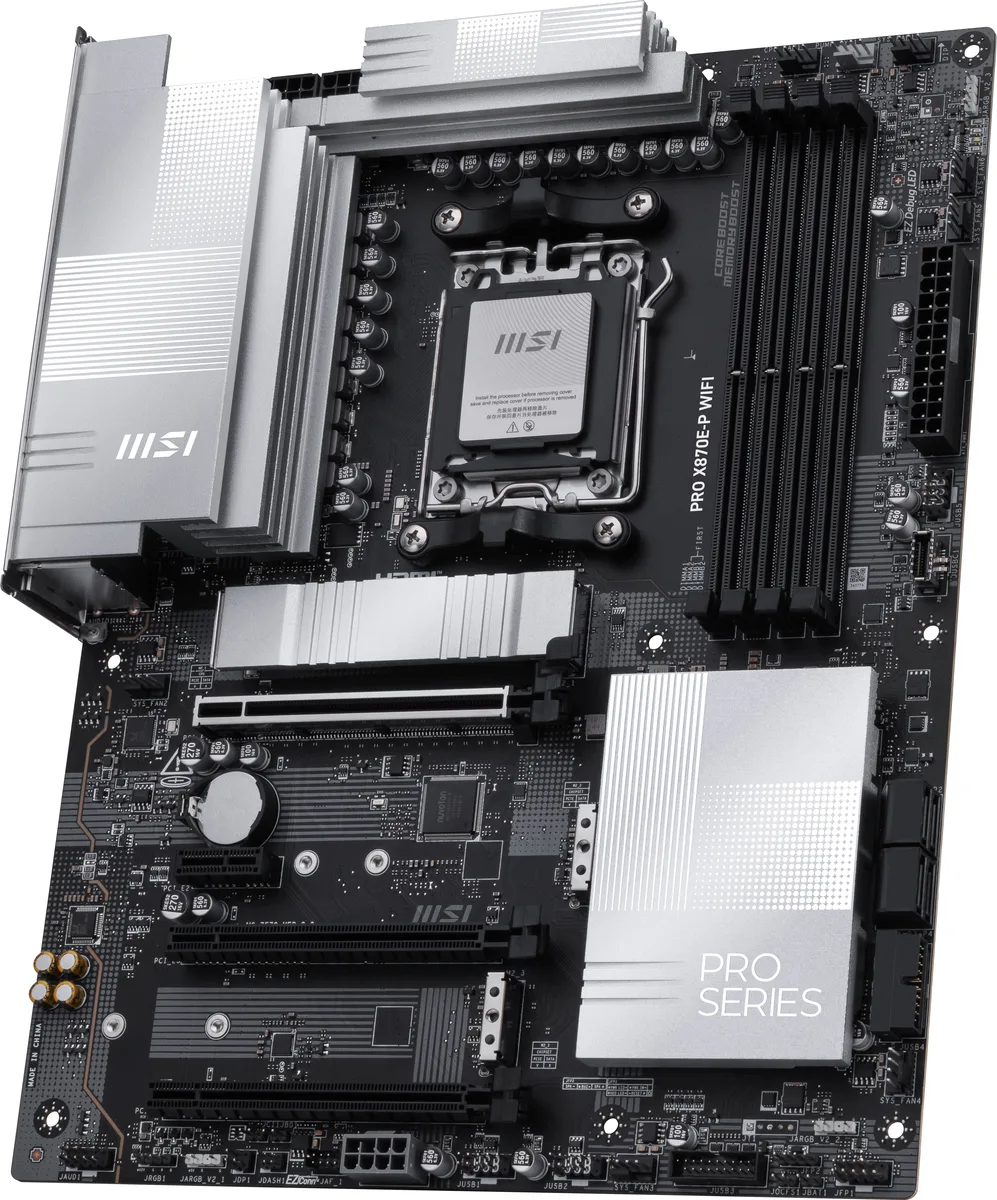

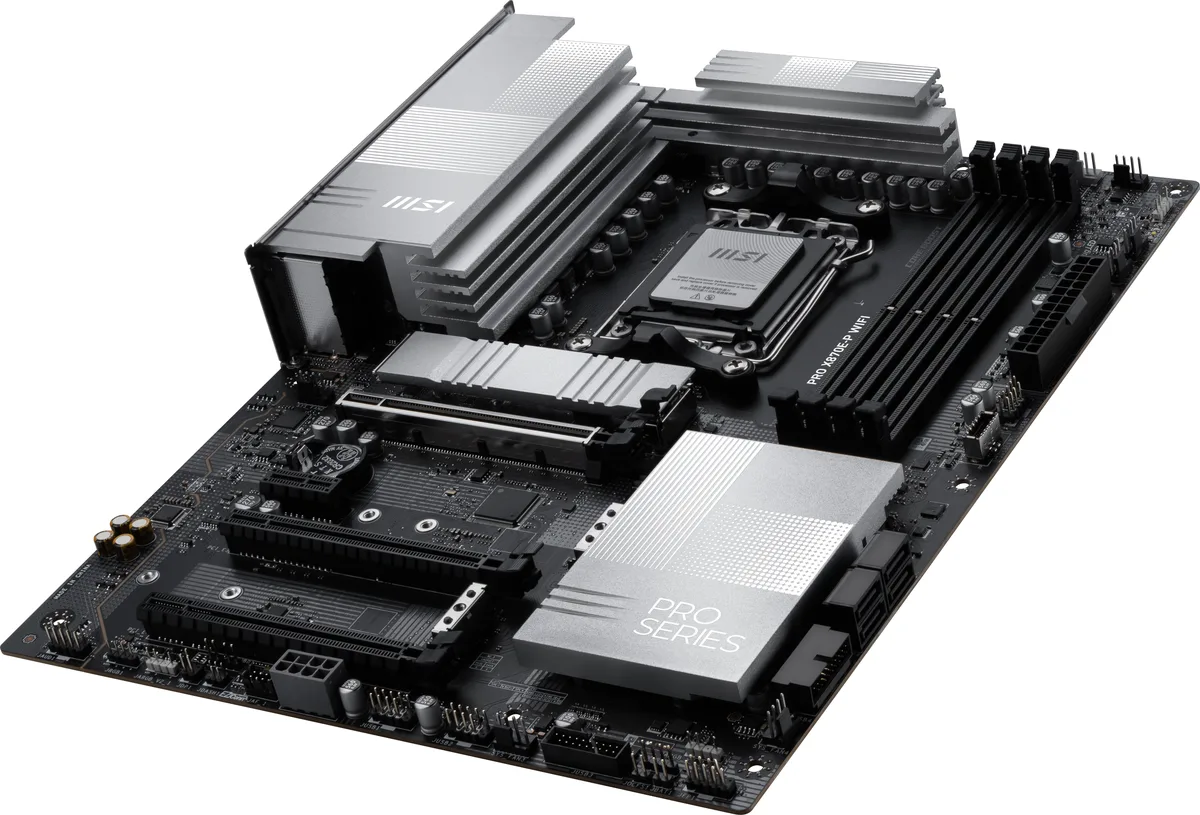

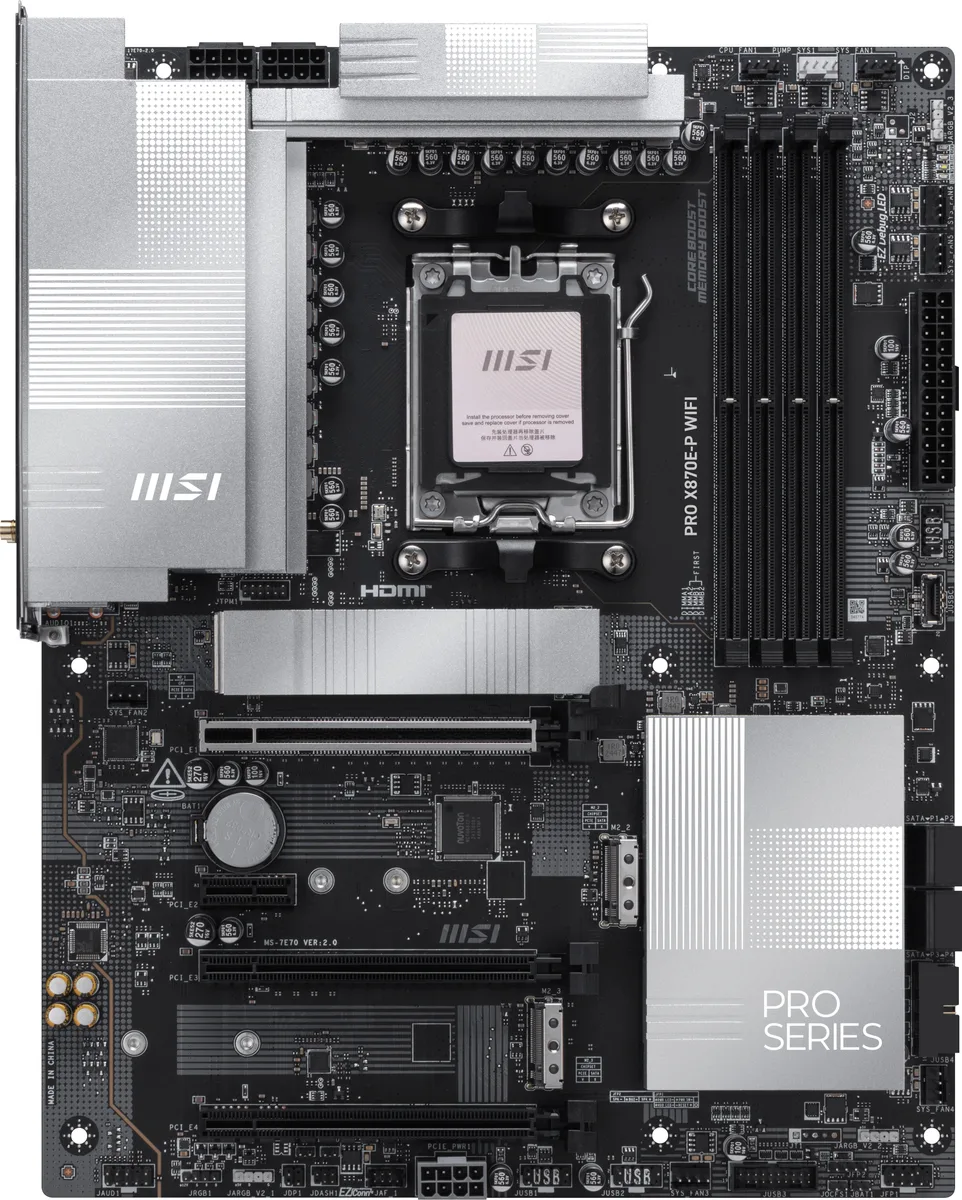

This ATX motherboard uses the AMD X870E chipset and AM5 socket to support Ryzen 7000, 8000 and 9000 series processors. It provides a 14 duet rail power system with 60A smart power stages for stable delivery. Dual channel DDR5 memory reaches 8200 MT/s when overclocked. The board targets builders who need a reliable foundation for current and upcoming AMD CPUs.

Suits high core count CPUs and fast storage

The 14 phase VRM and extended heatsinks handle the thermal load of 16 core Ryzen 9000 parts. Three M.2 slots include one Gen5 128 Gbps and two Gen4 64 Gbps connectors with shield frozr cooling. Wi-Fi 7, Bluetooth 5.4 and 5G LAN cover modern networking. Builds limited to PCIe 3.0 add in cards or legacy SATA only drives will not use the full bandwidth.

PCIe 5.0 x16 slot for Ryzen 9000 and 7000

The primary PCI_E1 slot runs at PCIe 5.0 x16 with Ryzen 9000 or 7000 series processors but drops to PCIe 4.0 x8 with Ryzen 8700 or 8600 and PCIe 4.0 x4 with Ryzen 8500 or 8300. This single lane width difference decides whether a flagship graphics card or Gen5 add in card can operate at its rated speed.

Points forts

  • Supports Ryzen 9000, 8000 and 7000 series processors on AM5 socket
  • 14 Duet Rail Power System with 60A Smart Power Stages for stable CPU delivery
  • DDR5 memory overclocking up to 8200+ MT/s across four 288-pin slots
  • Wi-Fi 7 with 320MHz channel and Bluetooth 5.4 for 5.8Gbps wireless speed
  • PCIe 5.0 x16 slot plus one Gen5 M.2 at 128Gbps and two Gen4 M.2 at 64Gbps

Caractéristiques

BrandMSI
ModelPRO X870E-P WIFI
Part NumberPRO X870E-P WIFI
CPU Socket TypeAM5
CPU TypeRyzen 7000 Series / Ryzen 8000 Series / Ryzen 9000 Series
ChipsetAMD X870E
Number of Memory Slots4x288pin (DDR5)
Memory StandardMemory Support DDR5 8200 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s
Ryzen™ 9000 Series Processors max. overclocking frequency:
• 1DPC 1R Max speed up to 8200+ MT/s
• 1DPC 2R Max speed up to 6400+ MT/s
• 2DPC 1R Max speed up to 6400+ MT/s
• 2DPC 2R Max speed up to 6000+ MT/s
Supports AMD POR Speed and JEDEC Speed
Supports Memory Overclocking and AMD EXPOTM
Supports Dual-Channel mode
Supports Non-ECC, Un-buffered memory
Supports CUDIMM, Clock Driver bypass mode only*
* CUDIMM support and POR boot frequency may vary by CPU series, with manual overclocking available after boot. Certain
Maximum Memory Supported256GB
Channel SupportedDual Channel
PCI Express 5.0 x16PCI_E1 slot
- Supports PCIe 5.0 x16 (For Ryzen 9000/ 7000 Series processors)
- Supports PCIe 4.0 x8 (For Ryzen 8700/ 8600/ 8400 Series processors)
- Supports PCIe 4.0 x4 (For Ryzen 8500/ 8300 Series processors)
PCI Express x4PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)
PCI Express x1PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
PCI_E4 Gen PCIe 3.0 supports up to x1 (From Chipset)

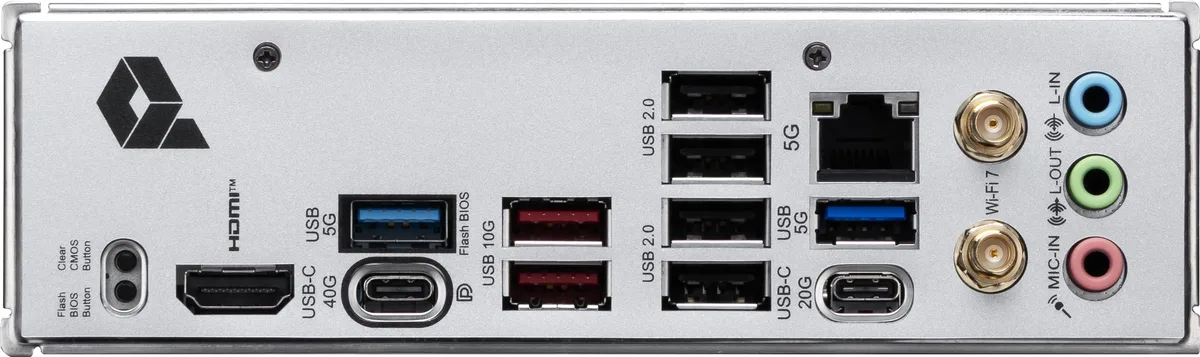

Serial ATA (SATA)4 x SATA 6Gb/s
M.21 x M.2 Gen5 x4 128Gbps slots,
2 x M.2 Gen4 x 4 64 Gbps slots,
LAN ChipsetRealtek@ 8126 5G LAN
Wireless LANWi-Fi 7 Solution,
BluetoothBluetooth 5.4
HDMISupport 4K@60Hz as specified in HDMITM 2.1
RJ451 x RJ45
USB 3.12x USB 10Gbps Type-A
1 x USB 5Gbps Type- A
USB 1.1/2.04 x USB 2.0
USB Type-C1 x USB4 port supports USB Type-C display output,
- Requires Processor Graphics
1 x USB 20Gbps Type-C
Audio Ports8-Channel(7.1) HD Audio with Audio Boost.
Form FactorATX
Poids d’expédition2.00 kg
Dimensions du colis335 × 272 × 76 mm

Autres versions de ce modèle

5 de plus dans cette gamme

Même famille, mémoire, ventirad ou fréquence différents — comparez avant de vous décider.

Questions sur cet article

How much power can the 14 Duet Rail Power System with 60A Smart Power Stages sustain before thermal limits appear?

The 14 Duet Rail Power System uses 60A Smart Power Stages per phase, a Digital PWM IC and 2-phase SOC plus 1-phase MISC power to handle heavy CPU loads under sustained use.

What temperatures and fan behaviour should I expect from the Frozr heatsink and 7W/mK thermal pads during all-day operation?

Frozr Guard combines an extended heatsink, 7W/mK MOSFET thermal pads, extra choke pads and EZ M.2 Shield Frozr II to dissipate heat from VRM and M.2 areas during continuous loads.

Which Ryzen processor generation must I already have to enable the PCIe 5.0 x16 slot and DDR5 8200+ MT/s overclocking?

Ryzen 9000 or 7000 Series processors unlock PCIe 5.0 x16 on the PCI_E1 slot and DDR5 overclocking up to 8200+ MT/s with 1DPC 1R configuration.
