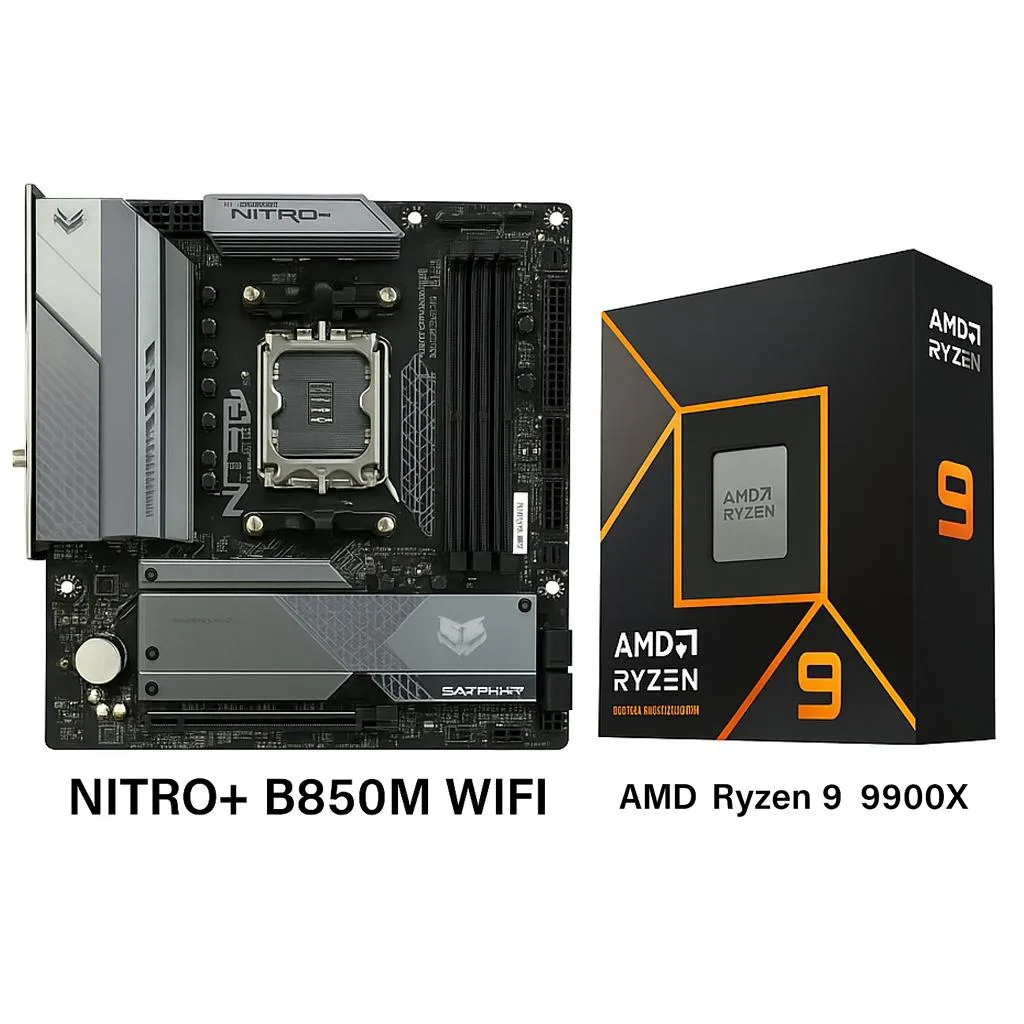

Sapphire NITRO+ B850M WIFI motherboard with Ryzen 9 9900X CPU in matte black finish

Sapphire Tech

Sapphire Tech NITRO+ B850M WIFI AM5 Motherboard & Ryzen 9 9900X CPU Combo

SKU CH-K4CN-ED3TN

A compact AM5 bundle pairing a 12-core Ryzen 9 9900X with a B850 motherboard offering 12+2+1 phase VRM, PCIe 5.0 slots, DDR5 8000+ OC support and Wi-Fi 6 connectivity

  • ChipsetAMD B850
  • HDMI1 x HDMI
  • DisplayPort1 x DisplayPort

model NITRO+ B850M WIFI + AMD Ryzen 9 9900X

  • 12-core Ryzen 9 9900X hits 5.7 GHz boost for heavy multitasking
  • 12+2+1 phase VRM with 60A DrMOS sustains 170W TDP stably
  • PCIe 5.0 x16 slot plus dual M.2 slots ready for next-gen GPUs and SSDs
  • DDR5 8000+ MHz EXPO support cuts latency for smoother 1% low FPS
  • Wi-Fi 6 and 2.5G LAN plus 7 USB ports including 10Gbps Type-C for fast connectivity

Zen 5 Combo for High-End Builds

This bundle pairs a Ryzen 9 9900X 12-core processor with a Sapphire NITRO+ B850M WIFI motherboard. The CPU reaches a 5.7 GHz boost clock and provides 76 MB of cache for demanding multitasking. The board uses the AMD B850 chipset and an AM5 socket. It targets enthusiasts who want PCIe 5.0 graphics and storage support in a compact micro-ATX layout.

VRM Cooling and Power Delivery

A 12+2+1 phase VRM with 60 A DrMOS stages handles the 170 W TDP of the included CPU. Aluminum heatsinks with an anti-condensation coating keep VRM and M.2 temperatures below 75 °C under load. The board draws power through standard EPS connectors and supplies clean current for stable operation at stock or overclocked settings.

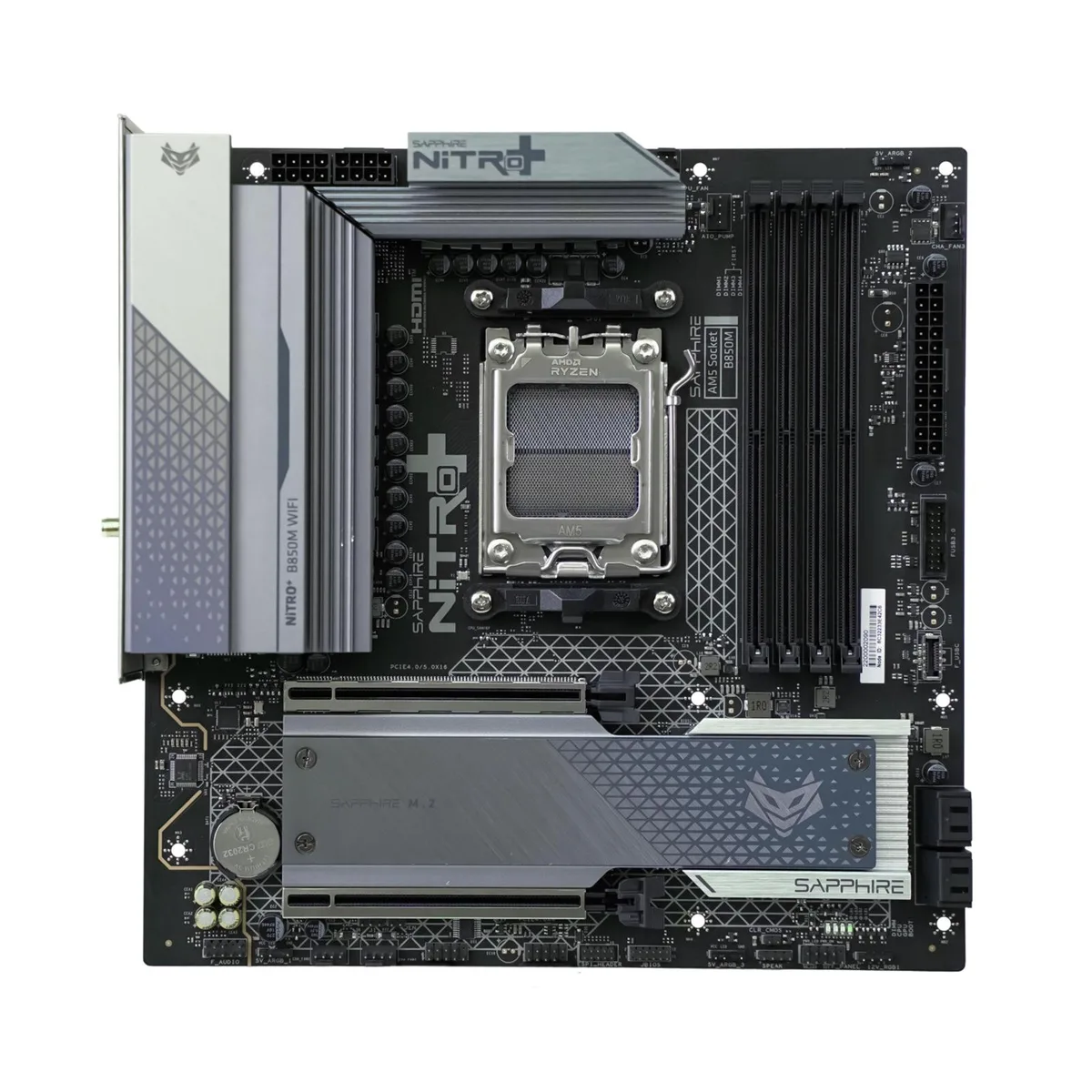

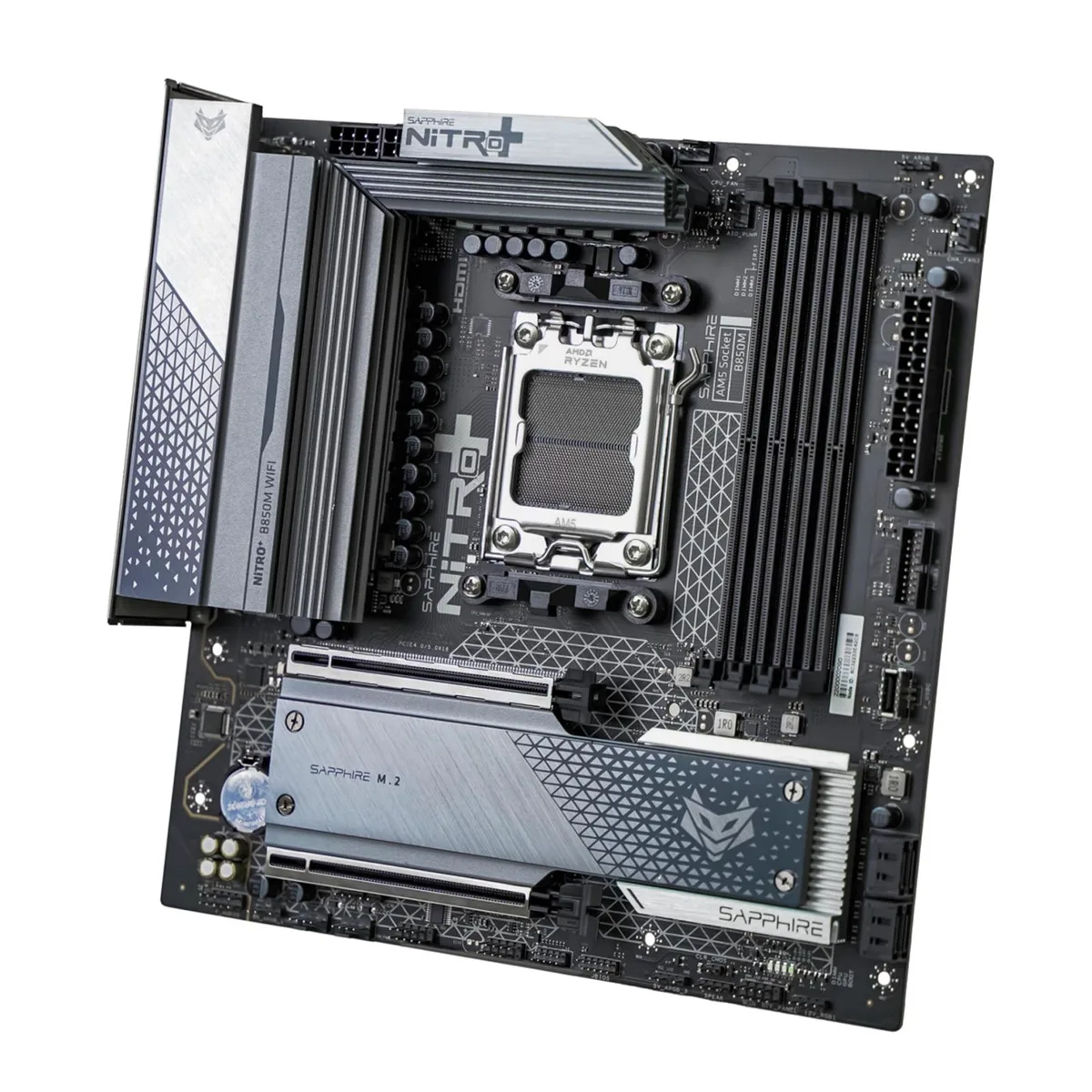

Compact Board with Modern I/O

The 245 mm square PCB fits small cases while providing dual PCIe 5.0 M.2 slots and four SATA ports. Rear I/O includes HDMI 2.1, DisplayPort 1.4, three 10 Gbps USB Type-A ports, one 10 Gbps USB Type-C port and 2.5 Gbps LAN. Three 5 V ARGB headers and one 12 V RGB header allow lighting synchronisation with popular ecosystems.

Points forts

  • 12-core Ryzen 9 9900X hits 5.7 GHz boost for heavy multitasking
  • 12+2+1 phase VRM with 60A DrMOS sustains 170W TDP stably
  • PCIe 5.0 x16 slot plus dual M.2 slots ready for next-gen GPUs and SSDs
  • DDR5 8000+ MHz EXPO support cuts latency for smoother 1% low FPS
  • Wi-Fi 6 and 2.5G LAN plus 7 USB ports including 10Gbps Type-C for fast connectivity

Caractéristiques

BrandSAPPHIRE
ChipsetAMD B850
HDMI1 x HDMI
DisplayPort1 x DisplayPort

Autres versions de ce modèle

5 de plus dans cette gamme

Même famille, mémoire, ventirad ou fréquence différents — comparez avant de vous décider.

Questions sur cet article

How do I install the Ryzen 9 9900X into the AM5 socket on this board, and what step do builders often miss?

Lift the socket lever, align the gold triangle on the CPU with the socket marker, lower the chip without force, then close and lock the lever; the step many miss is removing the plastic protective cover from the socket before seating the processor.

What maintenance will the Sapphire NITRO+ B850M WIFI need after extended use?

Clean dust from the aluminum VRM and M.2 heatsinks every few months with compressed air to keep VRM temperatures below 75°C under load, and reapply thermal paste on the CPU if temperatures rise above normal.

What is the first limit that appears when the Ryzen 9 9900X runs sustained heavy workloads on this motherboard?

The 12+2+1 phase VRM with 60A DrMOS is rated for stable 170W TDP operation; sustained loads beyond that power envelope will trigger thermal throttling before any other component reaches its limit.
