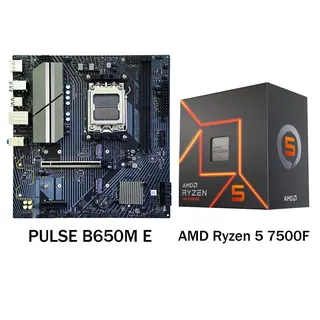

Sapphire PULSE B650M E micro-ATX motherboard with Ryzen 5 7500F CPU and Wraith Stealth cooler

Sapphire Tech

Sapphire Tech PULSE B650M E AM5 Motherboard & Ryzen 5 7500F CPU Combo

SKU CH-2QQ1-6W09X

A bundled B650E motherboard and Ryzen 5 7500F CPU deliver 5.0 GHz boost clocks, PCIe 5.0 M.2 support, DDR5 7400 OC, 7+2+1 60 A power phases, Wi-Fi 6 and 2.5 G LAN for high-FPS 1080p and 1440p gaming

  • ChipsetAMD B650E
  • HDMI1 x HDMI
  • DisplayPort1 x DisplayPort

model PULSE B650M E + AMD Ryzen 5 7500F

  • Ryzen 5 7500F hits 5.0 GHz boost for high-FPS gaming
  • 7+2+1 phase VRM with 60A DrMOS keeps power stable under load
  • PCIe 5.0 M.2 slot enables 14 GB/s NVMe speeds
  • Wi-Fi 6 plus 2.5G LAN gives low-latency online play
  • DDR5 EXPO support to 7400+ MHz maximises memory bandwidth

Bundle Value

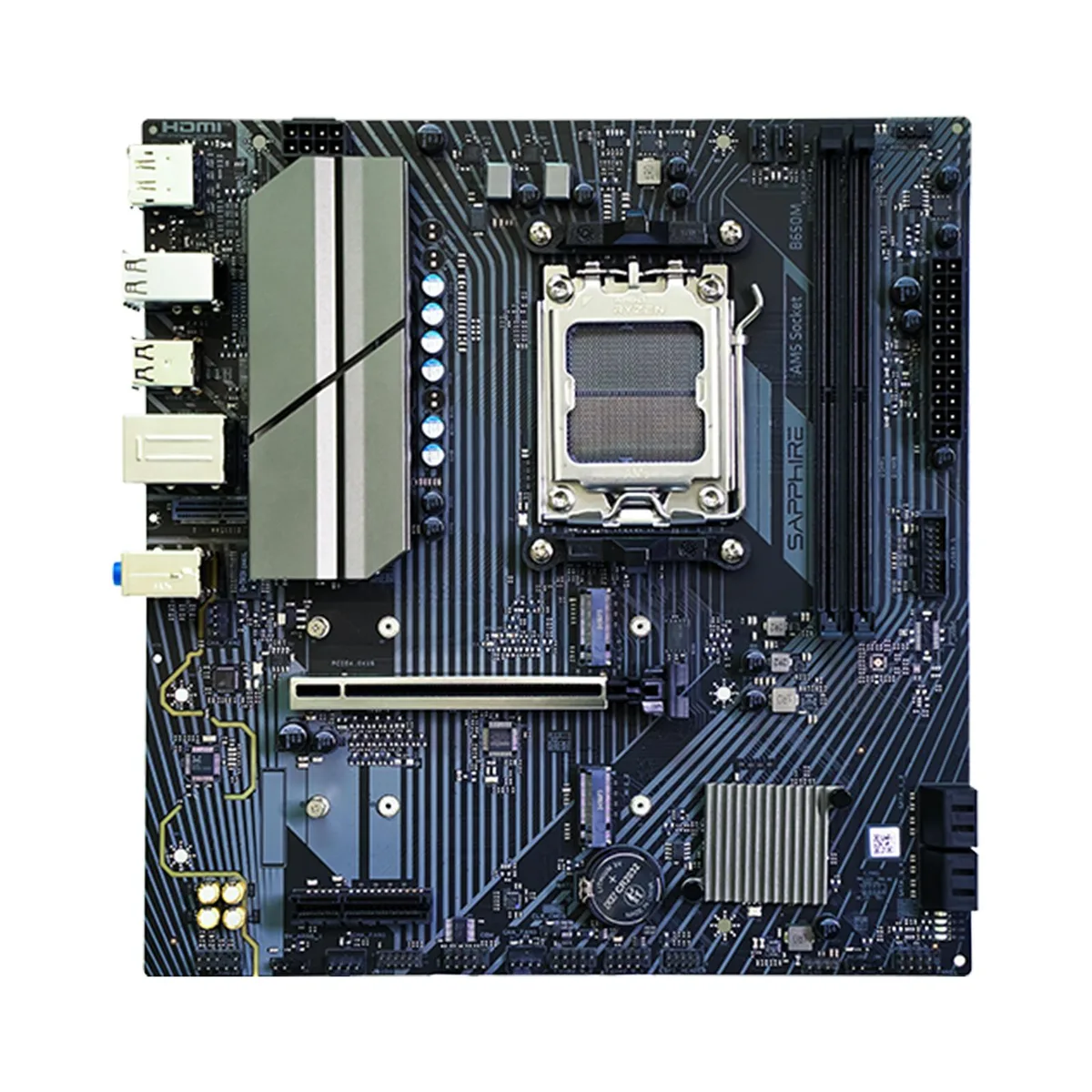

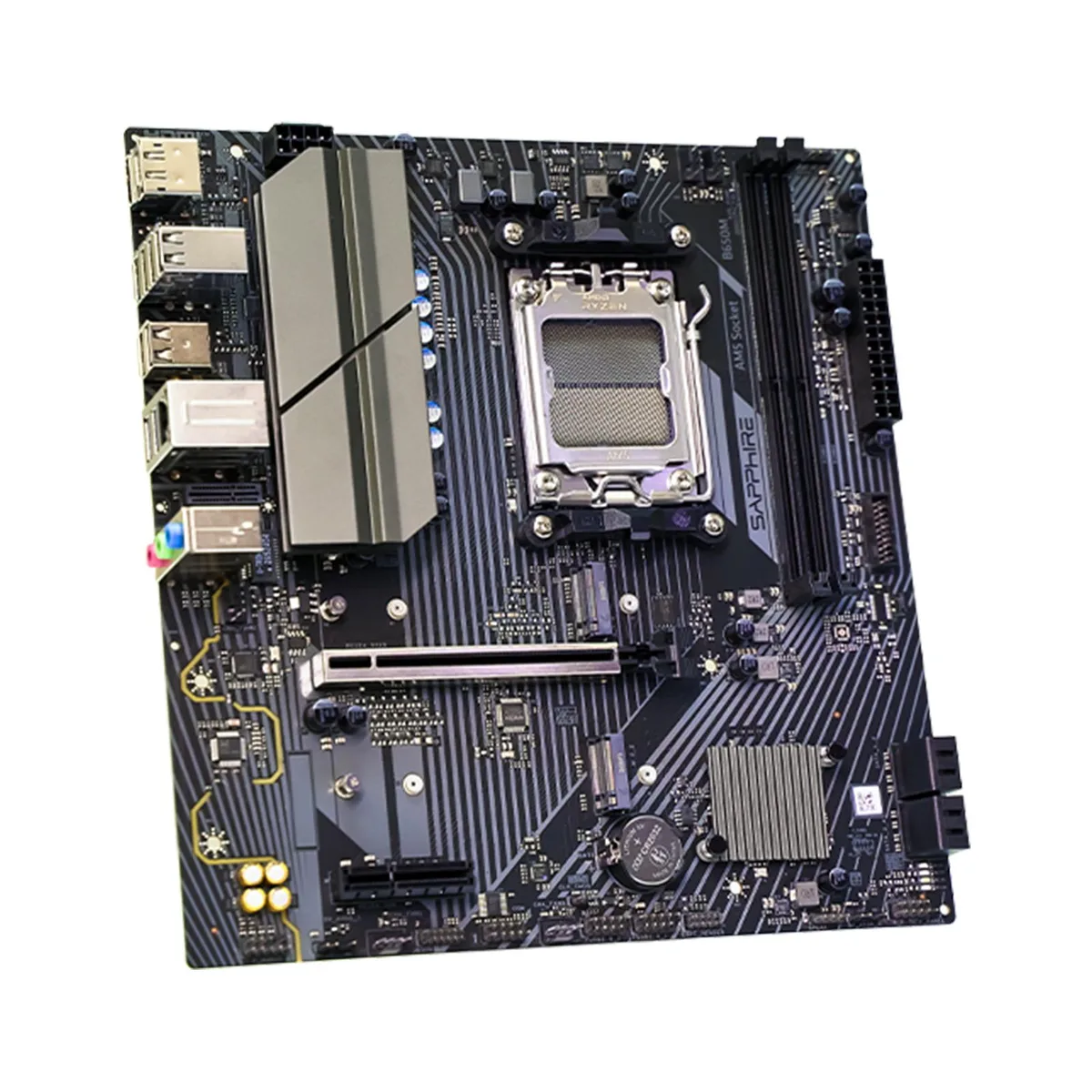

The Sapphire PULSE B650M E motherboard paired with a Ryzen 5 7500F processor targets budget-conscious gamers building a 1080p or 1440p system. The six-core CPU reaches a 5.0 GHz boost clock and includes a Wraith Stealth cooler rated for 65 W TDP. The board uses the AMD B650E chipset on a micro-ATX form factor.

Build Integration

A PCIe 4.0 x16 slot accepts mid-range graphics cards such as an RX 7600 or RTX 4060. Dual DDR5 slots support memory overclocked to 7400 MHz via EXPO or XMP profiles. One PCIe 5.0 M.2 slot with heatsink and one PCIe 4.0 M.2 slot enable NVMe RAID, while four SATA ports add bulk storage. Front-panel USB-C and 5x fan headers suit compact MATX cases. AM4 cooler mounting is retained for cost-effective upgrades.

Capacity Headroom

The 7+2+1 phase VRM with 60 A DrMOS delivers stable power for Ryzen 7 or 9 CPUs, giving a clear upgrade path within the same socket. Integrated Wi-Fi 6 and 2.5 G LAN provide low-latency networking. HDMI 2.1 and DisplayPort 1.4 drive 4K 60 Hz output without a discrete GPU. Six USB 2.0 and two USB 3.2 Gen1 ports cover basic peripheral needs. Three ARGB headers sync with common lighting ecosystems.

Points forts

  • Ryzen 5 7500F hits 5.0 GHz boost for high-FPS gaming
  • 7+2+1 phase VRM with 60A DrMOS keeps power stable under load
  • PCIe 5.0 M.2 slot enables 14 GB/s NVMe speeds
  • Wi-Fi 6 plus 2.5G LAN gives low-latency online play
  • DDR5 EXPO support to 7400+ MHz maximises memory bandwidth

Caractéristiques

BrandSAPPHIRE
ChipsetAMD B650E
HDMI1 x HDMI
DisplayPort1 x DisplayPort

Autres versions de ce modèle

5 de plus dans cette gamme

Même famille, mémoire, ventirad ou fréquence différents — comparez avant de vous décider.

Questions sur cet article

Will the bundled Wraith Stealth cooler handle the Ryzen 5 7500F without extra cooling?

Yes, the included Wraith Stealth cooler is rated for the CPU's 65W TDP and handles it effortlessly according to the manufacturer.

Can I use my existing AM4 air cooler on this motherboard if I prefer it over the stock cooler?

The board is compatible with AM4 coolers, so your existing cooler can be reused for a cost-effective upgrade.

Does the motherboard provide a PCIe 5.0 M.2 slot with a heatsink for a high-speed NVMe drive?

Yes, there is a PCIe 5.0 x4 M.2 slot equipped with a heatsink, supporting speeds up to 14GB/s.
