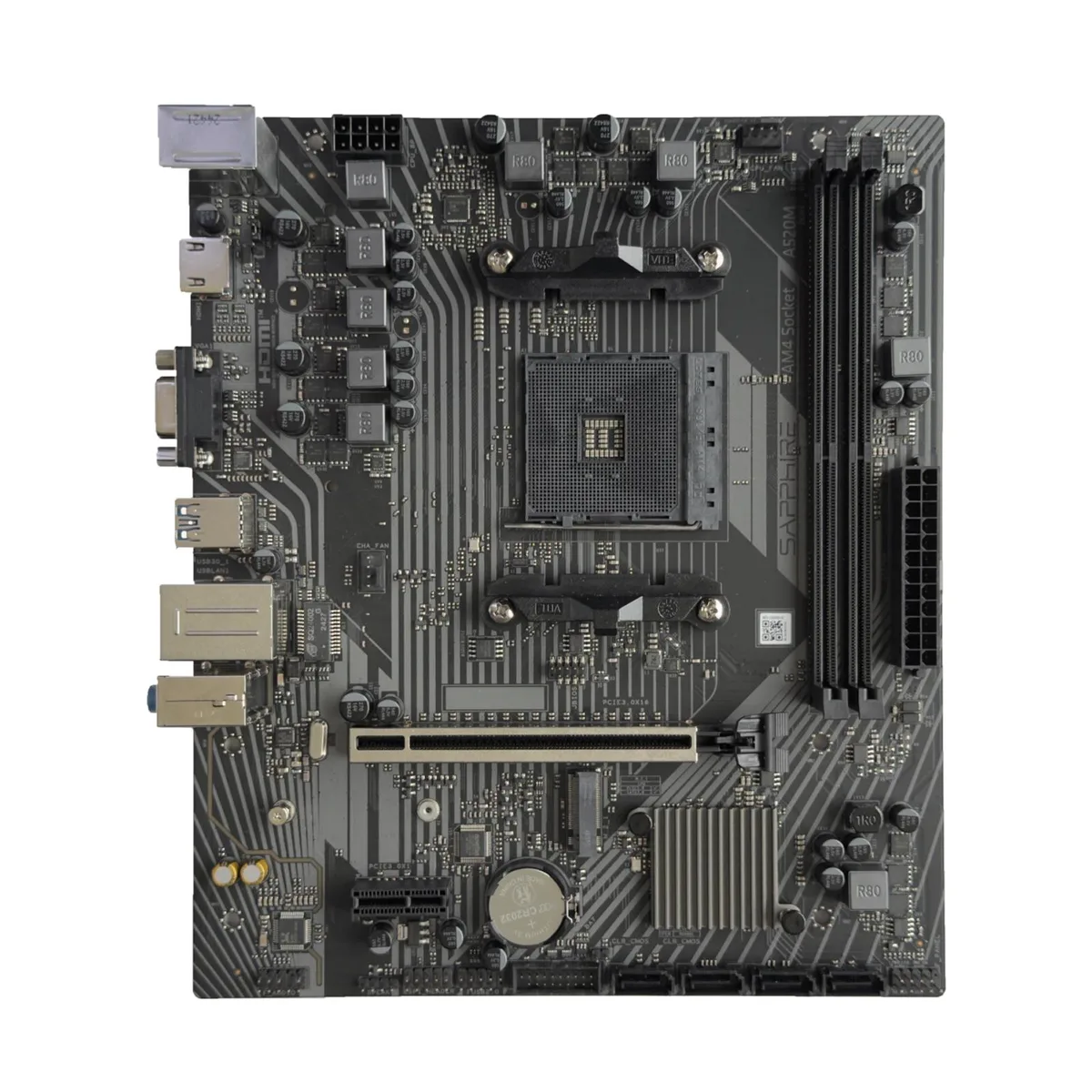

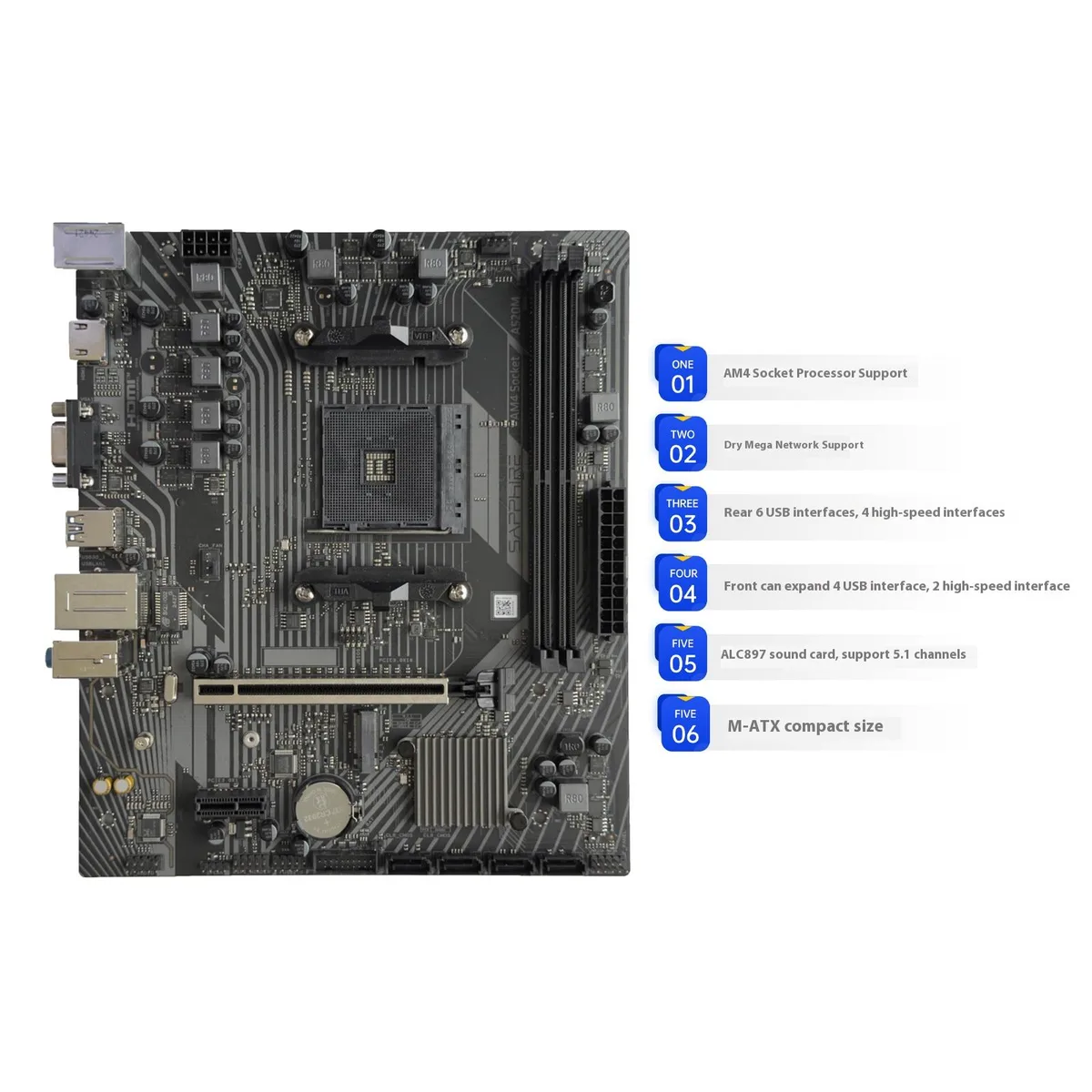

Sapphire PULSE A520M-E motherboard with Ryzen 7 5700G APU, matte black finish, micro-ATX form factor

Sapphire Tech

Sapphire Tech PULSE A520M-E AM4 Motherboard & Ryzen 7 5700G APU Combo

SKU CH-CZYZ-JSC3Q

A520 motherboard paired with an 8-core Ryzen 7 5700G APU featuring Vega 8 graphics, DDR4 4600 OC support, PCIe 3.0 M.2 and HDMI 2.1 for compact builds

  • ChipsetA520M-E
  • HDMI1 x HDMI
  • DisplayPort1 x DisplayPort

model PULSE A520M-E + AMD Ryzen 7 5700G

  • Ryzen 7 5700G 8C/16T Vega 8 iGPU runs Fortnite 1080p 60 FPS without discrete GPU
  • 4600 MHz DDR4 OC support and PCIe 3.0 M.2 32Gbps plus 4 SATA ports
  • HDMI 2.1 4K 60Hz USB 3.2 Gen1 5Gbps Realtek RTL8111H Gigabit LAN
  • MATX 22.6x22.1cm board fits mini-ITX cases with 7+2+1 phase VRM for 65W TDP
  • AM4 socket supports Ryzen 5000 4000G CPUs until 2025 upgrade path for HTPC NAS builds

Compact APU Combo for Mini-PC Builds

The Sapphire PULSE A520M-E motherboard pairs with a Ryzen 7 5700G 8-core APU and Vega 8 graphics. It targets budget mini-PC builders who need 1080p gaming and productivity without a discrete card. The MATX board measures 22.6 by 22.1 centimetres and fits mini-ITX cases. AM4 socket supports Ryzen 5000 and 4000G series until 2025.

Thermals Noise and 65W Power Draw

The 7+2+1 phase VRM uses 60A DrMOS and large heatsinks to handle the 65W TDP APU. Benchmarks show 45°C under load with compatible air coolers such as the Wraith Stealth. Silent operation is maintained during typical workloads. The board includes a PCIe 3.0 x16 slot for future GPU upgrades.

Build Quality Connectors and Daily Use

Back panel provides HDMI 2.1 for 4K 60Hz output, DisplayPort, D-Sub, two USB 3.2 Gen1 ports and six USB 2.0 ports. Realtek RTL8111H Gigabit LAN handles wired networking. Storage options include one PCIe 3.0 M.2 slot at 32Gbps and four SATA ports. DDR4 4600+ MHz overclocking is supported via XMP profiles.

Points forts

  • Ryzen 7 5700G 8C/16T Vega 8 iGPU runs Fortnite 1080p 60 FPS without discrete GPU
  • 4600 MHz DDR4 OC support and PCIe 3.0 M.2 32Gbps plus 4 SATA ports
  • HDMI 2.1 4K 60Hz USB 3.2 Gen1 5Gbps Realtek RTL8111H Gigabit LAN
  • MATX 22.6x22.1cm board fits mini-ITX cases with 7+2+1 phase VRM for 65W TDP
  • AM4 socket supports Ryzen 5000 4000G CPUs until 2025 upgrade path for HTPC NAS builds

Caractéristiques

BrandSAPPHIRE
ChipsetA520M-E
HDMI1 x HDMI
DisplayPort1 x DisplayPort

Autres versions de ce modèle

5 de plus dans cette gamme

Même famille, mémoire, ventirad ou fréquence différents — comparez avant de vous décider.

Questions sur cet article

Will this board fit inside a mini-ITX case?

The Sapphire PULSE A520M-E measures 22.6 x 22.1 cm, a MATX footprint that matches the mounting holes used by many mini-ITX chassis.

Can I run four displays from the integrated graphics?

The rear panel provides one HDMI 2.1 port and one DisplayPort connection, so only two monitors are supported directly from the APU.

Which memory kits are validated for the advertised overclock speed?

The board enables DDR4 4600 MHz via XMP profiles; choose a kit rated for that frequency to achieve the listed performance.
