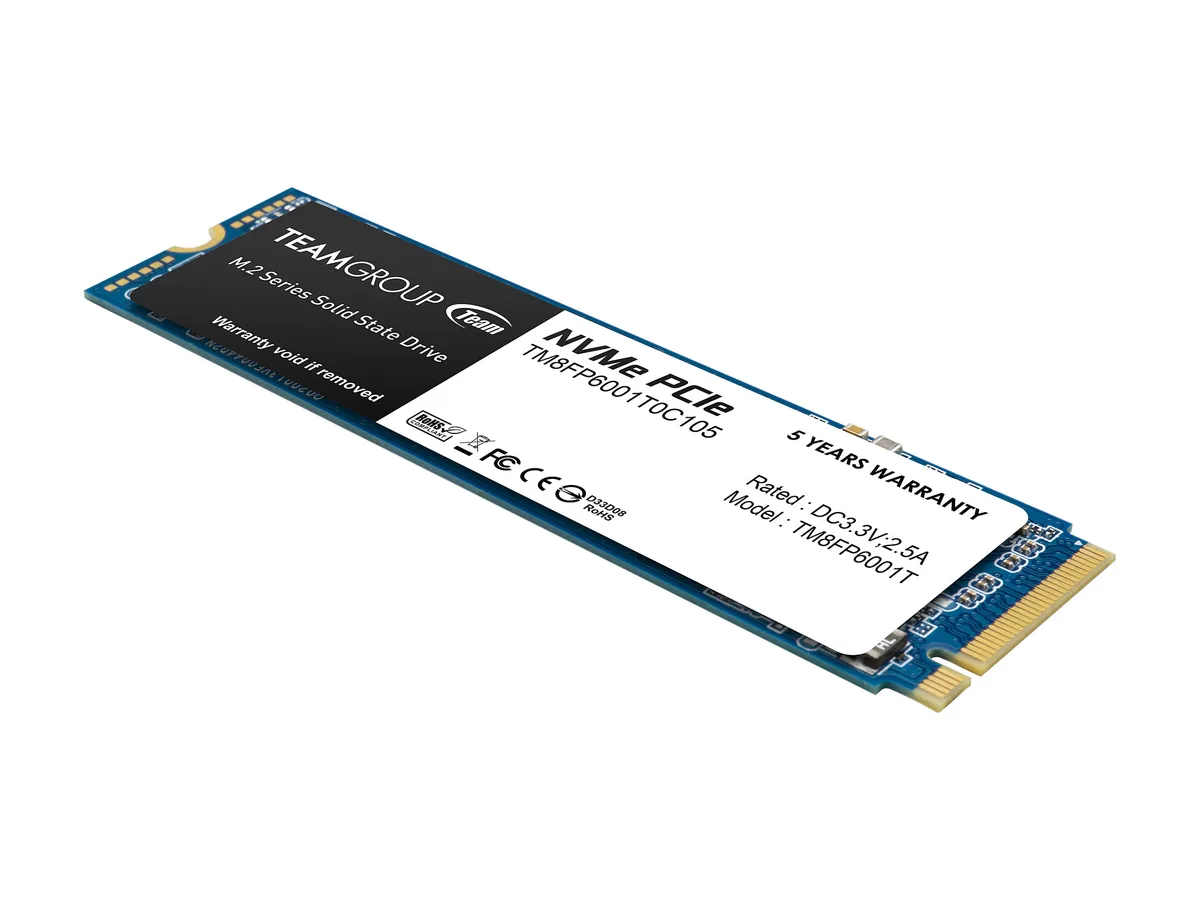

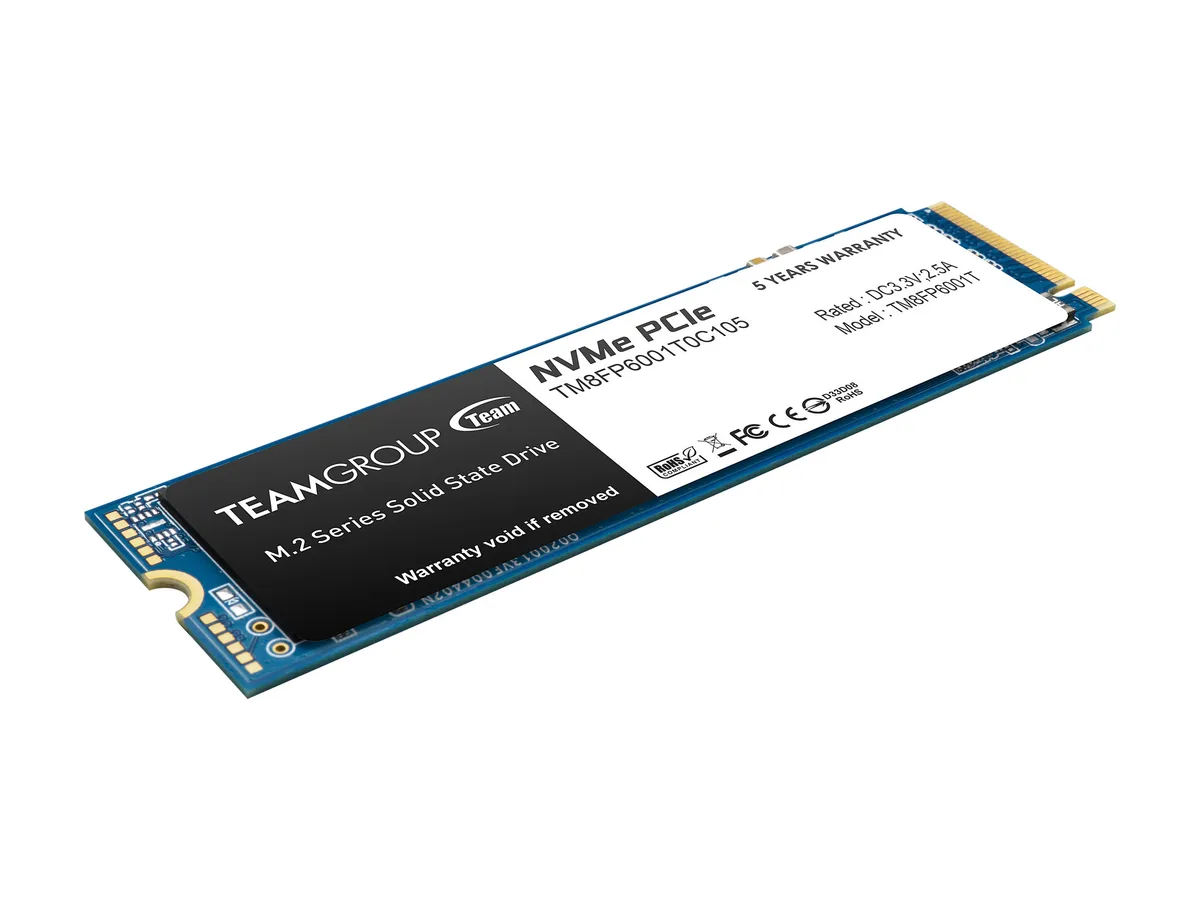

Green M.2 2280 circuit board with black controller and gold edge connector

Team Group

Team Group MP33 1TB M.2 2280 PCIe 3.0 x4 NVMe 1.3 Internal SSD TM8FP6001T0C101

SKU CH-KHVH-2C6X2 MPN TM8FP6001T0C101

A 1 TB M.2 2280 NVMe 1.3 drive using 3D NAND and PCIe 3.0 x4, reaching 1800 MB/s read and 1500 MB/s write with 240 TBW endurance

  • Device TypeInternal Solid State Drive (SSD)
  • Used ForConsumer
  • Form FactorM.2 2280
  • Capacity1TB
  • Memory Components3D NAND
  • InterfacePCIe 3.0 x4 with NVMe 1.3

Options 1TB MP33

  • Up to 1800 MBps sequential read cuts load times
  • Up to 1500 MBps sequential write speeds large file saves
  • 220000 IOPS random read keeps multitasking responsive
  • 200000 IOPS random write handles heavy write workloads
  • 240 TBW rating supports long-term daily use

Ready for everyday builds

The Team Group MP33 is a 1TB M.2 2280 NVMe 1.3 drive that uses PCIe 3.0 x4 and 3D NAND flash. It targets desktop and notebook owners who want a straightforward capacity boost without moving to a newer interface generation. The DRAM-less design relies on Host Memory Buffer to keep controller overhead low. It fits any platform with an M-key slot that supports PCIe 3.0.

Fits standard M-key slots

Installation requires a motherboard or laptop with an M.2 2280 M-key connector wired for PCIe 3.0 x4 and NVMe 1.3 support. No heatsink or extra power cable is needed because the controller draws modest power through the slot. The single-sided 2280 PCB leaves room for a board-mounted thermal pad if the chassis runs warm. It frees a 2.5-inch bay for mass storage or a second drive.

One terabyte with 240 TBW

Rated at 240 TBW and 1.5 million hours MTBF, the drive handles operating-system drives, game libraries and light creative workloads comfortably. Sequential speeds reach 1800 MBps read and 1500 MBps write while random performance tops out at 220000 read and 200000 write IOPS. Sustained heavy writes will eventually hit the SLC cache limit and throttle to native NAND speed.

Points forts

  • Up to 1800 MBps sequential read cuts load times
  • Up to 1500 MBps sequential write speeds large file saves
  • 220000 IOPS random read keeps multitasking responsive
  • 200000 IOPS random write handles heavy write workloads
  • 240 TBW rating supports long-term daily use

Caractéristiques

BrandTeam Group
SeriesMP33
ModelTM8FP6001T0C101
Device TypeInternal Solid State Drive (SSD)
Used ForConsumer
Form FactorM.2 2280
Capacity1TB
Memory Components3D NAND
InterfacePCIe 3.0 x4 with NVMe 1.3
ProtocolNVMe 1.3
CacheNo DRAM (HMB)
Max Sequential ReadUp to 1800 MBps
Max Sequential WriteUp to 1500 MBps
4KB Random ReadUp to 220,000 IOPS
4KB Random WriteUp to 200,000 IOPS
Terabytes Written (TBW)240TB
MTBF1,500,000 hours
FeaturesUsing new generation of 3D flash memory: Capacity, performance, and durability are greatly improved
PCI-e interface - Supports latest NVMe 1.3 protocol
M.2 2280 specification: Supports the next-generation platforms of Intel and AMD. Suitable for both desktop and notebook
Supports SLC Caching technology. Greatly enhance computing performance
Operating Temperature0°C ~ +70°C
Storage Temperature-40°C ~ +85°C
Operating HumidityRH 90% under 40 celsius degree
Max Shock Resistance1,500G / 0.5 ms
Max Vibration Resistance80-2,000 Hz / 20G
Height3.80mm
Width22.00mm
Depth80.00mm
Weight6.00g
Poids d’expédition0.02 kg
Dimensions du colis122 × 90 × 8 mm

Autres versions de ce modèle

5 de plus dans cette gamme

Même famille, mémoire, ventirad ou fréquence différents — comparez avant de vous décider.

Questions sur cet article

At what operating temperature does the drive begin to throttle under sustained load?

The operating range tops out at 70°C; sustained writes that push the controller to this limit will trigger thermal throttling to protect the NAND.

How much power does the SSD draw during all-day operation and does it need active cooling?

As a DRAM-less PCIe 3.0 x4 drive it typically stays under 5 W, runs cool in the M.2 2280 slot and does not require a heatsink for normal workloads.

Which motherboard slot and firmware support are required for this 1 TB MP33 to function?

An M.2 2280 key-M slot wired for PCIe 3.0 x4 with NVMe 1.3 support in the BIOS is all that is needed; no extra cables or adapters are required.
