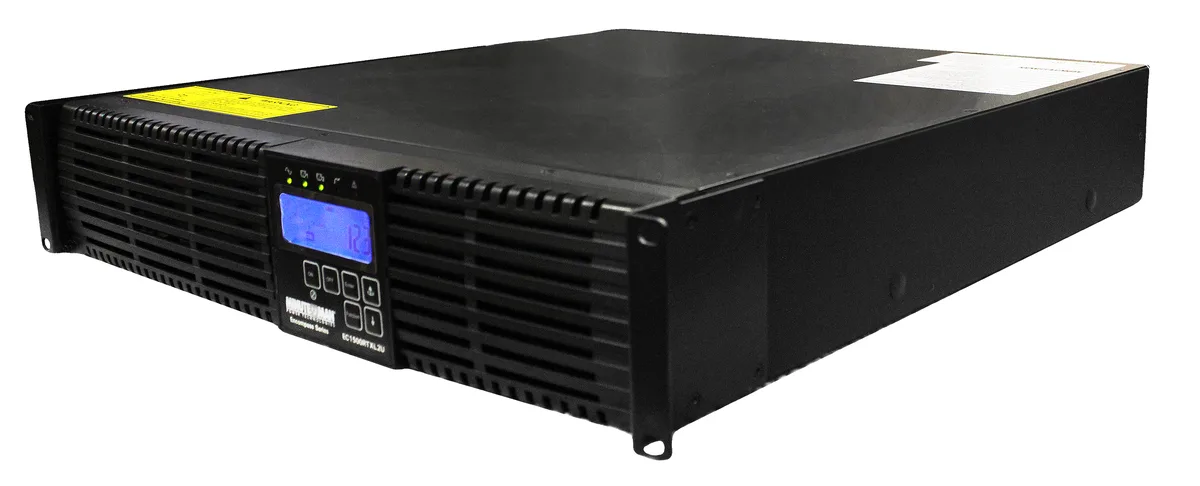

Black rectangular rack-tower UPS unit with front LCD display and six NEMA 5-15R outlets visible

MINUTEMAN

MINUTEMAN EC1000RTXL2U 1000VA 900W 120V Online UPS

SKU CH-DD45-J57X8 MPN EC1000RTXL2U

Online UPS delivers 1000VA 900W pure sine power with 10-minute half-load runtime in a 2U rack-tower unit

  • International Version120V
  • Input Voltage Range0-160VAC
  • Input Frequency50/60Hz, +/-6Hz, Auto-sensing
  • Input ConnectionNEMA 5-15P
  • VA Rating1000VA
  • Watts900 Watts

Model EC1000RTXL2U

Prikaži još 7 konfiguracija

Precrtane verzije postoje, ali nisu dostupne ovdje.

  • True sine wave output protects sensitive equipment
  • Online double-conversion topology delivers continuous clean power
  • 9 power factor provides 900 W from 1000 VA rating
  • Rack or tower form factor fits diverse installations
  • User-replaceable battery modules extend service life

Encompass RTXL Online UPS

The Minuteman EC1000RTXL2U is a new 1000VA 900W online UPS delivering true sine-wave output at 120V. Its power factor of 0.9 provides 900 watts from the 1000VA rating. The unit suits rack or tower installations for servers, network gear or workstations needing continuous double-conversion protection.

Rack tower form factor integration

The 2U chassis fits standard racks and also stands as a tower. Six NEMA 5-15R outlets supply battery-backed power; the input uses a NEMA 5-15P plug on 120V mains. Auto-sensing 50/60Hz input tolerates a wide 0-160VAC window and frequency shift of +/-6Hz. Operating range is 0 to 40°C with 10 to 90 percent non-condensing humidity.

Replaceable battery packs and management

Runtime reaches 10 minutes at half load and 2 minutes at full load. User-replaceable battery packs BP24RTXL2U and BP24V72RTEXL extend service life without removing the UPS. A USB port enables monitoring and controlled shutdown. Approvals include cTUVus to UL1778, FCC Class A, CE, Energy Star 2.0, DoE 10 CFR Part 430 and RoHS2.

Istaknuto

  • True sine wave output protects sensitive equipment
  • Online double-conversion topology delivers continuous clean power
  • 9 power factor provides 900 W from 1000 VA rating
  • Rack or tower form factor fits diverse installations
  • User-replaceable battery modules extend service life

Specifikacije

BrandMINUTEMAN
SeriesENCOMPASS RTXL
ModelEC1000RTXL2U
International Version120V
Input Voltage Range0-160VAC
Input Frequency50/60Hz, +/-6Hz, Auto-sensing
Input ConnectionNEMA 5-15P
VA Rating1000VA
Watts900 Watts
Output Voltage120V
Output Frequency50/60Hz, +/-6Hz
Outlets6
Outlet Type(6) NEMA 5-15R
Battery TypeSealed Lead Acid
Battery Run TimeHalf Load: 10 Minutes
Full Load: 2 Minutes
Battery ReplaceableBP24RTXL2U
BP24V72RTEXL
ApprovalscTUVus (Conforms to UL1778 5th Edition & CSA 22.2 no. 107.3-14 /R: 2014), FCC Class A, CE certified, Energy Star 2.0, DoE 10 CFR Part 430, RoHS2 (EU Directive 2011/65/EU)
RackmountableYes
Temperature0° to 40°C (+32° to +104°F)
Humidity10% to 90% Non-condensing
Dimensions3.5" x 16" x 18.9"
Weight24.3 lbs.
Težina pošiljke11.02 kg
Dimenzije pakiranja480 × 406 × 89 mm

Druge verzije ovog modela

još 5 u istoj seriji

Ista obitelj, različita memorija, hladnjak ili frekvencija — usporedite prije kupnje.

Pitanja o ovom artiklu

How long will the EC1000RTXL2U run my equipment at full 900 W load before the battery is depleted?

At full load the unit provides 2 minutes of runtime, so plan for a graceful shutdown within that window.

What is the typical operating temperature range and does the UPS meet Energy Star 2.0 efficiency requirements?

It operates from 0 °C to 40 °C and carries Energy Star 2.0 certification for efficient power conversion.

Which replacement battery packs are compatible with this model?

The approved replacements are the BP24RTXL2U and BP24V72RTEXL battery modules.
