Tower UPS unit in matte black finish with LCD display and nine outlets visible

MINUTEMAN

MINUTEMAN EC3000LCD 3000VA 2700W 9-Outlet UPS

SKU CH-VTTH-FZHDD MPN EC3000LCD

On-line UPS delivers 3000VA 2700W with nine outlets and true sinewave output

  • International Version120V
  • Input Voltage Range0-160VAC
  • Input Frequency50/60Hz +/- 6Hz Auto-sensing
  • Input ConnectionNEMA L5-30P
  • VA Rating3000VA
  • Watts2700W

Model EC3000LCD

Prikaži još 7 konfiguracija

Precrtane verzije postoje, ali nisu dostupne ovdje.

  • True on-line double-conversion protection with zero transfer time
  • 3000VA 2700W capacity supports critical servers and networking gear
  • Nine mixed outlets including one always-on L5-30R and eight controllable 5-15/20R
  • 10 minutes runtime at half load keeps systems running during short outages
  • cULus FCC CE RoHS2 certifications confirm safety and environmental compliance

3000VA On-Line UPS for Critical Equipment

The Minuteman EC3000LCD is a true on-line uninterruptible power supply rated at 3000VA and 2700W. It uses double-conversion technology to regenerate a clean sinewave output for connected devices. The unit accepts a 120V input through a NEMA L5-30P plug and provides nine outlets. It is designed for data centres, communications gear, security systems and light industrial applications.

Capacity and Runtime Headroom

At half load the sealed lead-acid batteries deliver approximately 10 minutes of backup time. At full 2700W load the runtime drops to 3 minutes. Recharging to 90 percent capacity takes 8 hours after a total discharge. The battery module is replaceable using part BM0078. Buyers who need longer runtime at full load will find the internal battery insufficient.

Interface and Environmental Limits

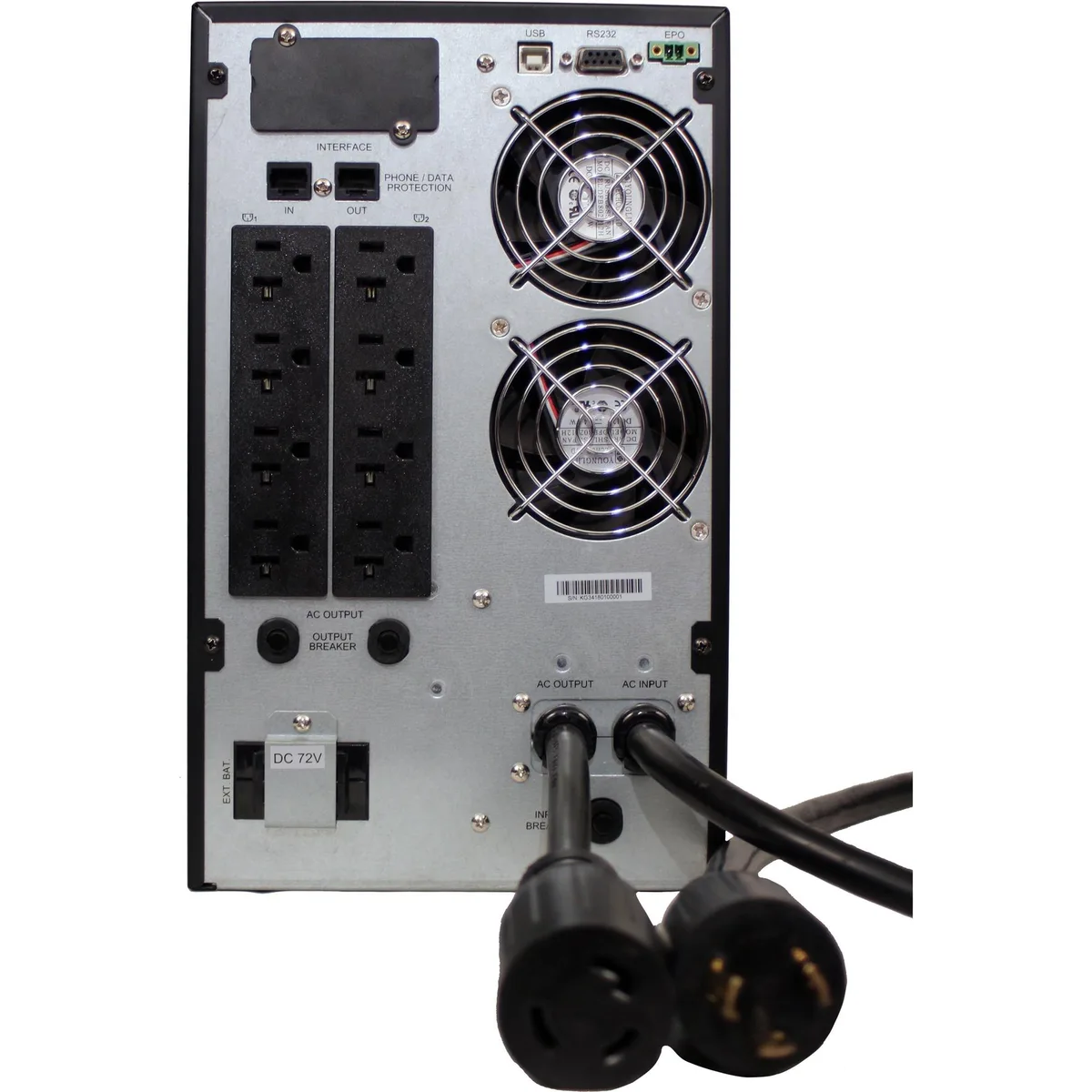

The UPS operates from 0 to 160VAC input and maintains output frequency within +/-0.2Hz of 50 or 60Hz. Surge energy rating is 254 joules. Operating temperature range is 32 to 104°F (0 to 40°C). The unit includes eight controllable NEMA 5-15/20R outlets and one always-on NEMA L5-30R outlet. It carries cULus, FCC Class A, CE and RoHS2 approvals. SNMP management requires an optional card.

Istaknuto

  • True on-line double-conversion protection with zero transfer time
  • 3000VA 2700W capacity supports critical servers and networking gear
  • Nine mixed outlets including one always-on L5-30R and eight controllable 5-15/20R
  • 10 minutes runtime at half load keeps systems running during short outages
  • cULus FCC CE RoHS2 certifications confirm safety and environmental compliance

Specifikacije

BrandMINUTEMAN
SeriesENCOMPASS
ModelEC3000LCD
International Version120V
Input Voltage Range0-160VAC
Input Frequency50/60Hz +/- 6Hz Auto-sensing
Input ConnectionNEMA L5-30P
VA Rating3000VA
Watts2700W
Output Voltage120V
Output Frequency50/60Hz +/-0.2Hz unless synchronized to line
Outlets9
Outlet Type[8] NEMA 5-15/20R (controllable) & [1] NEMA L5-30R (always on)
Battery TypeSealed Lead Acid
Battery Run TimeHalf Load: 10 min
Full Load: 3 min
Battery Recharge Time8 hours to 90% from total discharge
Battery ReplaceableBM0078
ApprovalscULus (UL1778 5th Edition & CSA 22.2 no. 107.3-14 / R: 2014), FCC Class A, CE certified, RoHS2 (EU Directive 2011/65/EU & 2015/863/EU)
Surge Energy Rating254 Joules
TemperatureOperating Temperature +32 to +104°F (0 to 40°C)
Storage Temperature +14 to +122°F (-10 to +50°C)
Humidity10% to 90% non-condensing
Dimensions26.9" x 12" x 17.6"
Weight73.0 lbs.
Težina pošiljke34.93 kg
Dimenzije pakiranja683 × 447 × 305 mm

Druge verzije ovog modela

još 5 u istoj seriji

Ista obitelj, različita memorija, hladnjak ili frekvencija — usporedite prije kupnje.

Pitanja o ovom artiklu

Will the NEMA L5-30P input plug into my existing 20 A circuit?

The input requires a NEMA L5-30P receptacle rated for 30 A at 120 V; a standard 20 A circuit will not accept this plug.

How can I verify the double-conversion topology is active after installation?

The LCD shows real-time input and output voltage with zero transfer time, confirming continuous on-line operation.

Which cables or accessories ship with the unit and what must I source separately?

The UPS includes the tower unit with eight NEMA 5-15/20R outlets and one NEMA L5-30R outlet; the SNMP card and replacement battery BM0078 are sold separately.
