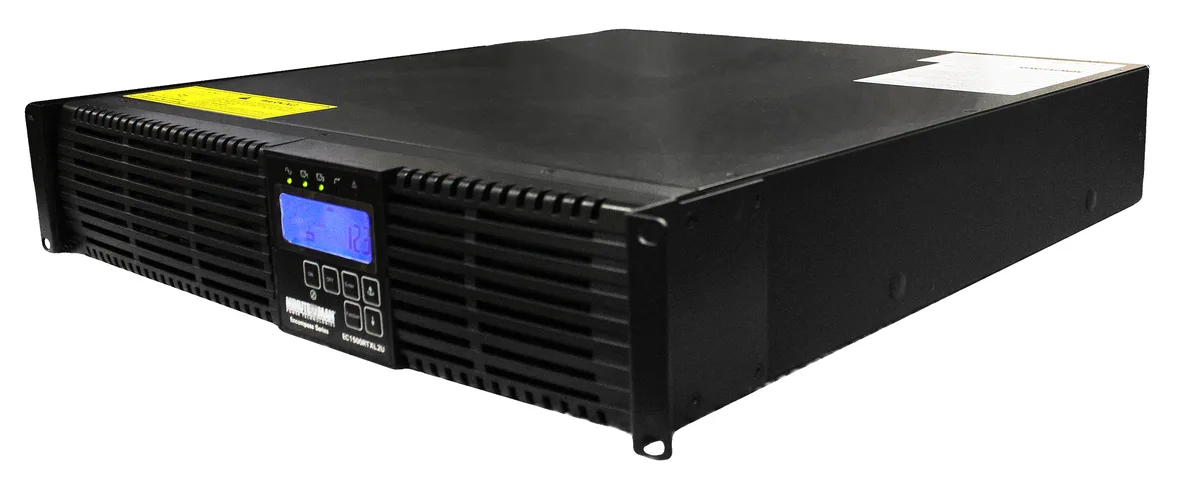

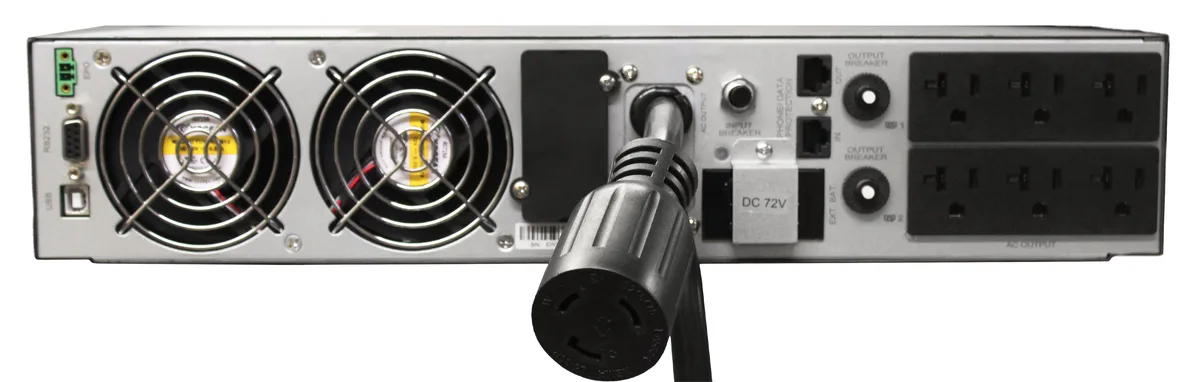

Rectangular black metal UPS unit with front LCD display and six rear outlets

MINUTEMAN

MINUTEMAN EC1000RTXL2UNC UPS 1000VA 900W 120V 6x 5-15R

SKU CH-YE7R-Q2GCC MPN EC1000RTXL2UNC

Online UPS delivers 1000VA and 900W with true sine-wave output, six NEMA 5-15R outlets and extended runtime from replaceable sealed lead-acid batteries

  • International Version120V
  • Input Voltage Range0-160VAC
  • Input Frequency50/60Hz, +/-6Hz, Auto-sensing
  • Input ConnectionNEMA 5-15P
  • VA Rating1000VA
  • Watts900 Watts

Model EC1000RTXL2UNC

Prikaži još 7 konfiguracija

Precrtane verzije postoje, ali nisu dostupne ovdje.

  • Online topology delivers clean 120 V power with .9 power factor
  • 1000 VA 900 W capacity supports critical rack or tower loads
  • Six controllable NEMA 5-15R outlets enable managed runtime allocation
  • Replaceable sealed lead-acid battery packs extend service life
  • cTUVus Energy Star 2.0 DoE 430 RoHS2 compliant for regulated environments

Encompass RTXL Online UPS

The Minuteman EC1000RTXL2UNC is a 1000VA, 900W online double-conversion UPS delivering true sine-wave output at 120V. It suits servers, network gear or workstations that require continuous power conditioning and zero transfer time during outages. The rack/tower form factor fits standard 2U spaces or stands upright on a shelf. Six NEMA 5-15R outlets provide battery-backed and surge-protected power for multiple devices.

Input circuit and outlet plan

Verify the site supply stays within 0-160VAC at 50 or 60Hz and that a NEMA 5-15P plug matches the branch circuit. Each connected load must use a 5-15P cord to fit the six rear outlets. Confirm the total draw does not exceed 900W so the inverter can sustain full-load runtime. Ambient temperature must remain between 0°C and 40°C with non-condensing humidity for specified operation.

Replaceable battery packs and USB monitoring

Runtime ships at ten minutes half-load and two minutes full-load using sealed lead-acid cells. Extended runtime is achieved by adding BP24RTXL2U or BP24V72RTEXL battery packs without replacing the UPS. A USB port enables software-initiated graceful shutdown and status reporting for supported operating systems. All approvals including cTUVus, FCC Class A, CE, Energy Star 2.0 and RoHS2 apply to the base unit.

Istaknuto

  • Online topology delivers clean 120 V power with .9 power factor
  • 1000 VA 900 W capacity supports critical rack or tower loads
  • Six controllable NEMA 5-15R outlets enable managed runtime allocation
  • Replaceable sealed lead-acid battery packs extend service life
  • cTUVus Energy Star 2.0 DoE 430 RoHS2 compliant for regulated environments

Specifikacije

BrandMINUTEMAN
SeriesENCOMPASS RTXL
ModelEC1000RTXL2UNC
International Version120V
Input Voltage Range0-160VAC
Input Frequency50/60Hz, +/-6Hz, Auto-sensing
Input ConnectionNEMA 5-15P
VA Rating1000VA
Watts900 Watts
Output Voltage120V
Output Frequency50/60Hz, +/-6Hz
Outlets6
Outlet Type(6) NEMA 5-15R
Battery TypeSealed Lead Acid
Battery Run TimeHalf Load: 10 Minutes
Full Load: 2 Minutes
Battery ReplaceableBP24RTXL2U
BP24V72RTEXL
ApprovalscTUVus (Conforms to UL1778 5th Edition & CSA 22.2 no. 107.3-14 /R: 2014), FCC Class A, CE certified, Energy Star 2.0, DoE 10 CFR Part 430, RoHS2 (EU Directive 2011/65/EU)
RackmountableYes
Temperature0° to 40°C (+32° to +104°F)
Humidity10% to 90% Non-condensing
Dimensions3.5" x 16" x 18.9"
Weight24.3 lbs.
Težina pošiljke11.25 kg
Dimenzije pakiranja480 × 406 × 89 mm

Druge verzije ovog modela

još 5 u istoj seriji

Ista obitelj, različita memorija, hladnjak ili frekvencija — usporedite prije kupnje.

Pitanja o ovom artiklu

What comes in the box and what must I buy separately?

The UPS ships with six NEMA 5-15R outlets, a NEMA 5-15P input cord, USB cable and rack-mount ears. Replacement battery cartridges BP24RTXL2U or BP24V72RTEXL are sold separately.

How do I choose between the replaceable battery models?

Both BP24RTXL2U and BP24V72RTEXL are compatible replacement packs for this unit; select the one your distributor stocks.

What does the 900 W rating mean for my equipment?

The unit delivers up to 900 W continuous output with a 0.9 power factor, so the total connected load must stay at or below 900 W for reliable online operation.
