Rack-tower online UPS, black metal chassis, LCD front panel, seven outlets rear

MINUTEMAN

MINUTEMAN EC3000RTXL2UNC 3000VA 2700W 120V Online UPS

SKU CH-2MTC-2FWT5 MPN EC3000RTXL2UNC

Online UPS delivers 3000VA 2700W pure sine output with six controllable NEMA 5-15/20R outlets and extended runtime

  • International Version120V
  • Input Voltage Range0-160VAC
  • Input Frequency50/60Hz, +/-6Hz, Auto-sensing
  • Input ConnectionNEMA L5-30P
  • VA Rating3000VA
  • Watts2700W

Model EC3000RTXL2UNC

Prikaži još 7 konfiguracija

Precrtane verzije postoje, ali nisu dostupne ovdje.

  • Online double-conversion topology delivers clean 120 V power
  • 3000 VA and 2700 W capacity supports heavy server loads
  • Six 5-15/20R plus one L5-30R outlets offer flexible connections
  • Replaceable sealed lead-acid battery module BM0071 extends service life
  • cTUVus, FCC Class A, CE, Energy Star 2.0 and RoHS2 certified

High-capacity online UPS for critical 120V loads

The Minuteman EC3000RTXL2UNC is a 3000VA, 2700W online UPS that delivers continuous true sine-wave power to servers, networking gear and sensitive electronics. Its double-conversion topology isolates connected equipment from voltage fluctuations, frequency drift and harmonic distortion on the utility line. The unit operates on 120V input and output with a 0.9 power factor.

Rack or tower form factor with NEMA L5-30P input

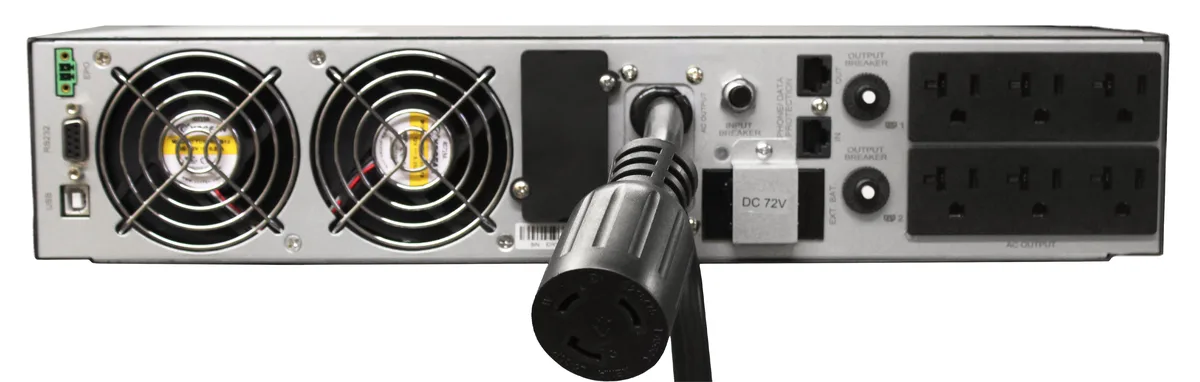

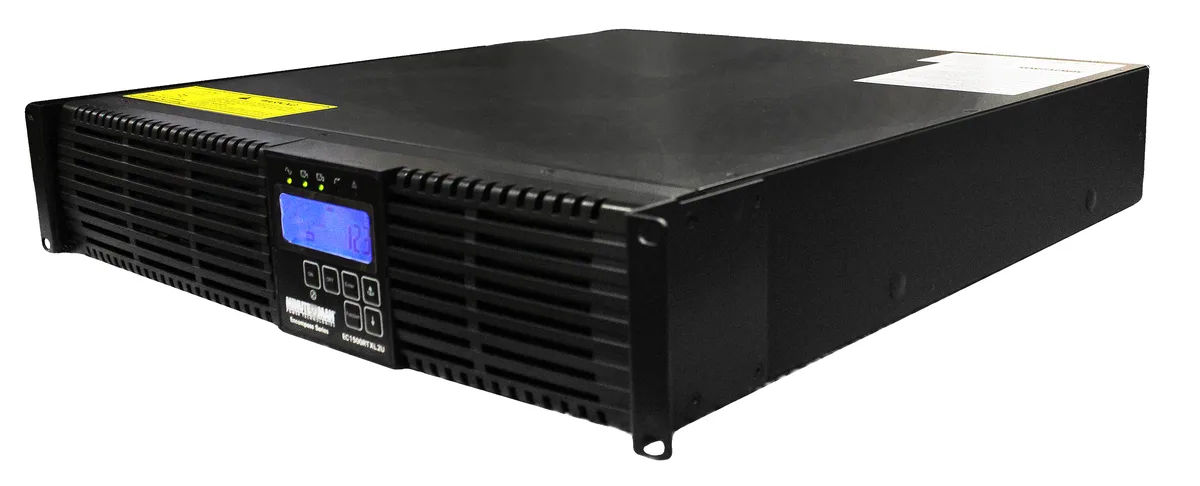

The chassis fits a standard 2U rack space or stands as a tower, offering seven outlets: six NEMA 5-15/20R receptacles and one NEMA L5-30R for high-draw devices. A NEMA L5-30P plug connects to a 30A branch circuit. Six of the outlets are individually controllable, allowing sequenced shutdowns or selective load shedding during extended outages. USB communication supports monitoring software integration.

User-replaceable battery module BM0071

Sealed lead-acid cells provide 10 minutes of runtime at half load and 3 minutes at full load. The BM0071 cartridge can be swapped without tools or downtime, extending the service life of the UPS beyond the battery cycle limit. Energy Star 2.0 and DoE 10 CFR Part 430 compliance reflect efficient operation, while cTUVus, FCC Class A, CE and RoHS2 marks confirm regulatory adherence for commercial deployment.

Istaknuto

  • Online double-conversion topology delivers clean 120 V power
  • 3000 VA and 2700 W capacity supports heavy server loads
  • Six 5-15/20R plus one L5-30R outlets offer flexible connections
  • Replaceable sealed lead-acid battery module BM0071 extends service life
  • cTUVus, FCC Class A, CE, Energy Star 2.0 and RoHS2 certified

Specifikacije

BrandMINUTEMAN
SeriesENCOMPASS RTXL
ModelEC3000RTXL2UNC
International Version120V
Input Voltage Range0-160VAC
Input Frequency50/60Hz, +/-6Hz, Auto-sensing
Input ConnectionNEMA L5-30P
VA Rating3000VA
Watts2700W
Output Voltage120V
Output Frequency50/60Hz, +/-0.2Hz (unless synchronized to utility)
Outlets7
Outlet Type(6) NEMA 5-15/20R / (1) L5-30R
Battery TypeSealed Lead Acid
Battery Run TimeHalf Load: 10 min
Full Load: 3 min
Battery ReplaceableBM0071
ApprovalscTUVus (Conforms to UL1778 5th Edition & CSA 22.2 no. 107.3-14 /R: 2014), FCC Class A, CE certified, Energy Star 2.0, DoE 10 CFR Part 430, RoHS2 (EU Directive 2011/65/EU)
RackmountableYes
Temperature0° to 40°C (+32° to +104°F)
Humidity10% to 90% non-condensing
Dimensions23.7" x 18.9" x 3.5"
Weight65.7 lbs.
Težina pošiljke30.03 kg
Dimenzije pakiranja602 × 480 × 89 mm

Druge verzije ovog modela

još 5 u istoj seriji

Ista obitelj, različita memorija, hladnjak ili frekvencija — usporedite prije kupnje.

Pitanja o ovom artiklu

How long will the battery last when the UPS is running at full 2700 W load?

The internal sealed lead-acid pack provides 3 minutes of runtime at full 2700 W load and 10 minutes at half load.

What is the operating temperature range and noise consideration for continuous rack use?

The unit is rated for 0° to 40°C (32° to 104°F) with 10 % to 90 % non-condensing humidity; fan noise will be present during continuous online operation.

Which input plug and outlet types are already on the unit so I know what cables to prepare?

It ships with a NEMA L5-30P input cord, six NEMA 5-15/20R outlets and one L5-30R outlet.
