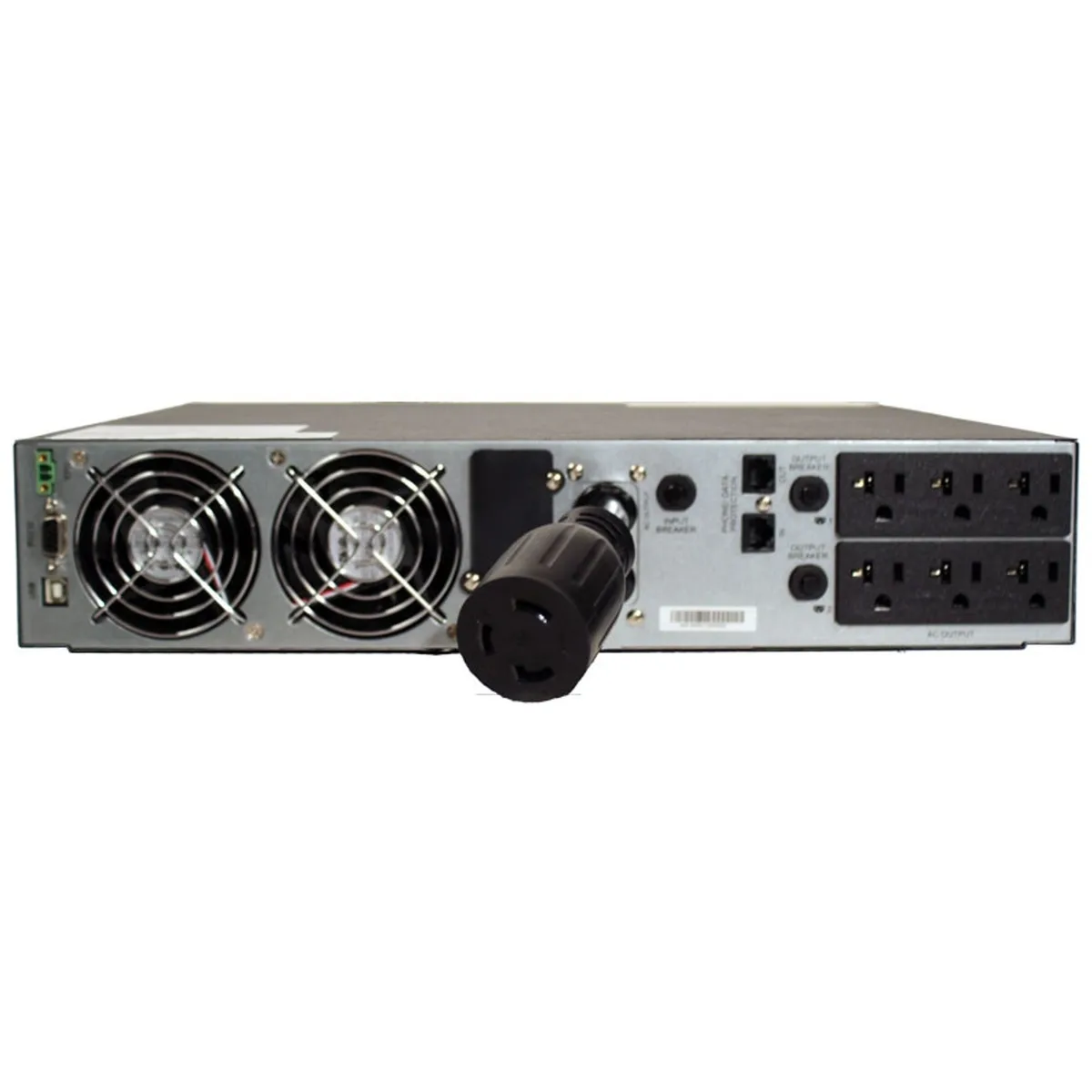

Black 2U rack tower UPS with front LCD panel and rear NEMA outlets

MINUTEMAN

MINUTEMAN ENCOMPASS EC3000RT2UNC 3000VA 2700W 2U Rack/Tower UPS

SKU CH-F0W4-AT1FR MPN EC3000RT2UNC

3000 VA rack/tower UPS delivers 2700 W with zero transfer time, six controllable NEMA 5-15/20R outlets plus one always-on L5-30R, and three minutes of battery runtime at full load

  • International Version120V
  • Input Voltage Range0-160VAC
  • Input Frequency50/60Hz +/-6Hz Auto-sensing
  • Input ConnectionNEMA L5-30P
  • VA Rating3000VA
  • Watts2700W

Model EC3000RT2UNC

Prikaži još 7 konfiguracija

Precrtane verzije postoje, ali nisu dostupne ovdje.

  • Zero transfer time protects voltage-sensitive equipment
  • 2700 W capacity backs valuable electronics during outages
  • Six controllable NEMA 5-15/20R outlets plus one always-on L5-30R
  • User-selectable 110 VAC, 120 VAC or 127 VAC output
  • DB-9, USB and RJ-45 ports enable remote monitoring

3000VA 2U Rack/Tower UPS

The Minuteman Encompass EC3000RT2UNC is a 3000VA, 2700W online double-conversion UPS in a 2U rack/tower chassis. It delivers 120VAC output with user-selectable 110VAC or 127VAC settings and zero transfer time to battery. Six controllable NEMA 5-15/20R outlets and one always-on L5-30R receptacle support critical servers, network gear, and voltage-sensitive equipment.

Replaces standby or line-interactive units

This unit upgrades installations that previously used standby or line-interactive UPS models lacking zero transfer time. The jump is worth it when connected loads cannot tolerate any break during power transitions or require precise frequency regulation of +/-0.2Hz. It accepts a wide 0-160VAC input range and auto-senses 50/60Hz, reducing unnecessary battery drain in unstable environments.

Sustained load behavior

At full 2700W load the sealed lead-acid battery provides 3 minutes of runtime; at half load it extends to 10 minutes. Full recharge to 90% capacity takes 8 hours after total discharge. The 254-joule surge rating handles transient spikes, while DB-9, USB, and RJ-45 ports enable continuous monitoring during extended outages. Operating temperature spans 0 to 40°C with 10-90% non-condensing humidity.

Istaknuto

  • Zero transfer time protects voltage-sensitive equipment
  • 2700 W capacity backs valuable electronics during outages
  • Six controllable NEMA 5-15/20R outlets plus one always-on L5-30R
  • User-selectable 110 VAC, 120 VAC or 127 VAC output
  • DB-9, USB and RJ-45 ports enable remote monitoring

Specifikacije

BrandMINUTEMAN
SeriesENCOMPASS
ModelEC3000RT2UNC
International Version120V
Input Voltage Range0-160VAC
Input Frequency50/60Hz +/-6Hz Auto-sensing
Input ConnectionNEMA L5-30P
VA Rating3000VA
Watts2700W
Output Voltage120VAC, User selectable: 110VAC, 127VAC
Output Frequency50/60Hz +/- 0.2Hz unless synchronized to line
Outlets7
Outlet Type[6] NEMA 5-15/20R (controllable) & [1] L5-30R (always on)
Battery TypeSealed Lead Acid
Battery Run TimeHalf Load: 10 min
Full Load: 3 min
Battery Recharge Time8 hours to 90% from total discharge
Battery ReplaceableBM0071
Interface PortDB-9, USB, RJ-45
ApprovalscTUVus (Conforms to UL1778 5th Edition & CSA 22.2 no. 107.3-14 / R: 2014), FCC Class A, CE certified, RoHS2 (EU Directive 2011/65/EU)
Surge Energy Rating254 Joules
TemperatureOperating (max)/Storage Temperature: +32 to +104°F (0 to 40°C) / +14 to +122°F (-10 to +50°C)
Humidity10% to 90% non-condensing
Dimensions23.7" x 18.9" x 3.5"
Weight61.1 lbs.
Težina pošiljke30.39 kg
Dimenzije pakiranja785 × 589 × 229 mm

Druge verzije ovog modela

još 5 u istoj seriji

Ista obitelj, različita memorija, hladnjak ili frekvencija — usporedite prije kupnje.

Pitanja o ovom artiklu

Will the 3.5-inch high 2U chassis fit in my 23.7-inch deep rack?

The unit measures 23.7 inches deep by 18.9 inches wide by 3.5 inches high and weighs 61.1 lbs, so verify your rack depth and weight capacity before mounting.

Which cables and network connections are required to start monitoring over USB and RJ-45?

Connect the NEMA L5-30P input to a 30 A branch circuit, attach loads to the six controllable NEMA 5-15/20R outlets or the always-on L5-30R outlet, then plug the USB or DB-9 cable into your management host and the RJ-45 into your network for remote monitoring.

When should I order the BM0071 replacement battery kit?

The sealed lead-acid batteries deliver 3 minutes at full 2700 W load or 10 minutes at half load and recharge to 90 percent in 8 hours; plan to swap in a BM0071 kit when runtime drops below your required window.
