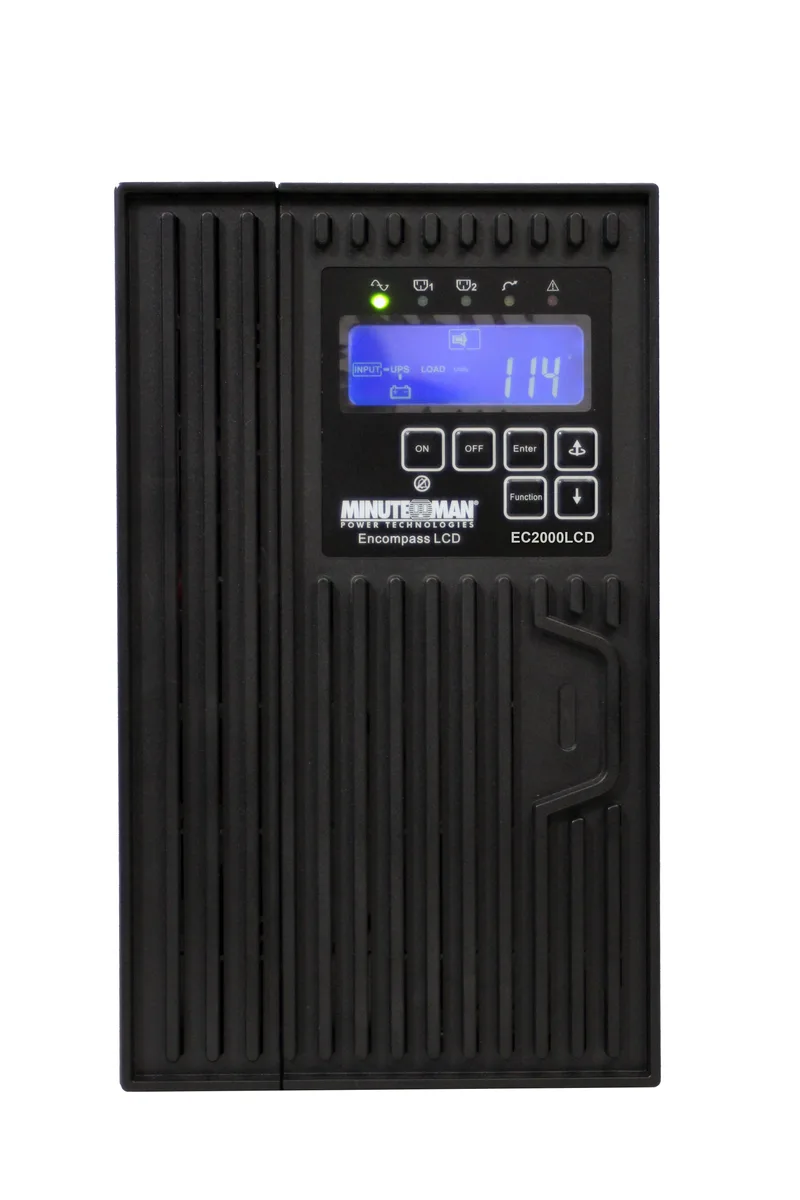

Tower UPS with LCD screen, eight outlets, black finish

MINUTEMAN

MINUTEMAN EC2000LCD 2000VA 1800W On-line Tower UPS 8 Outlets

SKU CH-S0GA-78V55 MPN EC2000LCD

Double-conversion on-line UPS delivers 2000 VA and 1800 W with eight controllable NEMA outlets and hot-swappable battery

  • International Version120V
  • Input Voltage Range0-160VAC
  • Input Frequency50/60Hz +/- 6Hz Auto-sensing
  • Input ConnectionNEMA 5-20P
  • VA Rating2000VA
  • Watts1800W

Model EC2000LCD

Prikaži još 7 konfiguracija

Precrtane verzije postoje, ali nisu dostupne ovdje.

  • True on-line double-conversion technology delivers zero transfer time
  • LCD display shows real-time power status at a glance
  • 9 output power factor provides more usable wattage per VA
  • Two independently controllable outlet banks enable selective load management
  • Hot-swappable battery replacement keeps protection active during maintenance

True On-Line UPS for Critical Equipment

The MINUTEMAN EC2000LCD is a 2000VA 1800W double-conversion tower UPS designed for data centres, voice and data communications, security systems and light industrial applications. It accepts a 0-160VAC input range at 50/60Hz and provides pure sinewave output at 120V with a 0.9 power factor. Eight controllable NEMA 5-15/20R outlets are arranged in two banks for managed load shedding.

Thermals, Noise and Power Draw

The unit operates from 0 to 40°C and stores from -10 to 50°C. Economy Mode improves efficiency for normal use while maintaining voltage regulation. Sealed lead-acid batteries recharge to 90% in 8 hours and are hot-swappable via the BM0077 module. Independent Battery Bypass delivers surge protection and voltage regulation even with depleted or absent batteries. Surge energy rating is 254 Joules.

Sustained Load Behaviour

At full 1800W load the battery provides 3 minutes of runtime; at half load it extends to 10 minutes. Extended runtime capability is supported for longer backup requirements. Transfer time is 0 ns, ensuring uninterrupted power during outages. Output frequency holds at 50/60Hz ±0.2Hz unless synchronised to the line. The unit carries cULus, FCC Class A, CE and RoHS2 approvals.

Istaknuto

  • True on-line double-conversion technology delivers zero transfer time
  • LCD display shows real-time power status at a glance
  • 9 output power factor provides more usable wattage per VA
  • Two independently controllable outlet banks enable selective load management
  • Hot-swappable battery replacement keeps protection active during maintenance

Specifikacije

BrandMINUTEMAN
SeriesENCOMPASS
ModelEC2000LCD
International Version120V
Input Voltage Range0-160VAC
Input Frequency50/60Hz +/- 6Hz Auto-sensing
Input ConnectionNEMA 5-20P
VA Rating2000VA
Watts1800W
Output Voltage120V
Output Frequency50/60Hz +/-0.2Hz unless synchronized to line
Outlets8

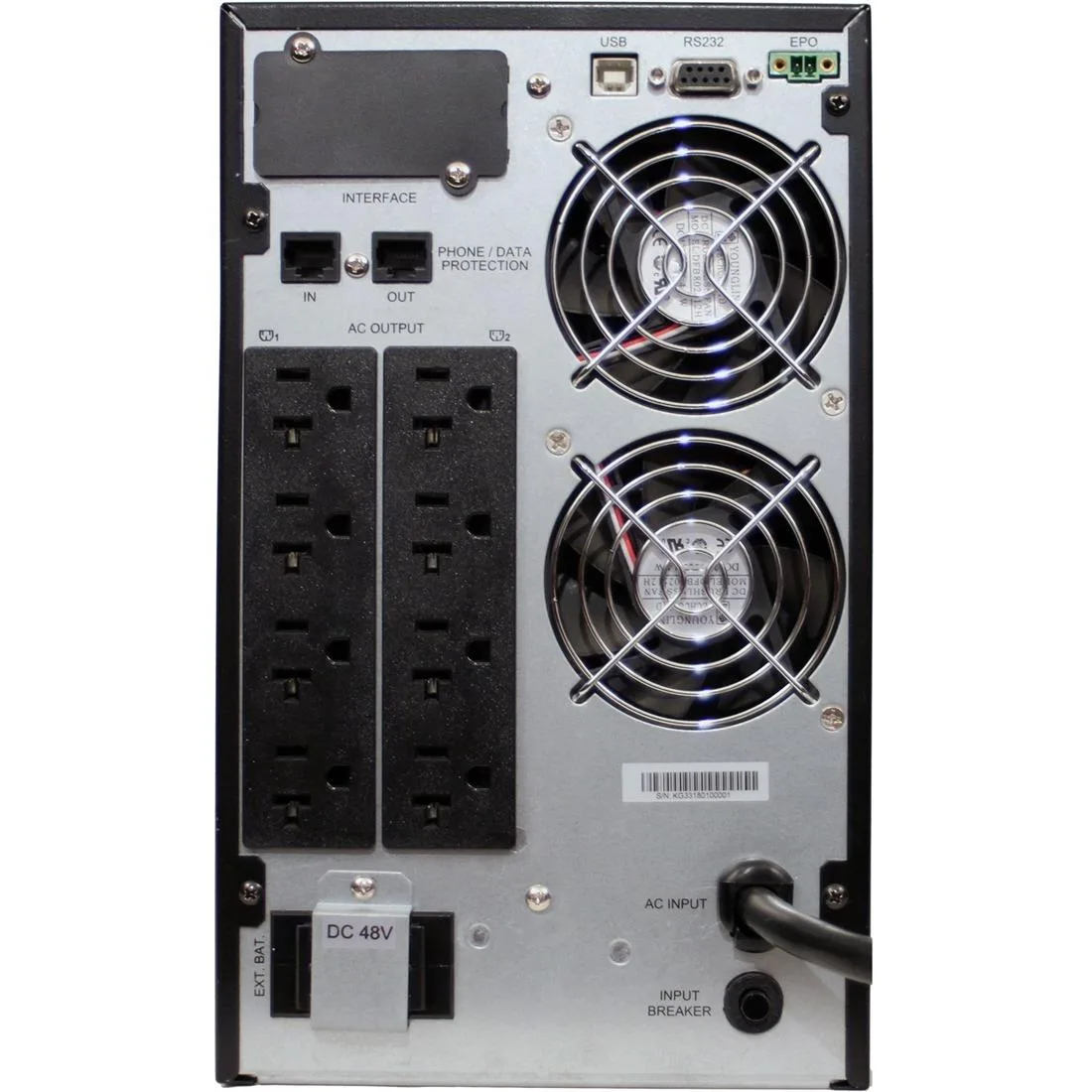

Outlet Type(8) NEMA 5-15/20R (controllable)
Battery TypeSealed Lead Acid
Battery Run TimeHalf Load: 10 min
Full Load: 3 min
Battery Recharge Time8 hours to 90% from total discharge
Battery ReplaceableBM0077
ApprovalscULus (UL1778 5th Edition & CSA 22.2 no. 107.3-14 / R: 2014), FCC Class A, CE certified, RoHS2 (EU Directive 2011/65/EU & 2015/863/EU)
Surge Energy Rating254 Joules
TemperatureOperating Temperature +32 to +104°F (0 to 40°C)
Storage Temperature +14 to +122°F (-10 to +50°C)
Humidity10% to 90% non-condensing
Dimensions17.4" x 6.8" x 11.4"
Weight48.1 lbs.
Težina pošiljke23.13 kg
Dimenzije pakiranja556 × 404 × 267 mm

Druge verzije ovog modela

još 5 u istoj seriji

Ista obitelj, različita memorija, hladnjak ili frekvencija — usporedite prije kupnje.

Pitanja o ovom artiklu

How do I connect the MINUTEMAN EC2000LCD to a wall circuit, and what step is often missed?

Plug the NEMA 5-20P input into a 20 A branch circuit; using a 15 A receptacle limits the UPS to 1800 W and may trip the breaker under full load.

Which battery pack replaces the internal cells, and how is it swapped without downtime?

Order the BM0077 kit; the hot-swappable design lets you slide out the old pack and insert the new one while the UPS stays online.

What thermal limit stops the unit from running continuously at 1800 W in a warm room?

Operating temperature tops out at 104 °F (40 °C); above that the UPS will derate or shut down to protect components.
