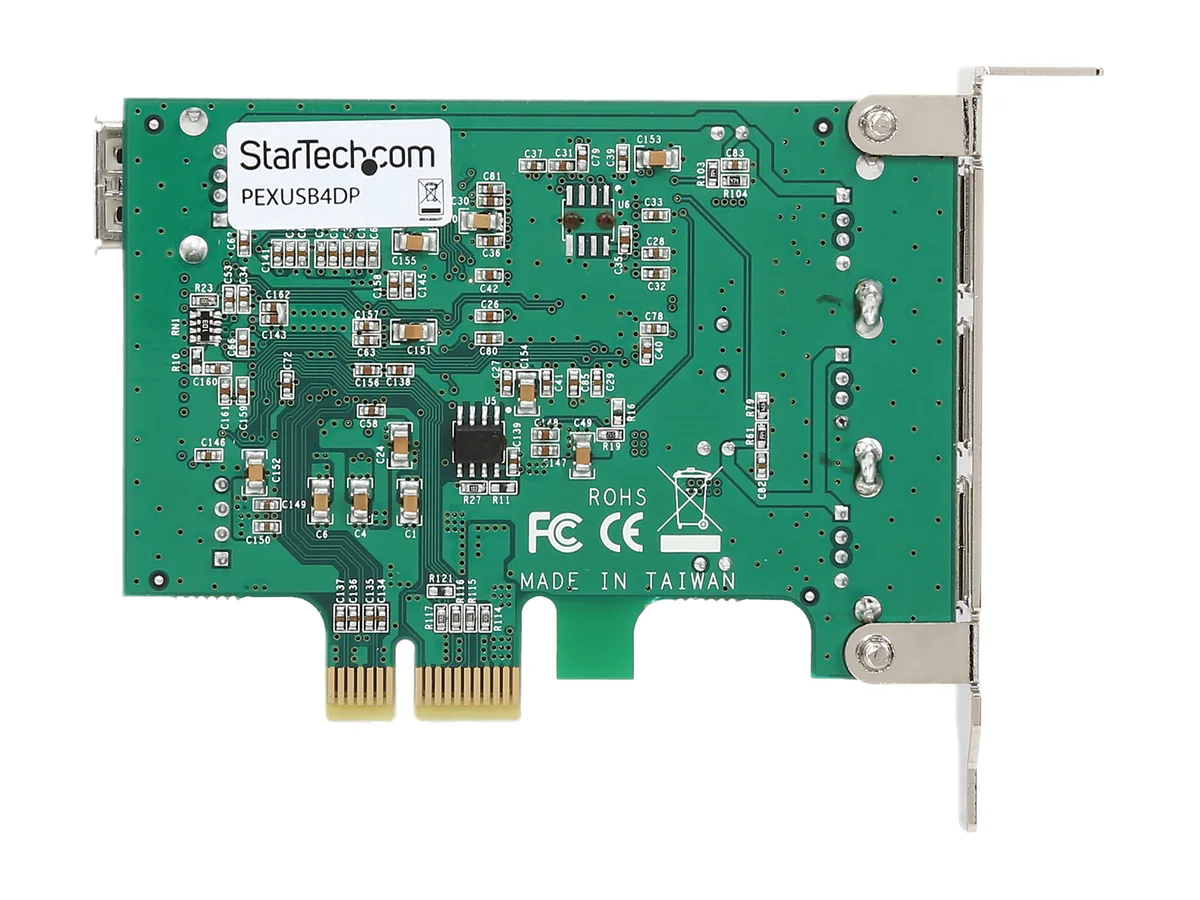

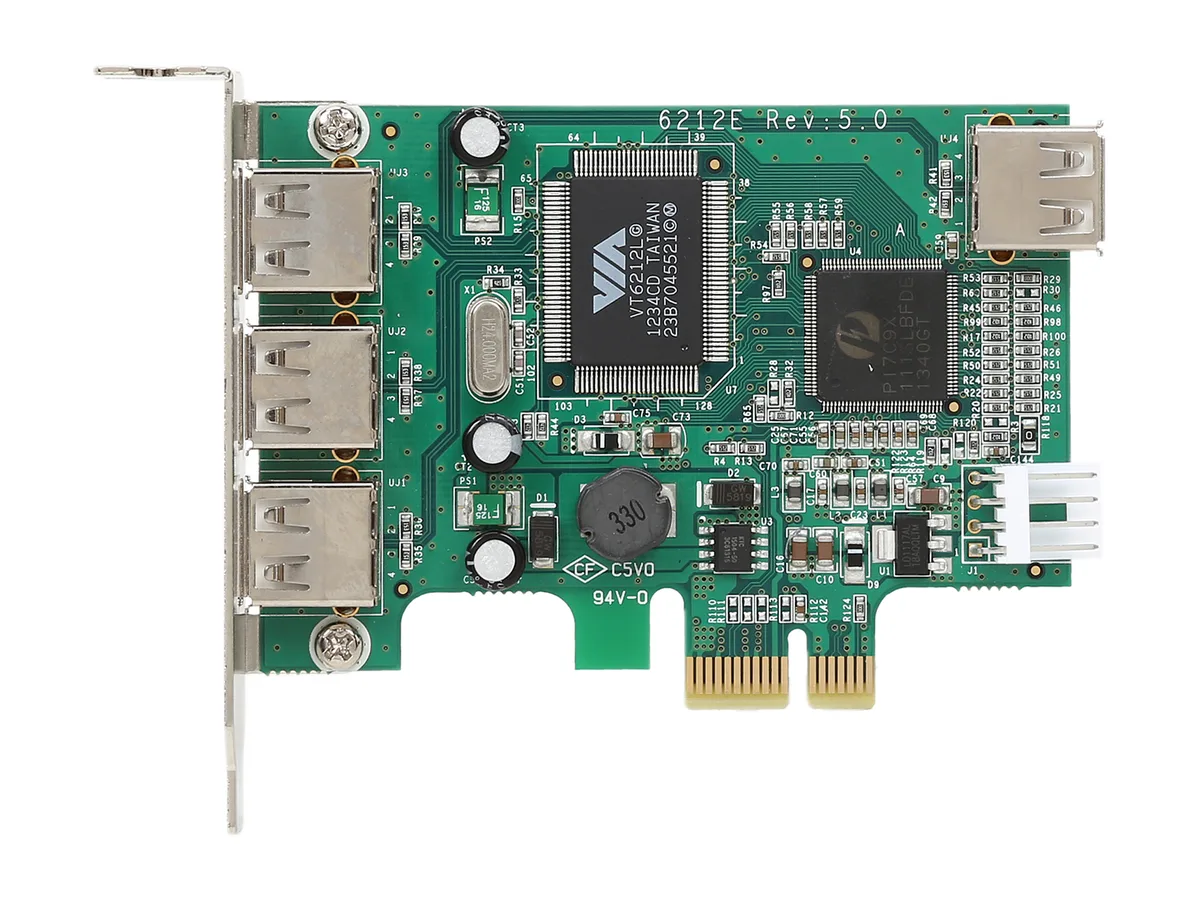

Green circuit board with four USB-A ports on a metal bracket

STARTECH

STARTECH PEXUSB4DP 4 Port PCI Express Low Profile USB 2.0 Expansion Card

SKU CH-5FGV-N9S0V MPN PEXUSB4DP

Adds four USB 2.0 ports — three external and one internal — to a low-profile desktop through a PCIe x1 slot, delivering 480 Mbps data rates and 500 mA power per port

  • TypePCI to USB Card
  • External USB Ports3 x USB A Female
  • Internal USB Ports1 x USB A Female
  • StandardUSB 2.0
  • Data Transfer Rate480/12/1.5 Mbps
  • Operating Systems SupportedWindows 2000/XP/2003/Vista/7 and Linux

Model PCI Express (PCIe) 3x External + 1x Internal

  • PCI 4x External + 1x Internal
  • PCI Express (PCIe) 3x External + 1x Internal

取り消し線の付いたバージョンは存在しますが、こちらでは取り扱っていません。

  • Adds four USB 2.0 ports via a PCI Express slot
  • Fits low-profile and small-form-factor systems
  • Includes one internal USB port for front-bay devices
  • Delivers up to 500 mA per port with dedicated power input
  • Backward compatible with USB 1.1 devices

Low-profile USB 2.0 expansion card

The StarTech PEXUSB4DP adds four USB 2.0 ports to a desktop, workstation or server through a single PCI Express slot. It fits low-profile and small-form-factor chassis and supplies one internal header for front-bay devices. Each port delivers up to 500 mA from a dedicated power input. Driver support covers Windows 2000 through 7 and Linux with WHQL-certified files.

Builders adding legacy peripherals

The card suits users who need extra USB 2.0 connections for keyboards, mice, printers or older external drives in a compact system. It does not suit builds that require the higher bandwidth of USB 3.0 or later standards. Systems without a free PCI Express slot cannot use this adapter.

Four ports on one PCI Express slot

A single x1, x2, x4, x8 or x16 slot provides three external Type-A ports and one internal Type-A header, all running at the USB 2.0 rate of 480 Mbps. The board is compliant with the PCI Express 1.1 specification and is backward compatible with USB 1.1 devices.

特長

  • Adds four USB 2.0 ports via a PCI Express slot
  • Fits low-profile and small-form-factor systems
  • Includes one internal USB port for front-bay devices
  • Delivers up to 500 mA per port with dedicated power input
  • Backward compatible with USB 1.1 devices

仕様

BrandStarTech.com
ModelPEXUSB4DP
TypePCI to USB Card
External USB Ports3 x USB A Female
Internal USB Ports1 x USB A Female
StandardUSB 2.0
Data Transfer Rate480/12/1.5 Mbps
Operating Systems SupportedWindows 2000/XP/2003/Vista/7 and Linux
FeaturesBackward compatible with USB version 1.1
Compatible with PCI Express x1, x2, x4, x8, and x16 Slots
Compliant with PCI Express 1.1 specs
Drivers are WHQL certified
Easy plug and play installation
Fully compatible with USB OHCI specifications
Maximum transfer rate of 480Mbps

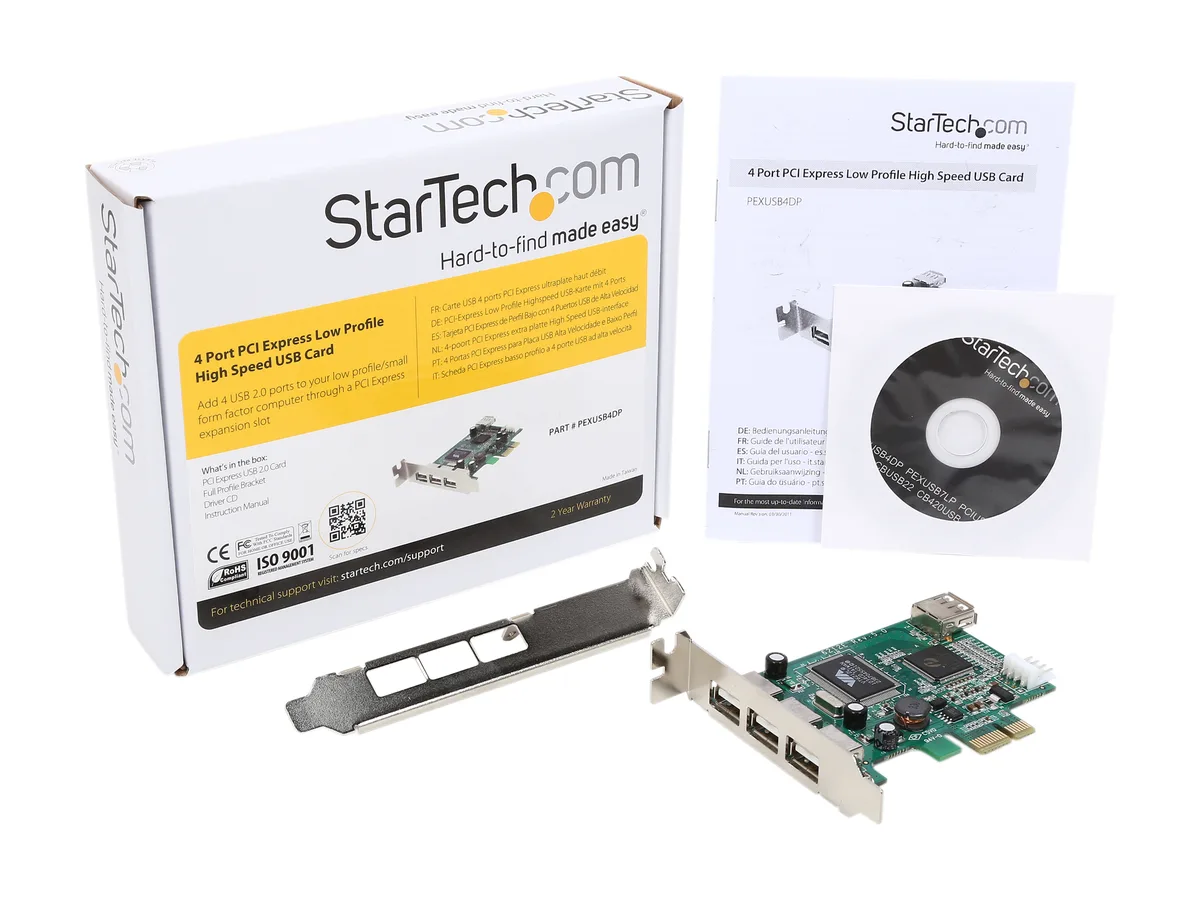

Package includes drivers, installation guide, and a full profile bracket
Provides up to 500mA of power per USB port
USB 2.0 Compliant
Weight0.2
配送重量0.14 kg
梱包サイズ170 × 140 × 33 mm

このモデルの他のバージョン

同シリーズにさらに 1点

同じファミリーで、メモリ・クーラー・クロックが異なります — 購入前に比較してください。

この商品に関する質問

Will the PEXUSB4DP work in a PCIe x16 slot I already have?

Yes, it is compatible with PCI Express x1, x2, x4, x8, and x16 slots, so it fits the x16 slot you are keeping.

How can I verify the card is running at USB 2.0 speed after installation?

Check Device Manager; the controller should list as a High-Speed USB host and connected devices should show a 480 Mbps transfer rate.

Does the box include a low-profile bracket for my small form factor case?

The card is a low-profile model; the bracket is attached, and a full-height bracket is also supplied for standard cases.
