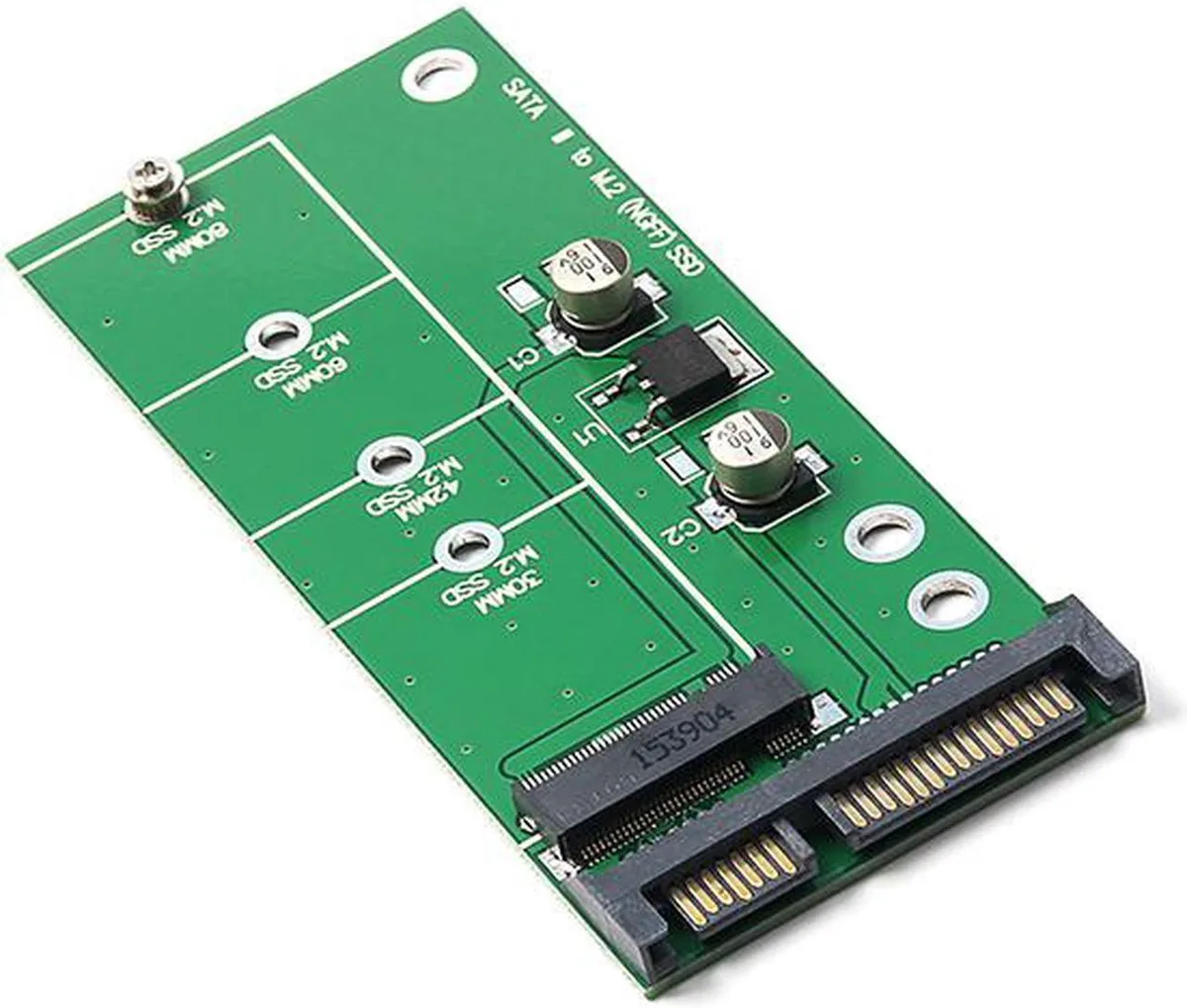

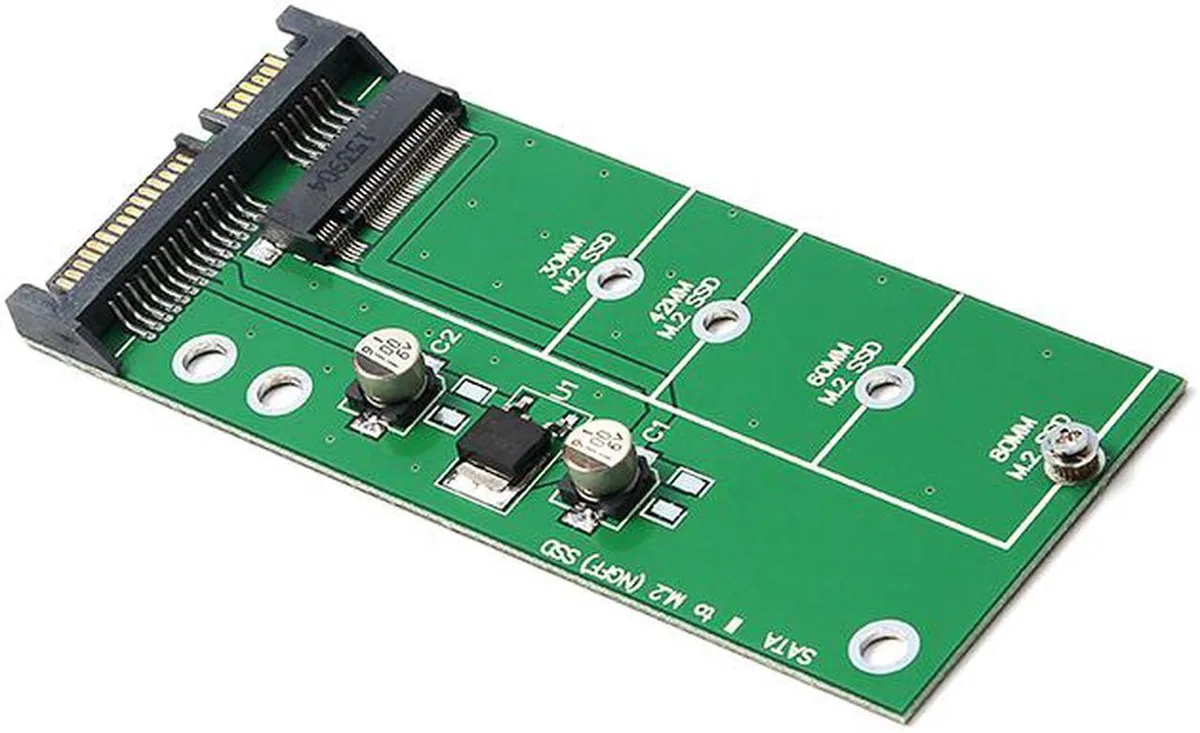

Green circuit board adapter with M.2 slot and 2.5 inch SATA connectors

Vszerda

Vszerda M.2 NGFF B-Key & B+M-Key SATA SSD to 2.5" SATA Adapter

SKU CH-23MX-5ZK22

Converts SATA-based M.2 NGFF B-key or B+M-key SSDs (2230, 2242, 2260, 2280) to a 2.5" SATA 6.0 Gbps interface

  • Convert M.2 SATA SSD to 2.5" SATA 6Gbps
  • Supports B-key and B+M-key M.2 SATA SSDs
  • Compatible with 2230 2242 2260 2280 form factors
  • Works with SATA I II III 1.5 3.0 6.0 Gbps
  • Does not support M-key NVMe PCIe SSDs

SATA M.2 NGFF to 2.5" adapter for B-key SSDs

This adapter converts a SATA-based M.2 NGFF SSD with B-key or B+M-key edge connectors into a standard 2.5-inch SATA drive. It accepts full-length modules in 2230, 2242, 2260 and 2280 sizes. The card connects to a host SATA port running at 1.5, 3.0 or 6.0 Gbps. It is designed for systems with a 2.5-inch drive bay and a SATA interface.

Passive conversion with no added software

The bundle contains only the adapter board; no drivers, firmware utilities or mounting screws are included. The card simply reroutes the SATA signal pins from the M.2 slot to the 2.5-inch connector. Performance and power characteristics remain those of the installed SSD. No configuration is required beyond physical installation.

Verify your SSD uses the SATA protocol

This adapter will not work with PCIe-based M-key or M+B-key NVME SSDs such as the Samsung 950, 960 or 961 series. Confirm that your M.2 drive is labelled as SATA and has a B-key or B+M-key notch before ordering. Also ensure your motherboard or laptop provides a standard 2.5-inch SATA power and data connection.

特長

  • Convert M.2 SATA SSD to 2.5" SATA 6Gbps
  • Supports B-key and B+M-key M.2 SATA SSDs
  • Compatible with 2230 2242 2260 2280 form factors
  • Works with SATA I II III 1.5 3.0 6.0 Gbps
  • Does not support M-key NVMe PCIe SSDs

仕様

この商品の仕様はまだ公開されていません。

この商品に関する質問

Will the 2.5" SATA connector on this adapter wear out and need replacement after repeated SSD swaps?

The adapter uses a standard 2.5" SATA connector rated for normal insertion cycles; no scheduled replacement is required unless physical damage occurs.

What speed ceiling appears first when a SATA M.2 SSD runs continuously through this adapter?

The SATA III 6.0 Gbps interface is the limiting factor; sustained throughput cannot exceed the SATA bus regardless of the SSD's own capability.

Does the adapter add noticeable heat or power draw when the SSD runs all day?

The passive PCB adds negligible power consumption and no active cooling; heat output matches the installed SATA M.2 SSD alone.
