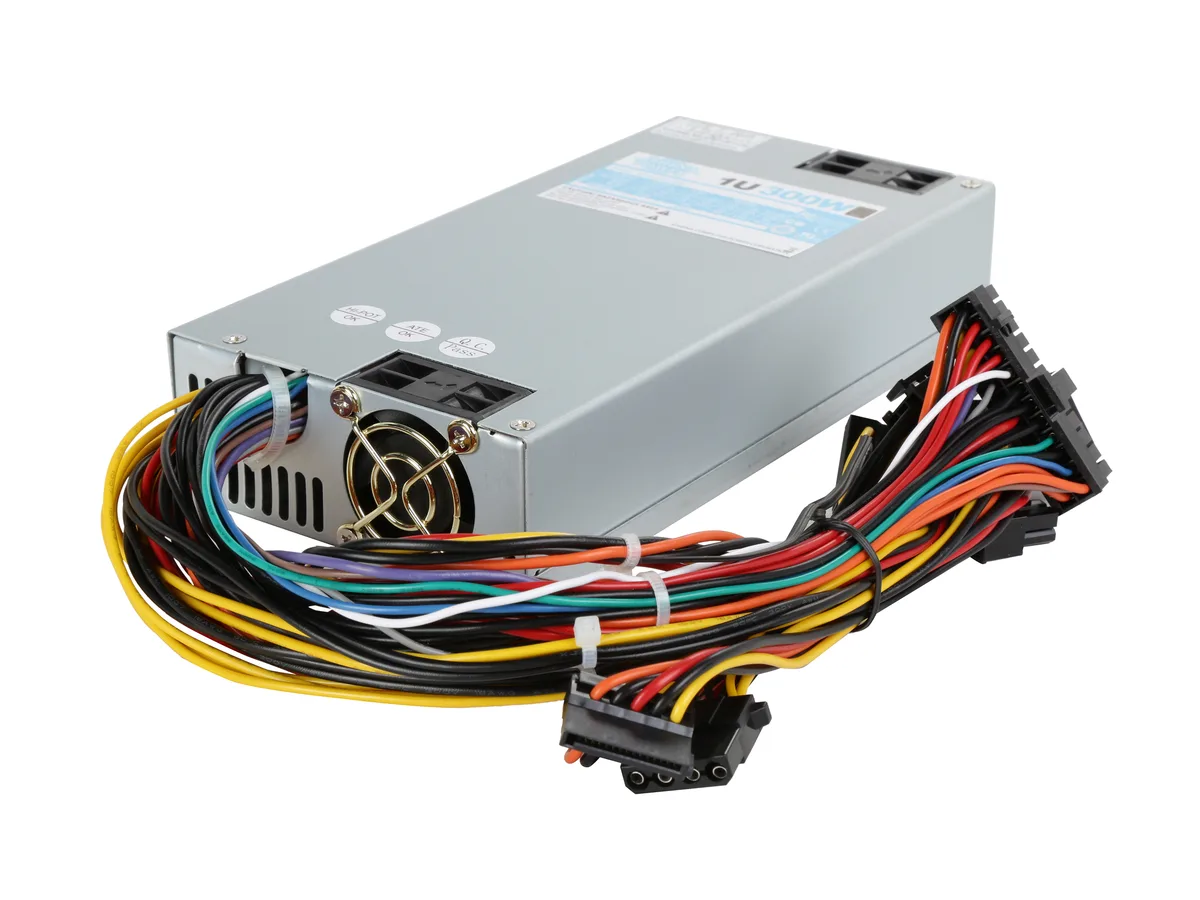

Silver metal 1U server power supply with dual 40mm fans and 20+4 pin connector

Athena Power

Athena Power AP-U1ATX30A 300W 1U server power supply

SKU CH-X2PQ-XSF8D MPN AP-U1ATX30A

A 300W single 1U server power supply with dual fans, active PFC and a 20+4 pin main connector for compact rackmount chassis

  • Single/RedundantSingle
  • Maximum Power300W
  • Main Connector20+4Pin
  • Output Current+3.3@10A, +5V@10A, +12V@6A (Min) 15A (Max), -12V@-0A (Min) 0
  • Input Voltage88 - 264 V
  • Input Frequency Range47 - 63 Hz
  • 300W output powers dense 1U server builds
  • Active PFC meets EN61000-3-2 for clean mains draw
  • Dual 40mm ball-bearing fans with thermal speed control
  • 100000-hour MTBF at full load and 25°C
  • 20+4 pin main connector plus two SATA power plugs

Compact 1U server power supply

The Athena Power AP-U1ATX30A is a 300W single-unit PSU built for 1U rackmount chassis. It fits space-constrained industrial servers that need standard ATX power delivery in a shallow 1.55-inch height. The unit includes a 20+4-pin main connector, one 4-pin CPU connector, three Molex, two SATA and one floppy connector. It is not suited for builds that require PCIe power cables or redundant hot-swap capability.

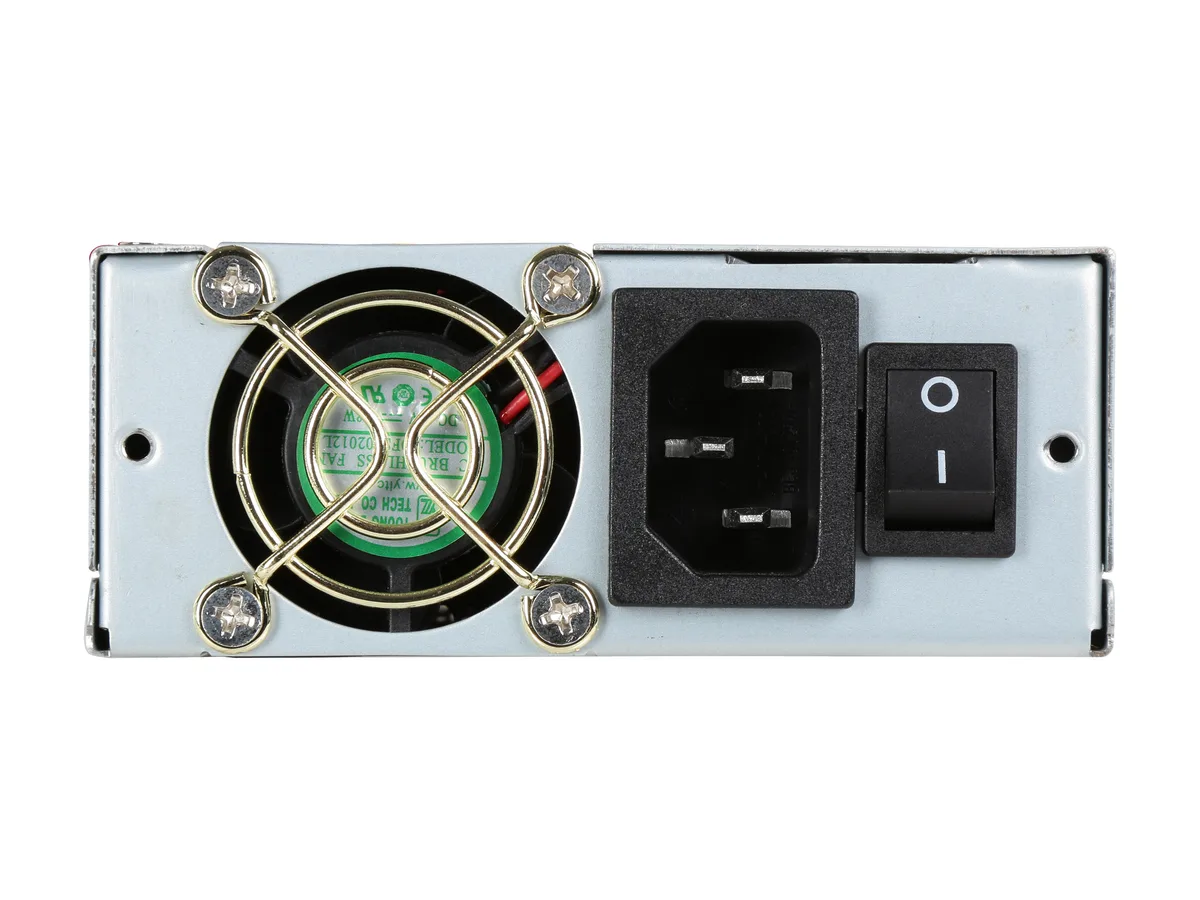

Dual 40mm fans with auto speed control

Two ball-bearing fans spin under a smart thermal controller that adjusts speed to load and temperature. At full 300W output and 25°C ambient the design targets 100,000 hours MTBF. Input accepts 88–264 V at 47–63 Hz with active PFC meeting EN61000-3-2. Hold-up time is at least 17 ms at nominal voltage. Protections cover over-voltage, short-circuit and overload conditions.

Replaces older 1U units lacking active PFC

The jump is worthwhile when a legacy supply cannot deliver stable +12V current up to 15A or lacks SATA power for current drives. It also upgrades systems that need the 20+4-pin ATX v2.2 header instead of a 20-pin-only design. Builds requiring 6-pin, 8-pin or 6+2-pin PCIe cables must look elsewhere.

주요 특징

  • 300W output powers dense 1U server builds
  • Active PFC meets EN61000-3-2 for clean mains draw
  • Dual 40mm ball-bearing fans with thermal speed control
  • 100000-hour MTBF at full load and 25°C
  • 20+4 pin main connector plus two SATA power plugs

사양

BrandAthena Power
ModelAP-U1ATX30A
Single/RedundantSingle
Maximum Power300W
Main Connector20+4Pin

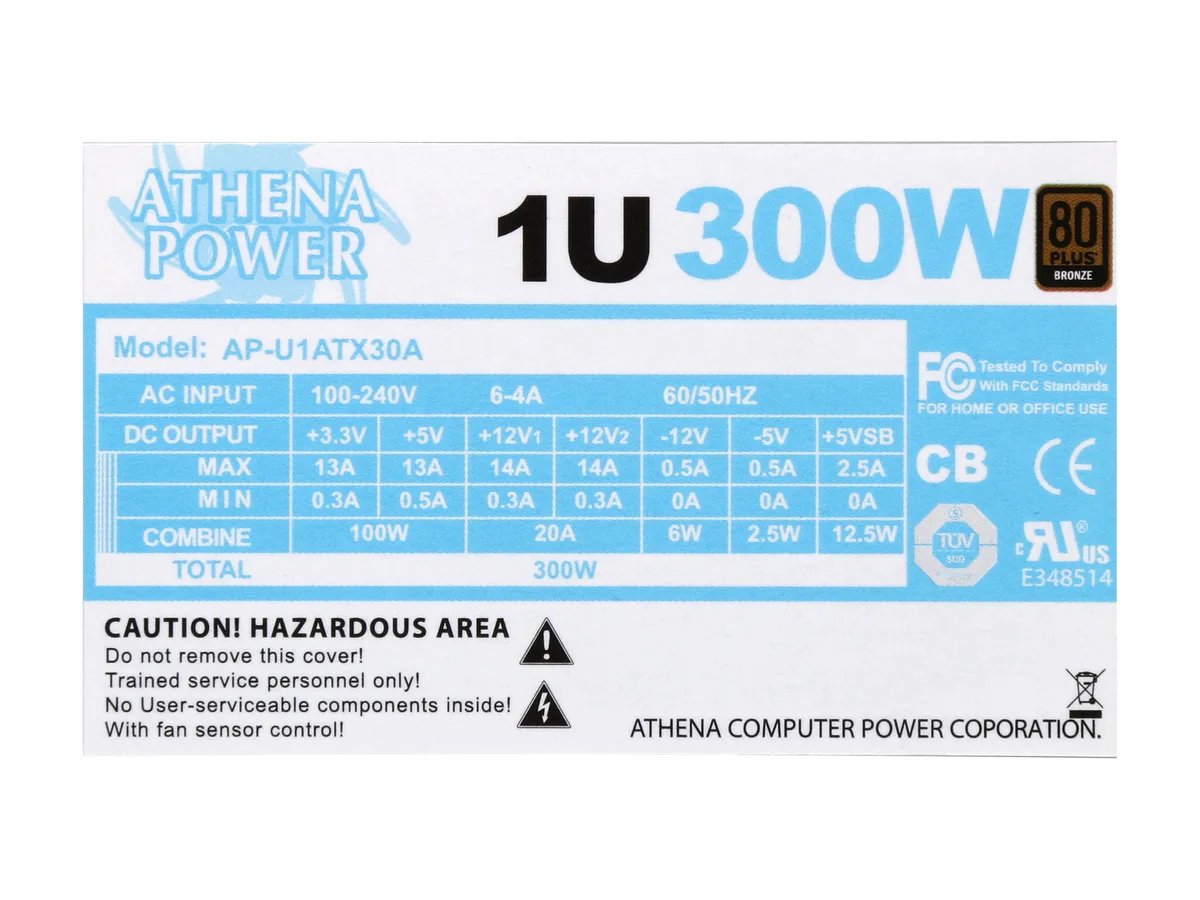

Output Current+3.3@10A, +5V@10A, +12V@6A (Min) 15A (Max), -12V@-0A (Min) 0.3A (Max), [email protected]
Input Voltage88 - 264 V
Input Frequency Range47 - 63 Hz
Fans2
MTBF100,000 Hours on Full Load at +25 degree C
Hold-up Time17ms Minimum at Nominal Input Voltage
ProtectionOver voltage, short circuit and overload protection.
FeaturesActive PFC (Power Factor Correction) meets EN61000-3-2
Smart Auto Fan Speed Controller
100% Hi-pot, ATE and Burn-in Tested
Output Over Voltage, Short Circuit and Overload Protection.
Low Noise and Ripple

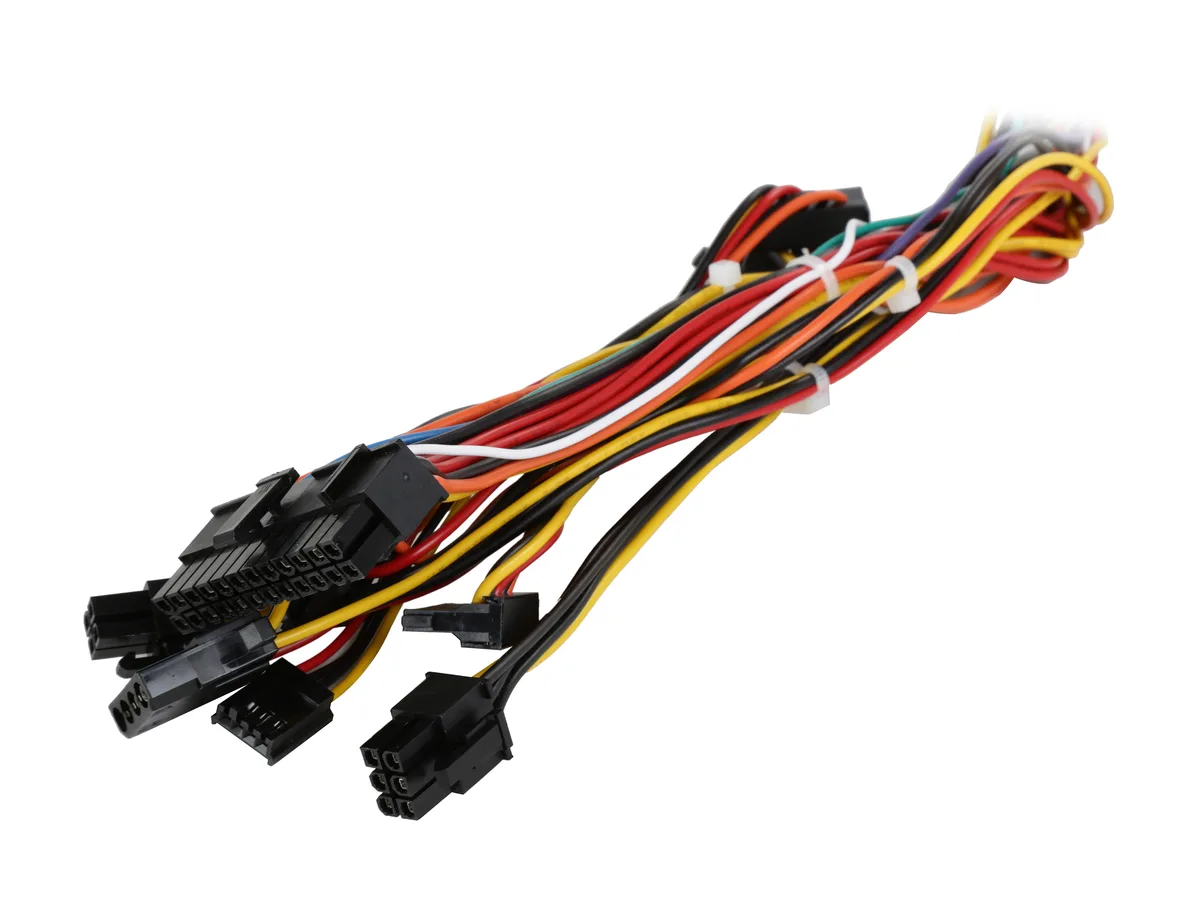

Connectors: ATX 24 (20+4) Pin x 1, P4-12V 4 Pin x 1, SATA 15 Pin x 2, Molex 4 Pin x 2, Floppy 4 Pin x 1
Dimensions1.55" x 3.94" x 7.87"
Weight3.00 lbs.
Humidity5~90% on Operating; 5~95% on Storage
Temperature0 degree C - +50 degree C on Full Load

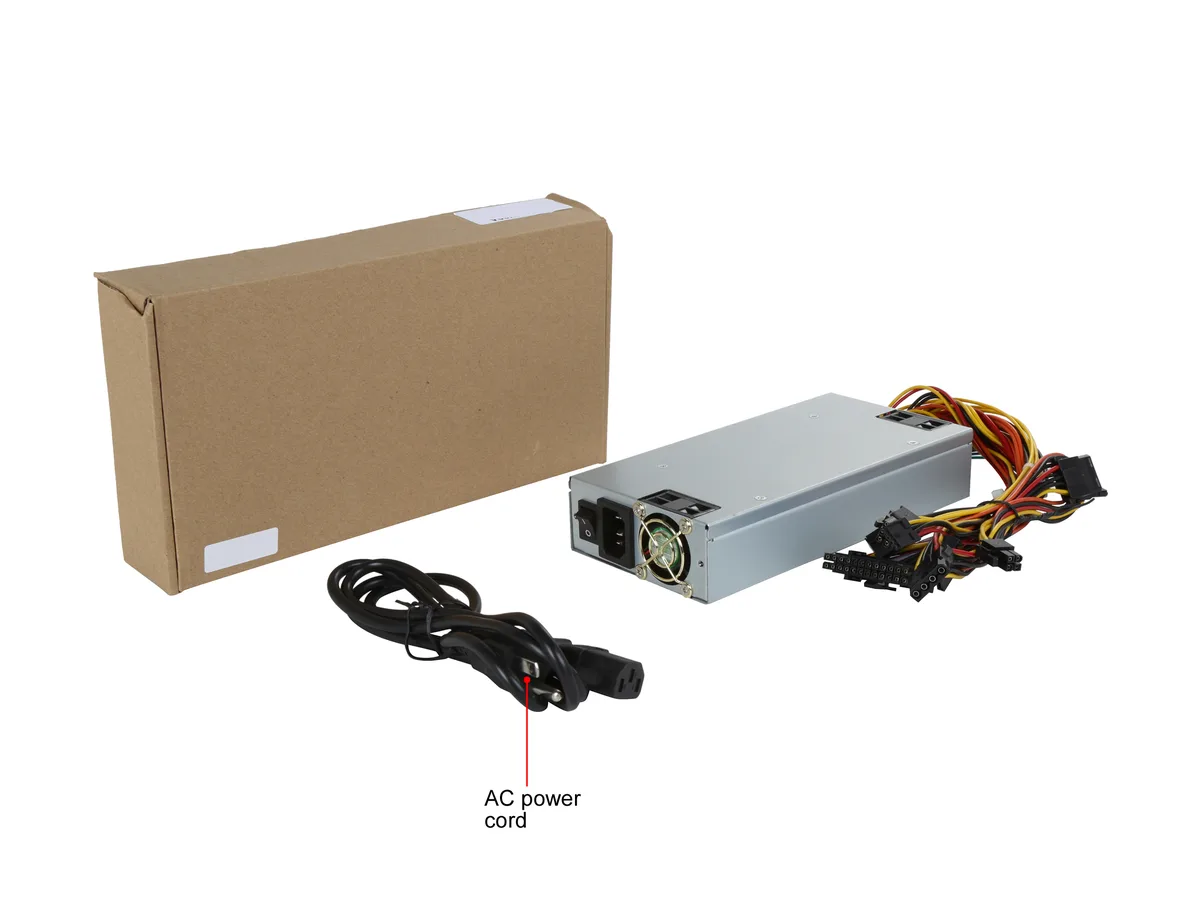

Package Contents1 x AP-U1ATX30A
1 x Power Cord
배송 무게1.14 kg
포장 크기284 × 152 × 53 mm

이 상품에 대한 질문

How do I install this 1U server power supply and which step is often missed?

Slide the unit into the 1U chassis bay, secure it with the mounting screws, connect the 20+4Pin main connector, the 4-pin CPU connector, two SATA connectors and three Molex connectors, then plug the IEC power cord; the step often missed is attaching the 4-pin CPU power cable.

What maintenance or replacement will this unit need later?

The dual 40mm ball-bearing fans are the only moving parts; after long-term operation they may require cleaning or replacement, while the electrolytic capacitors inside will eventually age and the whole unit should be replaced once it reaches the 100,000-hour MTBF rating.

What limit appears first when this supply runs at full 300W load continuously?

The +12V rail is rated for a maximum of 15A, so sustained loads drawing more than 15A on the 12V line will trigger overload protection before the overall 300W or thermal limits are reached.
