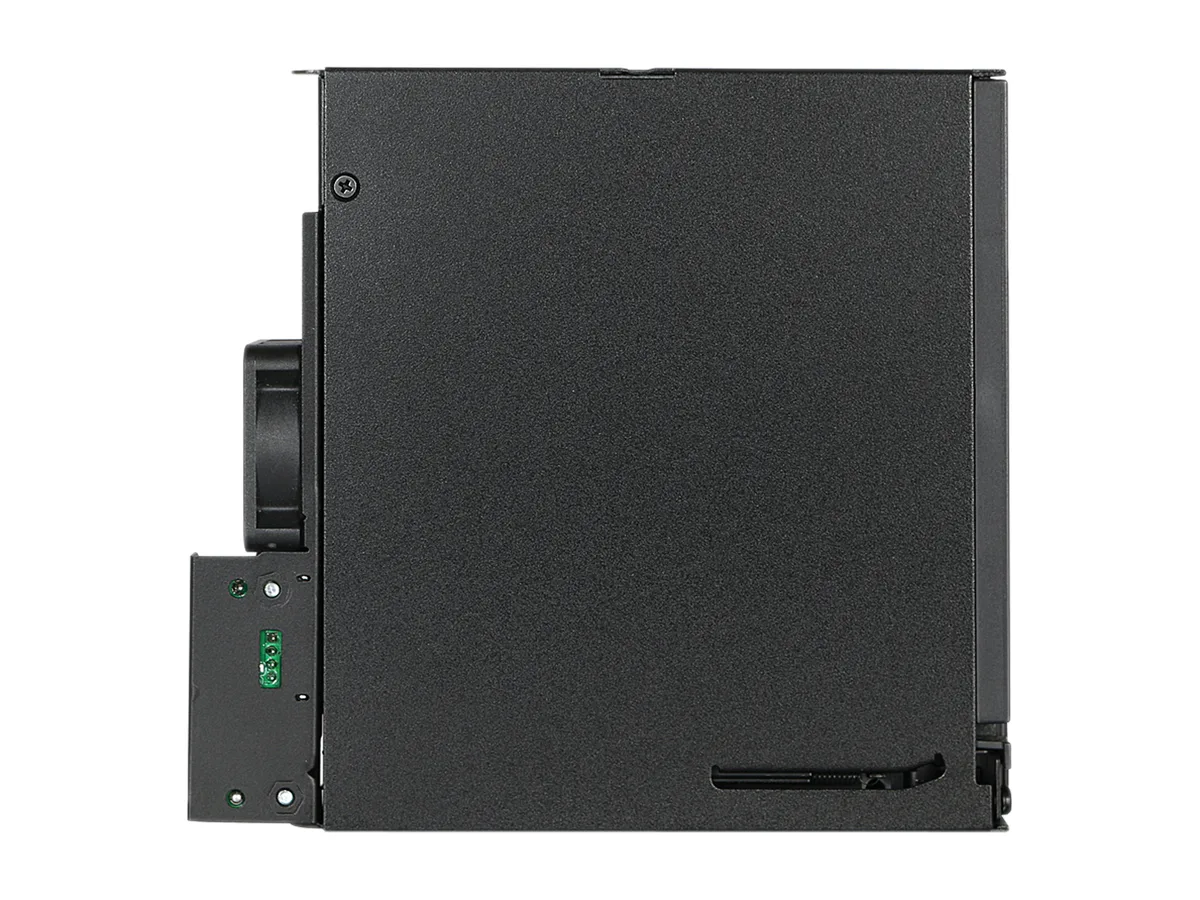

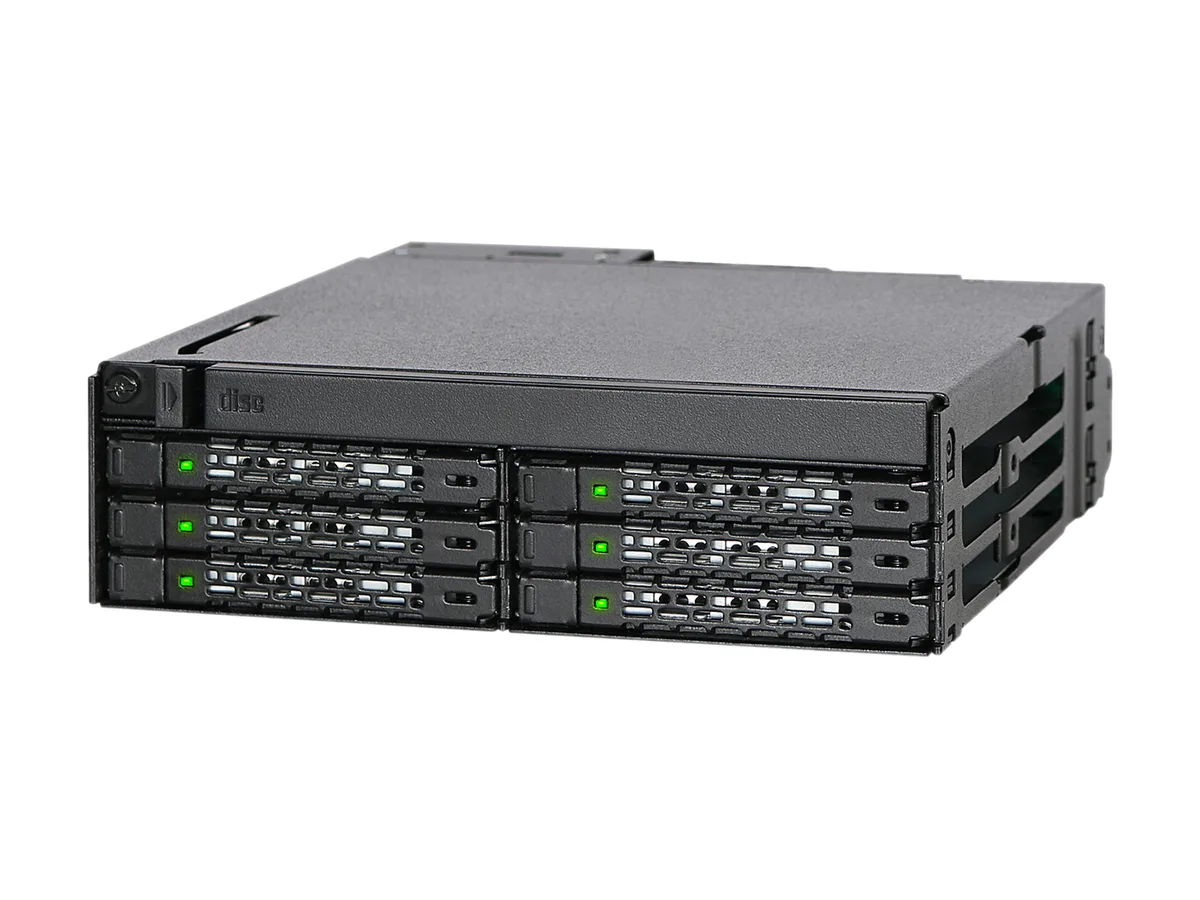

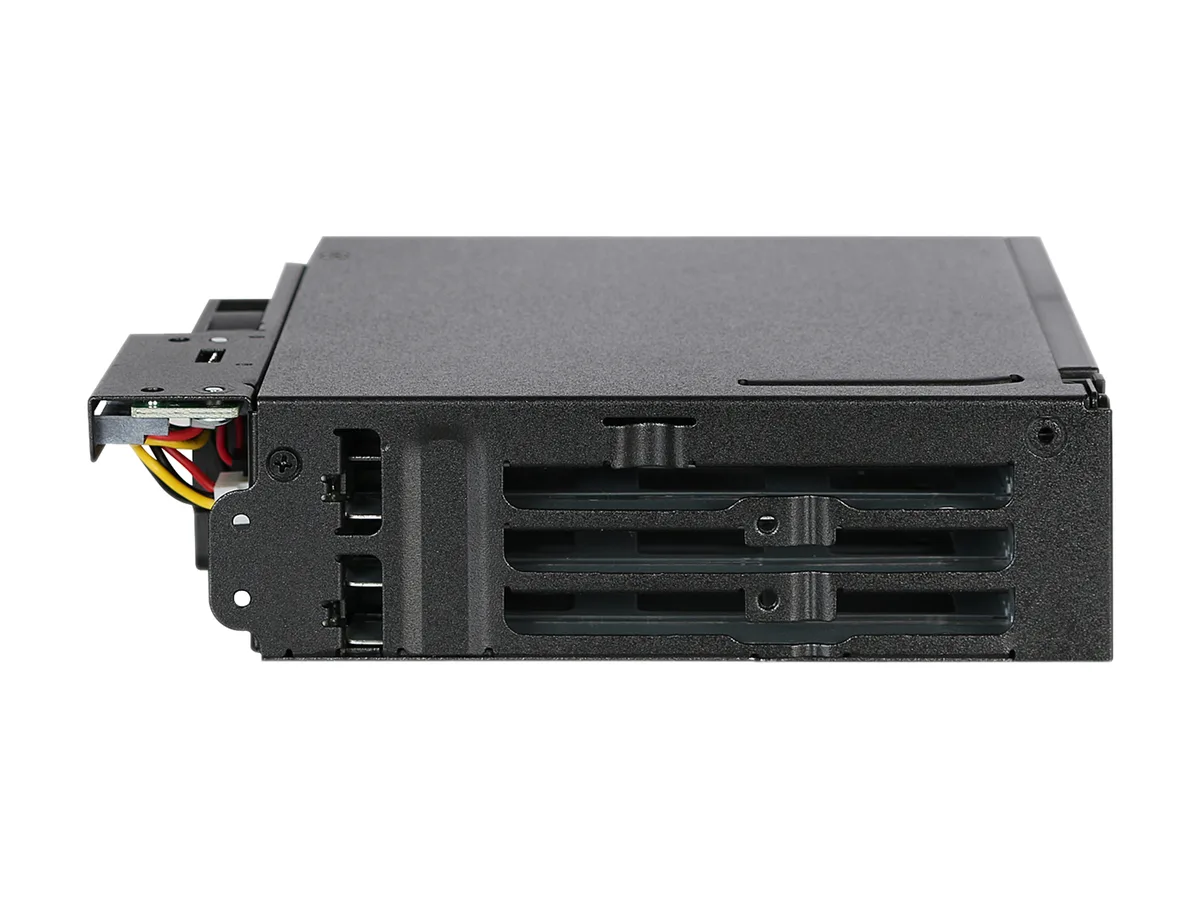

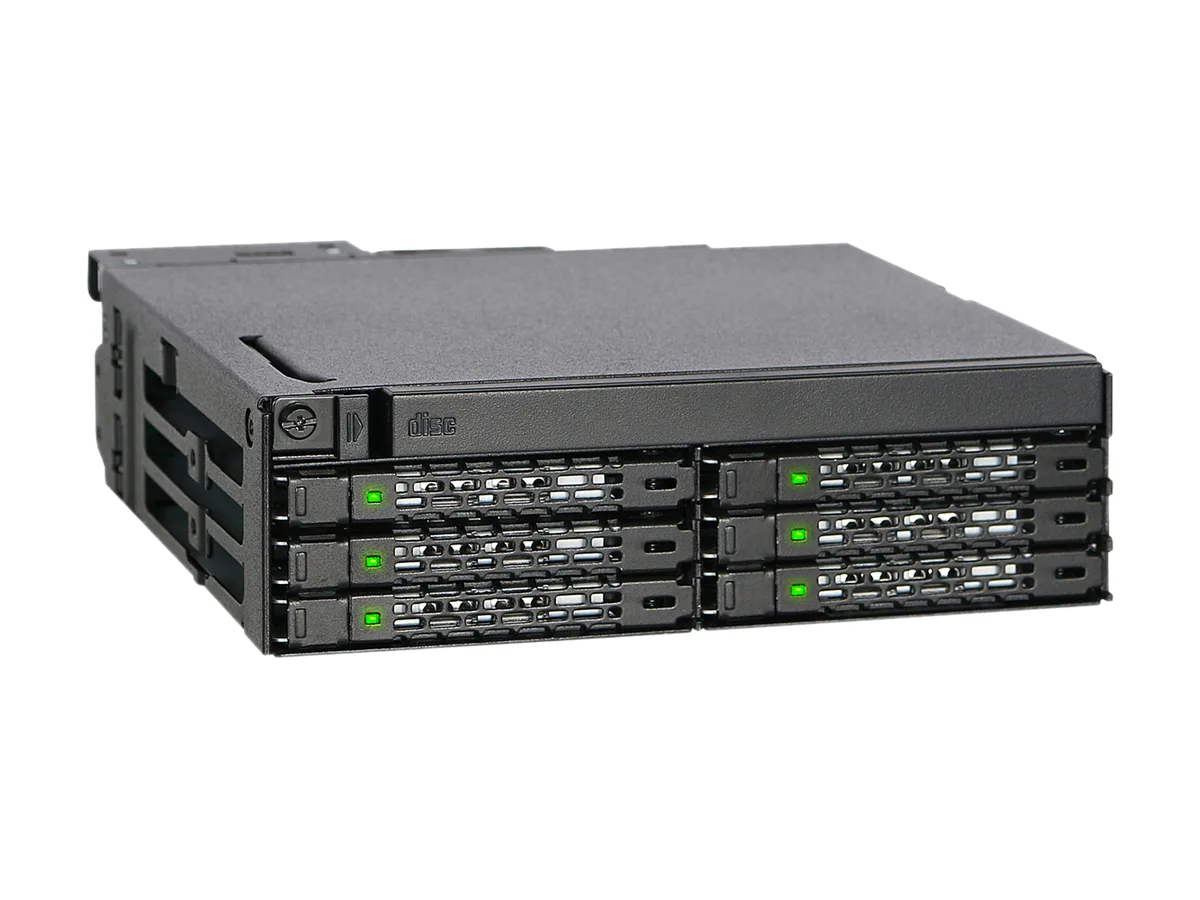

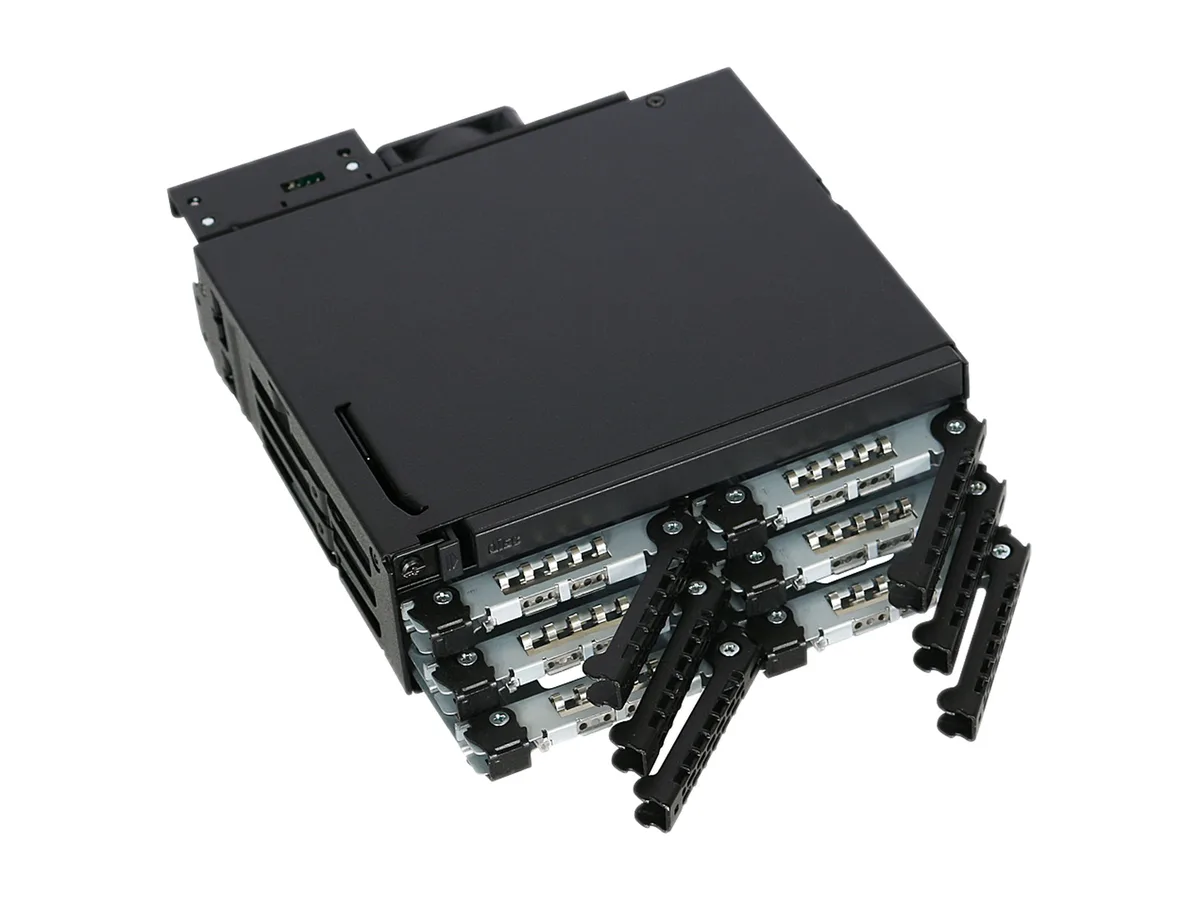

Black metal cage holding six 2.5 inch drive trays and one ultra slim optical bay

ICY DOCK

ICY DOCK MB606SPO-B 6×2.5" SAS/SATA + Ultra Slim ODD 5.25" Bay

SKU CH-RHD6-RCJ3W MPN MB606SPO-B

Holds six 2.5" SAS/SATA drives and one ultra-slim optical drive in a single 5.25" bay with a 40 mm cooling fan

  • ColorBlack
  • Mobile Rack Drives Support6 x 2.5" SAS/SATA SSD/HDD & Ultra Slim ODD Backplane Cage fo
  • Mobile Rack InterfaceSATA / SAS (SAS host required / single channel)
  • Protection CaseMultiple Drives
  • Compatible Products2.5"
  • SpecificationsSupport Drive Size: 6 x 2.5" SSD / HDD & 1 x Ultra Slim ODD
  • Hot-swap six 2.5" SAS/SATA drives plus an ultra-slim optical drive in one 5.25" bay
  • Rugged full-metal construction rated for military, medical and industrial environments
  • User-configurable 40 mm fan and ventilation holes keep drives at optimal temperatures
  • Anti-vibration removable trays protect drives in harsh or mobile applications
  • Individual status LEDs give instant drive-health visibility at a glance

High-density 5.25-inch bay solution

The ToughArmor MB606SPO-B fits a single external 5.25-inch bay and provides six 2.5-inch SAS/SATA hot-swap bays plus one ultra-slim optical drive slot. It targets builders who need maximum drive density in industrial, military, medical or mobile systems where space is at a premium.

Replaces multiple loose drive cages

This unit consolidates six separate 2.5-inch drive mounts and a slim optical bay into one rugged metal enclosure. The upgrade is worth it when vibration resistance, hot-swap convenience and a unified 40mm cooling fan matter more than using internal 3.5-inch bays or external USB enclosures.

Requires SAS host for SAS drives

Each drive tray connects via SATA or SAS on a single channel; a SAS host controller is needed for SAS SSDs or HDDs. The cage frees internal 3.5-inch bays for other uses and supplies individual status LEDs, while the removable trays with anti-vibration pins secure drives in harsh environments.

주요 특징

  • Hot-swap six 2.5" SAS/SATA drives plus an ultra-slim optical drive in one 5.25" bay
  • Rugged full-metal construction rated for military, medical and industrial environments
  • User-configurable 40 mm fan and ventilation holes keep drives at optimal temperatures
  • Anti-vibration removable trays protect drives in harsh or mobile applications
  • Individual status LEDs give instant drive-health visibility at a glance

사양

BrandICY DOCK
ModelMB606SPO-B
ColorBlack
Mobile Rack Drives Support6 x 2.5" SAS/SATA SSD/HDD & Ultra Slim ODD Backplane Cage for External 5.25" Bay
Mobile Rack InterfaceSATA / SAS (SAS host required / single channel)
Protection CaseMultiple Drives
Compatible Products2.5"
SpecificationsSupport Drive Size: 6 x 2.5" SSD / HDD & 1 x Ultra Slim ODD
Compatible Drive Type: SATA / SAS (SAS host required / single channel)
Number of Drives: 6
Max Drive Height: 6 x 2.5" up to 7mm
1 x Ultra Slim ODD (9.5mm)
Drive Bay: 1 x external 5.25" drive bay
Host Interface: 7 x SATA 7pin
Power Input: 2 x SATA 15pin power connector
Transfer Rate: Up to 6Gbps (Depending on hard drive speed)
Support HDD Capacity: No Limitation
Drive Cooling: 1 x 40mm fan
Structure / Material: Metal
Support Hot-Swap: Yes
FeaturesRugged heavy-duty steel construction designed for industrial and commercial applications such as military and medical, servers, data centers, workstations, and portable computer systems
Perfect for applications that must meet a flammability requirement
Fits 6x SSDs or HDDs between 5mm and 7mm in height
Supports SATA III and SAS single-channel
Supports Ultra-Slim (9.5mm) Optical Disk Drive (ODD Drive)
Spring-loaded ODD bracket for fast installation and removal
Dual SATA power connectors separate ODD from HDD/SSD power for stable power delivery
40mm cooling fan with high/low/off settin
Package Contentsdevice, user manual, screws, EVA foam spacer
배송 무게0.81 kg
포장 크기168 × 157 × 58 mm

이 상품에 대한 질문

Will the MB606SPO-B fit in a standard external 5.25" bay?

Yes, it mounts in a single external 5.25" bay and occupies one expansion slot.

How do the drives connect to the backplane, and what is the common mistake?

Each 2.5" drive slides into its tray and mates directly with the SAS/SATA backplane; the step often missed is securing the tray latch fully so the connector seats properly.

Which parts may need replacement after extended use?

The user-configurable 40mm cooling fan and the removable anti-vibration drive trays are the serviceable items.
