1U silver rackmount server chassis, front drive bays and redundant power supplies

Supermicro

Supermicro SYS-110P-FDWTR 1U barebone server

SKU CH-D8KE-VWSQN MPN SYS-110P-FDWTR

1U rackmount edge server barebone accepting one LGA 4189 Xeon, eight DDR4-3200 ECC DIMMs up to 2 TB, dual 10 GbE, three PCIe 4.0 x16 slots and 600 W redundant power

  • Form Factor1U Rackmount
  • WorkloadEdge Server
  • CPU TypeIntel Xeon
  • CPU SocketLGA 4189
  • Installed CPUNo CPU Installed
  • Max Processors1
  • 1U rackmount edge server fits dense deployments
  • LGA 4189 socket supports 3rd Gen Intel Xeon
  • Eight DDR4 3200 slots scale to 2TB ECC memory
  • Three PCIe 4.0 x16 slots enable flexible expansion
  • Dual 10GbE BaseT and 600W redundant power included

1U Edge Server Barebone

The Supermicro SYS-110P-FDWTR is a 1U rackmount barebone built for edge workloads. It accepts a single Intel Xeon processor in an LGA 4189 socket and supports up to 2TB of DDR4 3200 ECC memory across eight slots. Dual 10GbE Base-T ports and a 600W redundant power supply suit telecom and multi-access edge computing deployments.

Replaces Larger Fixed-Config Servers

This chassis replaces deeper fixed-configuration servers when space and power redundancy are priorities. The jump is worth it when a deployment needs three PCIe 4.0 x16 slots — one low-profile and two full-height — for accelerators or NICs, plus an M.2 slot that accepts either NVMe or SATA drives in 2280 or 22110 lengths.

Limited By PCIe 4.0 and DDR4 Ceilings

Expansion bandwidth tops out at PCIe 4.0 x16 per slot, so newer PCIe 5.0 cards will operate at the lower generation speed. Memory capacity stops at 2TB using DDR4 3200 modules, and the platform does not support later DDR generations. Only two SATA 600 ports are provided for traditional drives.

주요 특징

  • 1U rackmount edge server fits dense deployments
  • LGA 4189 socket supports 3rd Gen Intel Xeon
  • Eight DDR4 3200 slots scale to 2TB ECC memory
  • Three PCIe 4.0 x16 slots enable flexible expansion
  • Dual 10GbE BaseT and 600W redundant power included

사양

BrandSUPERMICRO
ModelSYS-110P-FDWTR
Form Factor1U Rackmount
WorkloadEdge Server
CPU TypeIntel Xeon
CPU SocketLGA 4189
Installed CPUNo CPU Installed
Max Processors1
Memory Slots8 x 288Pin
Installed Memory SizeNo Memory Installed
Max Memory Supported2TB
Memory Type SupportedDDR4 3200
ECC SupportedYes
Serial ATA2 x SATA 600
M.21 M.2 NVMe OR 1 M.2 SATA3, M-Key, 2280/22110
PCI ExpressSlot 1: 1 PCIe PCI-E 4.0 x16LP
Slot 2: 1 PCiE PCI-E 4.0 x16 FHFL
Slot 3: 1 PCiE PCI-E 4.0 x16 FHFL
Max. LAN Speed10 Gigabit
VGA1
RJ452 x 10GbE BaseT port(s)
Max. Power600W Redundant Power

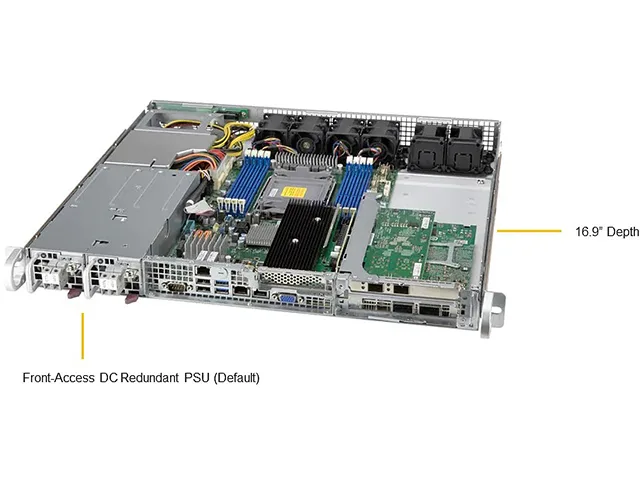

Dimensions1.70" x 17.20" x 16.90"
Weight10.00 lbs.
배송 무게6.80 kg
포장 크기686 × 610 × 203 mm

이 상품에 대한 질문

Will the 1.70" tall 1U chassis fit my standard rack and how deep is it?

The chassis measures 1.70" high, 17.20" wide and 16.90" deep, matching a 1U rackmount footprint.

What is the correct order for installing the LGA 4189 processor and DDR4 3200 memory into the eight 288-pin slots?

Install the Xeon processor into the LGA 4189 socket first, then populate the eight 288-pin DIMM slots with DDR4 3200 ECC modules.

When should I plan to replace the 600W redundant power supply modules?

Replace a power module if its status LED shows a fault or if the system logs report a power-supply failure.
