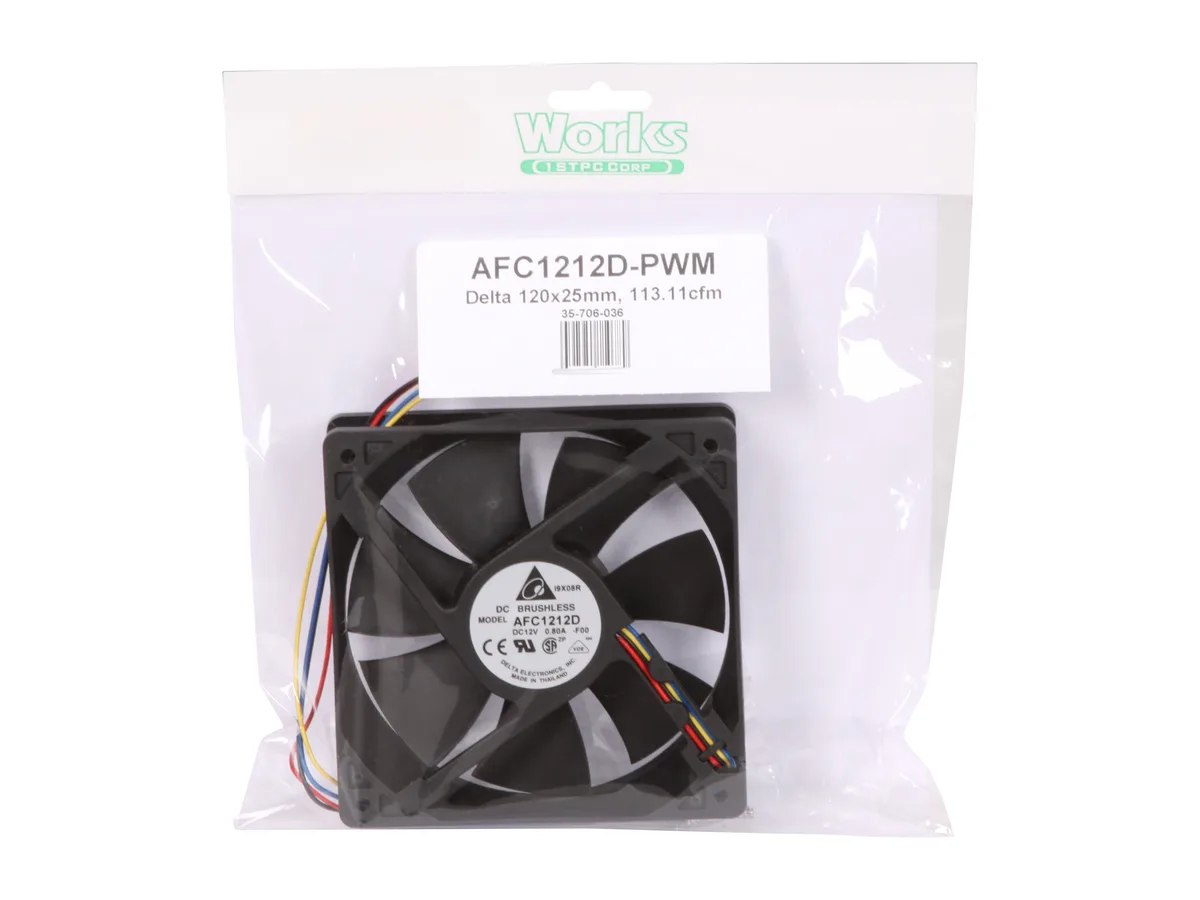

Black 120mm square case fan 25mm thick with 4-pin PWM connector

1ST PC CORP.

1ST PC CORP. AFC1212D-PWM 120mm case fan 3400 RPM 113.11 CFM

SKU CH-CR0C-JTNYQ MPN AFC1212D-PWM

A 120 mm case fan with dual-ball bearing runs at 3400 RPM and moves 113.11 CFM at 46.5 dBA

  • Fan Counts1 Fan
  • TypeCase Fan
  • CompatibilityCase
  • Fan Thickness25mm
  • Bearing TypeDual Ball
  • RPM3400 RPM
  • 3400 RPM airflow cools demanding systems fast
  • PWM control balances cooling with 46.5 dBA noise
  • Dual ball bearing withstands long-hour industrial use
  • 120 x 25 mm fits standard case mounts
  • 11 CFM at 10.92 mmH₂O pressure clears dense obstructions

120mm PWM case fan for high airflow builds

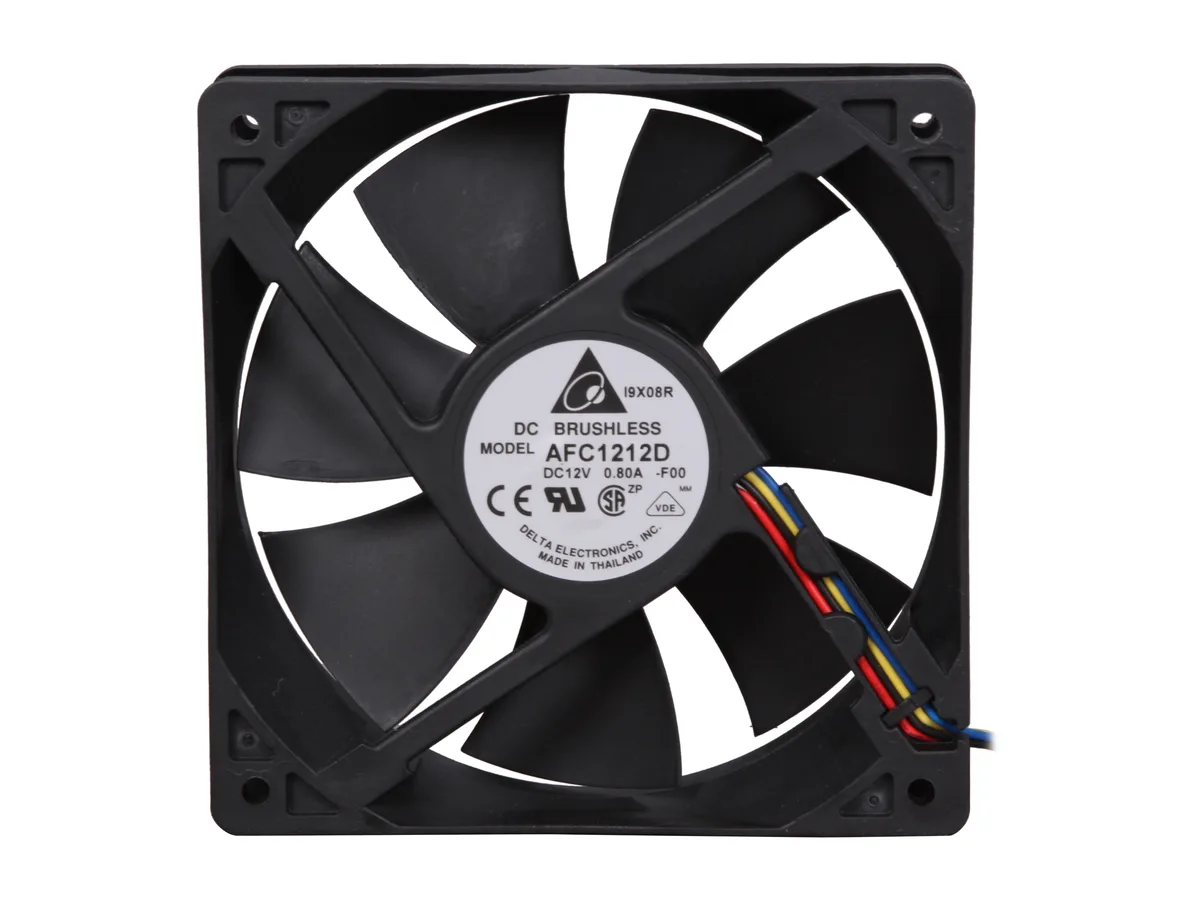

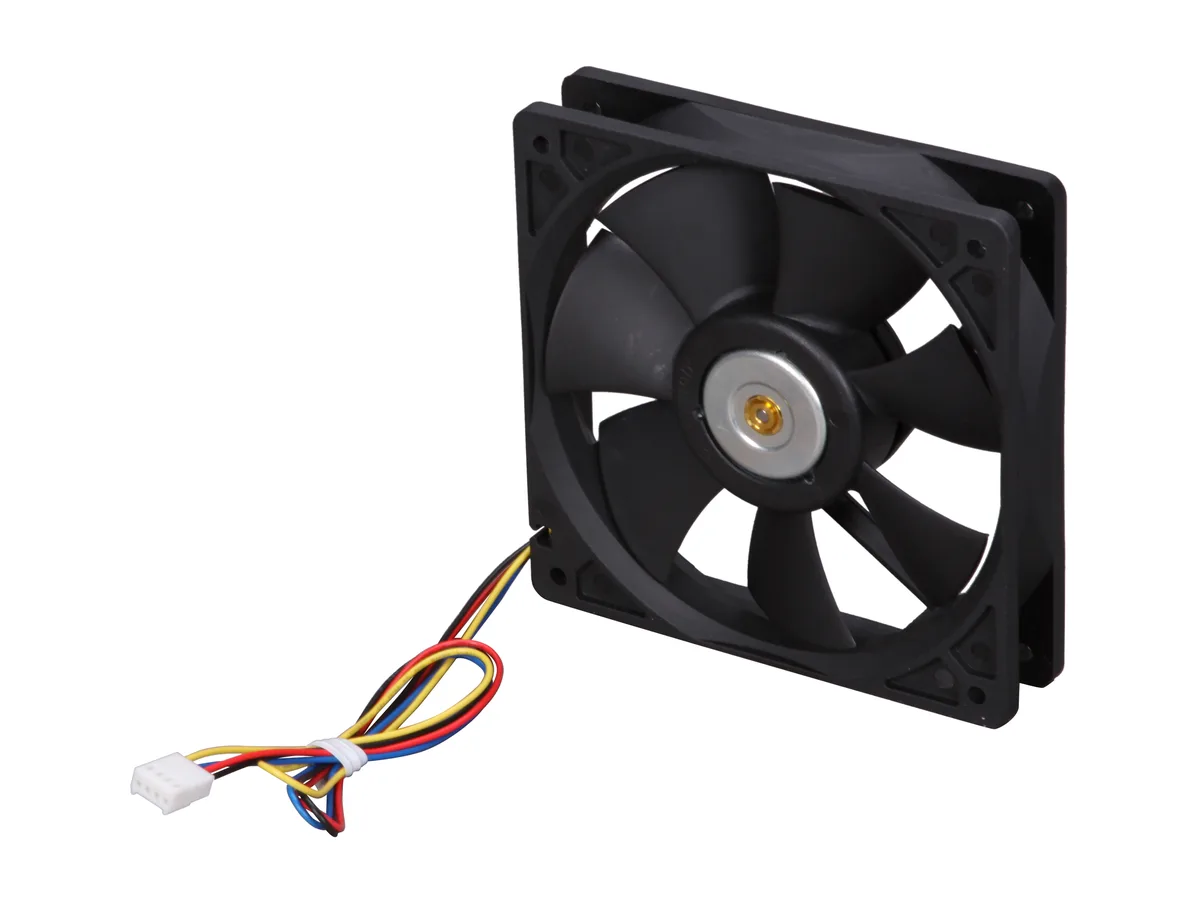

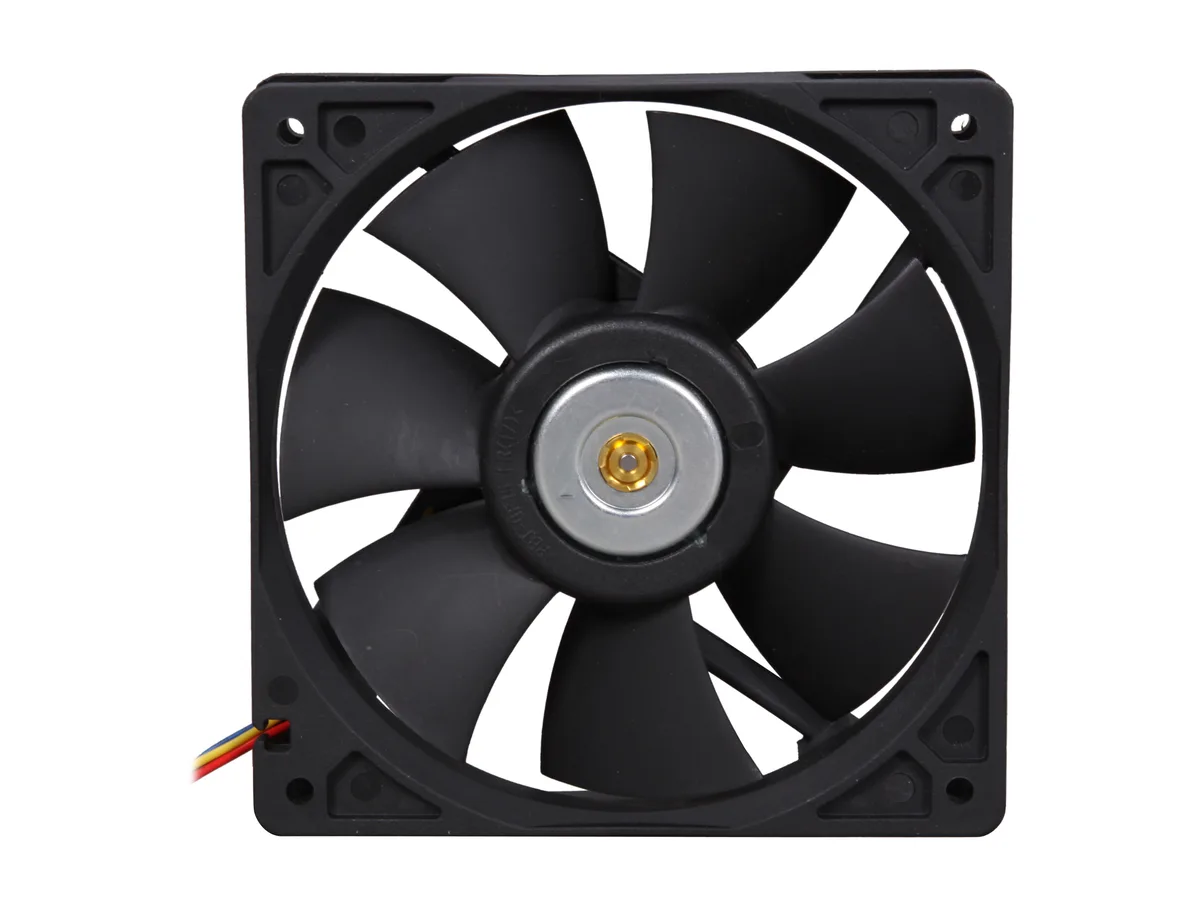

The Delta Electronics AFC1212D-PWM is a 120 x 120 x 25mm case fan that spins at 3400 RPM. It delivers 113.11 CFM of air flow through a 4-pin PWM connector. Dual ball bearings support continuous operation in demanding environments.

Airflow capacity and acoustic limit

At full speed the fan moves 113.11 CFM with a maximum static pressure of 10.92 mmH2O or 0.43 inchH2O. Noise reaches 46.5 dBA, which is audible in quiet rooms. The PWM function allows speed reduction for lower noise when thermal headroom exists. It draws 0.53 A typical and 0.8 A maximum at 12 VDC.

3400 RPM fixed maximum speed

The fan tops out at 3400 RPM and cannot exceed this speed. Builders who need higher airflow or static pressure must select a different model. The 25mm thickness fits standard 120mm mounting points. No RGB lighting or additional accessories are included.

Highlights

  • 3400 RPM airflow cools demanding systems fast
  • PWM control balances cooling with 46.5 dBA noise
  • Dual ball bearing withstands long-hour industrial use
  • 120 x 25 mm fits standard case mounts
  • 11 CFM at 10.92 mmH₂O pressure clears dense obstructions

Specifications

BrandDelta Electronics
ModelAFC1212D-PWM
Fan Counts1 Fan
TypeCase Fan
CompatibilityCase
Fan Thickness25mm
Bearing TypeDual Ball
RPM3400 RPM
Air Flow113.11 CFM
Noise Level46.5 dBA
Power Connector4-pin PWM
ColorBlack
FeaturesRated Voltage: 12 VDC
Operating Voltage Range: 10.2 - 13.8 VDC
Input Current: 0.53 Amp (0.8A maximum)
Input Power: 6.36W (7.56W maximum)
Maximum Air Pressure: 10.92 mmH2O or 0.43 inchH2O
The Delta AFC1212D-PWM is a medium-high speed fan at 120 x 120 x 25mm. It gives you a cooling capacity of 113.11 CFM, or 3.203 cubic meter per minute. Fan speed will vary based on CPU load so you can have a lower noise level when the computer is not working hard. Life expectance is 70,000 hours (or almost 16 years if you operate the fan 12 hours a day) at 40 Degree C with 15 - 65% RH, all thanks for
Dimensions120.00 x 120.00 x 25.00mm
Shipping weight0.21 kg
Package size213 × 130 × 39 mm
