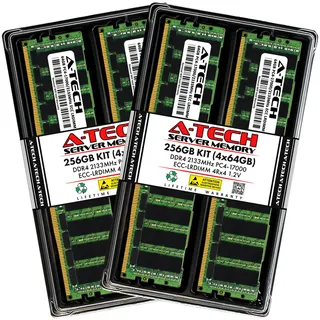

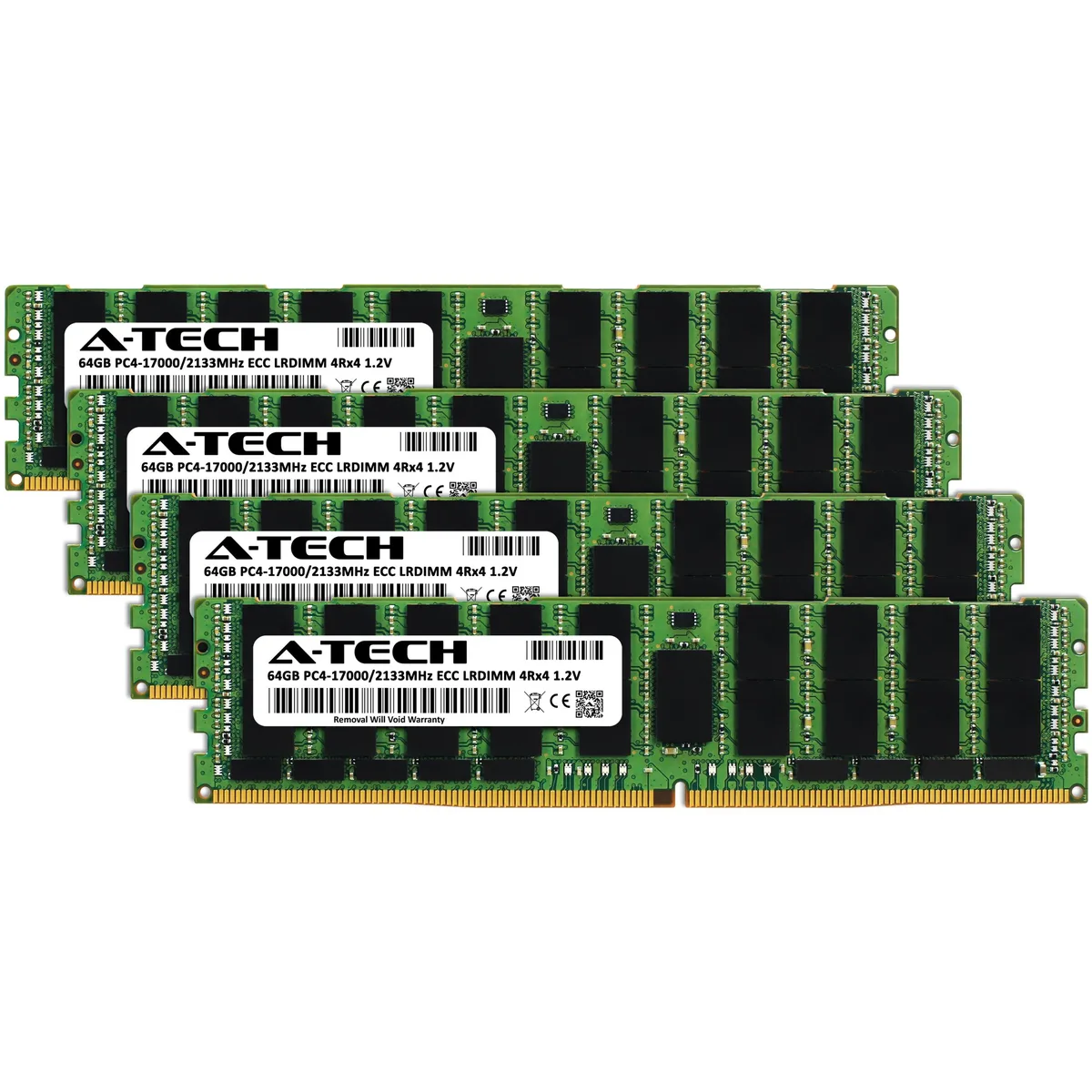

Four green DDR4 LRDIMM modules with black chips, no heat spreaders

A-Tech

A-Tech 256GB (4x64GB) DDR4-2133 ECC LRDIMM 4Rx4 memory upgrade

SKU CH-K0RZ-DG4E1

A 256GB kit of four 64GB DDR4-2133 ECC load-reduced DIMMs for Dell PowerEdge 13th Gen rack servers

  • Capacity256GB (4 x 64GB)
  • Type288-Pin DDR4 SDRAM
  • SpeedDDR4 2133 (PC4 17000)
  • CAS LatencyCL15
  • Voltage1.20V
  • ECCYes

Capacity 256GB (4 x 64GB)

Speed DDR4 2133 (PC4 17000)

  • 256 GB total capacity from four 64 GB modules
  • DDR4-2133 speed with CL15 latency for responsive server workloads
  • ECC load-reduced design protects data integrity in 13th Gen PowerEdge racks
  • 2 V operation reduces power draw across all four DIMMs
  • 288-pin quad-rank layout fits R430, R530, R630, R730, R830 and R930 systems

256GB DDR4-2133 ECC LRDIMM kit

This 256GB kit contains four 64GB DDR4-2133 ECC load-reduced DIMMs built for Dell PowerEdge 13th generation rack servers. It targets administrators upgrading R430, R530, R630, R730, R730xd, R830 or R930 platforms that require registered ECC memory. The modules operate at 1.20V with a CL15 latency rating. Desktop or laptop systems cannot use this memory type.

Capacity and headroom for virtualised workloads

Four quad-rank 64GB modules fill four slots and deliver 256GB total, letting a compatible server host larger VM counts or in-memory databases. Speed is locked to DDR4-2133 (PC4-17000), so bandwidth tops out at that rate even if faster DIMMs are present. Mixing with registered ECC DIMMs is not supported; all installed modules must share the same load-reduced ECC type. Buyers needing more than 256GB per CPU or higher memory speeds must select a different platform.

288-pin build and server mounting implications

Each module uses a standard 288-pin DDR4 DIMM form factor without a heat spreader, relying on chassis airflow for cooling. The load-reduced design reduces electrical load on the memory bus, allowing the high 4Rx4 density in Dell's 13th generation rack chassis. Installation follows the server manual's channel and population rules; incorrect seating order will prevent boot. Systems limited to unbuffered non-ECC memory cannot accept these modules.

Highlights

  • 256 GB total capacity from four 64 GB modules
  • DDR4-2133 speed with CL15 latency for responsive server workloads
  • ECC load-reduced design protects data integrity in 13th Gen PowerEdge racks
  • 2 V operation reduces power draw across all four DIMMs
  • 288-pin quad-rank layout fits R430, R530, R630, R730, R830 and R930 systems

Specifications

BrandA-Tech
Series13th Gen Dell PowerEdge Rack Server Compatible
Model256GB (4x64GB) 4Rx4 DDR4-2133 LRDIMM for Dell PowerEdge R430, R530, R630, R630 XL, R730, R730 XL, R730xd, R730xd XL, R830, R930
Part NumberNE-MS-0057
Capacity256GB (4 x 64GB)
Type288-Pin DDR4 SDRAM
SpeedDDR4 2133 (PC4 17000)
CAS LatencyCL15
Voltage1.20V
ECCYes
Buffered/RegisteredLoad Reduced
Rank4Rx4 / 4DRx4
ChipsetMajor Brand Chipset
Heat SpreaderNo
Compatible SystemDell PowerEdge R430, R530, R630, R630 XL, R730, R730 XL, R730xd, R730xd XL, R830, R930 | 13th Gen Rack Servers
OptionCompatible with Dell PowerEdge R430, R530, R630, R630 XL, R730, R730 XL, R730xd, R730xd XL, R830, R930
FeaturesDesigned for Dell PowerEdge R430, R530, R630, R630 XL, R730, R730 XL, R730xd, R730xd XL, R830, R930
Package ContentFour Modules

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

Will the 4Rx4 LRDIMM modules run alongside existing DDR4-2133 ECC Registered DIMMs in a PowerEdge R730?

No. ECC Load Reduced and ECC Registered modules cannot be mixed. All installed modules must share the same ECC type, so you would need to replace the Registered DIMMs with LRDIMMs.

How can I confirm the kit is running at the correct 2133 MHz speed and CL15 latency after installation?

Enter the system BIOS or use a tool such as CPU-Z; the memory information screen should report DDR4-2133 (PC4-17000) with CAS latency 15 across all four modules.

Does the package include only the four 64 GB modules or are any additional items such as heat spreaders or cables supplied?

The box contains four 288-pin DDR4 LRDIMM modules and nothing else; no heat spreaders, cables or extra hardware are included.
