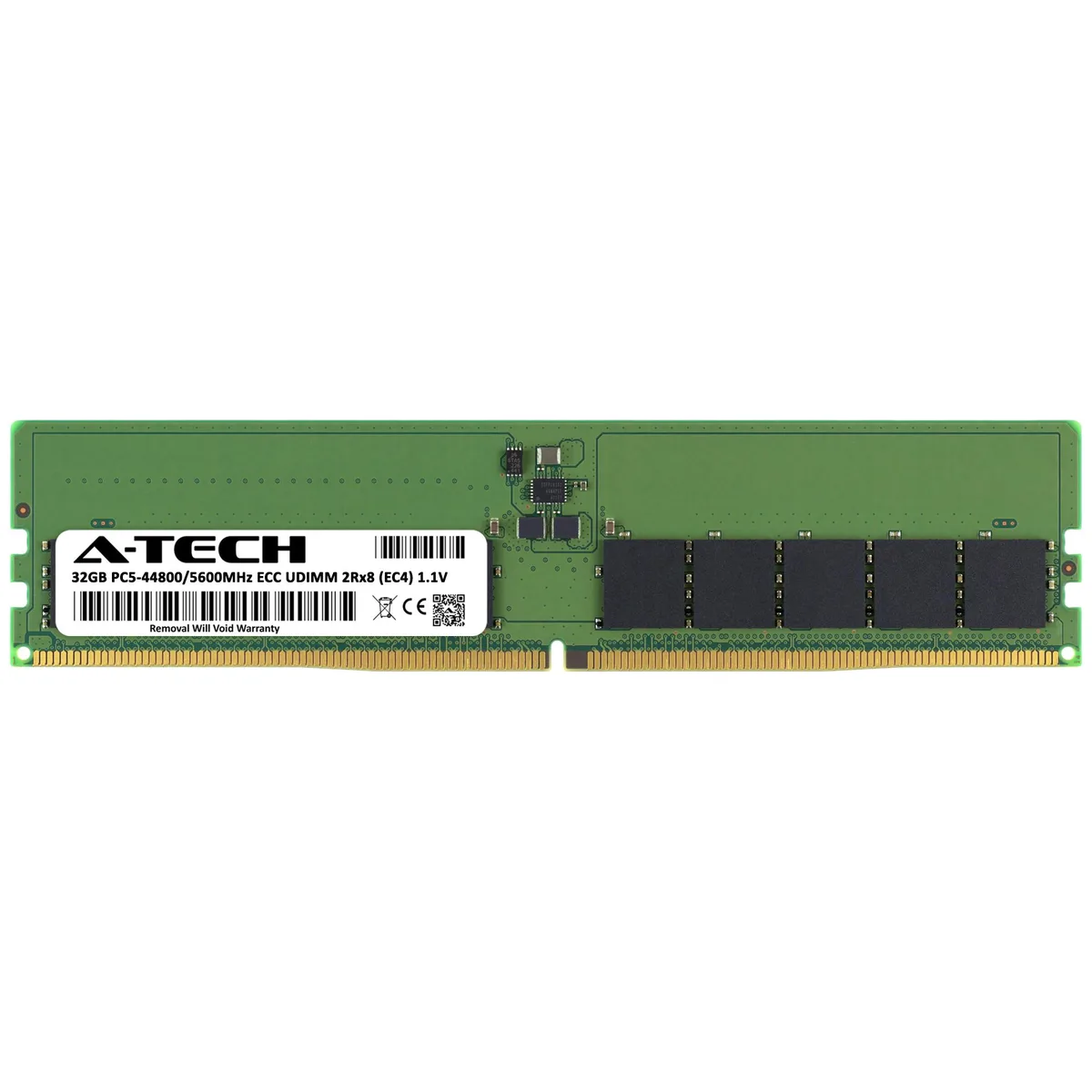

Green bare circuit board DDR5 memory module with black chips no heat spreader 288 pins

A-Tech

A-Tech 32GB DDR5 5600 ECC UDIMM 2Rx8 1.1V 288-Pin Server RAM

SKU CH-P8YH-KA5Z2

32 GB DDR5 ECC UDIMM module running at 5600 MHz with CL40 latency and 1.1 V operation

  • Capacity32GB
  • Type288-Pin DDR5 SDRAM
  • SpeedDDR5 5600 (PC5 44800)
  • CAS Latency40
  • Voltage1.10V
  • ECCYes

Capacity 32GB

  • 32 GB capacity handles demanding server workloads
  • DDR5 5600 speed moves data at PC5-44800 bandwidth
  • ECC unbuffered design corrects single-bit errors automatically
  • 10 V operation matches standard DDR5 voltage
  • 288-pin UDIMM form factor fits compatible server slots

Server DDR5 ECC UDIMM upgrade

This A-Tech module adds 32GB of DDR5 5600 memory with ECC and dual-rank x8 organisation to compatible servers and workstations. It runs at the standard 1.10V and carries a CAS latency of 40. The 288-pin unbuffered design fits only platforms that explicitly support DDR5 ECC UDIMM.

Replacing slower or smaller DDR5 ECC UDIMM

The jump is worthwhile when your current DDR5 ECC UDIMM kit runs below 5600 or provides less than 32GB per slot and the workload is memory-bound. Systems already at 5600 with sufficient capacity will not see a measurable gain from this module alone.

Sustained-load behaviour

Error-correcting code protects data integrity during long compute runs while the dual-rank layout keeps bandwidth stable across channels. The 1.10V operation limits thermal output so performance remains consistent without throttling under continuous server workloads.

Highlights

  • 32 GB capacity handles demanding server workloads
  • DDR5 5600 speed moves data at PC5-44800 bandwidth
  • ECC unbuffered design corrects single-bit errors automatically
  • 10 V operation matches standard DDR5 voltage
  • 288-pin UDIMM form factor fits compatible server slots

Specifications

BrandA-Tech
SeriesA-Tech DDR5 Server Memory RAM
ModelA-Tech 32GB DDR5-5600 ECC UDIMM Server RAM Module
Part NumberAT32G1D5D5600UD8EC4N11V
Capacity32GB
Type288-Pin DDR5 SDRAM
SpeedDDR5 5600 (PC5 44800)
CAS Latency40
Voltage1.10V
ECCYes
Buffered/RegisteredUnbuffered
Rank2Rx8
ChipsetMajor Brand Chipset
Heat SpreaderNo
FeaturesMajor Brand DRAM IC Chips

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

Will this 288-pin DDR5 UDIMM fit my server's DIMM slots?

Yes, it uses the standard 288-pin DDR5 DIMM form factor and requires a server or workstation platform that supports DDR5 ECC unbuffered memory.

How do I install this dual-rank ECC module correctly?

Align the notch with the slot key, press firmly until both retention clips click, and follow your system manual for correct channel population order.

Does this 1.1V module need any future maintenance or replacement?

No routine maintenance is required; the module has no heat spreader and operates at standard DDR5 voltage, so replacement is only needed if a fault occurs.
