A-Tech 4GB DDR4 3200 Desktop RAM L82034-001
4 GB DDR4 3200 desktop module, CL22 at 1.2 V, 288-pin DIMM for HP L82034-001 and L98131-003 systems
- Capacity4GB
- SpeedDDR4 3200 (PC4 25600)
- Tested Frequency3200
- CAS LatencyCL22
- Voltage1.20V
- ECCNo
- 4GB module expands desktop multitasking capacity
- DDR4 3200 speed accelerates data throughput
- CL22 latency supports responsive system operation
- 20V standard voltage ensures efficient power use
- 288-pin DIMM fits compatible HP desktop boards
HP-Compatible DDR4 3200 DIMM

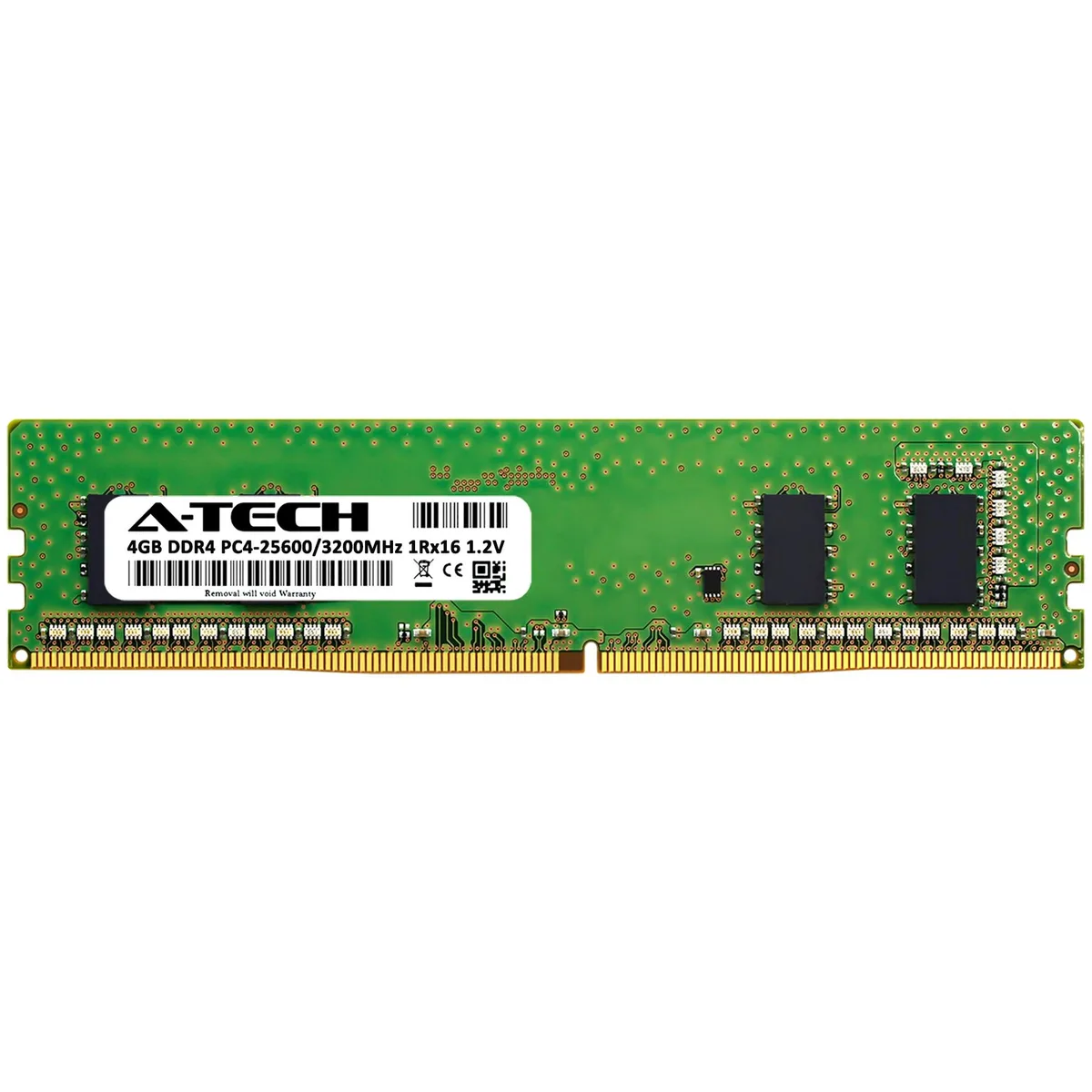

This 4GB DDR4 module is built as a direct replacement for HP part numbers L82034-001 and L98131-003. It fits desktop systems that accept standard 288-pin unbuffered DIMMs. The single-rank design uses major-brand chips tested at 3200MHz with CL22 latency.
DDR4 3200 Speed and Voltage Limits
The JEDEC DDR4-3200 standard caps data-rate at 3200 MT/s and voltage at 1.20V, so this module cannot exceed those figures without platform overclocking support. CAS latency of 22 is fixed at the rated speed. Systems limited to lower DDR4 speeds will downclock the module automatically.
Single-Rank 1Rx16 Organisation
The module uses a 1Rx16 chip arrangement, meaning one rank of sixteen-bit wide DRAMs. This rank count and bus width determine how the memory controller addresses the 4GB capacity. Verify that your motherboard supports single-rank 4GB DIMMs before purchase.
Highlights
- 4GB module expands desktop multitasking capacity
- DDR4 3200 speed accelerates data throughput
- CL22 latency supports responsive system operation
- 20V standard voltage ensures efficient power use
- 288-pin DIMM fits compatible HP desktop boards
Specifications
| Brand | A-Tech |
|---|---|
| Series | Compatible Replacement for HP |
| Model | L82034-001, L98131-003 |
| Capacity | 4GB |
| Speed | DDR4 3200 (PC4 25600) |
| Tested Frequency | 3200 |
| CAS Latency | CL22 |
| Voltage | 1.20V |
| ECC | No |
| Buffered/Registered | Unbuffered |
| Chipset | Major Brand Chipset |
| Heat Spreader | No |
| Features | L82034-001, L98131-003 |
| Recommend Use | Compatible Replacement for HP L82034-001, L98131-003 |
Questions about this item
Should I choose the 4GB module or a larger capacity kit?
This listing is for a single 4GB DDR4 3200 module; if your board has free slots you can add more identical sticks, but the product itself is only sold as one 4GB DIMM.
What does the 3200MHz rating actually deliver inside my desktop?
The module runs at 3200MT/s with CL22 latency at the standard 1.2V, giving the bandwidth labelled PC4-25600 when the motherboard enables the rated speed.
Is the 288-pin DDR4 DIMM interface the limiting factor for speed?
The 288-pin DDR4 DIMM form factor supports the rated 3200MT/s; actual operating speed is capped by the motherboard memory controller and BIOS settings, not by the DIMM connector itself.
