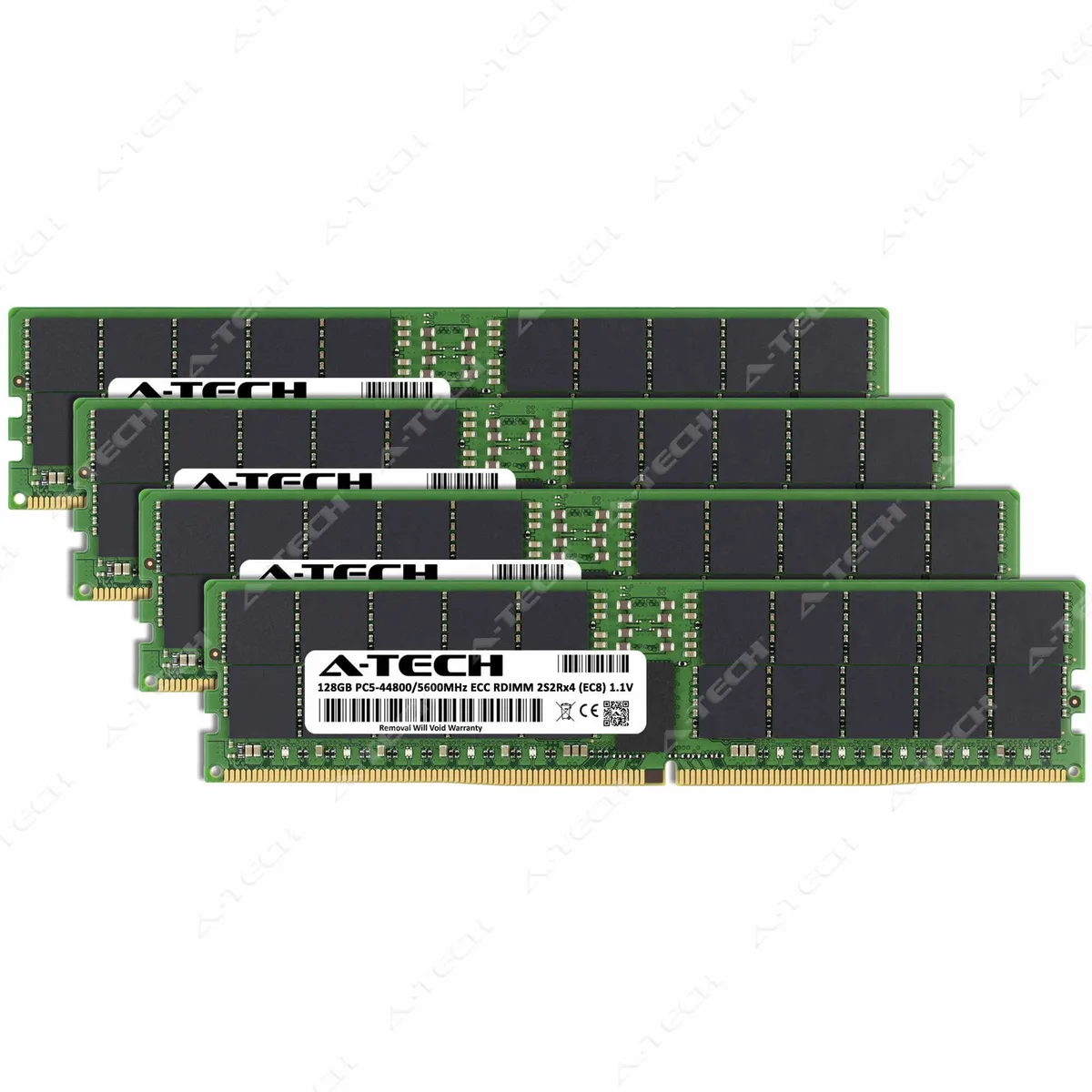

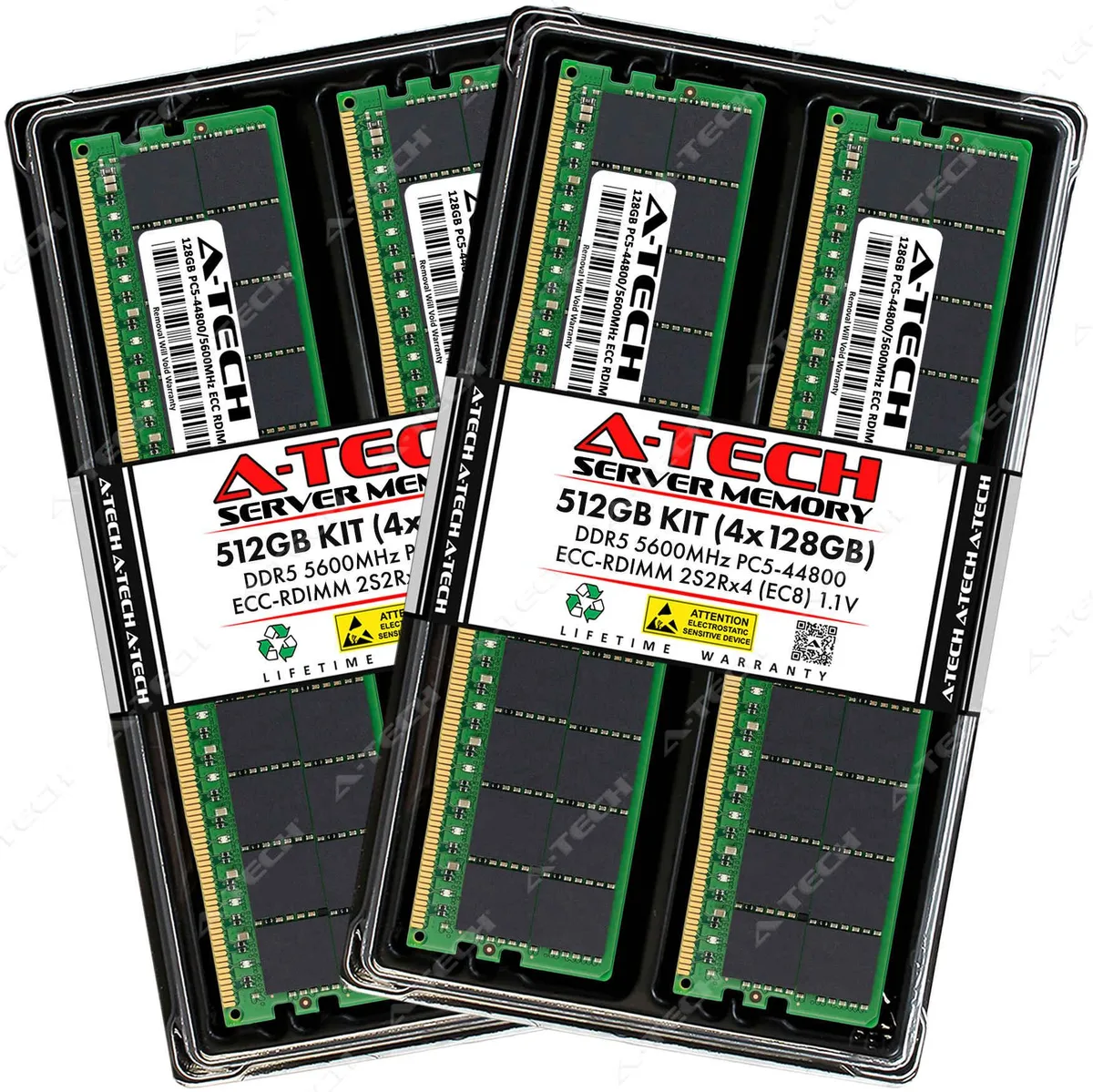

Four green DDR5 RDIMM modules, bare circuit boards, 288-pin edge connectors, no heat spreaders

A-Tech

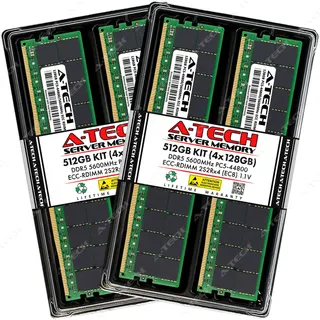

A-Tech 512GB (4x128GB) DDR5 5600 EC8 RDIMM 2S2Rx4 Server RAM

SKU CH-Z7DS-2DPPR

A 512 GB quad-channel kit of four 128 GB DDR5 5600 EC8 registered ECC DIMMs for servers and workstations

  • Capacity512GB (4 x 128GB)
  • Type288-Pin DDR5 SDRAM
  • SpeedDDR5 5600 (PC5 44800)
  • CAS LatencyCL46
  • Voltage1.10V
  • ECCYes

Capacity 512GB (4 x 128GB)

  • 512 GB total capacity from four 128 GB modules
  • DDR5 5600 MHz speed for faster data throughput
  • ECC registered RDIMM with EC8 for error correction
  • Quad-rank 2S2Rx4 3DS/TSV architecture maximises density
  • 10 V standard DDR5 voltage reduces power draw

Server Memory Kit

This A-Tech 512GB kit contains four 128GB DDR5 modules built for servers and workstations that require registered ECC memory. It is not compatible with desktop or laptop computers. The quad-channel kit delivers 512GB total capacity for multi-socket platforms that support high-density DDR5 RDIMMs. Buyers who need unbuffered memory or consumer form factors cannot use this product.

Registered ECC with 3DS Stacking

Each module is a 288-pin DDR5 RDIMM organised as 2S2Rx4 quad-rank using 3DS/TSV stacking. The EC8 registered ECC design provides error correction and signal buffering required by server chipsets. Systems that do not support registered ECC or quad-rank 3DS modules will not accept this memory. Buyers whose platforms require single-rank or dual-rank unbuffered DIMMs must choose a different kit.

512GB Capacity at DDR5 5600

The kit operates at 5600 MT/s with CL46 latency at the standard 1.10V DDR5 voltage. Four modules populate four channels for maximum bandwidth in compatible multi-processor servers. Workloads that exceed 512GB or require speeds above 5600 MT/s will need additional modules or a faster memory tier. Systems limited to lower densities per slot or slower DDR5 speeds cannot utilise the full specification.

Highlights

  • 512 GB total capacity from four 128 GB modules
  • DDR5 5600 MHz speed for faster data throughput
  • ECC registered RDIMM with EC8 for error correction
  • Quad-rank 2S2Rx4 3DS/TSV architecture maximises density
  • 10 V standard DDR5 voltage reduces power draw

Specifications

BrandA-Tech
SeriesA-Tech DDR5 Server Memory RAM
ModelA-Tech 128GB 2S2Rx4 PC5-5600B-R EC8
Part NumberAT128G4D5D5600RQ4EC8N11V
Capacity512GB (4 x 128GB)
Type288-Pin DDR5 SDRAM
SpeedDDR5 5600 (PC5 44800)
CAS LatencyCL46
Voltage1.10V
ECCYes
Buffered/RegisteredRegistered
Rank2S2Rx4 (4Rx4 3DS/TSV)
Multi-channel KitQuad Channel Kit
ChipsetMajor Brand Chipset
Heat SpreaderNo
FeaturesMajor Brand Chips / Error Correcting Technology for Server Systems

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

What does the 5600 MHz rating mean once the modules are installed in a server?

The modules run at DDR5 5600 MT/s, delivering up to 44800 MB/s of peak bandwidth per DIMM when the platform operates at the rated speed.

How does the EC8 registered interface affect what the memory controller can do?

EC8 RDIMM places a register on each command and address line and provides 8-bit ECC, so the memory controller sees a buffered load and can correct single-bit errors across the 4Rx4 3DS stack.

What physical space and slot layout do the four 128 GB sticks need?

Each stick is a 288-pin DDR5 DIMM; the kit requires four compatible DDR5 RDIMM slots populated according to the server's quad-channel population rules.
