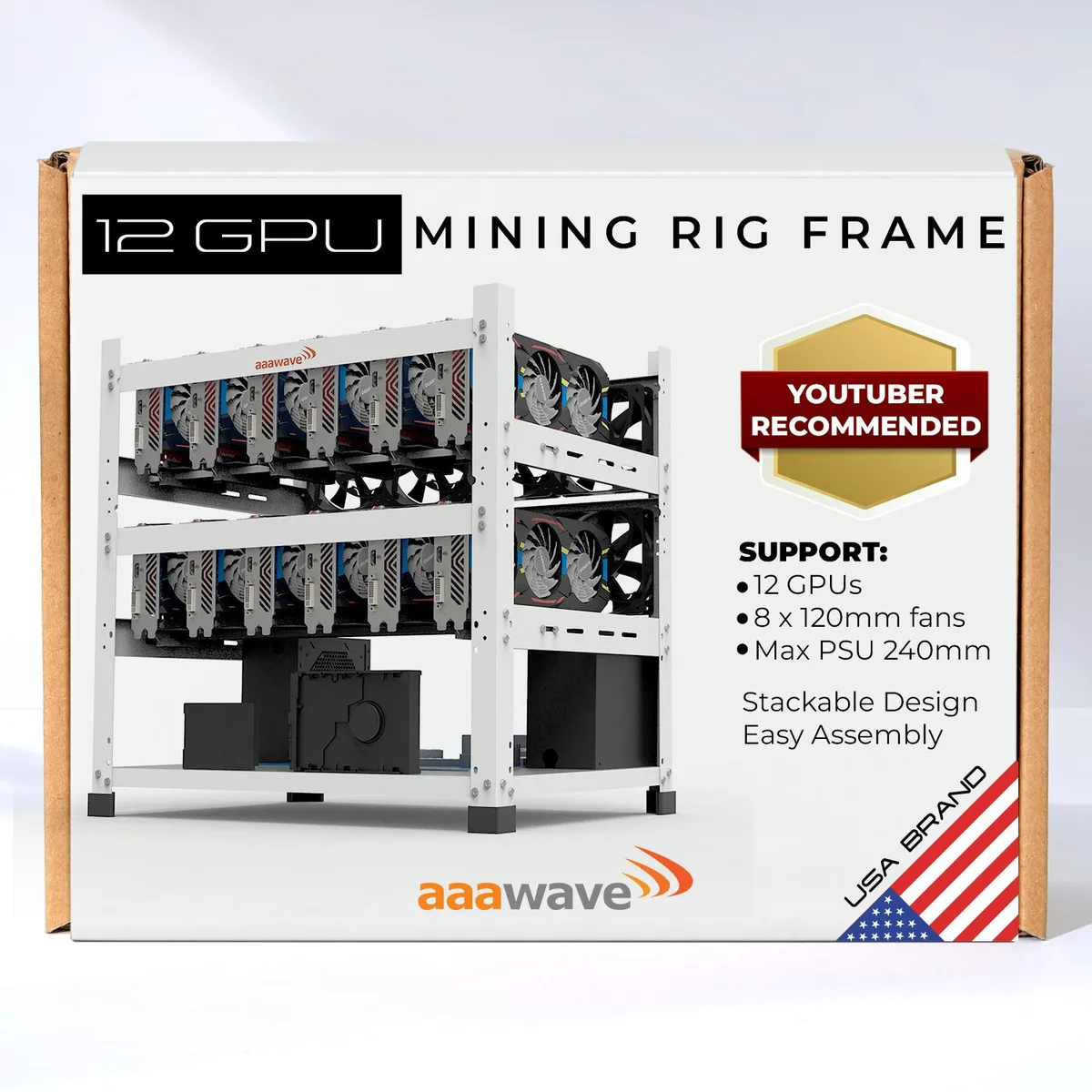

White steel open mining frame with twelve GPU slots and dual PSU mounts

AAAwave

AAAwave AAAIRMC12WH 12 GPU Mining Frame White

SKU CH-Z3AK-KV15Q

Open steel frame holds twelve GPUs, two ATX power supplies, six add-on cards, 2.5 and 3.5 drives and eight 120 mm fans with stackable design for expanded mining or AI rigs

  • TypeATX Open Frame Chassis
  • ColorWhite
  • Case MaterialMetal frame
  • Power Supply2 x ATX Power Supply Positions
  • Supports 12 GPUs on a solid mounting plate
  • Accommodates two ATX power supplies for high-wattage builds
  • Stackable design allows easy expansion with additional brackets
  • Steel frame with rubber feet and EVA foam protects cards
  • Fits ATX boards up to 305 x 245 mm

12-GPU Open Frame Mining Chassis

The AAAwave AAAIRMC12WH is a steel open-frame chassis designed to hold up to 12 graphics cards for cryptocurrency mining or AI machine-learning workloads. It accepts ATX motherboards measuring 305 by 245 millimetres and provides mounting positions for two ATX power supplies. The frame ships as a bare structure without fans, processors, graphics cards, power supplies, motherboards or cables.

ATX Motherboard And Power-Supply Limits

Only ATX boards up to 305 by 245 millimetres fit the mounting pattern, so larger E-ATX or server boards cannot be used. The chassis includes two ATX power-supply positions, restricting the builder to standard ATX units and ruling out redundant or server-style power modules. Six add-in card slots and bays for 2.5 and 3.5 drives complete the expansion envelope.

12-GPU Capacity With 120 Millimetre Fan Support

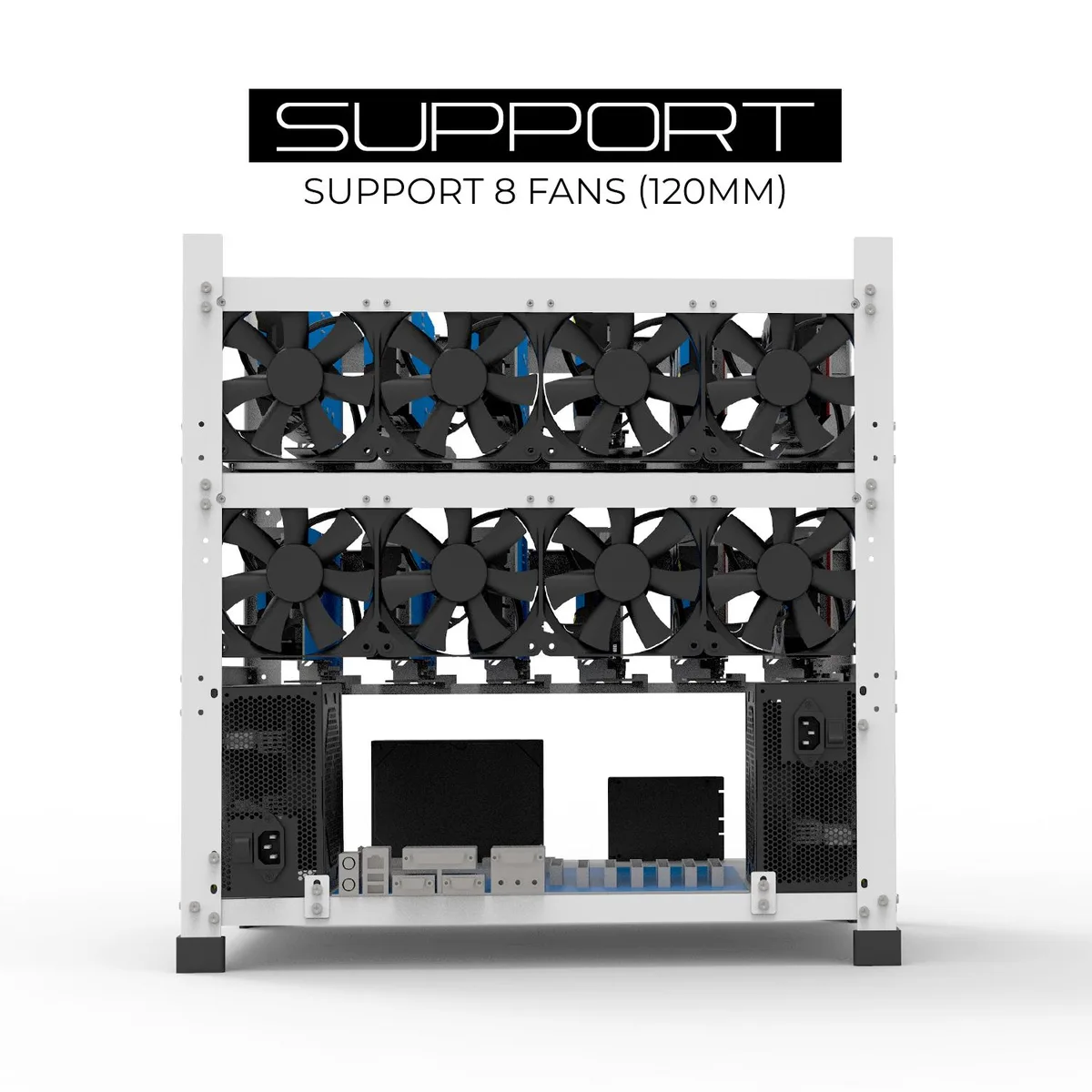

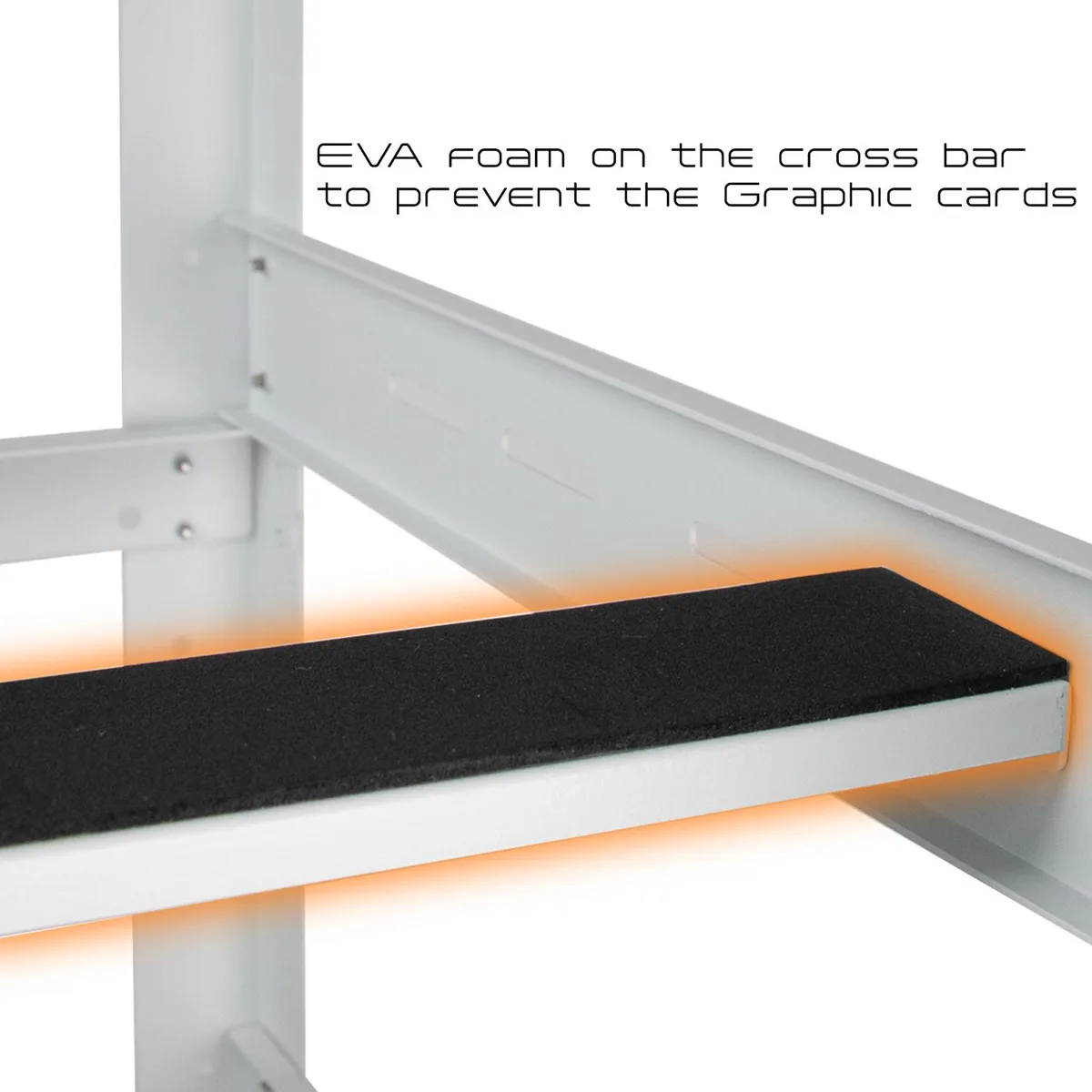

The defining specification is the ability to secure twelve graphics cards on a solid mounting plate while leaving room for eight 120 millimetre fans to move air through the stack. Rubber feet and EVA foam on the crossbar protect the cards during operation and transport. Stackable brackets are available separately for scaling the rig beyond a single frame.

Highlights

  • Supports 12 GPUs on a solid mounting plate
  • Accommodates two ATX power supplies for high-wattage builds
  • Stackable design allows easy expansion with additional brackets
  • Steel frame with rubber feet and EVA foam protects cards
  • Fits ATX boards up to 305 x 245 mm

Specifications

BrandAAAwave
ModelAAAIRMC12WH
Part NumberAAAIRMC12WH
TypeATX Open Frame Chassis
ColorWhite
Case MaterialMetal frame
Power Supply2 x ATX Power Supply Positions

Questions about this item

How many GPUs can the AAAIRMC12WH frame hold?

The frame supports up to 12 GPUs using the solid mounting plate included with the chassis.

What does the 12-GPU capacity mean when the rig is running?

You can install twelve graphics cards with room for eight 120mm fans, giving strong airflow across every card during heavy workloads.

What motherboard size does the open frame accept?

It fits ATX boards measuring 305 by 245 millimetres and provides two ATX power supply positions.
