Acer America
Acer America Nitro DP.Z4BWW.P01 Intel Arc B580 12GB graphics card
Refurbished graphics card with 12 GB GDDR6 memory, 20 Xe cores and 20 ray-tracing units driving up to 7680 x 4320 resolution at 120 Hz HDR over HDMI 2.1 and three DisplayPort 2.1 outputs
- InterfacePCI Express 4.0 x8
- Chipset ManufacturerIntel
- GPU SeriesIntel ARC B-Series
- Core Clock2740 MHz
- Xe-cores20
- Effective Memory Clock19000 MHz
- 12 GB GDDR6 memory and 192-bit bus deliver 456 GB/s bandwidth for high-resolution textures
- 20 Xe-cores and 20 ray-tracing units accelerate modern games and creative workloads
- Core clock reaches 2740 MHz with 19000 MHz effective memory speed for responsive performance
- HDMI 2.1 plus three DisplayPort 2.1 outputs drive up to four 8K 120 Hz HDR displays
- PCI Express 4.0 x8 interface and 205 W board power fit 600 W PSU systems with one 8-pin connector

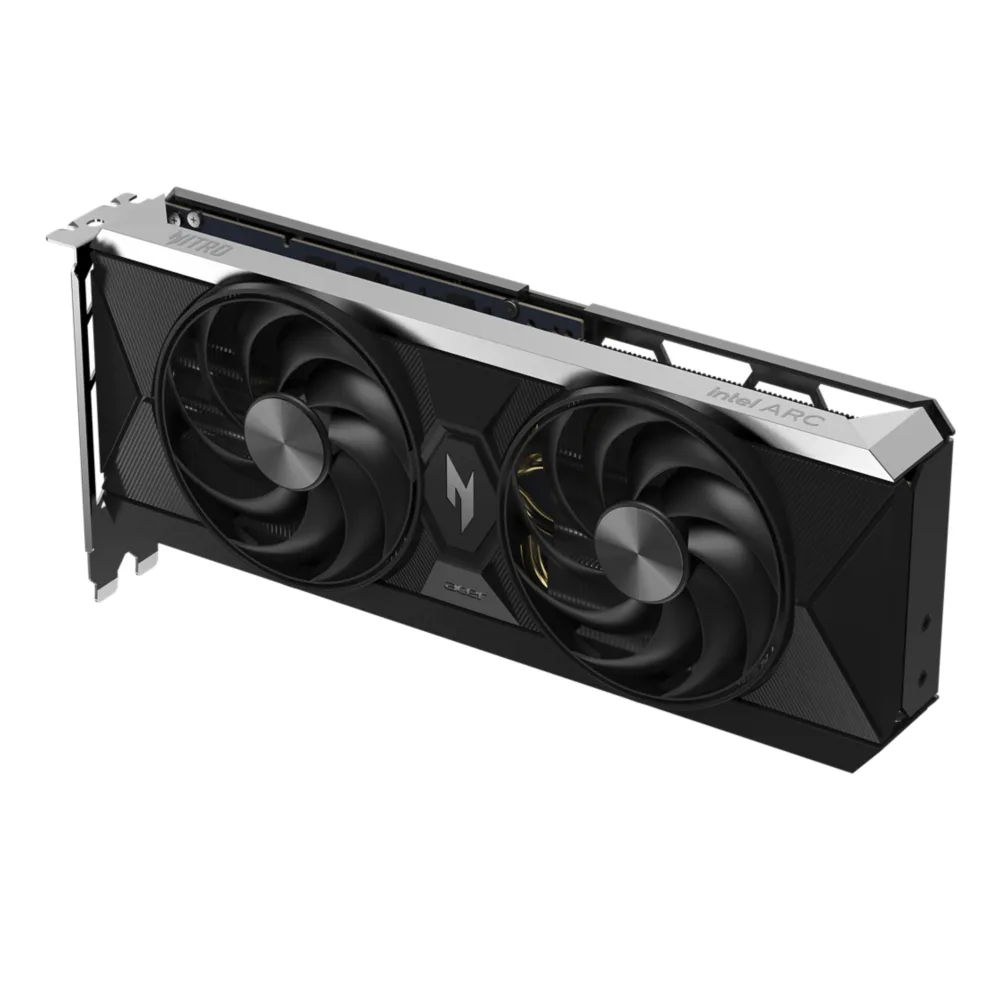

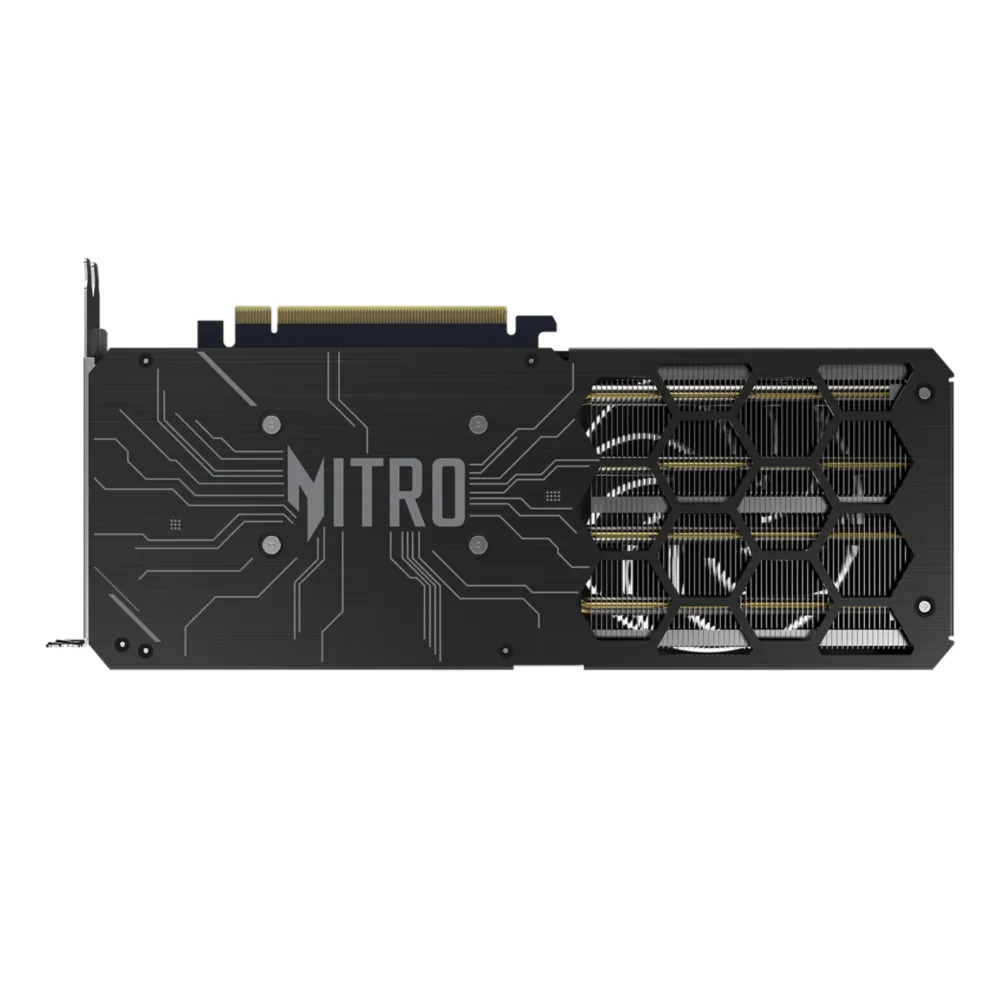

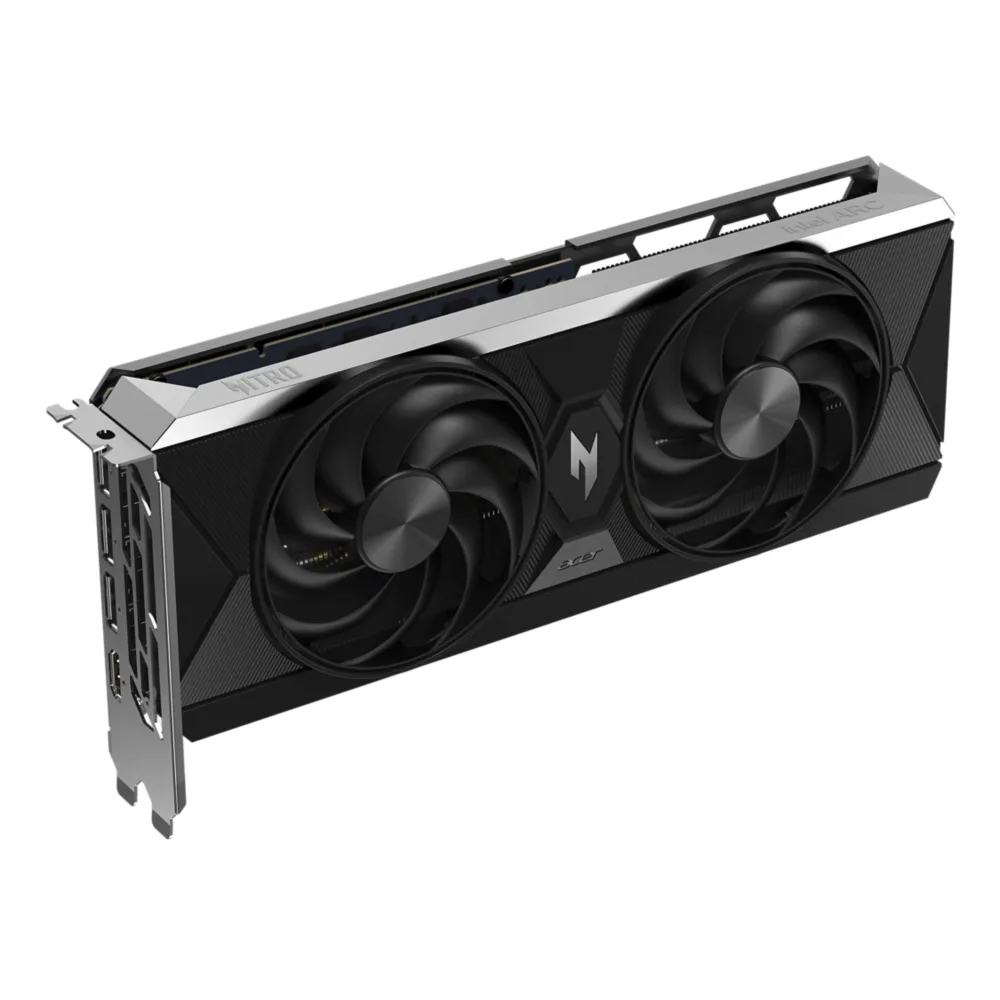

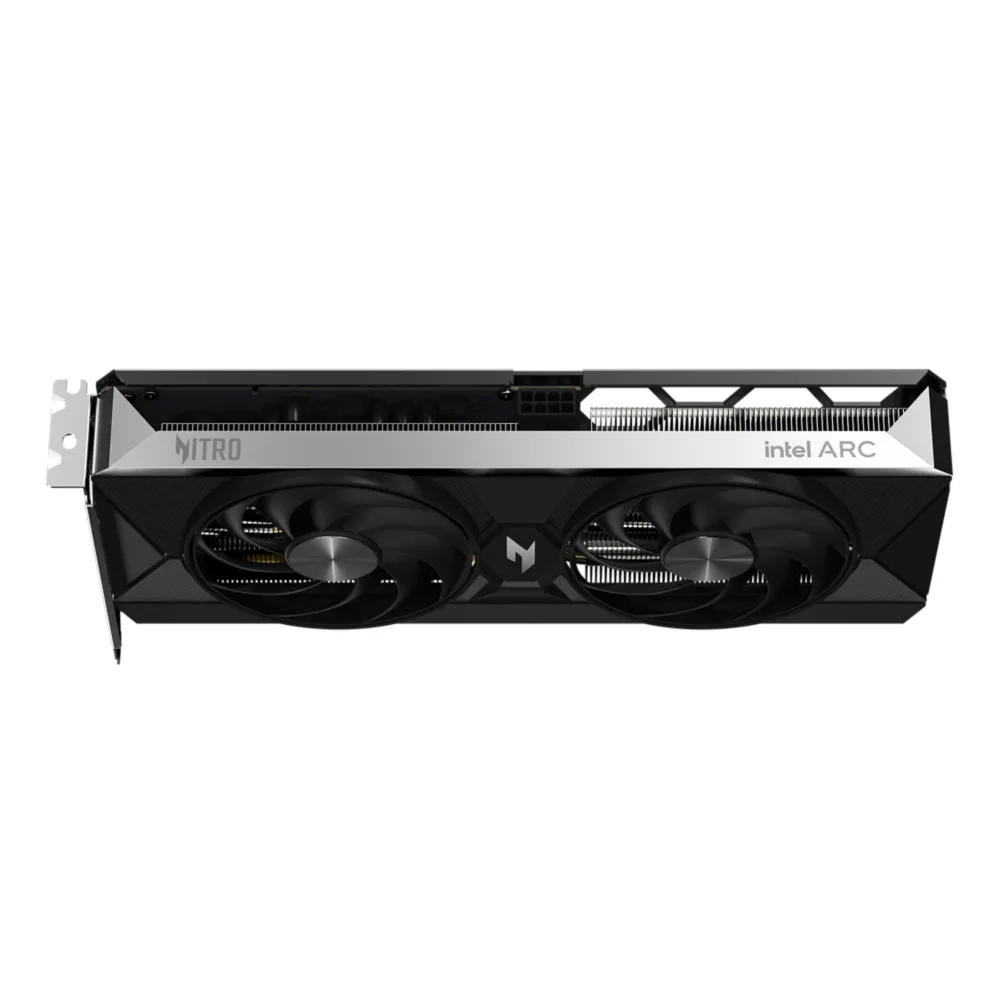

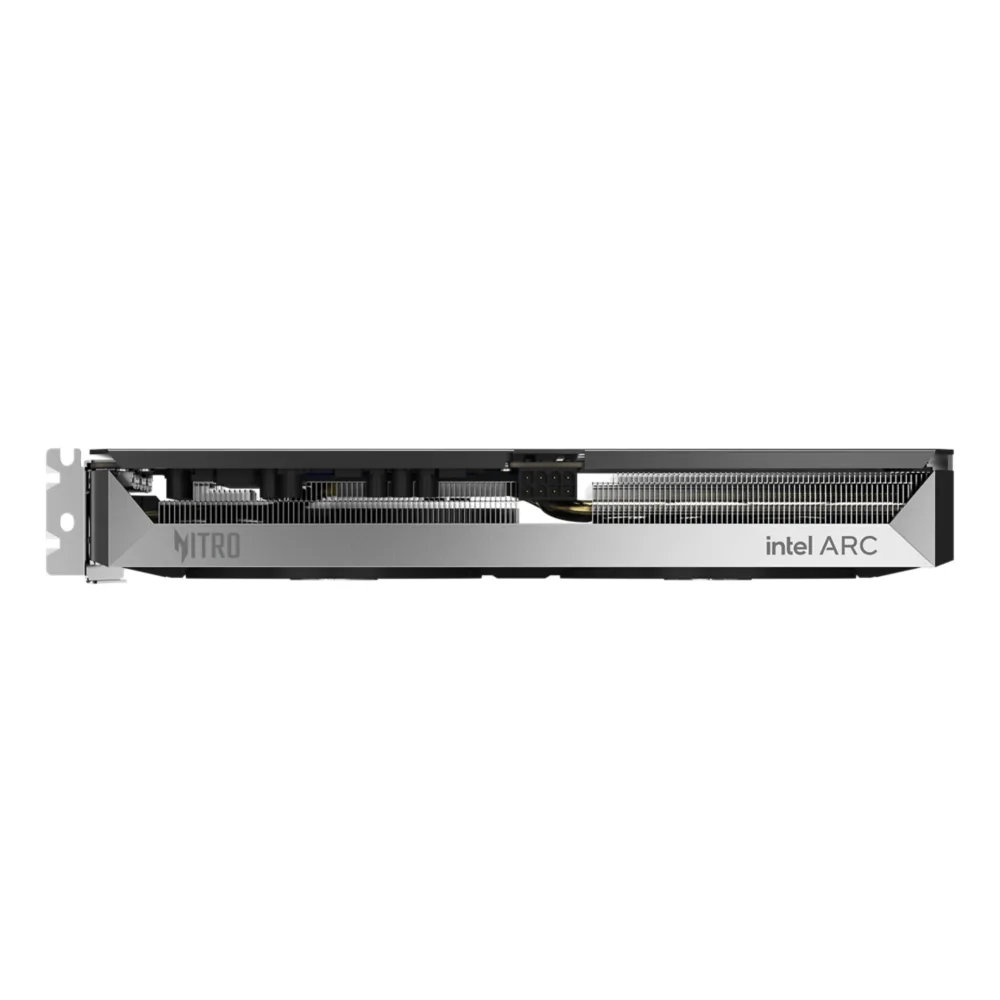

Acer Nitro Intel Arc B580 12GB
This refurbished graphics card uses the Intel Arc B580 GPU with 20 Xe-cores and 20 ray tracing units. It carries 12GB of GDDR6 memory on a 192-bit bus running at 19000 MHz effective. The board connects through a PCI Express 4.0 x8 interface and has a 205W thermal design power.
Sustained load behaviour
The air cooler must dissipate 205W continuously, so case airflow becomes the limiting factor during long sessions. Core clocks hold at 2740 MHz while the memory sustains 19000 MHz, delivering 456Gb/s bandwidth for compute or 4K gaming. DirectX 12 Ultimate and OpenGL 4.6 support remain stable under prolonged draw.
Installation notes
A 600W supply with one 8-pin PCIe connector is required, plus a motherboard with an x16 slot and Resizable BAR or Smart Access Memory enabled. Windows 10 or 11 64-bit and at least 8GB system memory are needed, 16GB recommended. The card outputs through one HDMI 2.1 and three DisplayPort 2.1 connectors for up to four monitors.
Highlights
- 12 GB GDDR6 memory and 192-bit bus deliver 456 GB/s bandwidth for high-resolution textures
- 20 Xe-cores and 20 ray-tracing units accelerate modern games and creative workloads
- Core clock reaches 2740 MHz with 19000 MHz effective memory speed for responsive performance
- HDMI 2.1 plus three DisplayPort 2.1 outputs drive up to four 8K 120 Hz HDR displays
- PCI Express 4.0 x8 interface and 205 W board power fit 600 W PSU systems with one 8-pin connector
Specifications
| Brand | Acer |
|---|---|
| Series | Nitro |
| Model | AN-B580-OCA |
| Part Number | DP.Z4BWW.P01 |
| Interface | PCI Express 4.0 x8 |
| Chipset Manufacturer | Intel |
| GPU Series | Intel ARC B-Series |
| Core Clock | 2740 MHz |
| Xe-cores | 20 |
| Effective Memory Clock | 19000 MHz |
| Memory Size | 12GB |
| Memory Interface | 192-Bit |
| Memory Type | GDDR6 |
| DirectX | DirectX 12 Ultimate |
| OpenGL | OpenGL 4.6 |
| Multi-Monitor Support | 4 |
| HDMI | 1 x HDMI 2.1 |
| DisplayPort | 3 x DisplayPort 2.1 |
| Max Resolution | 7680 x 4320 |
| Cooler | Air Cooler |
| Thermal Design Power | 205W |
| System Requirements | Minimum System Requirements • 10th Gen Intel® Core™ Processors or newer with compatible motherboards supporting Resizable BAR, AMD Ryzen™ 3000 Series Processors or newer with compatible motherboards supporting Smart Access Memory • PCI-Express® compliant motherboard with one x16 PCIe slot • 600W or greater power supply with 1x 8-pin PCIe power connector • 8GB of system memory minimum, 16GB recommended • Windows® 11 64-bit or Windows® 10 64-bit See intel.com/arcquickstart for more details. |
| Recommended PSU Wattage | 600W |
| Power Connector | 8-Pin |
| Form Factor | ATX |
| Max GPU Length | 268 mm |
| Card Dimensions (L x H) | 268 x 113 x 40 mm |
| Slot Width | 2 Slots |
| Shipping weight | 0.91 kg |
| Package size | 356 × 178 × 76 mm |
Questions about this item
How much heat does the 205W air cooler have to move when the card runs all day?
The card draws up to 205W, so the air cooler must dissipate that sustained thermal load during long sessions.
Which power connector and PSU capacity does the DP.Z4BWW.P01 require?
It needs one 8-pin PCIe connector and a minimum 600W power supply to operate.
Will the PCI Express 4.0 x8 interface limit performance on a PCIe 3.0 motherboard?
The card runs on PCIe 4.0 x8 but is backward compatible with PCIe 3.0 x16 slots; bandwidth scales to the slot capability.
