Rectangular M.2 2280 circuit board with black heatsink and gold edge connector

ADATA

ADATA SMAR-980B-2TCS internal SSD

SKU CH-Z5CT-N4VFZ MPN SMAR-980B-2TCS

M.2 2280 2TB drive with PCIe 5.0 x4 interface, up to 14000 MB/s read, 13000 MB/s write, 2GB DRAM cache and integrated heatsink

  • Device TypeInternal Solid State Drive (SSD)
  • Used ForConsumer
  • Form FactorM.2 2280
  • Capacity2TB
  • Memory Components3D NAND
  • InterfacePCI-Express 5.0 x4

Options 2TB

  • Sequential reads hit 14000 MBps for instant game loads
  • Sequential writes reach 13000 MBps to move huge files fast
  • Random reads deliver 2000000 IOPS for snappy multitasking
  • Random writes sustain 1650000 IOPS under heavy workloads
  • Built-in heatsink keeps the drive cool without extra hardware

PCIe 5.0 x4 2TB gaming SSD

The XPG BLADE SMAR-980B-2TCS is an M.2 2280 drive built for consumer laptops and desktops. It uses 3D NAND flash and an SMI SM2508 controller with 2GB DRAM cache. The NVMe 2.0 protocol enables sequential reads up to 14000 MBps and writes up to 13000 MBps. It is rated for 1480TB written endurance.

TSMC 6nm controller sustains speed

The controller is fabricated on a TSMC 6nm process, which reduces heat so the drive maintains performance without extra cooling hardware. Random reads reach 2000000 IOPS and random writes reach 1650000 IOPS under sustained workloads. The operating range spans 0°C to 70°C for stable operation during long sessions.

Integrated heatsink fits laptop slots

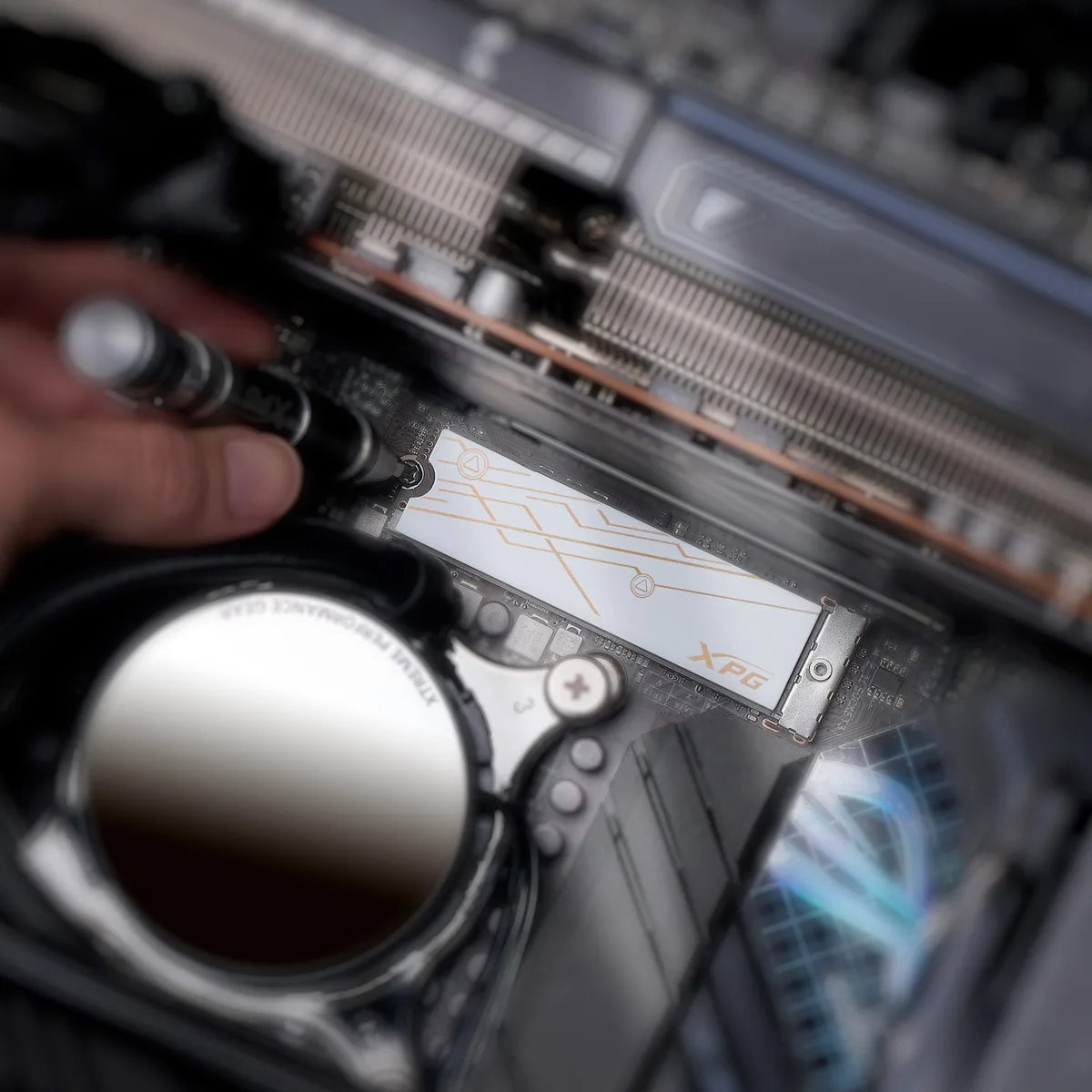

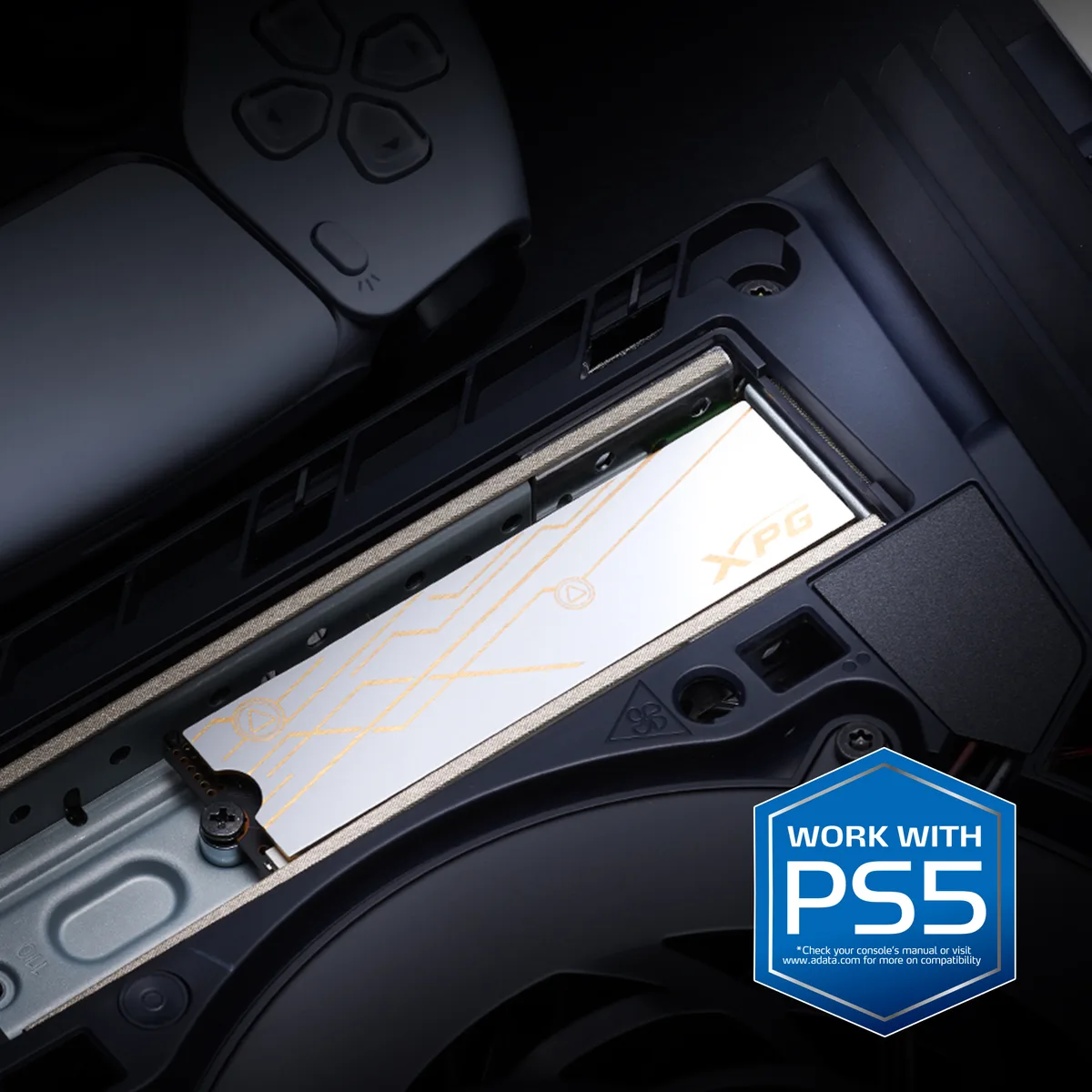

A heatsink is included on the M.2 2280 module, allowing direct installation in thin laptops or PS5 expansion bays. The single-sided layout avoids clearance issues with motherboard components. No additional mounting hardware is required for daily use.

Highlights

  • Sequential reads hit 14000 MBps for instant game loads
  • Sequential writes reach 13000 MBps to move huge files fast
  • Random reads deliver 2000000 IOPS for snappy multitasking
  • Random writes sustain 1650000 IOPS under heavy workloads
  • Built-in heatsink keeps the drive cool without extra hardware

Specifications

BrandXPG
SeriesBLADE
ModelSMAR-980B-2TCS
Device TypeInternal Solid State Drive (SSD)
Used ForConsumer
Form FactorM.2 2280
Capacity2TB
Memory Components3D NAND
InterfacePCI-Express 5.0 x4
ProtocolNVMe 2.0
ControllerSMI SM2508
Cache2GB DRAM
Max Sequential ReadUp to 14000 MBps
Max Sequential WriteUp to 13000 MBps
4KB Random ReadUp to 2,000,000 IOPS
4KB Random WriteUp to 1,650,000 IOPS
Terabytes Written (TBW)1480TB
HeatSinkwith HeatSink
FeaturesXPG MARS 980 BLADE PCIe Gen5 x4 M.2 2280 Solid State Drive
MARS 980 BLADE is the gaming PCIe 5.0 Gen5 SSD for laptops, delivering up to 14,000/13,000MB/s speeds and 4TB capacity. Engineered for long-lasting, stable performance, AI workloads, PS5 expansion, and the latest Intel and AMD platforms.
Features
? The gaming laptop-ready PCIe 5.0 SSD
? PCIe Gen5 x4 transmission interface
? R/W speed up to 14,000/13,000MB/s for PC/laptop
? Powered by TSMC 6nm process - runs cool without extra cooling hardware
? Work with PS5 2TB SMAR-980B-2TCS 842243035667 4711658150820
? Read speed up to 6,5
Operating Temperature0°C ~ +70°C
Storage Temperature-40°C ~ +85°C
Max Shock Resistance1500G
Shipping weight0.05 kg
Package size131 × 104 × 19 mm

Other versions of this model

1 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

How hot does the XPG BLADE SMAR-980B-2TCS run during sustained all-day workloads?

The drive is rated for an operating temperature range of 0°C to 70°C and uses a TSMC 6 nm controller designed to run cool without extra cooling hardware, while the included heatsink helps dissipate heat during prolonged use.

What motherboard slot and firmware support are required to install the SMAR-980B-2TCS?

You need an M.2 2280 slot wired for PCI-Express 5.0 x4 with NVMe 2.0 support; the drive plugs directly into that slot and requires no additional cables or adapters.

Will the SMAR-980B-2TCS work in a system that only has PCI-Express 4.0 M.2 slots?

Yes, the PCIe 5.0 x4 interface is backward compatible with PCIe 4.0 and 3.0 slots, though sequential speeds will be limited to the slot's maximum bandwidth.
