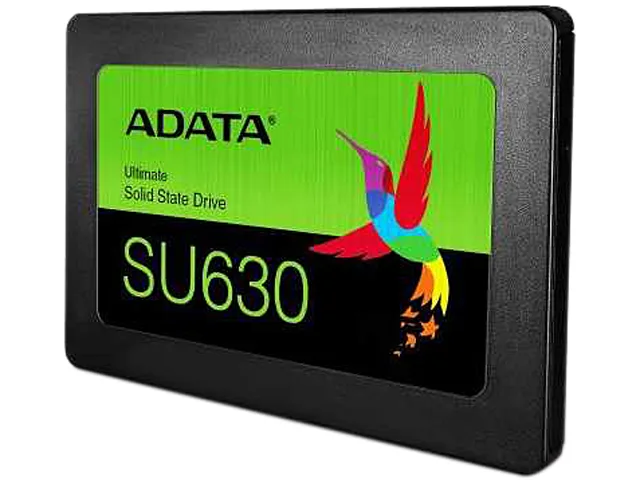

Rectangular 2.5 inch internal SSD with black metal casing and SATA connectors

ADATA

ADATA Ultimate SU630 240GB 2.5" SATA internal SSD

SKU CH-TGFC-B5YQY

A 2.5 inch SATA internal SSD with 240GB capacity using 3D QLC NAND and SLC caching for sequential speeds up to 520 MBps read and 450 MBps write

  • Device TypeInternal Solid State Drive (SSD)
  • Used ForConsumer
  • Form Factor2.5"
  • Capacity240GB
  • Memory Components3D QLC
  • InterfaceSATA III
  • Faster boot and load times with up to 520 MB/s sequential read
  • Smooth file saves and installs backed by up to 450 MB/s sequential write
  • Responsive multitasking from up to 30,000 random read IOPS
  • Reliable long-term storage with 1,500,000-hour MTBF rating
  • Drop-in 2.5-inch SATA upgrade for laptops and desktops

240GB SATA internal SSD for everyday PCs

The ADATA Ultimate SU630 is a 2.5-inch internal solid-state drive with a 240GB capacity. It connects through a standard SATA III interface and uses 3D QLC NAND flash. The drive targets desktop or laptop users who want a simple storage upgrade from a mechanical hard disk.

2.5-inch form factor with SATA connector

The drive measures 100.45 x 69.85 x 7mm and weighs 47.5g, fitting any standard 2.5-inch bay or caddy. A SATA data and power connector provides broad compatibility with existing cables and motherboard ports. No additional mounting hardware or adapters are required for typical installations.

Replaces a 2.5-inch hard drive for faster boot

Sequential reads reach up to 520 MBps and writes up to 450 MBps, while random reads hit 30,000 IOPS and random writes 65,000 IOPS. The jump is worth it when the system feels sluggish on a spinning disk and the workload fits within 240GB. SLC caching and LDPC ECC help sustain performance during everyday file transfers.

Highlights

  • Faster boot and load times with up to 520 MB/s sequential read
  • Smooth file saves and installs backed by up to 450 MB/s sequential write
  • Responsive multitasking from up to 30,000 random read IOPS
  • Reliable long-term storage with 1,500,000-hour MTBF rating
  • Drop-in 2.5-inch SATA upgrade for laptops and desktops

Specifications

BrandADATA
SeriesUltimate SU630
ModelASU630SS-240GQ-R
Part NumberSU630
Device TypeInternal Solid State Drive (SSD)
Used ForConsumer
Form Factor2.5"
Capacity240GB
Memory Components3D QLC
InterfaceSATA III
ProtocolSATA
ConnectorSATA
Cache240 unknown_modifier
Max Sequential ReadUp to 520 MBps
Max Sequential WriteUp to 450 MBps
4KB Random ReadUp to 30,000 IOPS
4KB Random WriteUp to 65,000 IOPS
MTBF1,500,000 hours
Features3D QLC NAND Flash for higher affordability
Big capacity up to 960GB
Advanced hardware LDPC ECC technology
Supports SLC Caching for improved performance
Free software: SSD Toolbox and Migration Utility
Supports S.M.A.R.T., TRIM Command, and NCQ
Operating Temperature0°C ~ +70°C
Storage Temperature-40°C ~ +85°C
Max Shock Resistance1500G / 0.5 ms
Height7.00mm
Width69.85mm
Depth100.45mm
Weight47.50g
Package ContentNo

Questions about this item

What real-world speed limit does the SATA III interface impose on this drive?

The SATA III interface caps sequential throughput at 6 Gb/s, so the drive’s quoted 520 MB/s read and 450 MB/s write are the practical ceiling.

Will the 2.5 inch 7 mm form factor fit my laptop’s drive bay?

The drive measures 100.45 x 69.85 x 7 mm and weighs 47.5 g, matching the standard 2.5 inch 7 mm bay used in most laptops and desktops.

Do I need to enable anything in BIOS before cloning my old drive?

Set the SATA controller to AHCI mode, then use the included Migration Utility to clone; skipping the AHCI switch is the step most people miss.
