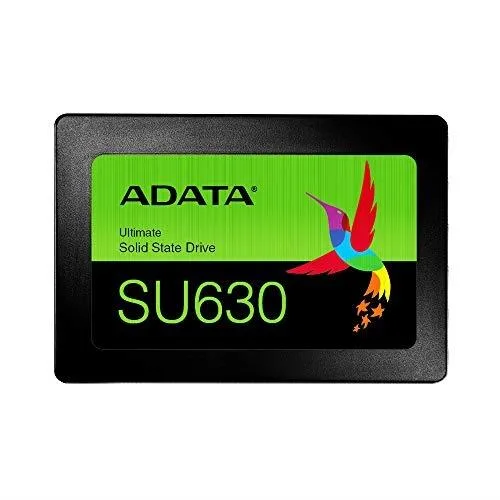

Rectangular 2.5 inch SSD with black metal casing and label

ADATA

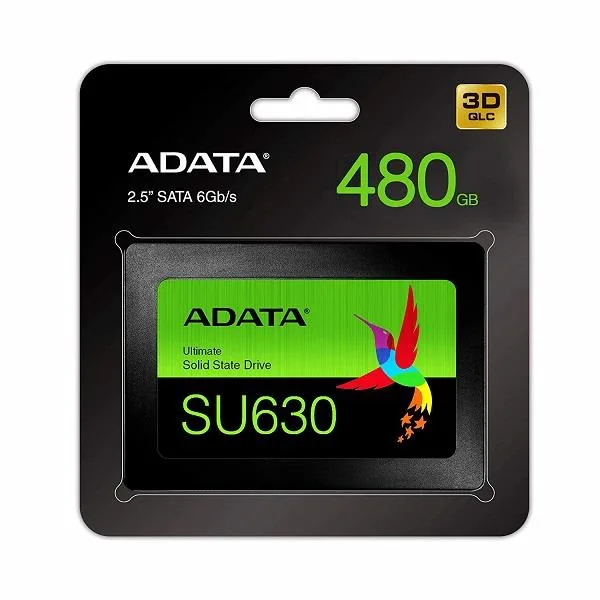

ADATA Ultimate SU630 480GB 2.5" SATA internal SSD

SKU CH-C90Y-SE6B9

2.5" SATA internal SSD with 480GB capacity, 3D QLC NAND and sequential speeds up to 520 MB/s read and 450 MB/s write

  • Device TypeInternal Solid State Drive (SSD)
  • Used ForConsumer
  • Form Factor2.5"
  • Capacity480GB
  • Memory Components3D QLC
  • InterfaceSATA III
  • Up to 520 MB/s sequential read for fast boot times
  • Up to 450 MB/s sequential write for quick file saves
  • 40,000 random read IOPS for responsive multitasking
  • 65,000 random write IOPS for smooth application loads
  • 1,500,000 hours MTBF for long-term reliability

Capacity and form factor

The ADATA Ultimate SU630 is a 2.5 inch internal solid-state drive with a 480GB capacity. It uses 3D QLC NAND flash and a SATA interface for desktop or laptop upgrades. The drive targets consumers who want an affordable replacement for a mechanical hard disk. It includes a 1.5 million hour MTBF rating for long-term reliability.

SATA interface limits

The SATA III connection caps maximum sequential read at 520 MBps and sequential write at 450 MBps. Random performance reaches 40,000 IOPS for 4KB reads and 65,000 IOPS for 4KB writes. Hardware LDPC error correction and SLC caching help maintain data integrity and sustain speeds under load. The drive operates between 0 and 70 degrees Celsius.

Compatibility checks

Verify that your system has a free 2.5 inch drive bay and a SATA data plus power connector. Confirm the operating system supports the SATA III standard for full throughput. The supplied SSD Toolbox and Migration Utility simplify cloning and ongoing health monitoring. No additional hardware is required beyond standard SATA cabling.

Highlights

  • Up to 520 MB/s sequential read for fast boot times
  • Up to 450 MB/s sequential write for quick file saves
  • 40,000 random read IOPS for responsive multitasking
  • 65,000 random write IOPS for smooth application loads
  • 1,500,000 hours MTBF for long-term reliability

Specifications

BrandADATA
SeriesUltimate SU630
ModelASU630SS-480GQ-R
Part NumberSU630
Device TypeInternal Solid State Drive (SSD)
Used ForConsumer
Form Factor2.5"
Capacity480GB
Memory Components3D QLC
InterfaceSATA III
Cache480 unknown_modifier
Max Sequential ReadUp to 520 MBps
Max Sequential WriteUp to 450 MBps
4KB Random ReadUp to 40,000 IOPS
4KB Random WriteUp to 65,000 IOPS
MTBF1,500,000 hours
Features3D QLC NAND Flash for higher affordability
Big capacity up to 960GB
Advanced hardware LDPC ECC technology
Supports SLC Caching for improved performance
Free software: SSD Toolbox and Migration Utility
Supports S.M.A.R.T., TRIM Command, and NCQ
Operating Temperature0°C ~ +70°C
Storage Temperature-40°C ~ +85°C
Max Vibration Resistance1500G / 0.5 ms
Height7.00mm
Width69.85mm
Depth100.45mm
Weight47.50g
Package ContentSSD

Questions about this item

Should I pick the 480 GB SU630 or the larger 960 GB version?

Choose 480 GB if you only need space for the operating system and a handful of applications; the 960 GB model simply doubles the available capacity while keeping the same 520 MB/s read and 450 MB/s write limits.

Will I actually see 520 MB/s read speed in my laptop?

In a typical SATA III system the drive will deliver close to 520 MB/s for large sequential reads, while everyday mixed workloads run at the 40,000 IOPS random-read and 65,000 IOPS random-write rates.

Does the SATA III interface cap the SU630 below its rated speeds?

SATA III tops out at 6 Gb/s, so the published 520 MB/s read and 450 MB/s write are already the practical ceiling; the drive cannot exceed them regardless of the controller.
