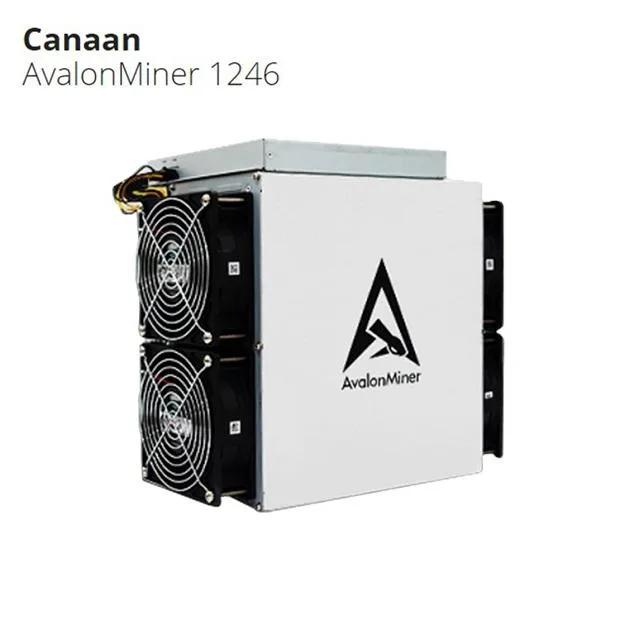

Rectangular aluminium mining unit with integrated PSU four front fans Ethernet port 331 by 195 by 292 mm 12.8 kg

AFRNDK

AFRNDK AvalonMiner 1246 83Th/s 3420W Integrated PSU 220V

SKU CH-THP6-1GAEG

SHA-256 ASIC miner delivering 83 Th/s at 3420 W with integrated PSU, four 12 V fans and Ethernet, requiring 220 V input

  • 83Th/s SHA-256 hashrate for Bitcoin mining
  • 3420W power draw at 38J/TH efficiency
  • Integrated PSU removes external power-supply wiring
  • Four 12V 4.5A fans keep 75dB cooling
  • 220V input with 16A AC for stable operation

Canaan AvalonMiner 1246 83Th/s Bitcoin Miner

The AvalonMiner 1246 is a SHA-256 ASIC miner built for Bitcoin and Bitcoin Cash. It delivers a maximum hashrate of 83Th/s while drawing 3420W from a 220V supply. The unit integrates the power supply inside the aluminium enclosure and connects via Ethernet. Operating range is -5 to 35 °C at 5 to 95 % humidity.

Integrated PSU and Four 12V Fans

The power supply is built into the chassis so no external PSU is required. Four 12V 4.5A fans provide forced-air cooling for the high heat output. This integrated design reduces cable clutter and improves reliability in rack or cabinet deployments.

Ethernet Interface and 38J/TH Efficiency

Network connectivity uses a standard Ethernet port with no wireless option. Power efficiency is 38J/TH at the rated hashrate. The miner accepts 220V AC at 16A with a maximum input of 285V and 50 to 60 Hz frequency. Wrong voltage will damage the hardware.

Highlights

  • 83Th/s SHA-256 hashrate for Bitcoin mining
  • 3420W power draw at 38J/TH efficiency
  • Integrated PSU removes external power-supply wiring
  • Four 12V 4.5A fans keep 75dB cooling
  • 220V input with 16A AC for stable operation

Specifications

No published specifications for this item yet.

Questions about this item

Does the integrated PSU run on a standard 220 V household circuit?

The miner requires 220 V input and draws up to 16 A. A dedicated 220 V circuit rated for at least 16 A is needed; standard household sockets may not supply enough current.

Will the four 12 V 4.5 A fans keep the unit within its 35 °C operating limit?

The four fans are designed to dissipate the 3420 W heat load. Ambient temperature must stay below 35 °C and humidity below 95 % for reliable operation.

What network connection does the miner use and is a controller included?

The unit connects via Ethernet. No separate controller is mentioned; the miner is managed through its built-in web interface.
