Rectangular metal mining unit with four front fans and integrated power supply

AFRNDK

AFRNDK AvalonMiner 1246 83TH/s SHA-256 mining hardware

SKU CH-M42S-H16ZD

SHA-256 ASIC miner delivering 83 TH/s at 3420 W with integrated power supply, four 12 V fans and Ethernet connectivity

  • 83 TH/s hashrate for SHA-256 Bitcoin mining
  • 38 J/TH power efficiency at 3155 W typical draw
  • Integrated power supply with 220 V input requirement
  • Four 12 V 4.5 A fans cooling to 75 dB
  • Compact 331 x 195 x 292 mm chassis for rack density

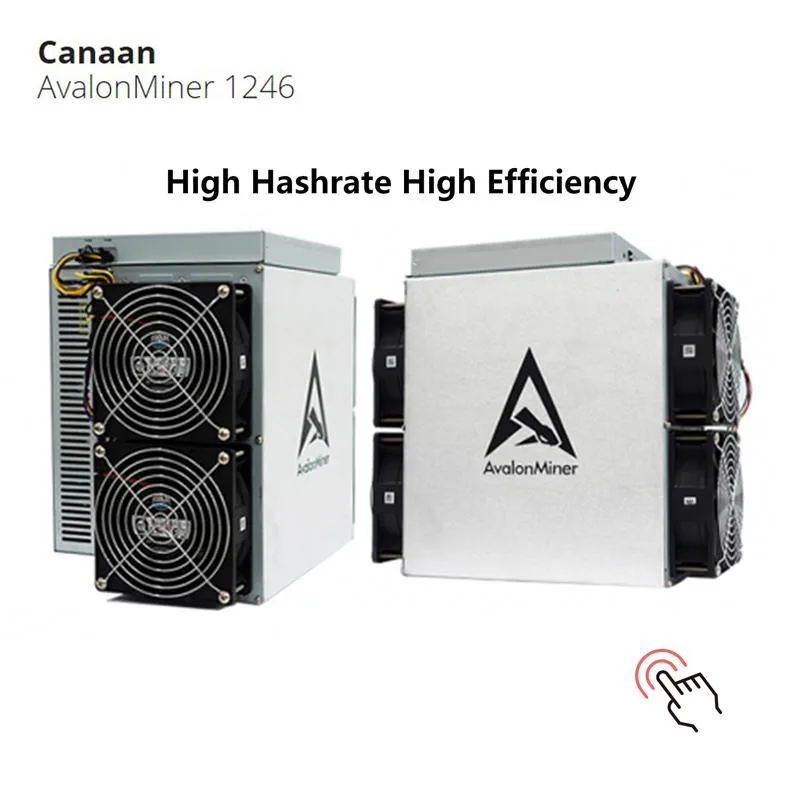

AvalonMiner 1246 SHA-256 ASIC

The AvalonMiner 1246 is a Canaan-built ASIC designed for SHA-256 mining. It targets operators who want a single integrated unit that includes the power supply. The machine delivers a maximum hashrate of 83 TH/s while drawing 3420 W from a 220 V supply. It connects to the network over Ethernet and operates between -5 °C and 35 °C.

83 TH/s at 38 J/TH efficiency

At the rated 83 TH/s the unit consumes 3420 W, yielding a power efficiency of 38 J/TH. The alternative 3155 W figure represents a lower operating point that reduces output accordingly. Four 12 V 4.5 A fans move air through the chassis to keep temperatures in range, but the 75 dB noise level means the device needs a dedicated space. Continuous operation at the top hashrate requires stable 220 V input; incorrect voltage can damage the hardware.

Integrated PSU and four 12038 fans

The power supply is built into the enclosure, removing the need for an external PSU and its cabling. Four 12038 fans are pre-installed and wired to the 12 V rail, so cooling is handled out of the box. The integrated design also fixes the AC input at 16 A across 50 Hz to 60 Hz with a maximum voltage of 285 V. No extra mounting hardware or software licences are mentioned in the data.

Highlights

  • 83 TH/s hashrate for SHA-256 Bitcoin mining
  • 38 J/TH power efficiency at 3155 W typical draw
  • Integrated power supply with 220 V input requirement
  • Four 12 V 4.5 A fans cooling to 75 dB
  • Compact 331 x 195 x 292 mm chassis for rack density

Specifications

No published specifications for this item yet.

Questions about this item

Will the AvalonMiner 1246 run on my existing 220V circuit without extra wiring?

The unit requires a 220V supply at 50Hz to 60Hz and draws up to 16A, so a dedicated 220V circuit rated for at least 16A is needed.

How can I confirm the miner is hashing at the rated 83TH/s after I connect it?

Log into the web dashboard via the Ethernet port; the real-time hashrate panel should settle around 83TH/s once the chips reach operating temperature.

Does the box include the integrated power supply and all four 12038 cooling fans already installed?

Yes, the power supply is built into the enclosure and the four 12038 fans come fitted; only a 220V power cord and an Ethernet cable need to be supplied separately.
