AFRNDK Jasminer X16QE 1650M mining hardware

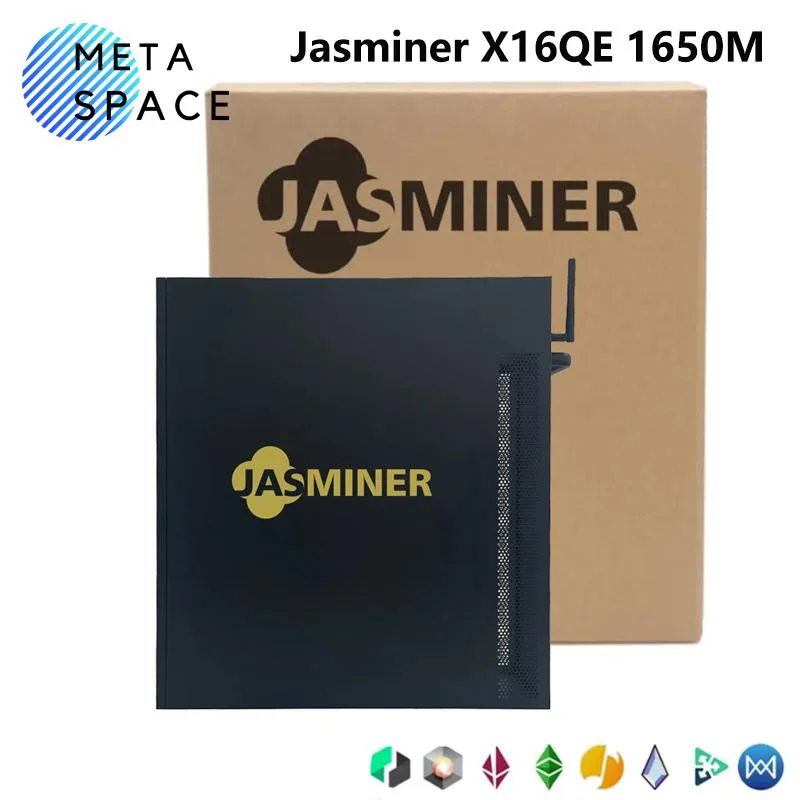

AFRNDK Jasminer X16QE 1650M ASIC Miner

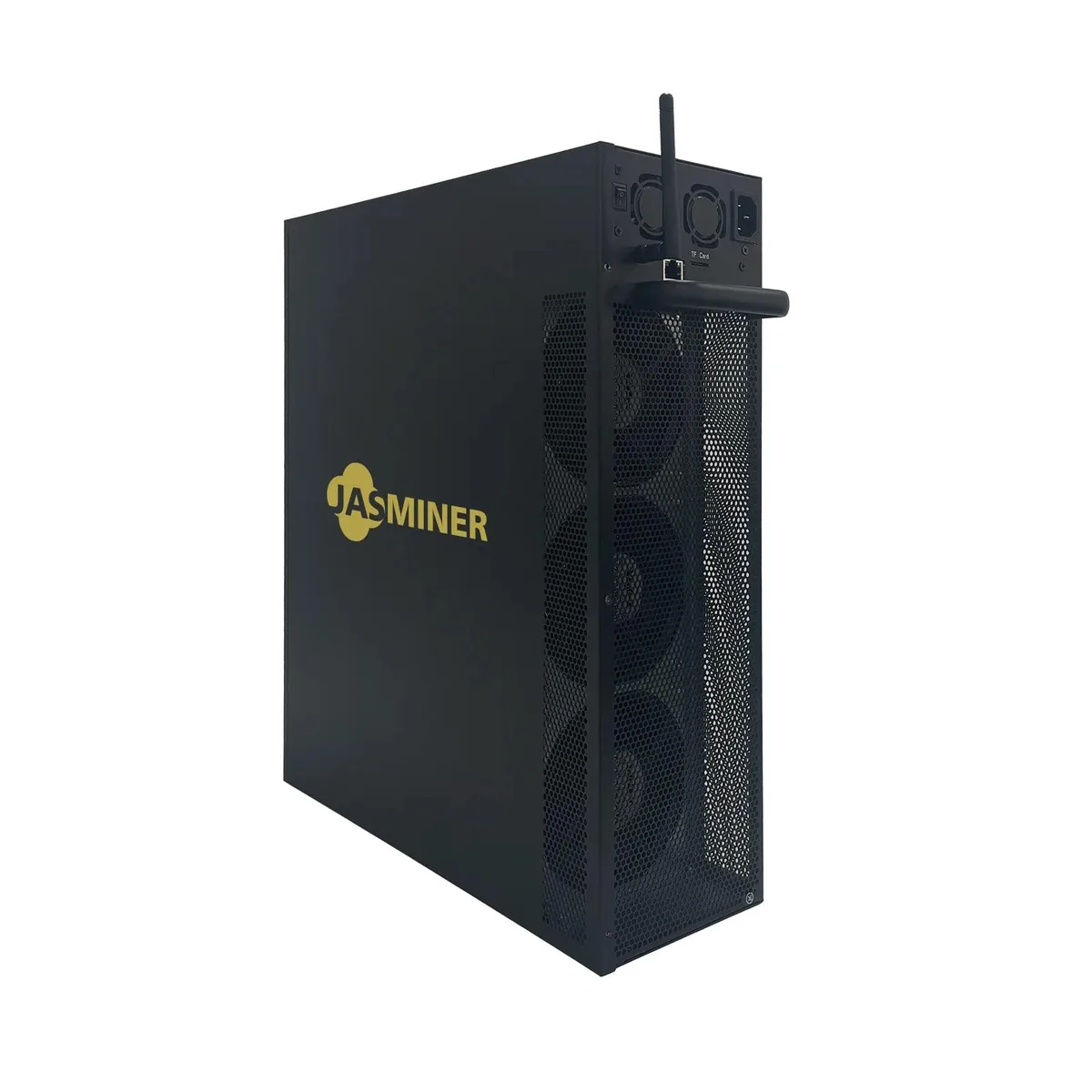

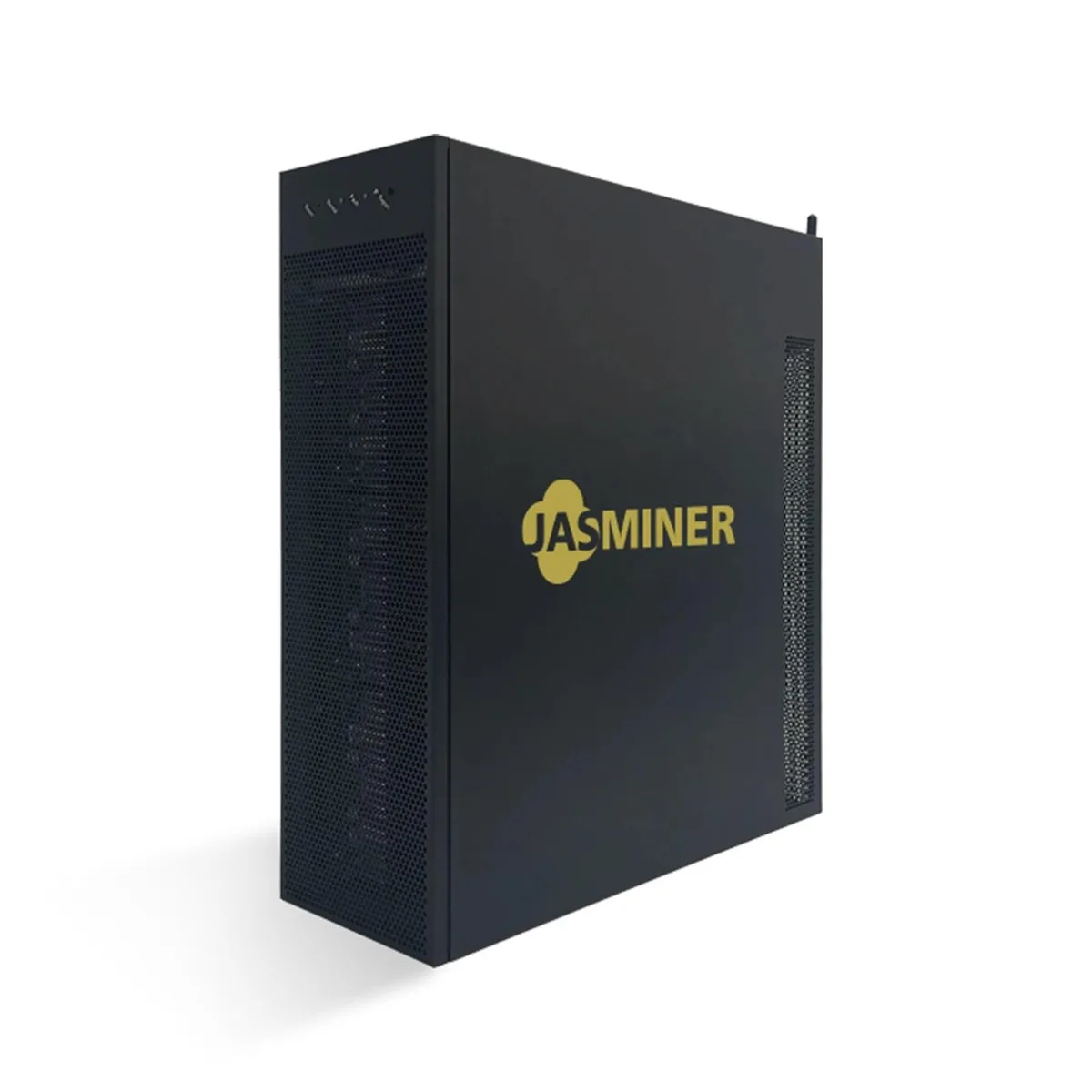

The AFRNDK Jasminer X16QE 1650M is an ASIC mining machine built for the ETCHASH and ETHASH algorithms. It targets coins such as ETC, ZIL and ETHW with a rated hashrate of 1650Mh/s ±10%. The unit ships new in a 3U server form factor and includes 6GB of onboard memory. It operates from a 110-240V supply and draws 550W at the wall.

3U rackmount design with hanging lugs for flexible

The 3U chassis measures to standard rack depth and provides hanging lugs on both sides for IDC cabinet or wall mounting. Three internal fans push air through a grille optimised for flow, so no liquid loop or external ducting is required. The 110-240V auto-ranging input lets the miner run on common single-phase circuits without a special PDU. Six gigabytes of memory are soldered on the board, leaving no DIMM slots to populate.

Air-cooled thermal design rated 40dB at 0-40°C

The air-cooled solution uses three fans tuned for a flagship silent profile, keeping acoustic output at 40dB in typical operation. Operating temperature range spans 0-40°C, allowing placement in a bedroom or office as well as a server room. Power efficiency is quoted at 0.33J/MH, so the 550W draw scales directly with the 1650Mh/s workload. No liquid plumbing or additional cooling infrastructure is needed.
