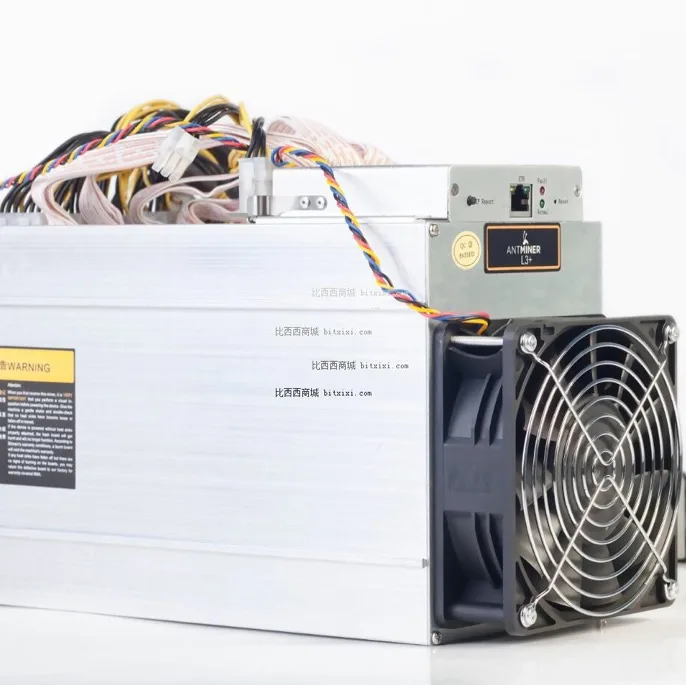

Rectangular silver aluminium miner with dual fans, four hash boards visible, built-in PSU, Ethernet port, compact industrial finish

AFRNDK

AFRNDK L3+ 504 MH/s 1.6 J/MH 800 W Scrypt Miner with PSU

SKU CH-D5H3-CMQ99

Scrypt ASIC miner delivering 504 MH/s at 1.6 J/MH with 800 W draw and included PSU

  • 504 MH/s Scrypt hash rate with ±5% tolerance
  • 6 J/MH power efficiency at the wall with 93% PSU efficiency
  • 800 W wall draw plus 10% variance using APW3 supply
  • 288 BM1485 chips across four hashing boards with independent heat sinks
  • Dual front and rear fans plus aluminium chassis for 0–40 °C operation

Scrypt ASIC Miner with Included PSU

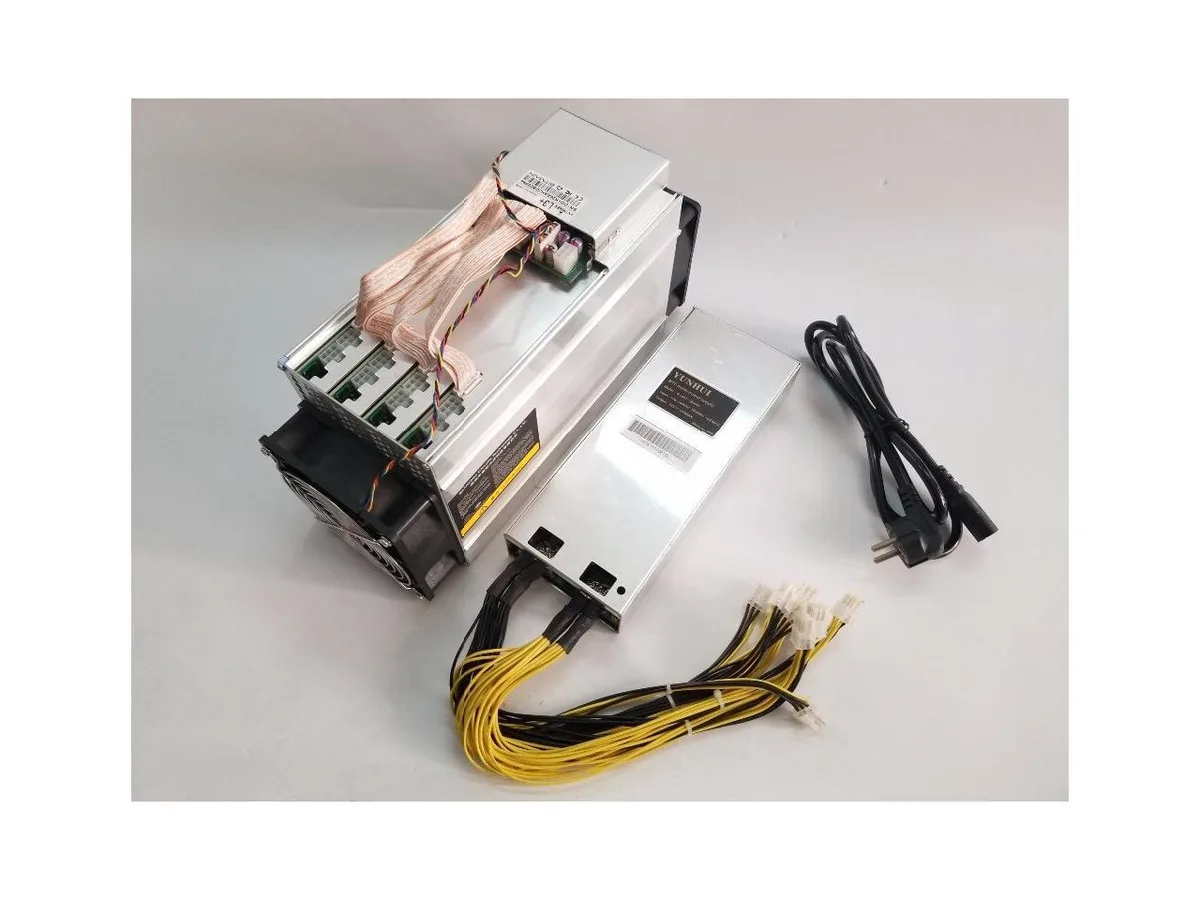

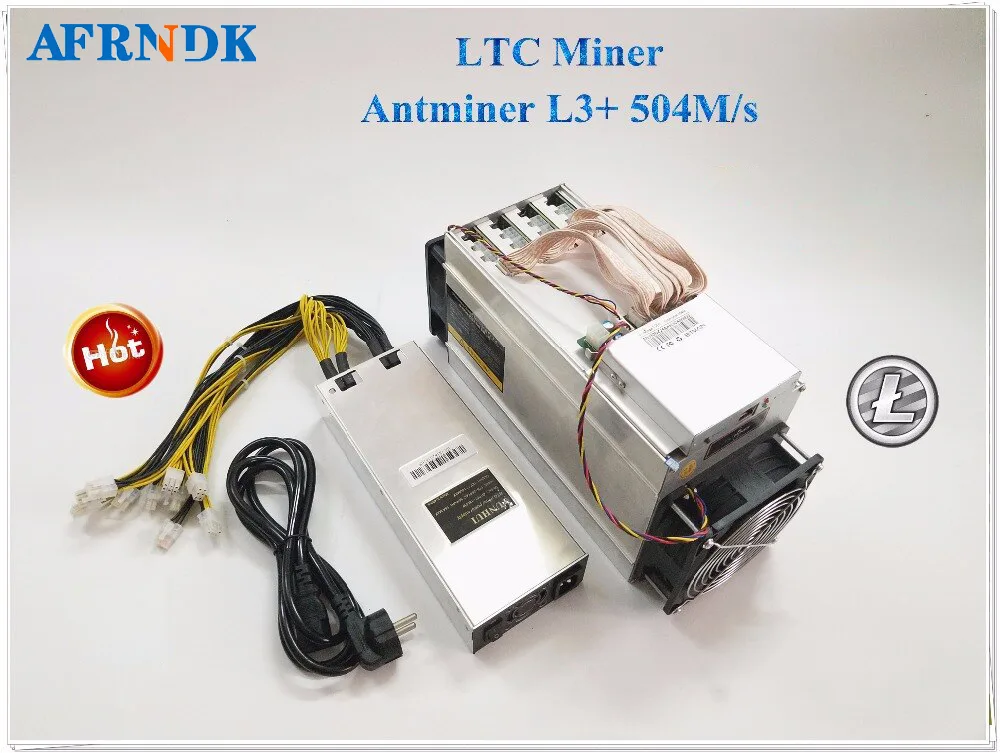

The AFRNDK L3+ is a Scrypt algorithm miner built for Litecoin and Dogecoin using 288 BM1485 ASIC chips arranged across four hashing boards. It delivers a nominal hash rate of 504 MH/s with a tolerance of +/- 5 percent. The unit ships with a Bitmain APW3 power supply and is intended for operators who want a single integrated mining appliance. Buyers who need a different algorithm or who want GPU flexibility will not be served by this device.

Efficiency and Power Limits at the Wall

Power draw is rated at 800 W at the wall with a plus or minus 10 percent variance when paired with the supplied 93 percent efficient APW3 PSU. The resulting energy efficiency is 1.6 J/MH, also subject to a 10 percent margin. DC input voltage must stay between 11.60 V and 13.00 V. Operating temperature range is 0 to 40 degrees Celsius and the miner connects to the network via Ethernet only. Environments that exceed the temperature ceiling or lack stable voltage will reduce reliability.

Rack Installation and Thermal Management

The chassis measures 352 mm long, 130 mm wide and 187.5 mm high with an aluminium alloy frame and independent heat sinks on every chip. Double front and rear fans provide forced airflow through the compact structure. Installers must ensure adequate clearance for unrestricted intake and exhaust and verify that the PDU can supply the required DC voltage range. Dust accumulation on the dense fin stacks is the most common cause of thermal throttling in continuous operation.

Highlights

  • 504 MH/s Scrypt hash rate with ±5% tolerance
  • 6 J/MH power efficiency at the wall with 93% PSU efficiency
  • 800 W wall draw plus 10% variance using APW3 supply
  • 288 BM1485 chips across four hashing boards with independent heat sinks
  • Dual front and rear fans plus aluminium chassis for 0–40 °C operation

Specifications

No published specifications for this item yet.

Questions about this item

Should I pick the 504 MH/s model or a lower-hash variant?

This unit is offered at a single 504 MH/s rating with a ±5 % tolerance, so there is no lower-capacity version to choose between.

What does 504 MH/s actually deliver in daily mining?

At 504 MH/s the miner processes Scrypt work at that rate, drawing about 800 W at the wall with the included APW3 PSU running at 93 % efficiency.

How does the Ethernet connection limit throughput?

The built-in Ethernet port handles stratum traffic for the four hashing boards; it does not cap the 504 MH/s hash rate under normal pool loads.
