Rectangular M.2 2280 circuit board with graphite heat sink on top

AGI

AGI AI818-43 2TB NVMe M.2 2280 PCIe 4.0 x4 Internal SSD Graphite Heat Sink

SKU CH-J0AJ-FJGNR

A 2 TB NVMe M.2 2280 PCIe 4.0 x4 drive with a graphite heat sink, sequential reads up to 5200 MBps and writes up to 4700 MBps

  • Device TypeInternal Solid State Drive (SSD)
  • Used ForConsumer
  • Form FactorM.2 2280
  • Capacity2TB
  • Memory Components3D NAND
  • InterfacePCI-Express 4.0 x4

Options AI818-43-2TB

  • Sequential read up to 5200 MBps accelerates boot and load times
  • Sequential write up to 4700 MBps speeds up large file saves
  • 2TB capacity stores extensive game libraries and media projects
  • Graphite heat sink maintains performance under sustained workloads
  • 1200 TBW endurance rating supports heavy daily write cycles

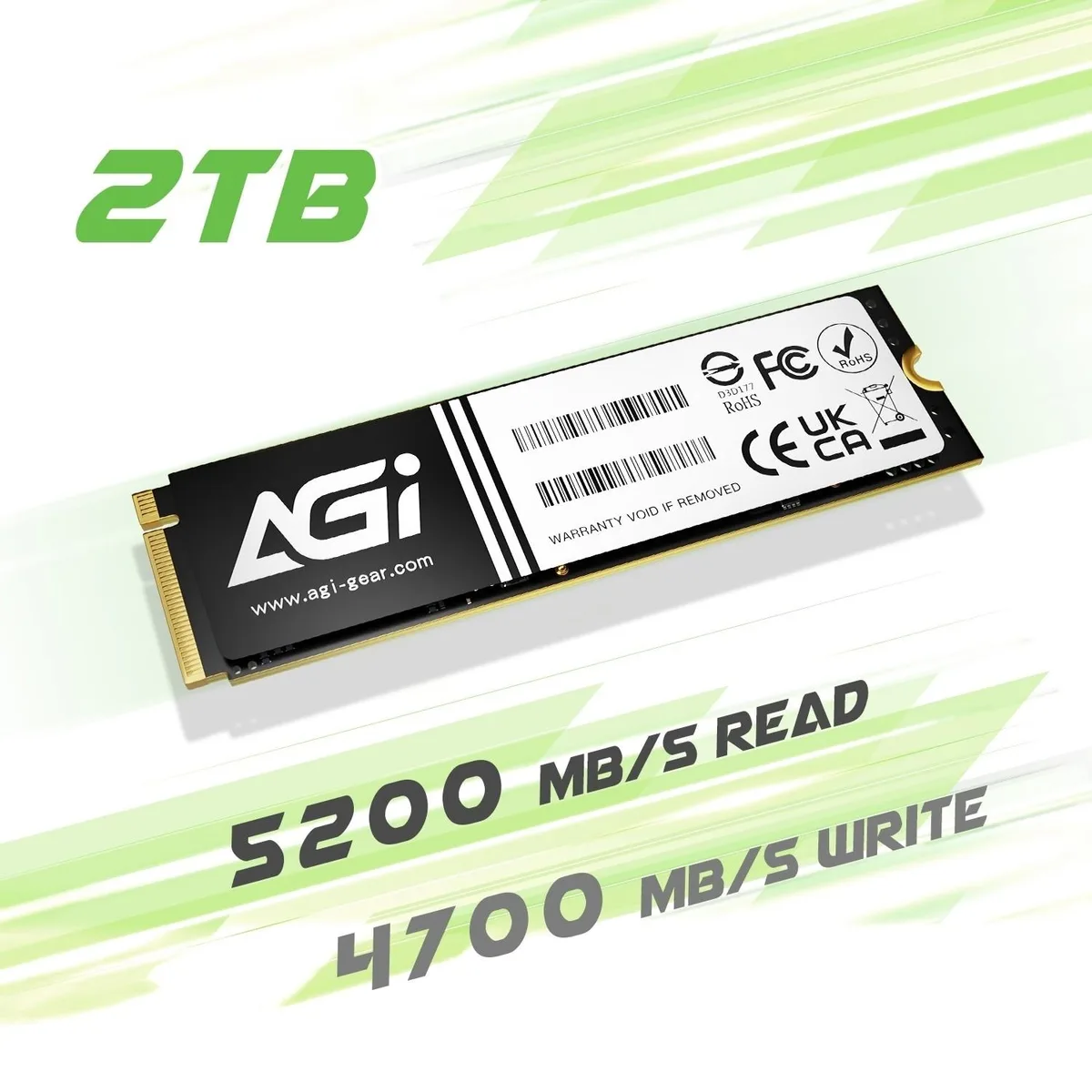

AGI AI818-43 2TB NVMe M.2 SSD

The AGI AI818-43 is a 2TB internal solid state drive built for consumer desktops and laptops that accept an M.2 2280 module. It uses 3D NAND flash and connects through a PCIe 4.0 x4 interface. A graphite heat sink is included to help manage thermals during sustained workloads.

PCIe 4.0 x4 sequential limits

The drive is rated for sequential reads up to 5200 MBps and sequential writes up to 4700 MBps over the PCIe 4.0 x4 link. Actual throughput depends on the host controller, available lanes and thermal conditions. The graphite heat sink helps sustain performance by keeping the controller within its 0°C to 70°C operating range.

M.2 2280 slot and clearance check

Verify that your motherboard or laptop provides an M.2 2280 slot wired for PCIe 4.0 x4 and that the BIOS supports NVMe boot if required. The module measures 80 mm by 22 mm and is 5.4 mm thick with the heat sink fitted, so confirm clearance around the slot. The drive operates on 3.3 V power and is rated for 1200 TBW endurance.

Highlights

  • Sequential read up to 5200 MBps accelerates boot and load times
  • Sequential write up to 4700 MBps speeds up large file saves
  • 2TB capacity stores extensive game libraries and media projects
  • Graphite heat sink maintains performance under sustained workloads
  • 1200 TBW endurance rating supports heavy daily write cycles

Specifications

BrandAGI
SeriesAI818-43
ModelAGI2T0G43AI818
Device TypeInternal Solid State Drive (SSD)
Used ForConsumer
Form FactorM.2 2280
Capacity2TB
Memory Components3D NAND
InterfacePCI-Express 4.0 x4
Max Sequential ReadUp to 5200 MBps
Max Sequential WriteUp to 4700 MBps
Terabytes Written (TBW)1200TB
MTBF1,600,000 hours
HeatSinkwith HeatSink
FeaturesCapacity: 512GB / 1TB / 2TB
NAND Flash: 3D NAND
Interface: PCIe Gen 4 x 4
Certifications: CE, FCC, BSMI, RoHS
Warranty: 5 years
Operating Temperature0°C ~ +70°C
Storage Temperature-40°C ~ +85°C
Operating Humidity5% to~98%RH (Non-condensing)
Max Shock Resistance1500G
Max Vibration Resistance15G
Height5.30mm
Width22.00mm
Depth80.00mm
Weight7.5g

Other versions of this model

4 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

Should I pick the 512GB, 1TB or 2TB version of the AI818-43?

The 2TB model shown here offers 1200 TBW and up to 5200/4700 MB/s sequential speeds. The smaller 512GB and 1TB versions share the same PCIe 4.0 x4 interface and graphite heat sink but have lower endurance ratings.

What do the 5200 MB/s read and 4700 MB/s write figures mean once the drive is installed?

Those are peak sequential numbers measured under ideal conditions. Real-world game loads, OS boots and file copies will be lower, but the PCIe 4.0 x4 link and 3D NAND still deliver noticeably faster throughput than PCIe 3.0 drives.

Does the PCIe 4.0 x4 interface limit performance on a PCIe 3.0 motherboard?

The drive is backward compatible and will run at PCIe 3.0 x4 speeds on an older slot, capping sequential throughput at roughly half the rated 5200/4700 MB/s while retaining full NVMe protocol support.
