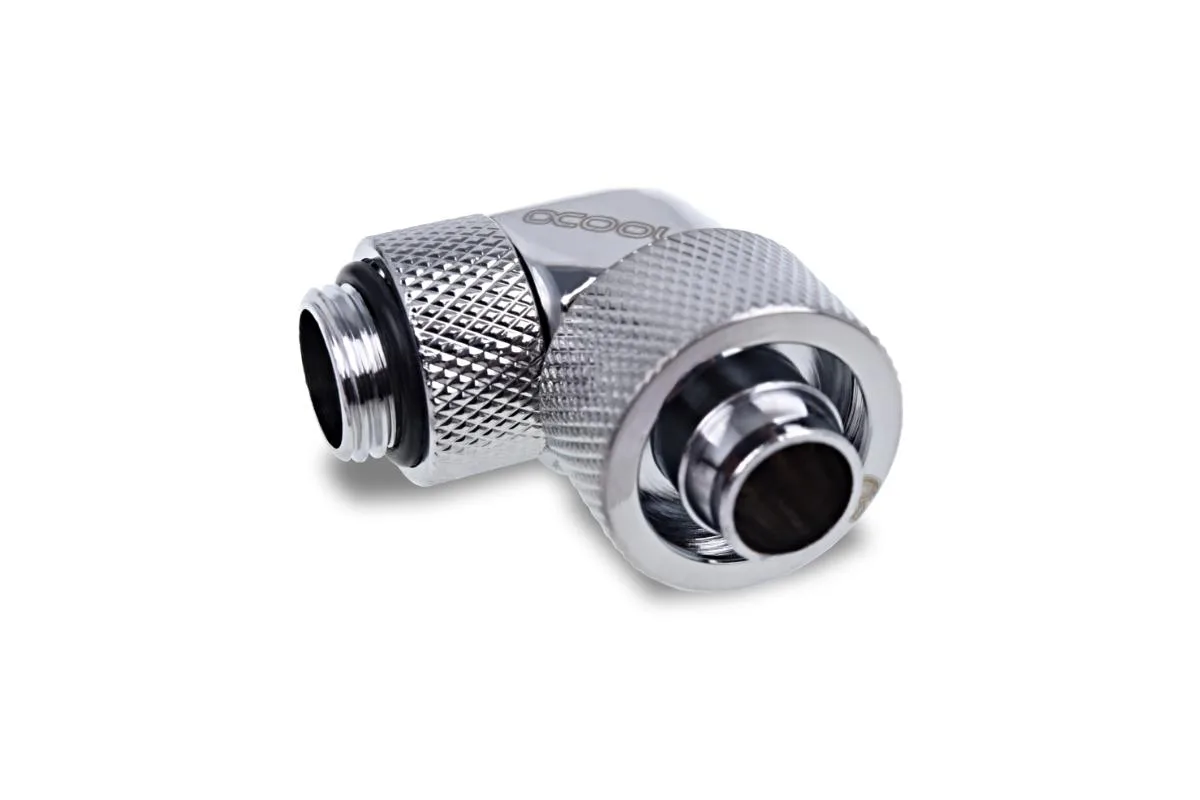

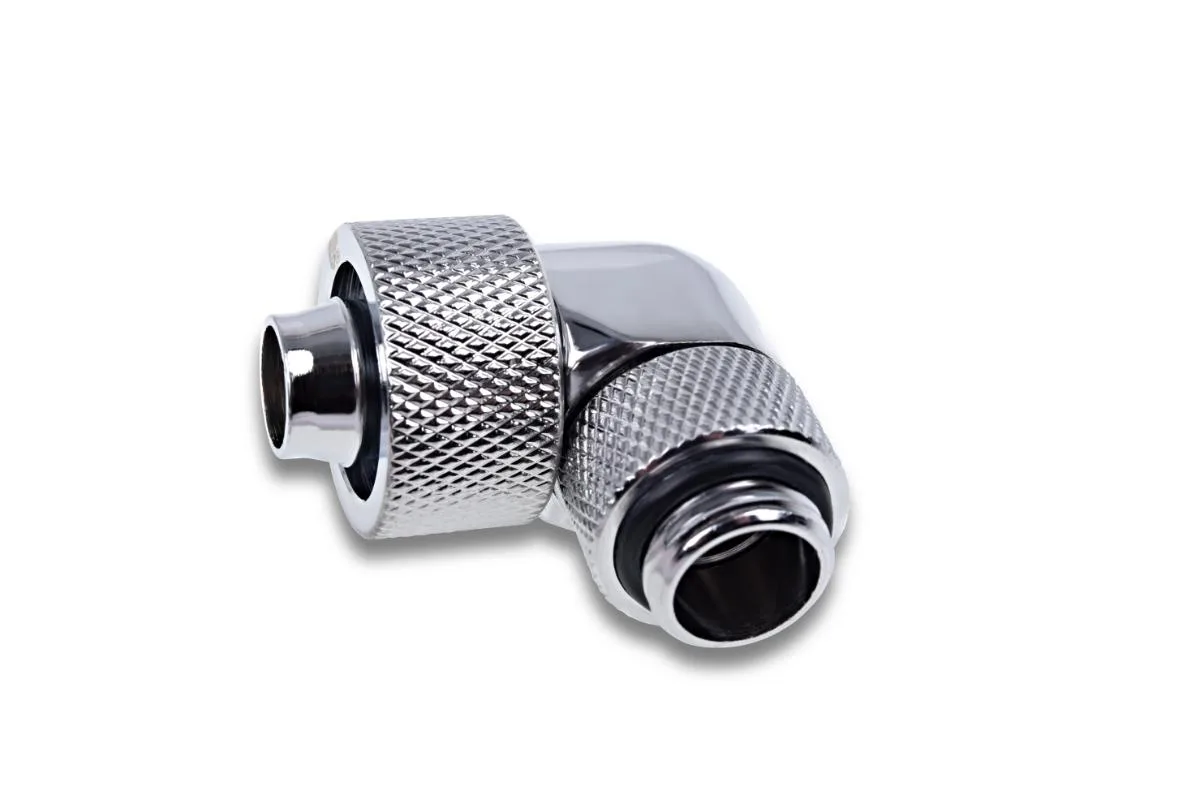

Four chrome 90-degree rotatable compression fittings with G1/4 threads for 16/10mm tubing

Alphacool

Alphacool Eiszapfen 16/10mm 90° Rotatable G1/4 Chrome 4-Pack (17614)

SKU CH-V0HD-NM52D

Pack of four chrome 90-degree rotatable G1/4 compression fittings for 16/10mm tubing

  • TypeFittings

Size 16/10mm

  • 90° rotatable design simplifies complex hose routing
  • G1/4 thread fits 95% of water-cooling components
  • Chrome coating bonded to resist chipping and peeling
  • 360° rotation on threaded side allows flexible alignment
  • High-flow 16/10 mm compression fitting for 3/8" ID hose

High-Flow Chrome Fittings

Alphacool Eiszapfen 16/10mm 90° rotatable compression fittings join 3/8" ID by 5/8" OD tubing to any G1/4 threaded port. The four-pack supplies enough chrome-plated brass connectors for a typical custom loop. Each fitting rotates 360° for stress-free routing and the 90° bend keeps tubing runs clean inside tight cases.

Loop Builders Wanting Clean Angles

These suit enthusiasts assembling hard-tube or soft-tube loops who need a right-angle turn without extra adapters. The rotatable base eliminates alignment guesswork during assembly. Builders who require straight-through or 45° profiles, or who prefer matte black accents, should look at other Eiszapfen variants.

G1/4 Thread With 90° Rotatable Bend

The single deciding spec is the combination of a standard G1/4 thread and a 90° rotatable elbow that accepts 16/10mm hose. If your block, radiator or reservoir uses G1/4 ports and your tubing matches 16/10mm, this four-pack completes the connection; otherwise a different thread or hose size is required.

Highlights

  • 90° rotatable design simplifies complex hose routing
  • G1/4 thread fits 95% of water-cooling components
  • Chrome coating bonded to resist chipping and peeling
  • 360° rotation on threaded side allows flexible alignment
  • High-flow 16/10 mm compression fitting for 3/8" ID hose

Specifications

TypeFittings

Other versions of this model

1 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

Does the rotatable G1/4 thread on these 90° fittings need any extra power or cooling when the loop runs all day?

No — these are passive brass compression fittings with a 360° rotatable G1/4 thread, so they add no heat, noise or power draw to a continuous loop.

What hose size must I already have for the 16/10mm barb on each fitting to seal properly?

You need tubing with a 10 mm inner diameter and 16 mm outer diameter (3/8" ID × 5/8" OD) to match the 16/10mm compression end.

Will the 5 mm G1/4 thread length on these chrome fittings reach the ports on my older water blocks and radiators?

The 5 mm thread is the standard G1/4 length used on 95 % of components, so it fits most legacy blocks and radiators without spacers.
